AJP PR7 660 Adventure (2016)

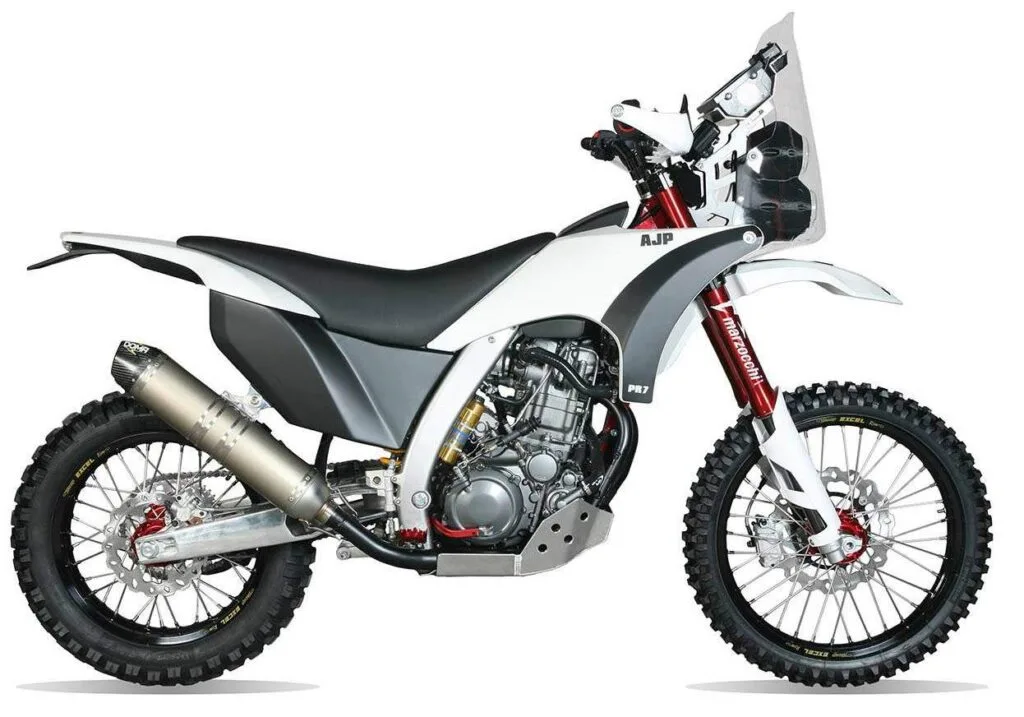

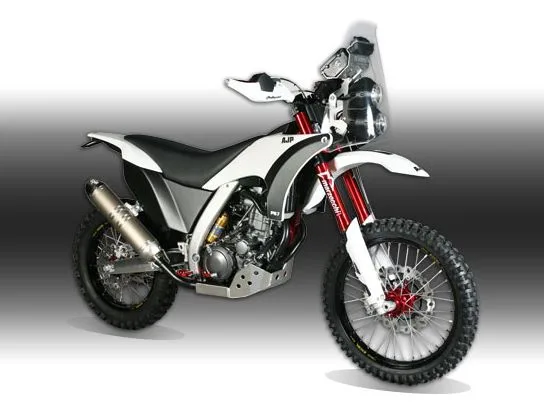

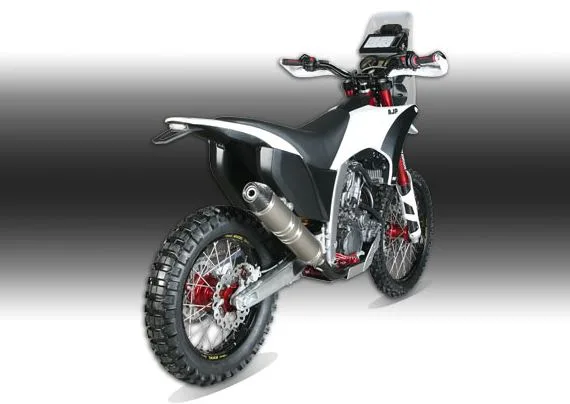

The 2016 AJP PR7 is the latest and most powerful model in the Portuguese brand’s lineup, featuring a 600cc liquid-cooled, four-stroke single-cylinder engine mated to a six-speed gearbox. Designed for serious off-road use, it comes equipped with spoked wheels, knobby tires, a 48mm inverted fork, and a Sachs piggyback rear shock with progressive linkage. A 300mm front disc provides strong braking power, while the 17-liter under-seat fuel tank extends range and lowers the center of gravity for improved handling.

Key Specifications

Engine Type	Single Cylinder, SWM, DOHC
Engine Capacity	600 cc / 36.6 cubic inches
Power	35.8 kW / 48 hp @ 6000 rpm
Torque	58 Nm / 5.9 kgf-m / 42.8 ft lbs @ 5500 rpm
Fuel Tank Capacity	17 L / 4.5 US gal
Weight (Dry)	155 kg / 342 lbs
Weight (wet/kerb)	172 kg / 380 lbs
Seat Height	919 mm / 36.2 inches

All Specifications

Make & Model

Model	AJP PR7 660 Adventure
Year	2016

Engine

Engine	Single Cylinger, SWM, DOHC
Capacity	600 cc / 36.6 cubic inches
Bore x Stroke	100 x 76.4 mm
Cooling System	Liquid cooled
Lubrication	Wet Sump
Compression Ratio	12.4:1
Exhaust	2-into-1
Induction	EFI 45mm Throttle body
Ignition	Electronic
Battery	YTX5L-BS, 12V, 4Ah
Starting	Electric

Transmission

Transmission	6 Speed
Final Drive	Chain

Chassis & Suspension

Frame	Aluminium double beam and double steel cradle
Front Suspension	48 mm USD fork
Front Suspension Travel	299.7 mm / 11.8 inches
Rear Suspension	AJP Progressive Linkage System with reservoir, fully adjustable, Sachs piggyback shock
Rear Suspension Travel	279.4 mm / 11.0 in

Wheels & Brakes

Wheels	Steel with wire spokes
Front Tyre	90/90-21
Rear Tyre	140/80-18
Front Brakes	Disc, 300 mm, double piston caliper
Rear Brakes	Disc, 240mm, single piston caliper

Dimension & Weights

Ground Clearance	320 mm / 12.6 inches
Wheelbase	1539 mm / 60.6 inches
Seat Height	919 mm / 36.2 inches
Dry Weight	155 kg / 342 lbs
Wet (kerb) Weight	~ 172 kg / 380 lbs
Fuel Capacity	17 L / 4.5 US gal
