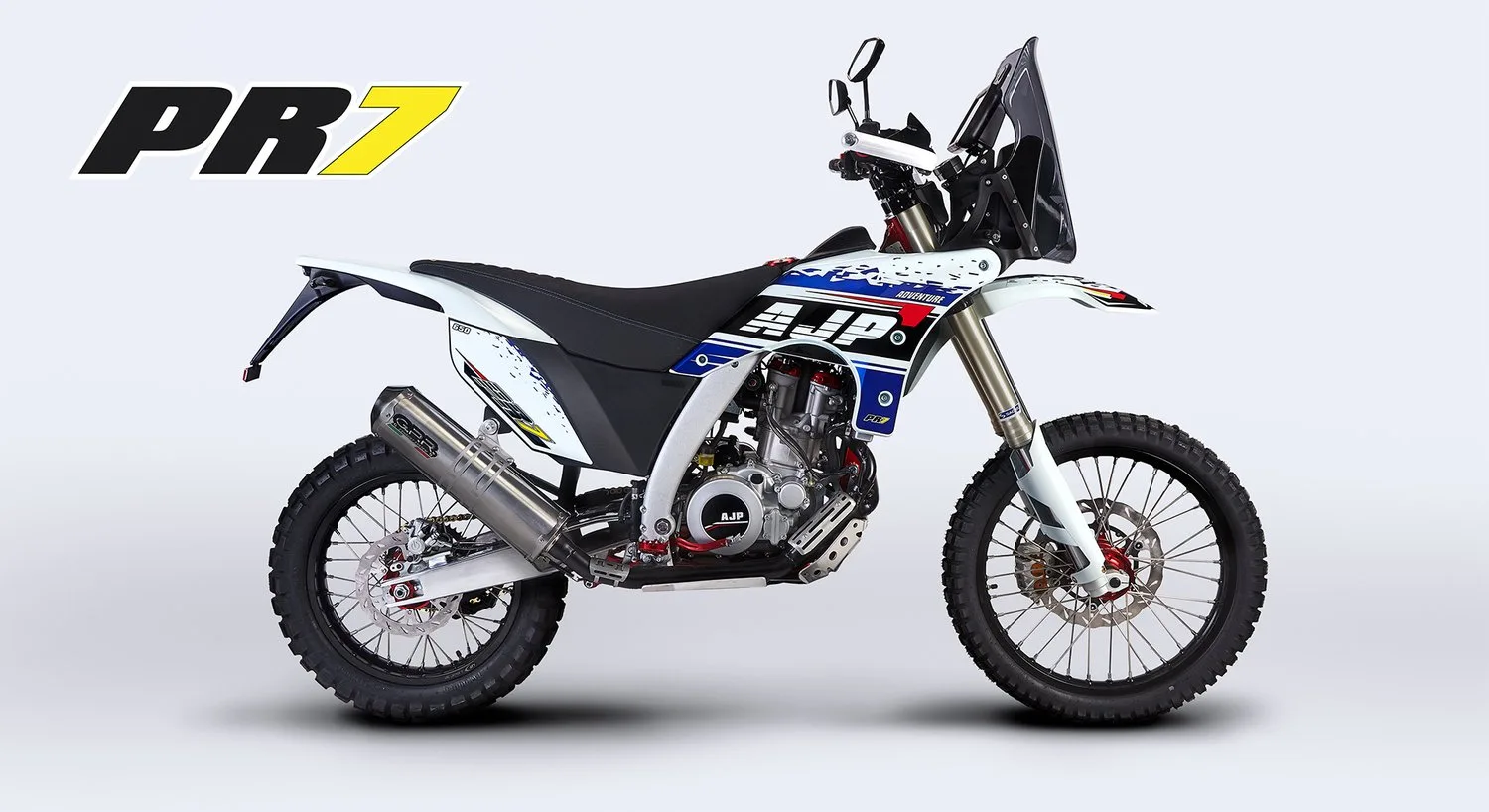

AJP PR7 600 (2023)

Not for the faint of heart – this bike is packed with features and ready to blast across the desert at over 100mph!

The heart of the PR7 is a compact, light and modern engine, equipped with a balancing shaft (low vibrations) and a 6 speed gearbox, making it perfect to match the philosophy of the bike. The bike allows an optimal exploration of the torque delivered by the single-cylinder water-cooled engine, with a double over-head camshaft, 4 valves, and fed by a modern injection system with a 45 mm body.

The PR7 is designed to be the ultimate open-class rally racer. Starting with a new generation frame we added the very best in off-road suspension from Sachs front & rear. Next came billet triple clamps, billet footpegs, and billet bar mounts.

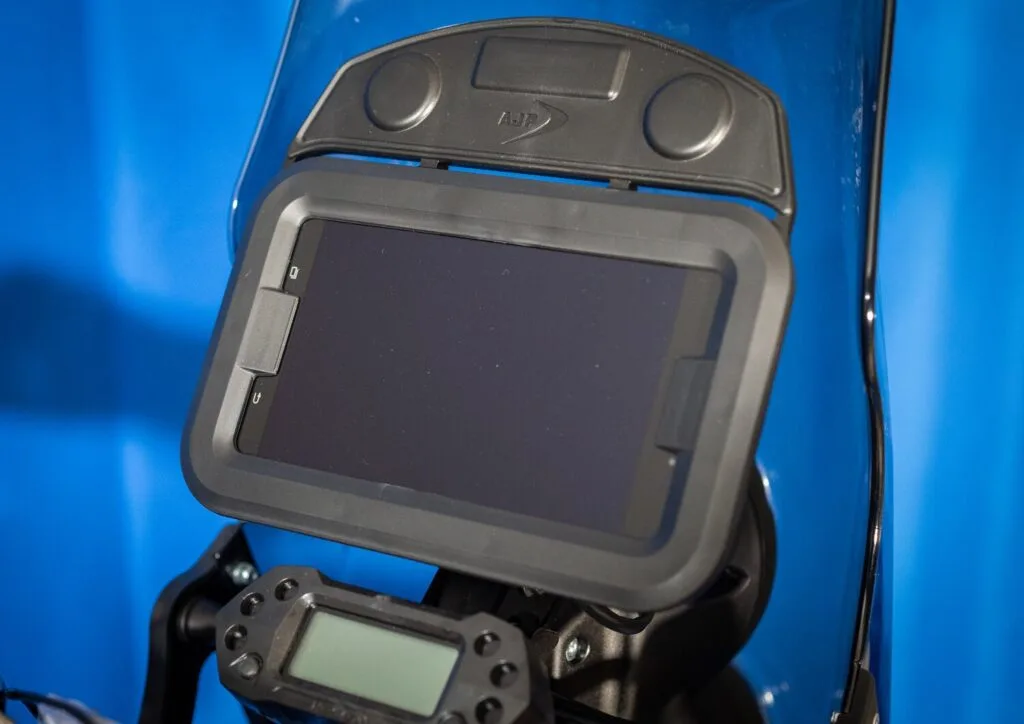

To keep the stand-over height narrow and low – we placed the fuel tank in our usual place – down low, under the seat. The rally-style tower incorporates a very effective windscreen, dual stacked headlamps, and removable tablet computer. Load the Android tablet with whatever you like – navigation, apps, web-based programs – it can handle it all, at speed – through any weather condition.

Key Specifications

Engine Type	Single Cylinder, 4 strokes, DOHC, 4 Valves
Engine Capacity	600 cc / 36.6 cubic inches
Power	60 hp
Fuel Tank Capacity	17 L / 4.5 US gal
Seat Height	919 mm / 36.2 inches

All Specifications

Make & Model

Model	AJP PR7 600
Year	2023

Engine

Engine	Single Cylinder, 4 strokes, DOHC, 4 Valves
Capacity	600 cc / 36.6 cubic inches
Bore x Stroke	100 x 76.4 mm
Cooling System	Liquid Cooled
Clutch	Oil bath, multi disc
Starting	Electric
Fuel System	ATHENA GET INjunction System 45mm
Exhaust	2-in-1
Max Power	60 hp

Transmission

Transmission	6 Speed
Final Drive	Chain

Chassis & Suspension

Frame	Aluminium double beam + steel double cradle
Front Suspension	ZF Sachs USD 48 mm. Double closed cartridge fork
Front Suspension Travel	300 mm
Rear Suspension	ZF Sachs – Progressive system w/ reservoir
Rear Suspension Travel	300 mm

Wheels & Brakes

Wheels	Steel with wire spokes
Front Tyre	90/90 – 21
Rear Tyre	140/80 – 18
Front Brakes	Brembo 300 mm, double piston calliper
Rear Brakes	Brembo 240 mm, single piston calliper

Dimension & Weights

Wheelbase	1539 mm / 60.6 inches
Seat Height	919 mm / 36.2 inches
Ground Clearance	310 mm / 12.2 inches
Fuel Capacity	17 L / 4.5 US gal

More Features

• Adventure ready Fairing – PR7 features a rally-inspired rider cockpit with frame-mounted navigation tower, integrated weatherproof tablet, stacked halogen lighting, and 12v power supply; all of which stay firmly in place regardless of the position of the handlebars.
• Longer Wheelbase
• Fuel tank towards the rear of the chassis and lower for greater centre of gravity
• Front mounted, easy-to-access air filter.
• Billet suspension linkage
