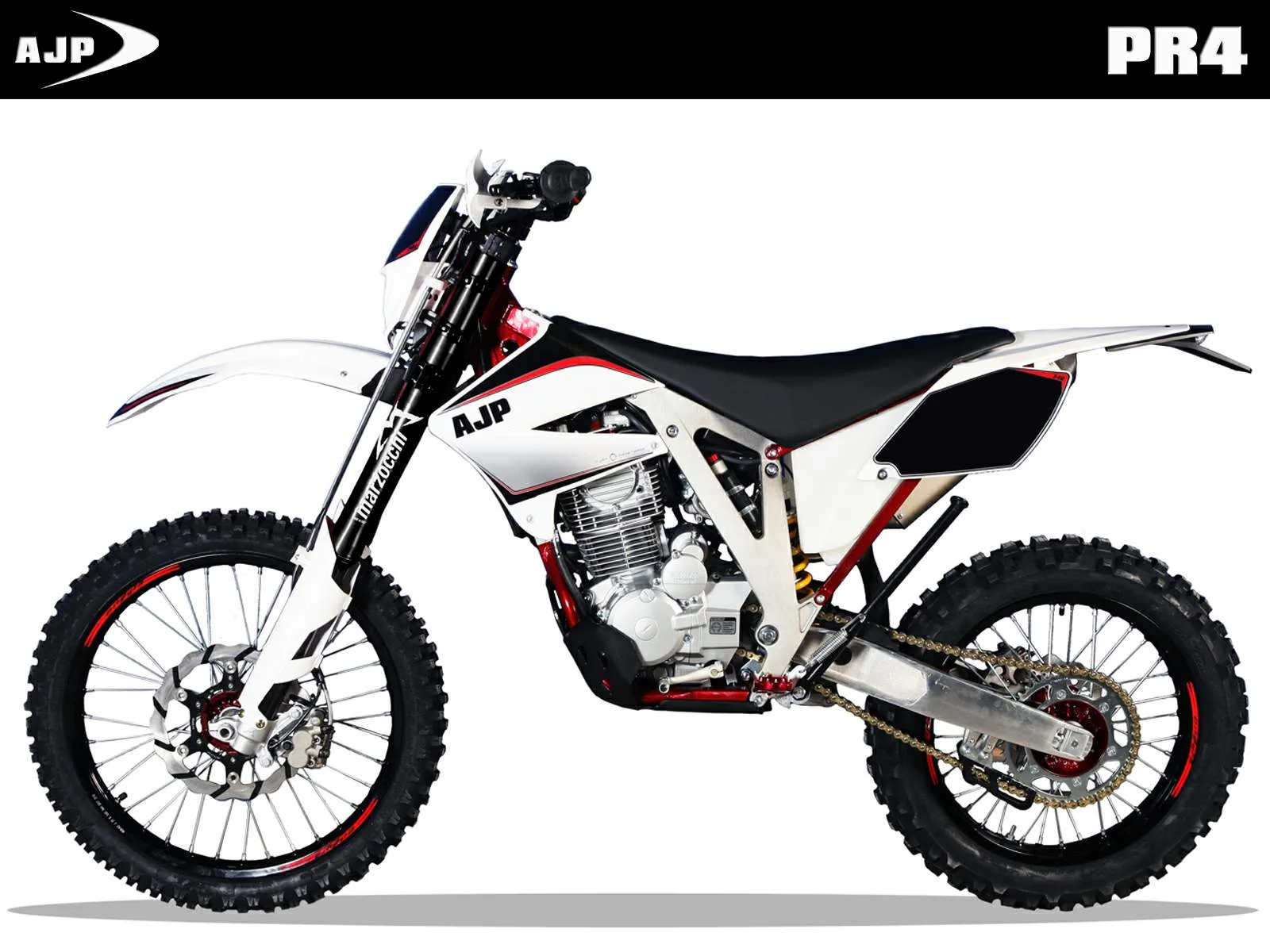

AJP PR4 240 Enduro Pro (2014)

The 2014 AJP PR4 240 Enduro Pro is powered by a 233cc air-cooled, four-stroke single-cylinder engine, coupled with a five-speed manual transmission. It delivers a peak output of 20 horsepower and 18 Nm of torque.

Standard features include spoked wheels fitted with off-road tires, a racing-style paint scheme, a digital instrument display, a 40mm Marzocchi front telescopic fork, a ZF Sachs rear monoshock with progressive linkage, and Brembo disc brakes on both the front and rear.

Key Specifications

Engine Type	Single cylinder, 4-stroke, 2-valve
Engine Capacity	233 cc / 14.2 cub inches
Power	14.7 kW / 19.7 hp @ 8000 rpm
Torque	18 Nm / 13.3 ft lbs @ 7000 rpm
Fuel Tank Capacity	6.8 L / 1.8 US gal
Weight (Dry)	103.9 kg / 229 lbs
Weight (wet/kerb)	111 kg / 244 lbs
Seat Height	919 mm / 36.2 inches

All Specifications

Make & Model

Model	AJP PR4 240 Enduro Pro
Year	2014

Engine

Engine	Single cylinder, 4-stroke, 2-valve
Capacity	233 cc / 14.2 cub inches
Bore x Stroke	69 x 62.5 mm
Cooling System	Air/oil cooled
Engine Oil	NI i-Ride SAE 20WW-50 API SF or SG
Oil Capacity	1.1 L / 2.3 US pints
Exhaust	1-into-1
Induction	PZ 30 mm carburetor
Spark Plug	LG D8TC (Champion A8YC or NGK DR8ES)
Battery	YTX5L-BS, 12V, 4Ah
Starting	Electric + kick
Max Power	14.7 kW / 19.7 hp @ 8000 rpm
Max Torque	18 Nm / 13.3 ft lbs @ 7000 rpm

Transmission

Transmission	5 Speed
Final Drive	Chain

Chassis & Suspension

Frame	Aluminium double beam and double steel cradle
Front Suspension	Marzocchi 40 mm, multi-adjustable
Front Wheel Travel	260 mm / 10.2 in
Rear Suspension	ZF Sachs Progressive System with reservoir, multi adjustable
Rear Wheel Travel	300 mm / 11.8 in

Wheels & Brakes

Wheels	Steel with wire spokes
Front Tyre	90/90-21
Rear Tyre	120/80-18
Front Brakes	Disc, 260 mm, double piston caliper
Rear Brakes	Disc, 220mm, double piston caliper

Dimension & Weights

Ground Clearance	330 mm / 13 in
Wheelbase	1394 mm / 54.9 inches
Seat Height	919 mm / 36.2 inches
Dry Weight	103.9 kg / 229 lbs
Wet (kerb) Weight	~ 124 kg / 273 lbs
Fuel Capacity	8 L / 2.1 US gal
