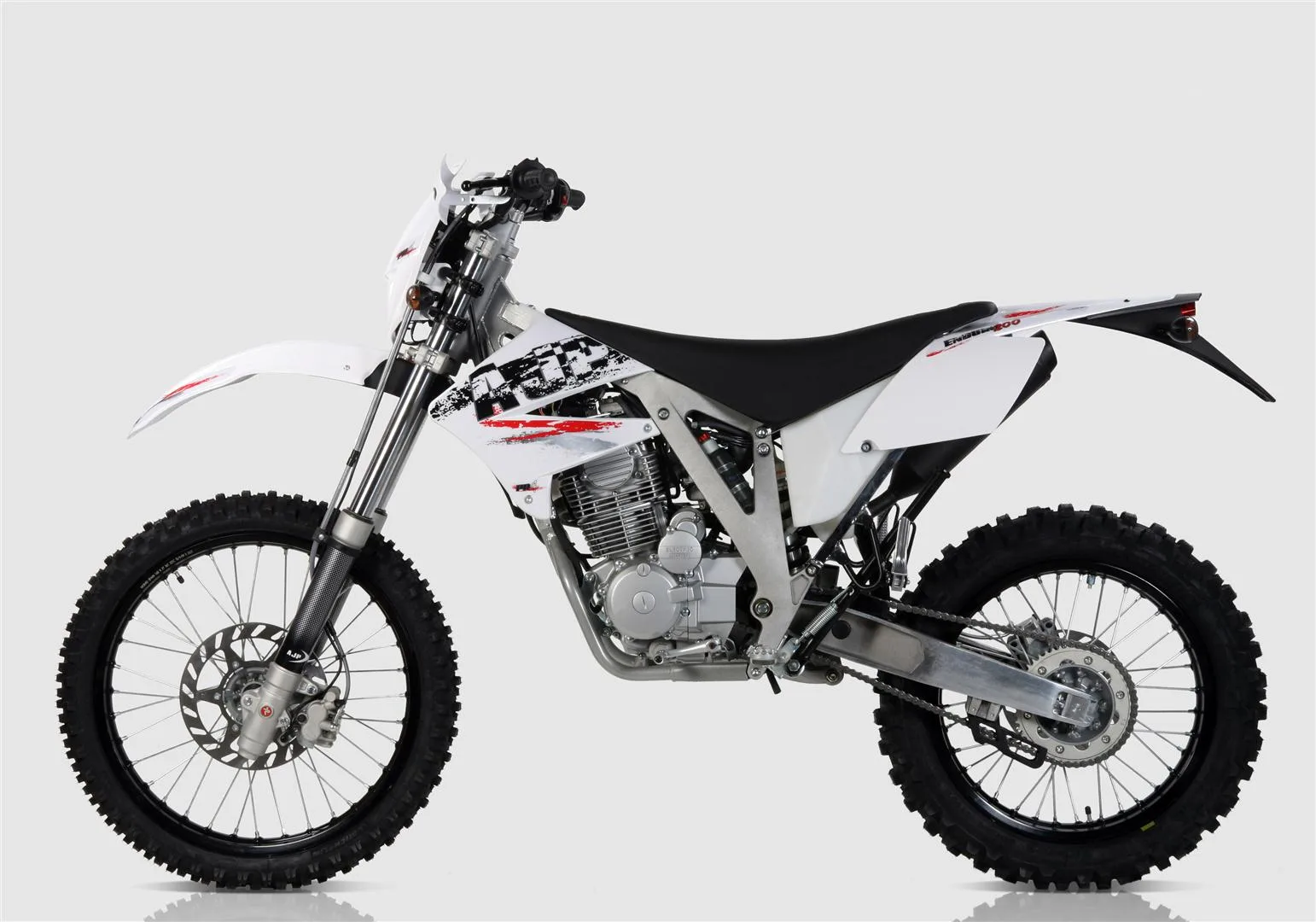

AJP PR4 200 Enduro (2004 – 2006)

The 2004 – 2006 AJP PR4 200 Enduro is equipped with a 198cc air-cooled, four-stroke single-cylinder engine, paired with a five-speed manual transmission. It delivers an estimated 18 horsepower and 16 Nm of torque.

Its key features include a 41mm Paioli telescopic front fork, a Paioli rear monoshock, front and rear Brembo disc brakes, spoked wheels fitted with off-road tires, a digital display, a blacked-out frame, and a high-mounted exhaust system.

Key Specifications

Engine Type	Single cylinder, 4-stroke, 2-valve, SOHC
Engine Capacity	198 cc / 12.1 cub inches
Power	13.2 kW / 18 hp @ 8000 rpm
Torque	15.5 Nm / 11.4 ft lbs @ 7000 rpm
Fuel Tank Capacity	8 L / 2.1 US gal
Weight (Dry)	105 kg / 231 lbs
Weight (wet/kerb)	~ 124 kg / 273 lbs
Seat Height	909 mm / 35.8 inches

All Specifications

Make & Model

Model	AJP PR4 200 Enduro
Year	2004 – 2006

Engine

Engine	Single cylinder, 4-stroke, 2-valve, SOHC
Capacity	198 cc / 12.1 cub inches
Bore x Stroke	68.8 x 53.3 mm
Cooling System	Air/oil cooled
Exhaust	1-into-1
Induction	Walbro 30 mm carburetor
Ignition	CDI
Starting	Electric + kick
Max Power	13.2 kW / 18 hp @ 8000 rpm
Max Torque	15.5 Nm / 11.4 ft lbs @ 7000 rpm

Transmission

Transmission	5 Speed
Final Drive	Chain

Chassis & Suspension

Frame	Steel double cradle, detachable rear frame
Front Suspension	Paioli telescopic fork, 41 mm
Front Suspension Travel	260 mm / 10.2 inches
Rear Suspension	Paioli mono shock absorber
Rear Suspension Travel	260 mm / 10.2 inches

Wheels & Brakes

Wheels	Steel with wire spokes
Front Tyre	90/90-21
Rear Tyre	120/80-18
Front Brakes	Disc, 255 mm, double piston caliper
Rear Brakes	Disc, 210mm, double piston caliper

Dimension & Weights

Length	2136 mm / 84.1 inches
Wheelbase	1410 mm / 55.5 inches
Seat Height	909 mm / 35.8 inches
Dry Weight	105 kg / 231 lbs
Wet (kerb) Weight	~ 124 kg / 273 lbs
Fuel Capacity	8 L / 2.1 US gal
