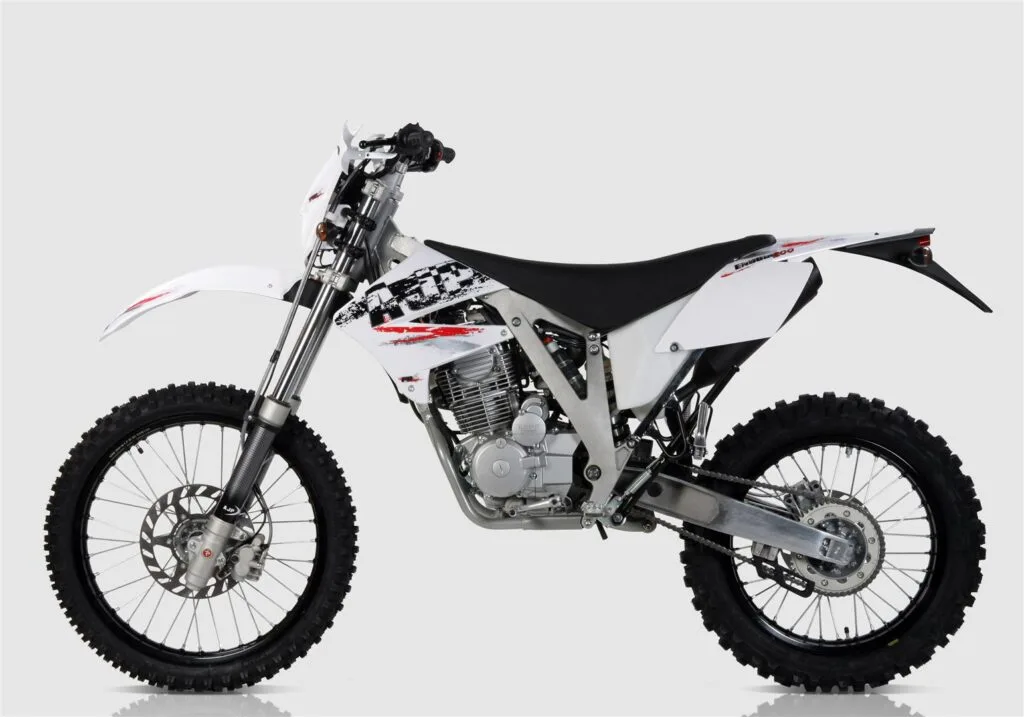

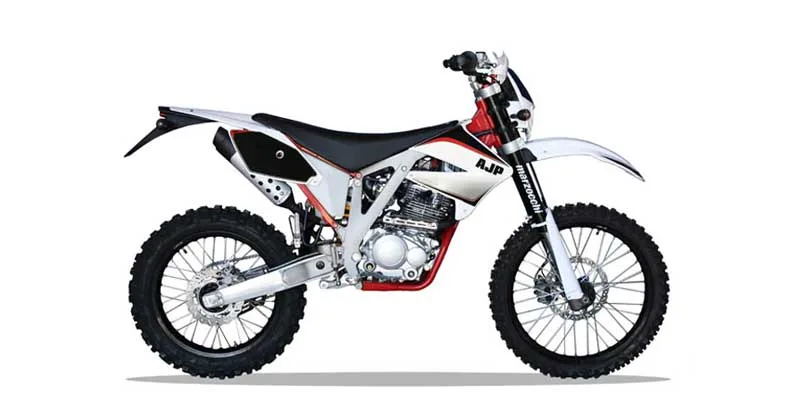

AJP PR4 125 Enduro Pro (2014)

The 2014 AJP PR4 124 Enduro Pro is designed with beginner and younger off-road riders in mind. It features a digital display, Brembo disc brakes on both wheels, eye-catching racing graphics, a high-mounted exhaust, and a performance-focused suspension setup. This includes a 40mm Marzocchi upside-down front fork and a ZF Sachs rear monoshock with a progressive linkage system.

Under the hood, it runs on a 124cc air-cooled, four-stroke single-cylinder engine paired with a five-speed manual gearbox, delivering an estimated 12 horsepower and 9 Nm of torque.

Key Specifications

Engine Type	Single cylinder, 4-stroke, 2-valve
Engine Capacity	124 cc / 7.6 cub inches
Power	9.3 kW / 12.5 hp @ 8500 rpm
Torque	8.5 Nm / 6.3 ft lbs @ 8000 rpm
Fuel Tank Capacity	7 L / 1.8 US gal
Weight (Dry)	105 kg / 231 lbs
Weight (wet/kerb)	~112 kg / 245 lbs
Seat Height	919 mm / 36.2 inch

All Specifications

Make & Model

Model	AJP PR4 125 Enduro Pro
Year	2014

Engine

Engine	Single cylinder, 4-stroke, 2-valve
Capacity	124 cc / 7.6 cub inches
Bore x Stroke	56.5 x 49.5 mm
Cooling System	Air/oil cooled
Engine Oil	NI i-Ride SAE 20WW-50 API SF or SG
Oil Capacity	1.1 L / 2.3 US pints
Exhaust	1-into-1
Induction	Walbro 30 mm carburetor
Spark Plug	LG D8TC (Champion A8YC or NGK DR8ES)
Battery	YTX5L-BS, 12V, 4Ah
Starting	Electric + kick
Max Power	9.3 kW / 12.5 hp @ 8500 rpm
Max Torque	8.5 Nm / 6.3 ft lbs @ 8000 rpm

Transmission

Transmission	5 Speed
Final Drive	Chain

Chassis & Suspension

Frame	Aluminium double beam and double steel cradle
Front Suspension	Marzocchi USD 40 mm, multi-adjustable
Front Suspension Travel	260 mm / 11.0 inches
Rear Suspension	ZF Sachs Progressive System with reservoir, multi adjustable
Rear Suspension Travel	300 mm / 11.8 inches

Wheels & Brakes

Wheels	Steel with wire spokes
Front Brakes	Disc, 260 mm, double piston caliper (Brembo)
Rear Brakes	Disc, 220 mm, single piston caliper (Brembo)
Front Tyre	90/90-21
Rear Tyre	120/90-18

Dimension & Weights

Wheelbase	1380 mm / 54.3 inches
Ground Clearance	330 mm / 13 inches
Seat Height	919 mm / 36.2 inches
Dry Weight	105 kg / 231 lbs
Wet (kerb) Weight	~112 kg / 245 lbs
Fuel Capacity	7 L / 1.8 US gal
