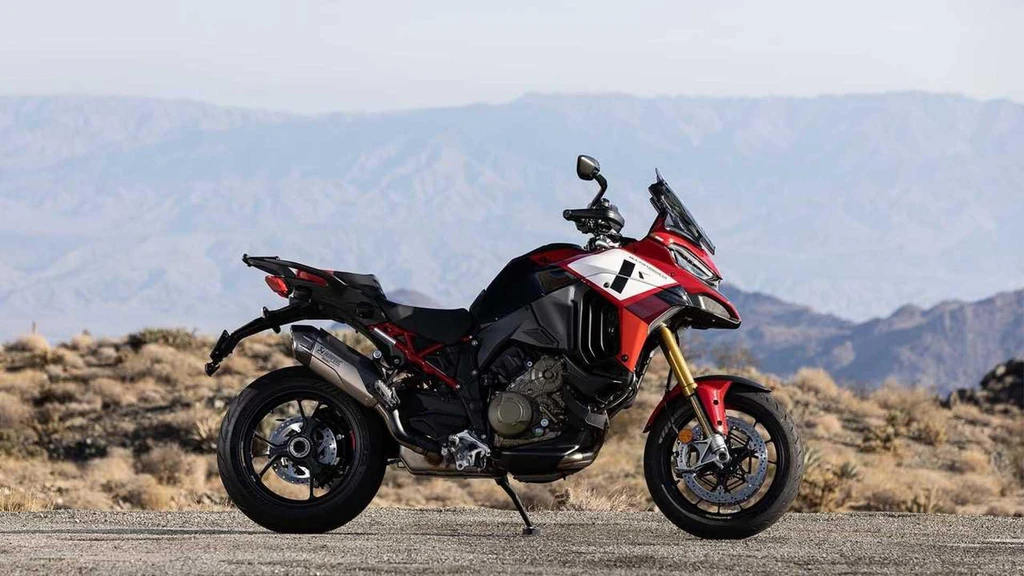

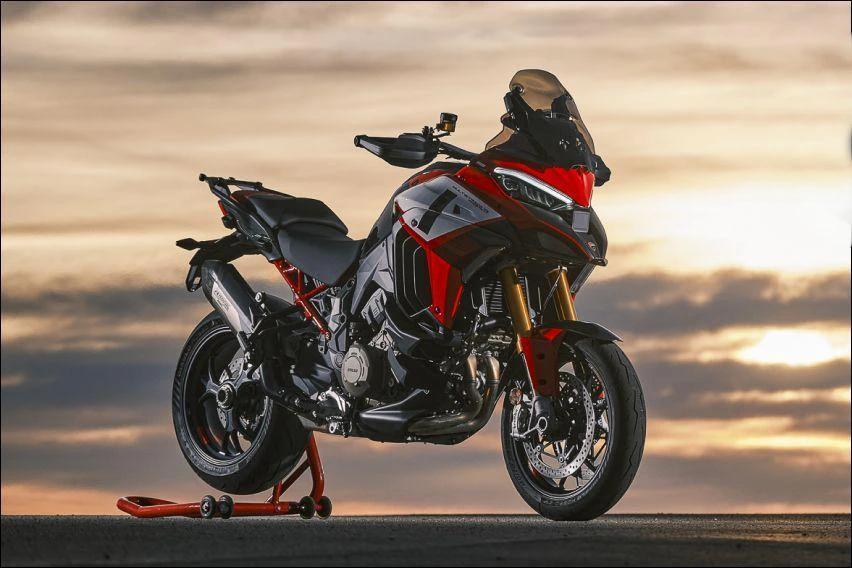

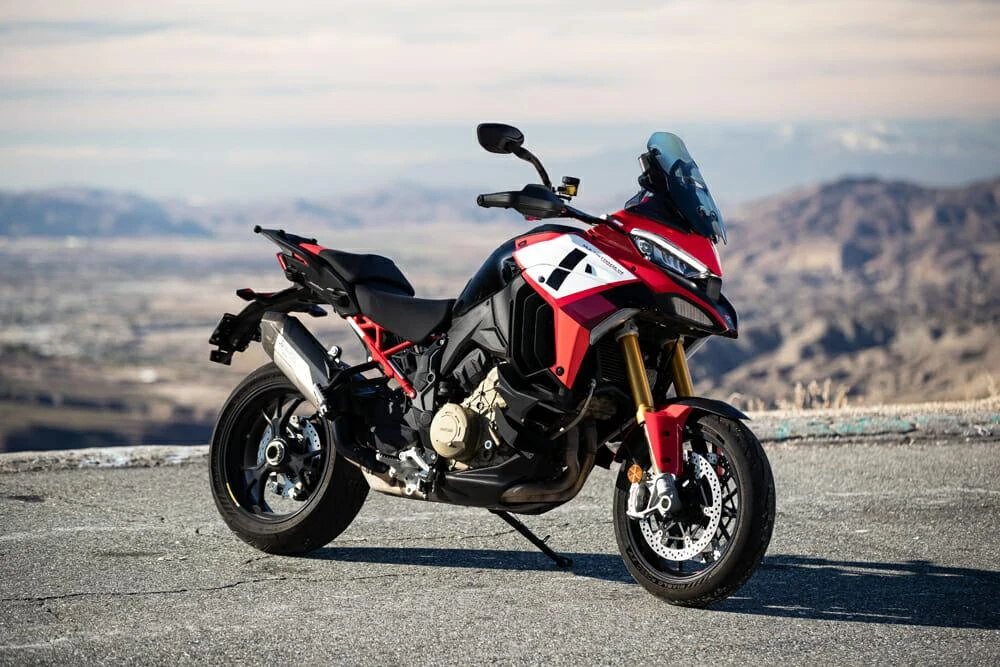

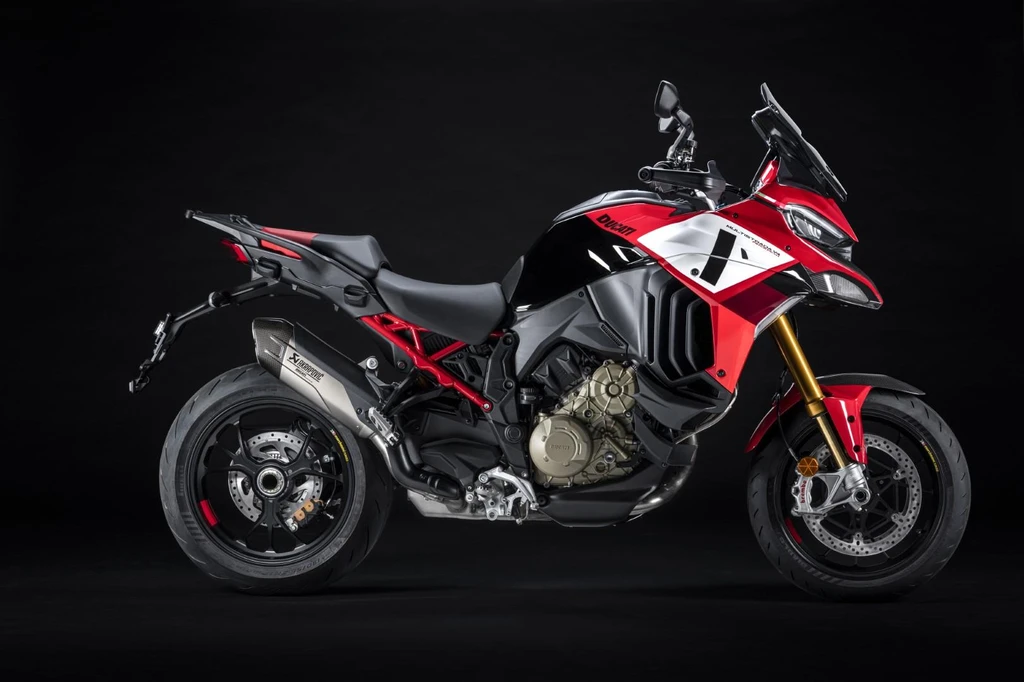

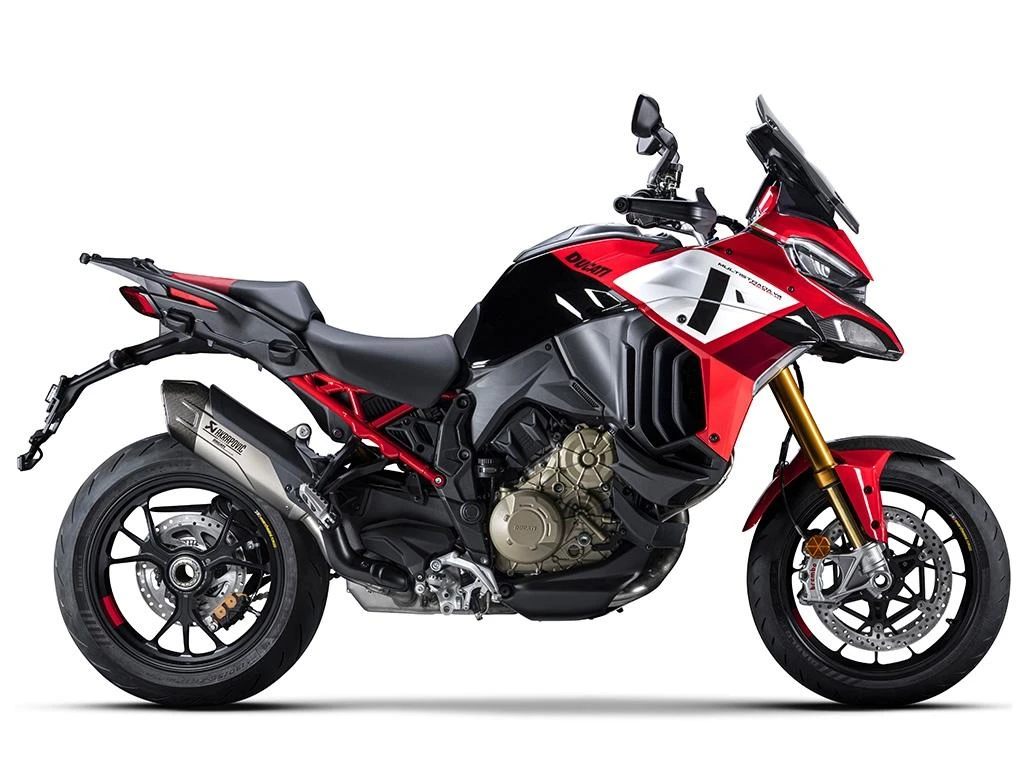

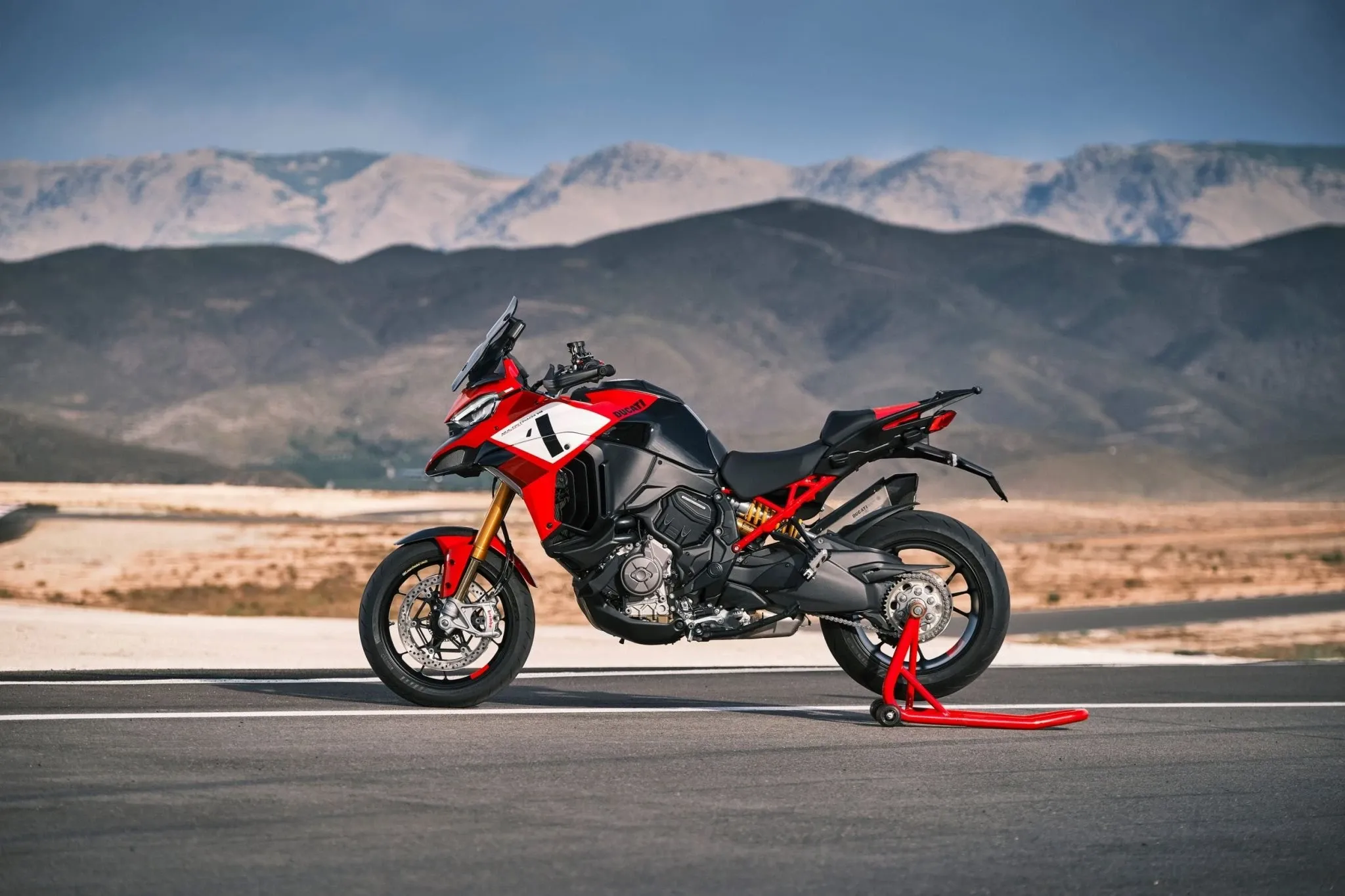

Ducati Multistrada V4 Pikes Peak (2022)

The Multistrada V4 Pikes Peak is a potent and highly advanced machine that embodies the essence of Ducati’s sporty DNA. Powered by the 170hp V4 Granturismo engine, this bike exudes performance, precision, and an unwavering desire for speed.

With its MotoGP-inspired livery and cutting-edge technology, the V4 Pikes Peak is poised to conquer even the most daunting mountain ranges with ease. The bike’s exceptional handling capabilities are underpinned by its advanced suspension system, featuring 48mm Hlins USD fork and TTX36 monoshock with electronic damping adjustment.

Whether carving through twisty roads or tackling grueling mountain passes, the Multistrada V4 Pikes Peak is a true thrill-seeker’s delight. Its exceptional power delivery, paired with its razor-sharp handling and intuitive electronics, makes it an exhilarating ride that will leave even the most seasoned motorcyclists grinning from ear to ear. The Ducati Multistrada V4 Pikes Peak is ready to conquer all roads, anywhere in the world.

Key Specifications

Engine Type	Four stroke, 90 Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order
Engine Capacity	71 cubic inches / 1158 cc
Max Power	170 hp / 125 kW @ 10500 rpm
Max Torque	92 ft-lb / 125 nm
Fuel Tank Capacity	5.8 US gallons / 22.0 L
Weight (Wet/Kerb)	527 lbs / 239 kg
Seat Height	3.1 inches / 860 mm

*n/a – information not provided by manufacturer

All Specifications

Make & Model

Model	Multistrada V4 Pikes Peak
Year	2022

Engine

Engine Type	Four stroke, 90 Granturismo V 4, counter rotating crankshaft, 4 valves per cylinder, Twin Pulse firing order
Displacement	71 cubic inches / 1158 cc
Bore x Stroke	83 x 53.5 mm
Compression Ratio	14.0:1
Max Horsepower	170 hp / 125 kW @ 10500 rpm
Max Torque	92 ft-lb / 125 nm
Engine Management System	Electronic fuel injection system, eq 46 mm elliptical throttle bodies with Ride-by-Wire system
Cooling System	Liquid cooled
Exhaust	Akrapovič muffler

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Multiplate wet clutch with hydraulic control, self-servo action on drive, slipper action on over-run
Gearbox	6-speed gearbox with Ducati Quick Shift (DQS) Up & Down System
Gear Ratios	1st 40/13, 2nd 36/16, 3rd 34/19, 4th 31/21, 5th 29/23, 6th 27/25
Final Drive	Chain, front sprocket z16, rear sprocket z42

Electrical & Electronics System

Starter	Electric
Instrumentation	6.5″ TFT colour display with Ducati Connect and full-map navigation system
ABS	Standard Cornering ABS

Chassis & Suspension

Frame Type	Aluminum monocoque frame
Front Suspension	48mm hlins fully adjustable usd fork with TiN treatment, electronic compression and rebound damping adjustment with hlins Smart EC 2.0 event-based mode
Front Suspension Travel	6.7 inches / 170 mm
Rear Suspension	hlins TTX36 fully adjustable monoshock, electronic compression and rebound damping adjustment with hlins Smart EC 2.0 event-based mode, electronic preload adjustment, aluminium single-sided swingarm
Rear Suspension Travel	6.7 inches / 170 mm
Rake	25.7
Trail	120. mm / 4.7 in

Wheels & Brakes

Wheels	Marchesini light alloy forged
Front Wheel/Rim Size	3.0 x 17
Front Tire Size	120/70 ZR17 Pirelli Diablo Rosso IV
Rear Wheel/Rim Size	6.0 x 17
Rear Tire Size	190/55 ZR17 Pirelli Diablo Rosso IV
Front Brakes	2x 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad callipers, radial master cylinder
Rear Brakes	Single265 mm disc, Brembo 2-piston floating calliper
ABS	Standard Cornering ABS

Dimension & Weights

Seat Height	3.1 inches / 860 mm
Wheelbase	62.8 inches / 1595 mm
Ground Clearance	220 mm / 8.6 in
Fuel Tank Capacity	5.8 US gallons / 22.0 L
Wet (kerb/curb) Weight	527 lbs / 239 kg
Dry Weight	214 kg / 472 lbs

Features

Multiplate wet clutch with hydraulic control
Self-servo action on drive, slipper action on over-run
48mm Hlins fully adjustable USD fork with TiN treatment
Electronic compression and rebound damping adjustment with Hlins Smart EC 2.0 event-based mode
Hlins TTX36 fully adjustable monoshock
Electronic compression and rebound damping adjustment with Hlins Smart EC 2.0 event-based mode
Electronic preload adjustment
Aluminium single-sided swingarm
Semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston 2-pad callipers
Radial master cylinder
V4 Granturismo engine with 170hp
17 front wheel
Single-sided swingarm
High-performance Brembo brakes
Ducati Traction Control (DTC) system
Cornering ABS

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
