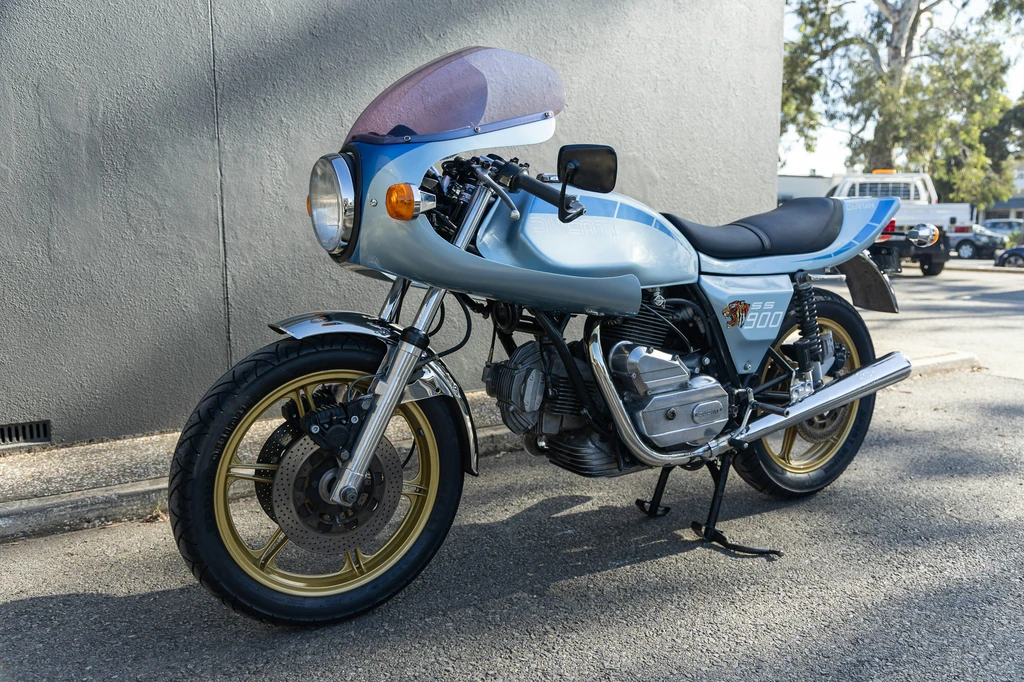

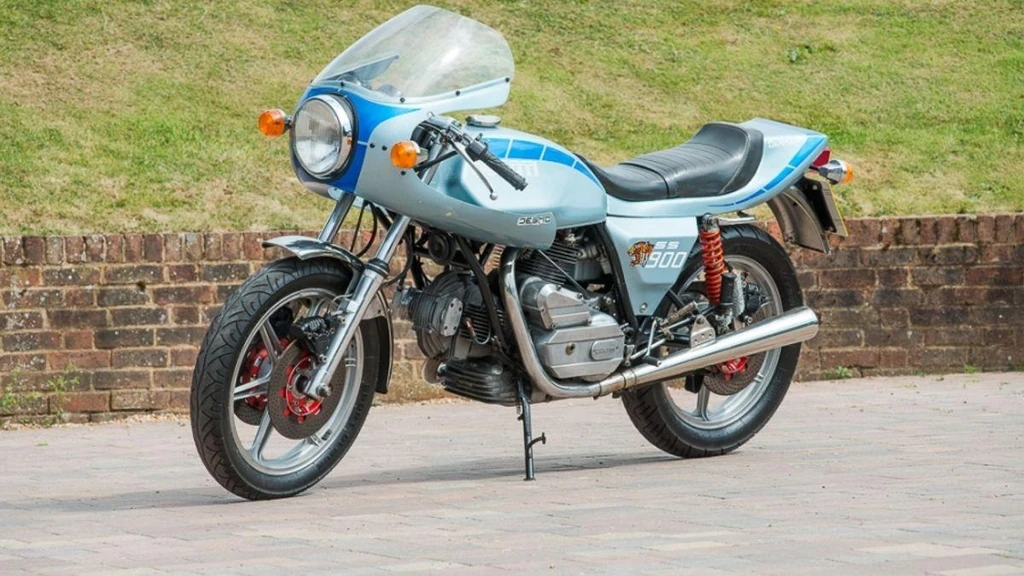

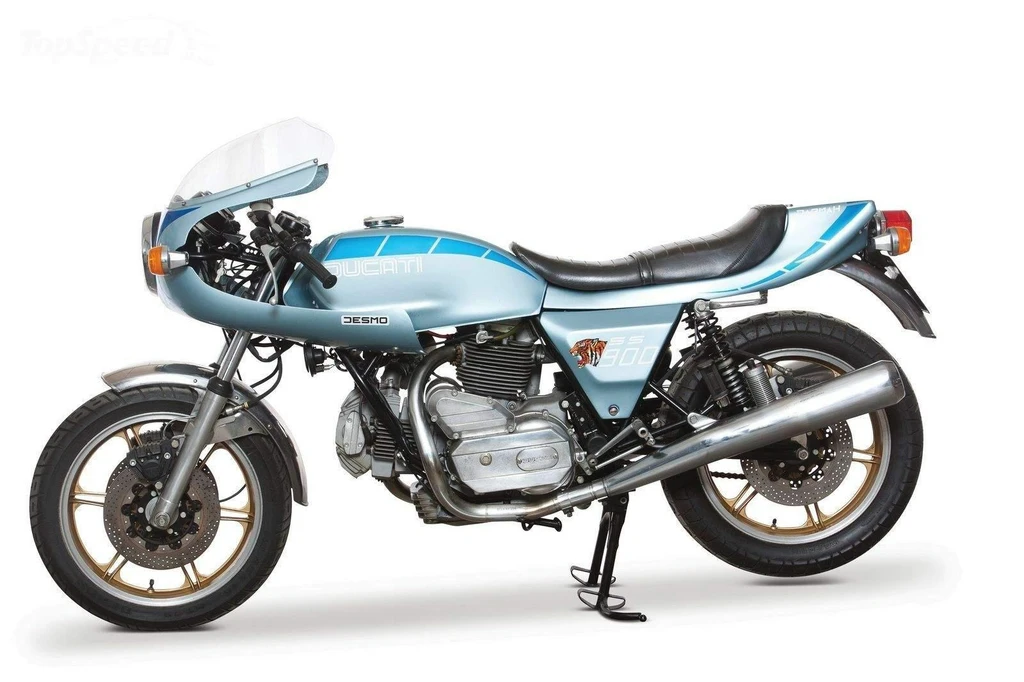

Ducati 900 SS Darmah (1980)

Ducati900 SS Darmah (1980)

The Ducati 900 SS Darmah is a testament to the Italian marque’s resilience and adaptability. Born out of necessity during Ducati’s tumultuous mid-70s period, this bike brought some much-needed balance to the company’s product lineup.

With its four-stroke, 90L twin cylinder engine boasting SOHC and 2 valves per cylinder, the Darmah delivers a unique riding experience that is both accessible and rewarding. The bevel gear driven design provides a distinctive character that sets it apart from other bikes of its time.

The introduction of the electric start, Bosch electronic ignition, and Nippon Denso gauges further enhance the bike’s usability, making it an attractive option for new riders while still retaining the essence of a Ducati. In short, the 900 SS Darmah perfectly embodies the Italian manufacturer’s ability to create bikes that are both affordable and undeniably desirable.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Engine Capacity864 cc / 52.7 cu in
Max Power47.8 kw / 65 hp
Fuel Tank Capacity15 L / 4.0 US gal / 3.3 Imp gal
Weight (Wet/Kerb)494 lbs / 224 kg
Seat Height29.1 inches / 740 mm
Ducati900 SS Darmah (1980)

All Specifications

Make & Model

ModelDucati900 SS Darmah
Year1980

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Displacement864 cc / 52.7 cu in
Bore x Stroke86 x 74.4 mm
Compression Ratio9.4:1
Max Horsepower47.8 kw / 65 hp
Engine Management System2 x Dell’Orto PHF 32C carburetors
Cooling SystemAir cooled

Performance

Top Speed205 km/h / 127mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio2.187:1 (32/70)
Gear Ratios1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887
Final DriveChain

Electrical & Electronics System

BatteryYuasa B68 36Ah
StarterElectric

Chassis & Suspension

Front SuspensionMarzocchi telescopic fork
Rear SuspensionMarzocchi 330 mm dual shocks, 3-way adjustable

Wheels & Brakes

Front Wheel/Rim Size3.50 – 18
Rear Wheel/Rim Size4.25 – 18
Front Brakes2 x 280 mm Disc, 1 piston caliper
Rear BrakesSingle 280 mm disc

Dimension & Weights

Overall Length2260 mm / 88.9 in
Overall Width700 mm / 27.6 in
Overall Height1280 mm / 50.4 in
Seat Height29.1 inches / 740 mm
Wheelbase61.0 inches / 1550 mm
Fuel Tank Capacity15 L / 4.0 US gal / 3.3 Imp gal
Wet (kerb/curb) Weight494 lbs / 224 kg
Dry Weight216 kg / 476 lbs

Features

  • Four-stroke engine
  • 90L twin cylinder
  • SOHC design
  • 2 valves per cylinder
  • Bevel gear driven
  • Mid-size motorcycle with a competitive price
  • Electric start
  • Two-up seat
  • Bosch electronic ignition
  • Nippon Denso gauges
  • Warning lights
  • Bosch headlight and indicators
