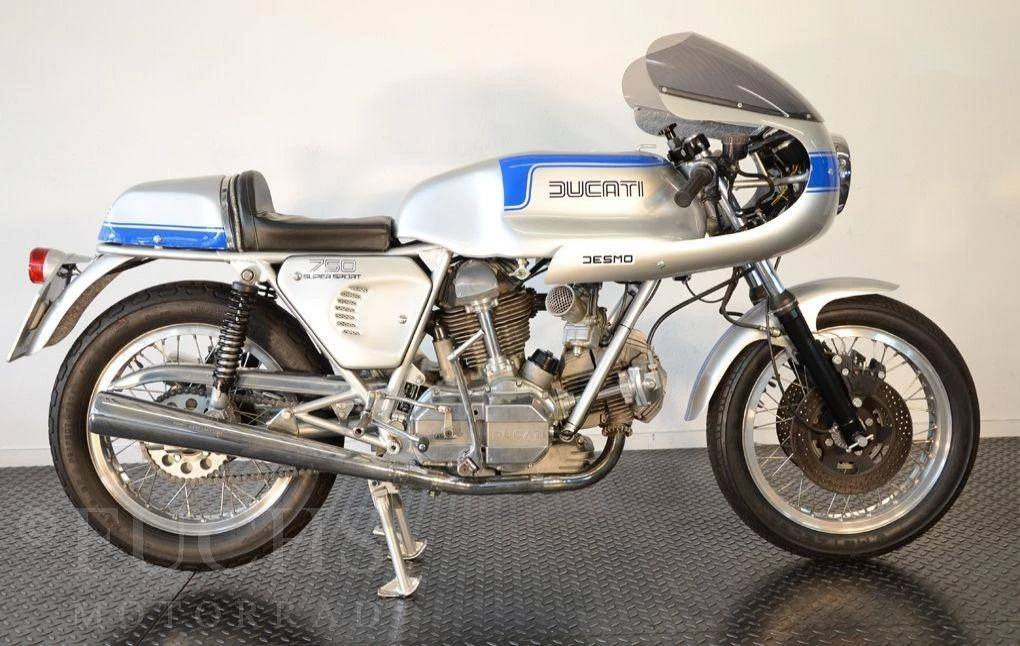

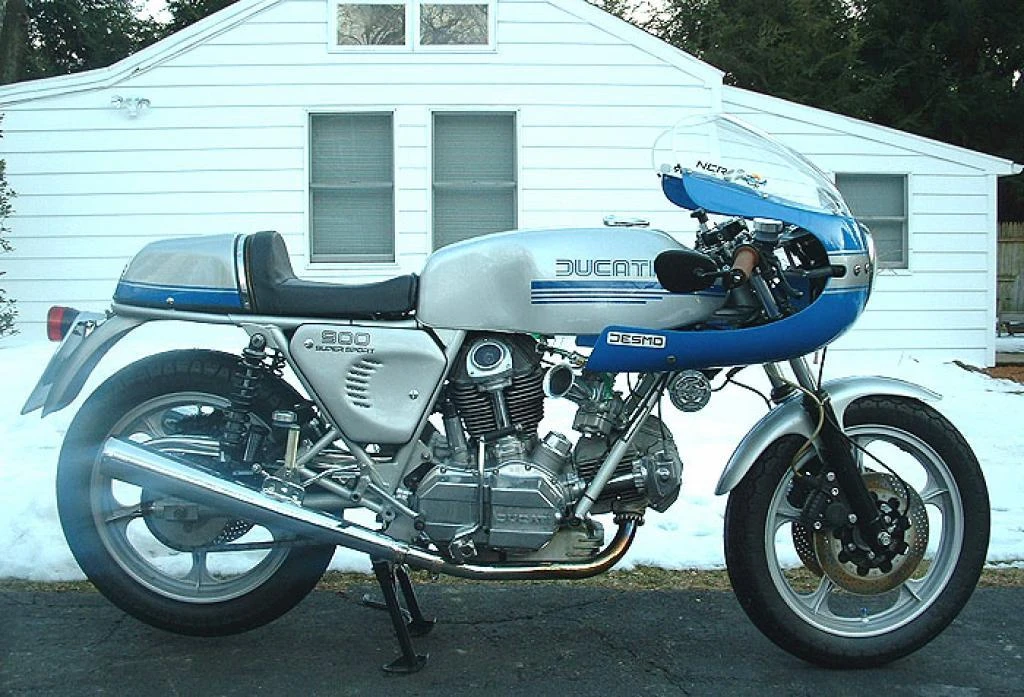

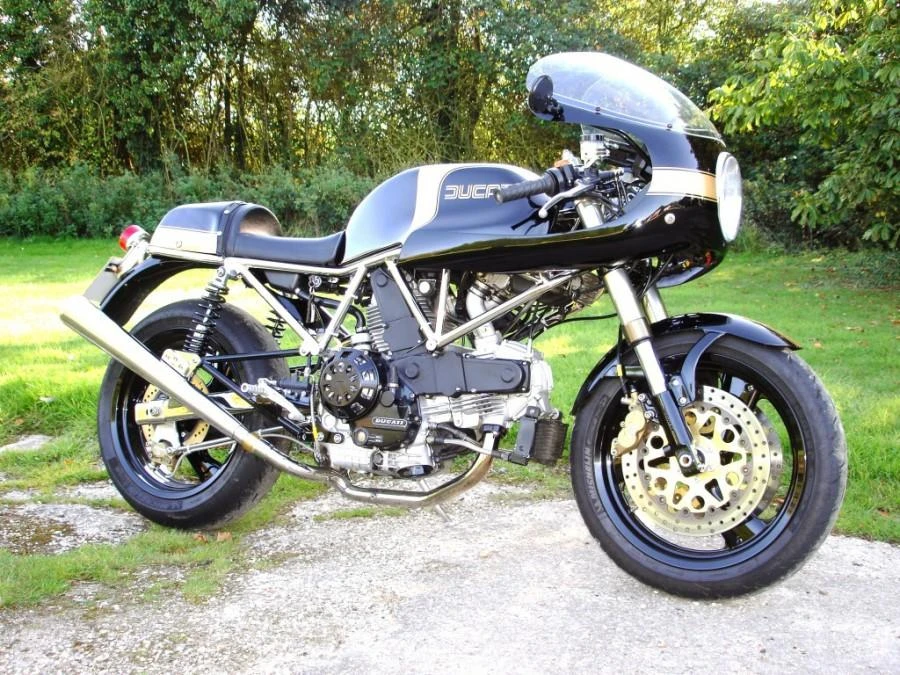

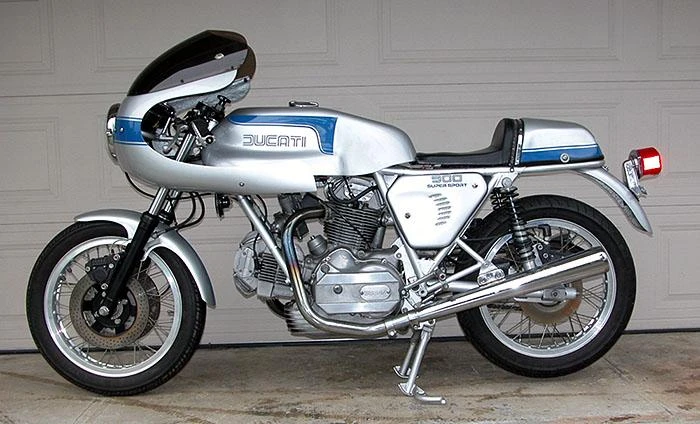

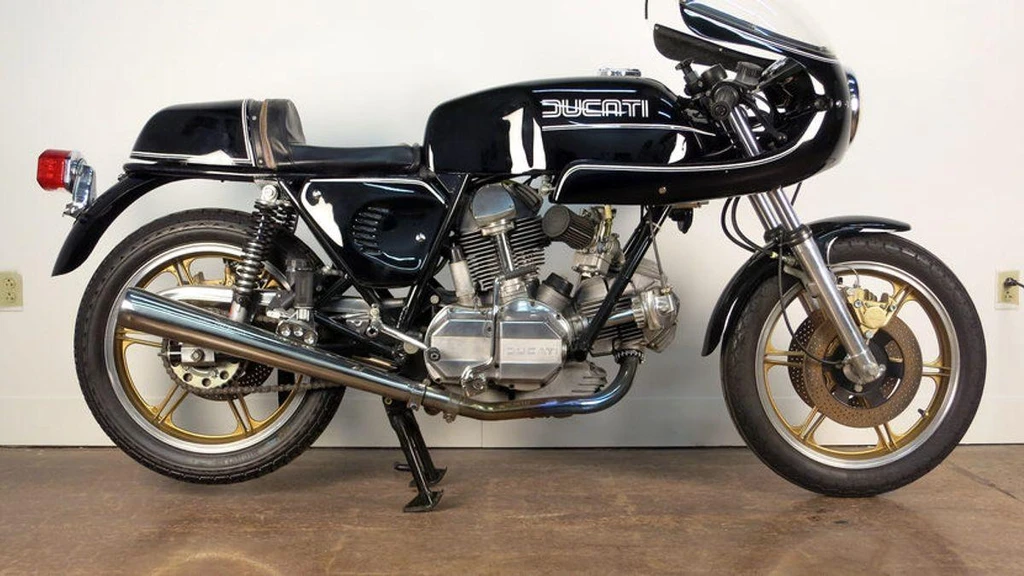

Ducati 900 SS (1980)

Ducati900 SS (1980)

The Ducati 900 SS, a testament to Italian ingenuity and design excellence, burst onto the scene in 1975 as a direct response to the growing threat of Japanese superbikes.

This sleek and powerful machine boasts a four-stroke, 90L twin-cylinder engine, featuring SOHC and 2 valves per cylinder, all driven by a bevel gear. The Ducati 900 SS is an evolution of the iconic Super Sport family, with its L-twin configuration ensuring optimal cooling and performance.

The Ducati 900 SS is not just about raw power; it’s about the riding experience. With 72hp at 9600 RPM and a top speed of 220 km/h, this bike demands to be ridden hard. The Desmodromic valves and DellOrto PHM 40mm carburettors work in harmony to deliver a thrilling rush of acceleration.

The Ducati 900 SS is more than just a machine – it’s an extension of the rider’s personality, a symbol of rebellion against conformity. It’s a bike that refuses to be tamed, and its very existence redefined the boundaries of motorcycle design and performance. And so, here stands the Ducati 900 SS, ready to unleash its unbridled fury upon the roads, forever etched in history as one of the greatest motorcycles ever built.

Key Specifications

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Engine Capacity864 cc / 52.7 cu in
Max Power47.8 kw / 65 hp
Fuel Tank Capacity15 L / 4.0 US gal / 3.3 Imp gal
Weight (Wet/Kerb)494 lbs / 224 kg
Seat Height29.1 inches / 740 mm
Ducati900 SS (1980)

All Specifications

Make & Model

ModelDucati900 SS
Year1980

Engine

Engine TypeFour stroke, 90Ltwin cylinder, SOHC, 2 valves per cylinder, bevel gear driven
Displacement864 cc / 52.7 cu in
Bore x Stroke86 x 74.4 mm
Compression Ratio9.4:1
Max Horsepower47.8 kw / 65 hp
Engine Management System2 x Dell’Orto PHF 32C carburetors
Cooling SystemAir cooled

Performance

Top Speed205 km/h / 127mph

Transmission

ClutchWet, multiplate
Gearbox5 Speed
Primary Drive Ratio2.187:1 (32/70)
Gear Ratios1st 2.237 / 2nd 1.562 / 3rd 1.203 / 4th 1.000 / 5th 0.887
Final DriveChain

Electrical & Electronics System

BatteryYuasa B68 36Ah
StarterElectric

Chassis & Suspension

Front SuspensionMarzocchi telescopic fork
Rear SuspensionMarzocchi 330 mm dual shocks, 3-way adjustable

Wheels & Brakes

Front Wheel/Rim Size3.50 – 18
Rear Wheel/Rim Size4.25 – 18
Front Brakes2 x 280 mm Disc, 1 piston caliper
Rear BrakesSingle 280 mm disc

Dimension & Weights

Overall Length2260 mm / 88.9 in
Overall Width700 mm / 27.6 in
Overall Height1280 mm / 50.4 in
Seat Height29.1 inches / 740 mm
Wheelbase61.0 inches / 1550 mm
Fuel Tank Capacity15 L / 4.0 US gal / 3.3 Imp gal
Wet (kerb/curb) Weight494 lbs / 224 kg
Dry Weight216 kg / 476 lbs

Features

  • Four stroke engine
  • 90Ltwin cylinder
  • SOHC design
  • 2 valves per cylinder
  • Bevel gear driven
  • Twin Dellorto PHM 40mm carburettors
  • Overhead cam with Desmodromic valves
  • 72hp at 9600 RPM
  • Top speed of 220 km/h
  • L-twin engine design for improved cooling
  • Right side shifter switched to left for US regulations
  • Improved kickstarter and crank strength
  • De-bugged electrics
  • Engine timing improvements
  • Black paint job with gold accents on some models
  • Cast Campagnolo wheels (replaced spoked wheels)
  • Ducati Imola 200 winning heritage
