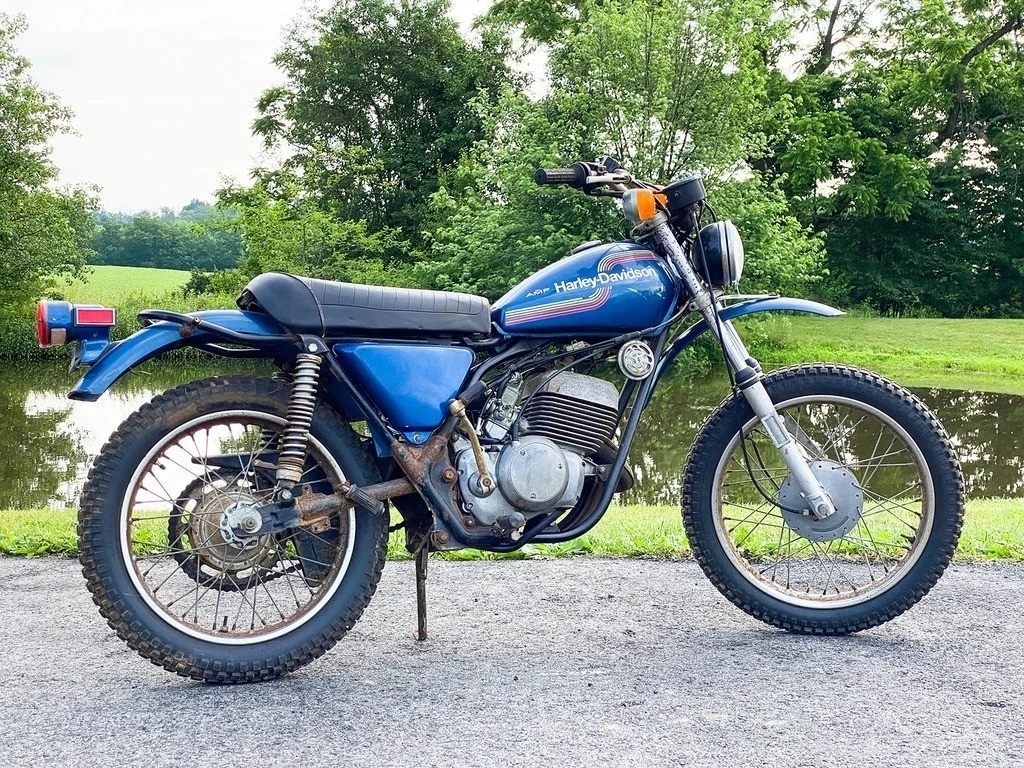

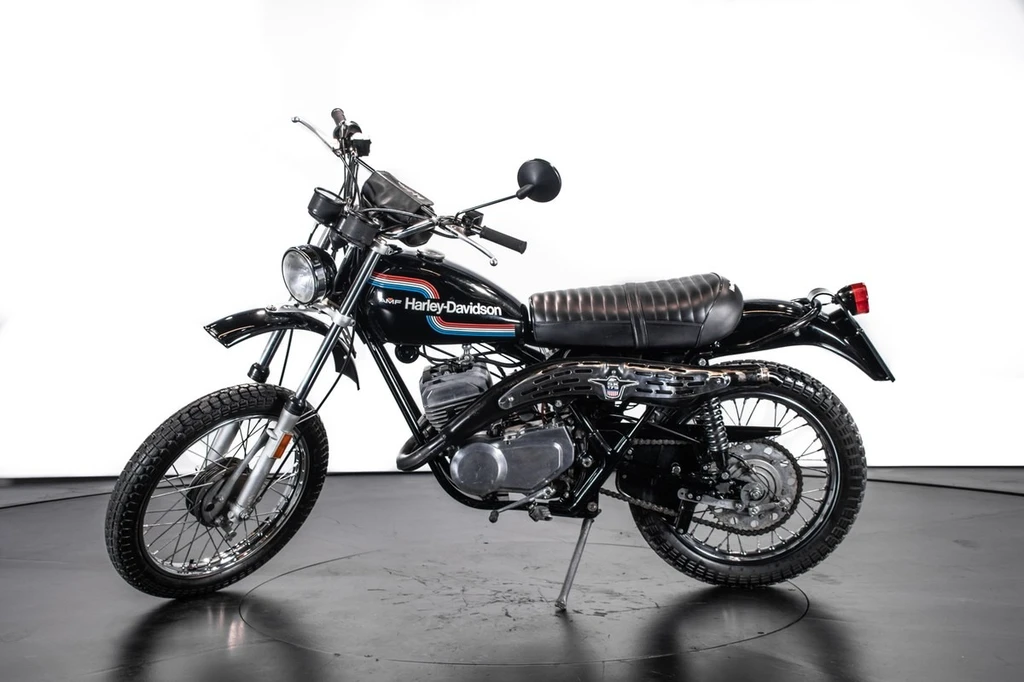

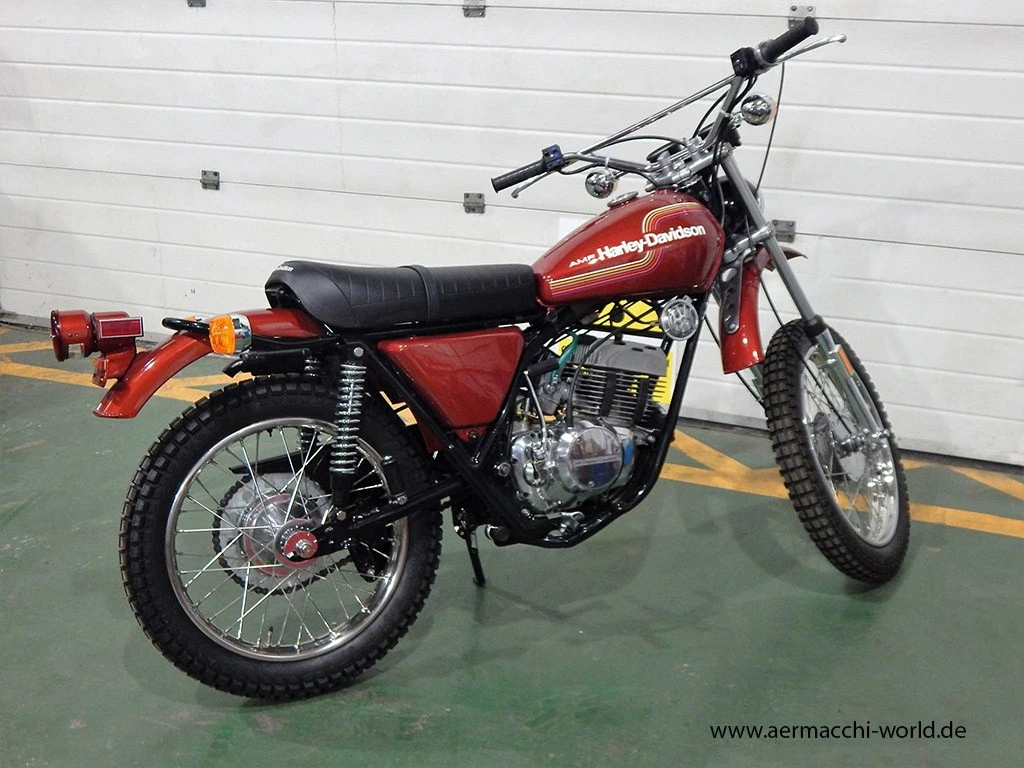

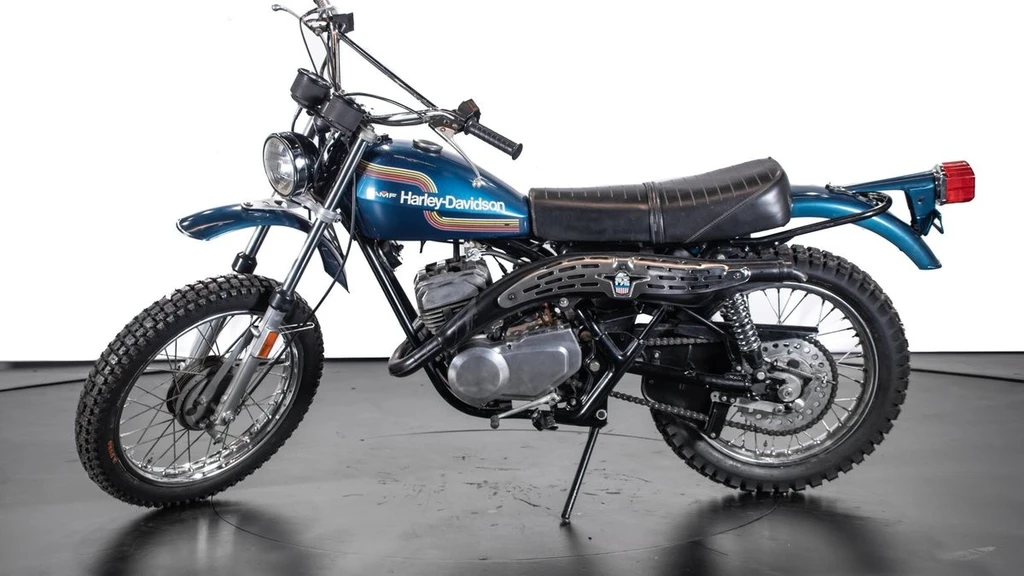

The Aermacchi-Harley-Davidson SX 175, a true icon of 1970s motorcycle design. Built in partnership between Harley-Davidson and Italian manufacturer Aermacchi, this diminutive two-stroke is a masterclass in compact engineering.
With its potent 172cc two-stroke engine delivering a snappy 25 horsepower to the rear wheel, the SX 175 is as agile as it is energetic. Quick-shifting transmission and a lightweight frame make it a blast to ride on twisty roads or tight city streets.
But what truly sets this motorcycle apart is its unique blend of Italian flair and American know-how, making it an irresistible choice for riders who crave something new and different.
Key Specifications
Engine Type
Two stroke, single cylinder
Engine Capacity
174
Fuel Tank Capacity
2.7 US gallons / 10.5 L
Seat Height
29.5 inches / 749 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Aermacchi / Harley DavidsonSX 175
Year
1975
Engine
Engine Type
Two stroke, single cylinder
Displacement
174
Bore x Stroke
61 x 59.6 mm
Compression Ratio
10.7:1
Engine Management System
Dell’Orto VHB 27 AD
Lubrication System
Fuel and oil mixture
Cooling System
Air cooled
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multi plate
Gearbox
5 Speed
Final Drive
Chain
Electrical & Electronics System
Starter
Primary kick
Chassis & Suspension
Front Suspension
Oil damper Ceriant telescopic fork
Rear Suspension
Pivoted fork and Betor dampers 3-way adjustment
Wheels & Brakes
Front Tire Size
3.00-19
Rear Tire Size
3.50-18
Front Brakes
Drum
Rear Brakes
Drum
Dimension & Weights
Seat Height
29.5 inches / 749 mm
Fuel Tank Capacity
2.7 US gallons / 10.5 L
Dry Weight
112 kg / 247 lbs
