Quick Shift System (QSS) with three settings, Up and Down
Traction Control System
Lean angle-sensitive Traction Control (TCS) incorporates 6-axis IMU
Assist & Slipper Clutch
Yes
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Instrumentation
Advanced, full-color TFT display
Traction Control System
Lean angle-sensitive Traction Control (TCS) incorporates 6-axis IMU
Launch Control
Four-level Lift Control System (LIF)
ABS
Yes
Chassis & Suspension
Frame Type
Slim aluminum Deltabox frame
Front Suspension
43mm Öhlins® Electronic Racing Suspension NPX fork, fully adjustable
Front Suspension Travel
120 mm / 4.7 inches
Rear Suspension
Öhlins® Electronic Racing Suspension single shock
Rear Suspension Travel
120 mm / 4.7 inches
Rake
24 °
Trail
102 mm / 4.0 inches
Rear Subframe
Magnesium subframe
Swingarm
Aluminum swingarm
Wheels & Brakes
Wheels
10-spoke cast magnesium wheels
Front Tire Size
120/70ZR17 Bridgestone® BATTLAX RACING STREET RS11F
Rear Tire Size
190/55ZR17 Bridgestone® BATTLAX RACING STREET RS11R
Front Brakes
Brembo Stylema Monobloc with Brembo Master cylinder, Dual 320mm hydraulic disc; Brake Control System and ABS
Rear Brakes
Brembo 220mm hydraulic disc; Brake Control System and ABS
ABS
Yes.
Dimension & Weights
Overall Length
2055 mm / 80.9 inches
Overall Width
690 mm / 27.2 inches
Overall Height
1165 mm / 45.9 inches
Seat Height
861 mm / 33.9 inches
Wheelbase
1405 mm / 55.3 inches
Ground Clearance
129.54 mm / 5.1 inches
Fuel Tank Capacity
17 L / 4.5 US gallons
Wet (kerb/curb) Weight
204.1 kg / 450 lbs
Features
MotoGP®-Derived Crossplane Crankshaft Engine
Digital Superbike Technology
Factory Level GPS Data Logging
Dynamic Öhlins® Electronic Racing Suspension
Superbike Brakes & Tires
Sharp Styling with Unique R1M Features
Next Level R-Series Evolution
Cutting-Edge CP4® Engine
High-Output Engine Technology
High-Performance Intake System
Refined Rocker-Arm Valvetrain
Lightweight Engine Components
Titanium Exhaust System
Compact Stacked Transmission
Advanced Clutch
Ride-by-Wire Throttle System
Variable Intake System
MotoGP®-Level Controllability
Factory Level GPS Data Logging
Engine Brake Management (EBM)
Power Delivery Mode (PWR)
Lean Angle-Sensitive Traction Control System (TCS)
MotoGP®-Developed Slide Control System (SCS)
Lift Control System (LIF)
Launch Control System (LCS)
Up & Down Quick Shift System (QSS)
Öhlins® Gas-Charged NPX Fork
Dynamic Öhlins® Electronic Racing Suspension (ERS)
Brake Control (BC) System with ABS
Supersport Braking Components
Bridgestone® RS11 Tires
Race-Ready Magnesium Wheels
Compact Deltabox Frame
Sleek Styling With Unique R1M Features
All-LED Lighting
Full-Color Instruments

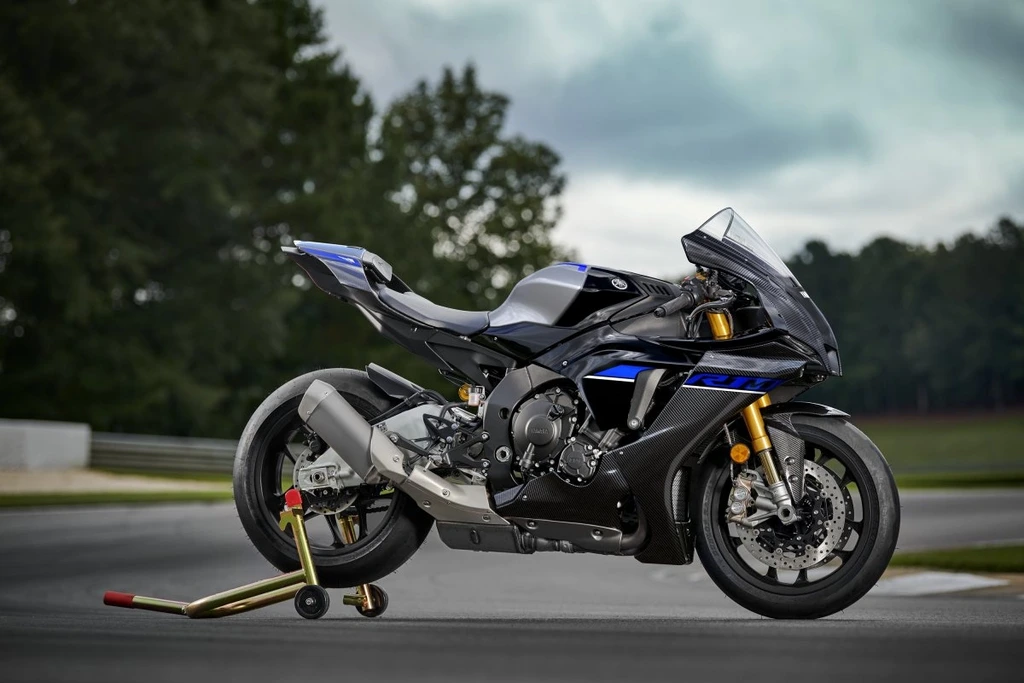

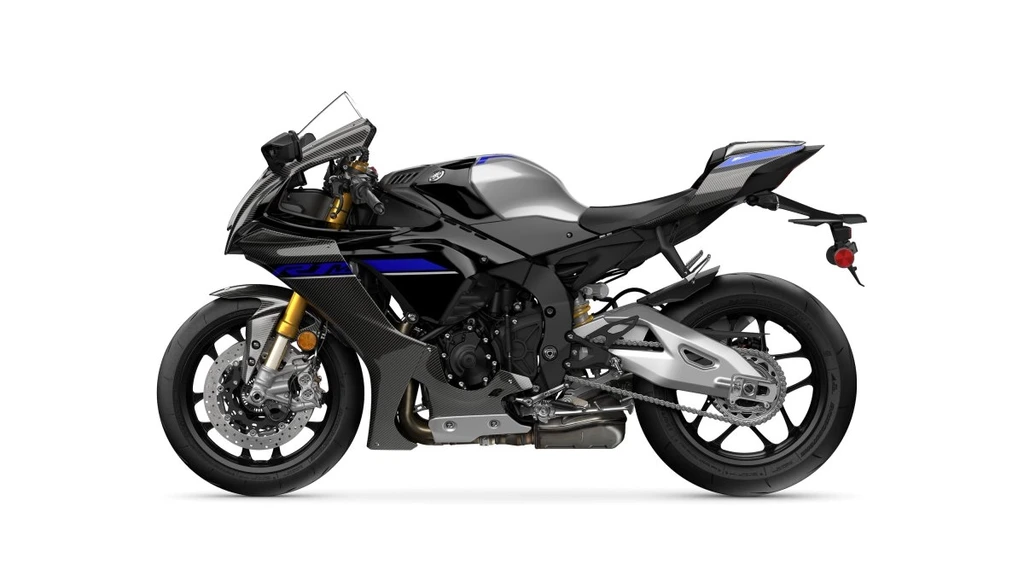

Yamaha YZF-R1M (2024) Color Options
Carbon Fiber
