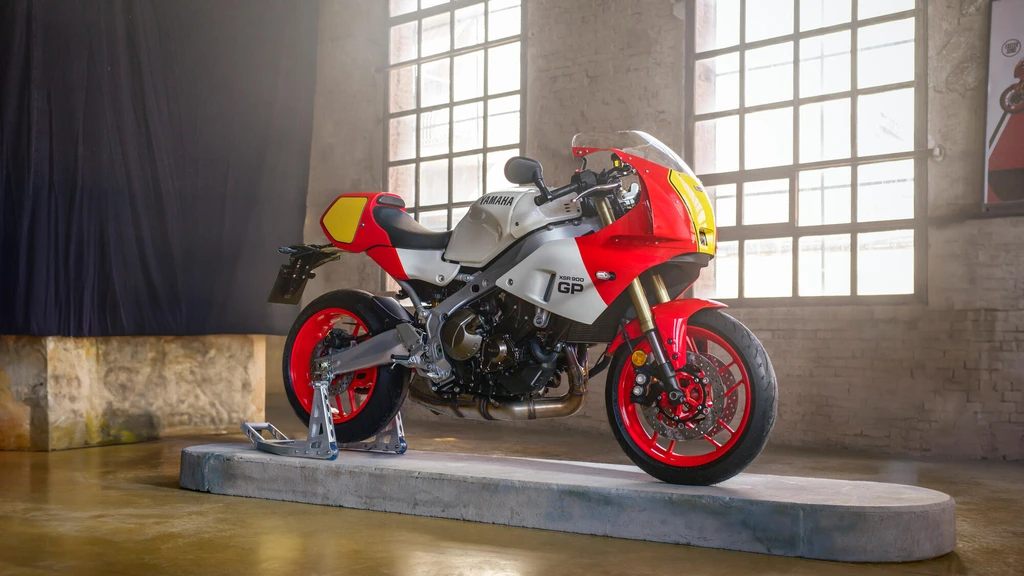

Yamaha XSR900 GP (2024 - )

Designed to evoke memories of the golden era, the XSR900 GP is the ultimate blend of heritage racing style combined with the latest in cutting-edge technology to offer a thrilling ride to stimulate the senses in a way like no other.

Key Specifications

Engine Type	CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder
Engine Capacity	890 cc / 54.3 cubic inches
Max Power	87.5 kW / 119 PS / 117.3 hp @ 10,000 rpm
Max Torque	93 Nm / 68.6 ft-lbs @ 7,000 rpm
Top Speed	~ 155.3 mph / 250 kmph
Fuel Tank Capacity	14 L / 3.7 US gallons
Weight (Wet/Kerb)	200 kg / 441 lbs
Seat Height	835 mm / 33 inches

*n/a – information not provided by manufacturer

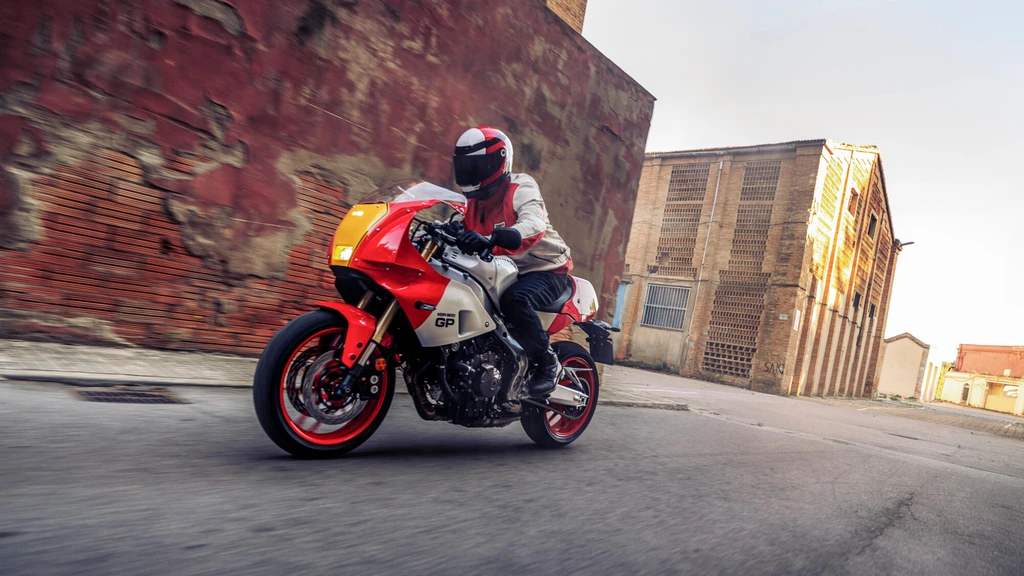

2024-yamaha-xsr900-GP-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Yamaha XSR900 GP
Year	2024 –

Engine

Engine Type	CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder
Displacement	890 cc / 54.3 cubic inches
Bore x Stroke	78 x 62.1 mm
Compression Ratio	11.5 : 1
Number of Cylinders	3
Max Horsepower	87.5 kW / 119 PS / 117.3 hp @ 10,000 rpm
Max Torque	93 Nm / 68.6 ft-lbs @ 7,000 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Electronic Fuel Injection
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Ignition System	TCI
Emissions Compliance	EU5+

Performance

Top Speed	~ 155.3 mph / 250 kmph
Acceleration (0-100 km/h, 0-60 mph)	3.7 s
Fuel Consumption	20 kmpl / 47 mpg

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate assist and slipper clutch
Gearbox	Constant Mesh, 6-speed
Final Drive	Chain
Quick Shifter	Yes, both upshift and downshift
Traction Control System	Lean Sensitive Traction Control
Assist & Slipper Clutch	Yes

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	5 inch color TFT display with 4 themes
Connectivity	Yes.
Riding Modes	4 Modes – Sport, Street, Rain, Custom
Traction Control System	Lean Sensitive Traction Control
Launch Control	Front Wheel Lift Control
ABS	Lean Sensitive Yes
Cruise Control	Yes

Chassis & Suspension

Frame Type	Deltabox chassis
Front Suspension	KYB Fully adjustable USD forks
Front Suspension Travel	130 mm / 5.1 inches
Rear Suspension	KYB Shock (Link type suspension), fully adjustable
Rear Suspension Travel	131 mm / 5.15 inches
Rake	25.2 °
Trail	110 mm / 4.33 inches
Swingarm	Aluminum Swingarm

Wheels & Brakes

Wheels	Yamaha Spinforged Wheels
Front Tire Size	120/70ZR17M/C (58W) Tubeless, Bridgestone Battlax Hypersport S23
Rear Tire Size	180/55ZR17M/C (73W) Tubeless, Bridgestone Battlax Hypersport S23
Front Brakes	Hydraulic dual disc brake, Ø 298 mm
Rear Brakes	Hydraulic single disc brake, Ø 245 mm
ABS	Lean Sensitive Yes.

Dimension & Weights

Overall Length	2160 mm / 85 inches
Overall Width	810 mm / 32 inches
Overall Height	1180 mm / 46.45 inches
Seat Height	835 mm / 33 inches
Wheelbase	1500 mm / 59 inches
Ground Clearance	145 mm / 5.7 inches
Fuel Tank Capacity	14 L / 3.7 US gallons
Wet (kerb/curb) Weight	200 kg / 441 lbs

Features

Distinctive Design evocative of GP racers of the 80s and 90s
5 inch full color TFT display
Lean Sensitive Traction Control
Lean Sensitive ABS
Slide Control
Front Wheel Lift Control
4 Riding Modes
Cruise Control
QuichShift (up and down shift)
Slipper and Assist Clutch

Yamaha XSR900 GP (2024 – ) Color Options

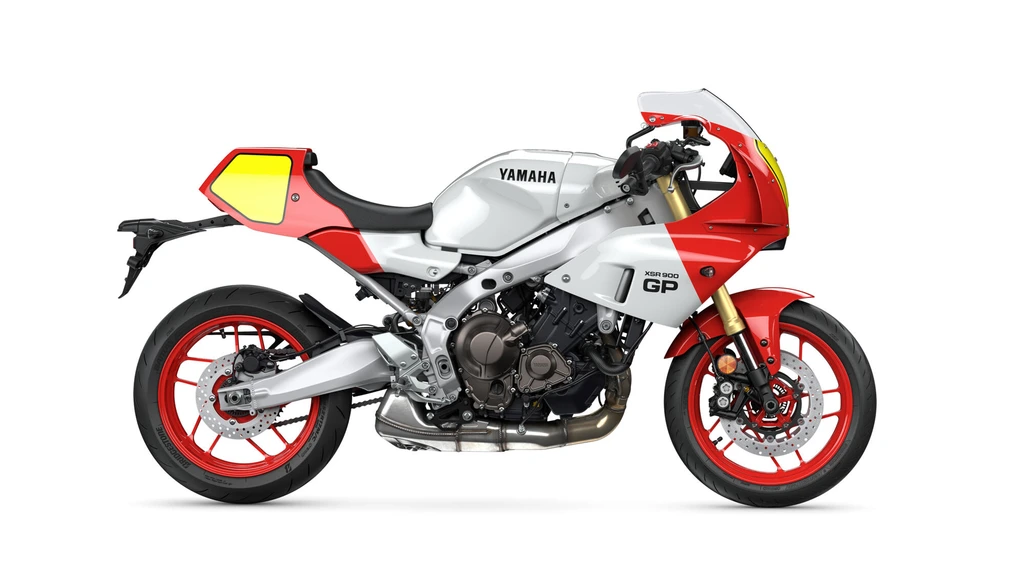

Legend Red

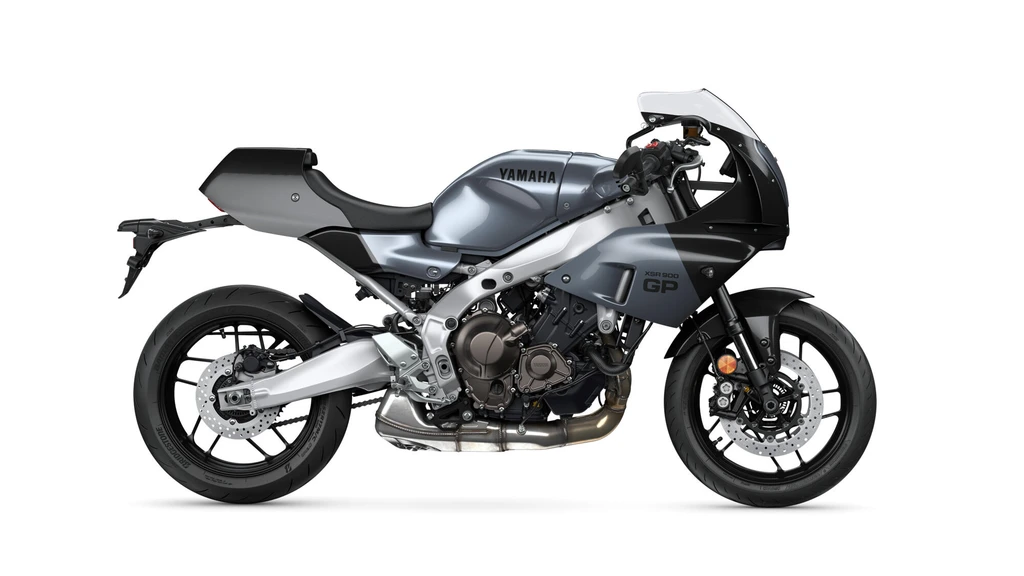

Power Gray

2024-yamaha-xsr900-GP-throttlecraze.com-3_throttlecraze.com

2024-yamaha-xsr900-GP-throttlecraze.com-4_throttlecraze.com

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
