The XSR900 holds its own on all routes, whether it is on those daydreaming twisty roads or the open straight, it feels at home doing both. Equipped with a modern electronics package that gives every rider an exceptional level of controllability in any type of situation. And with its sporty Quick Shifter as well as a relaxed Cruise Control, you can go as you please with this 3-cylinder muscle machine.
KYB Shock (Link type suspension), fully adjustable
Rear Suspension Travel
137 mm / 5.4 inches
Rake
25 °
Trail
110 mm / 4.33 inches
Swingarm
Aluminum Swingarm
Wheels & Brakes
Wheels
Yamaha Spinforged Wheels
Front Tire Size
120/70ZR17 Bridgestone® Battlax Hypersport S22
Rear Tire Size
180/55ZR17 Bridgestone® Battlax Hypersport S22
Front Brakes
Hydraulic dual disc brake, Ø 298 mm
Rear Brakes
Hydraulic single disc brake, Ø 245 mm
ABS
Yes.
Dimension & Weights
Overall Length
2155 mm / 85 inches
Overall Width
860 mm / 34 inches
Overall Height
1155 mm / 45.4 inches
Seat Height
810 mm / 32 inches
Wheelbase
1495 mm / 59 inches
Ground Clearance
140 mm / 5.5 inches
Fuel Tank Capacity
14 L / 3.7 US gallons
Wet (kerb/curb) Weight
193 kg / 425.5 lbs
Features
New Five-Inch TFT
Smartphone Connectivity
New Customizable YRC Ride Modes
New Back Slip Regulator
New Yamaha Variable Speed Limiter
New Third-Generation Quickshifter
New KYB Rear Suspension
New Switchgear & Turn Signal Functions
Enhanced Ergonomic Touches
Retro Influence, Modern Style
Powerful 890cc Yamaha CP3 Engine
Tuned Triple Soundtrack
Sophisticated Six-Axis IMU with Rider Aids
CF Die-Cast Aluminum Frame
Yamaha Exclusive Lightweight SpinForged Wheels
Powerful 890cc Crossplane Crankshaft Triple
Fracture-Split Connecting Rods
Offset & Direct-Plated Cylinders
Ride-by-Wire Throttle with APSG
Yamaha Chip Controlled Throttle (YCC-T)
Accelerator Position Sensor Grip (APSG)
Advanced Assist & Slipper Clutch
Tuned Intake & Exhaust System
Compact Six-Speed Transmission
Lightweight Aluminum Frame & Swingarm
High Performance Fully Adjustable KYB Suspension
High-Spec Braking Components
Yamaha Ride Control
Lean sensitive Traction Control System
Slide Control System
Front Wheel Lift Control System
Brake Control System
Lean sensitive ABS
Standard Cruise Control
Yamaha XSR900 (2025 – ) Color Options

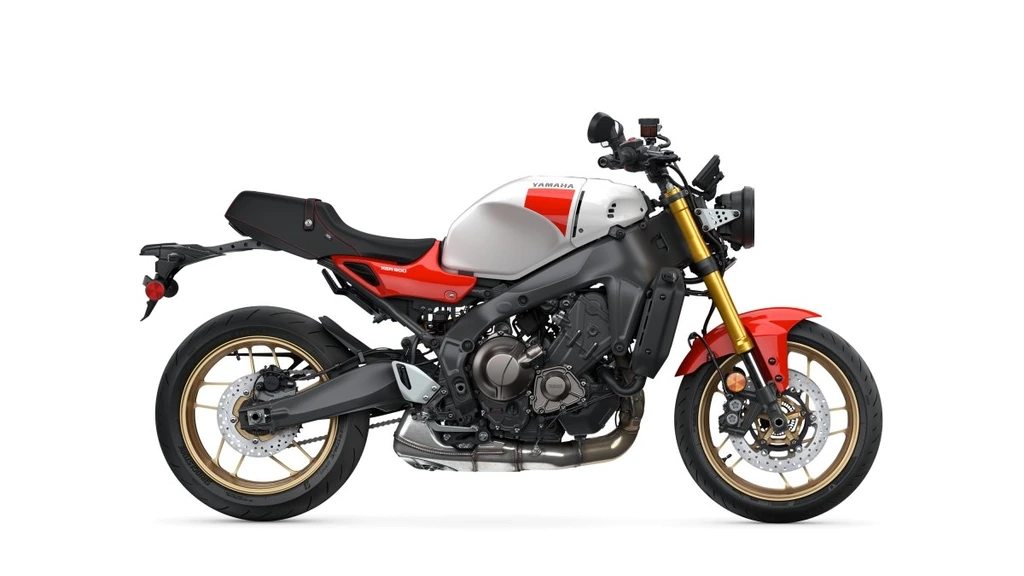

Legend Red (Europe)

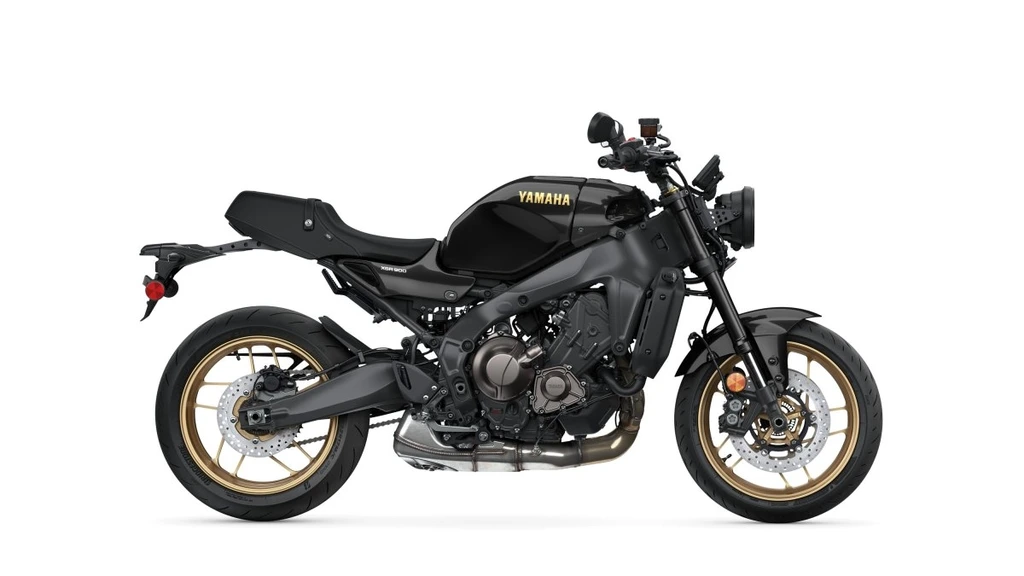

Midnight Black (Europe)
Raven (US)
Heritage White (US)
