The XSR900 holds its own on all routes, whether it is on those daydreaming twisty roads or the open straight, it feels at home doing both. Equipped with a modern electronics package that gives every rider an exceptional level of controllability in any type of situation. And with its sporty Quick Shifter as well as a relaxed Cruise Control, you can go as you please with this 3-cylinder muscle machine.
Key Specifications Engine Type CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder Engine Capacity 890 cc / 54.3 cubic inches Max Power 87.5 kW / 119 PS / 117.3 hp @ 10,000 rpm Max Torque 93 Nm / 68.6 ft-lbs @ 7,000 rpm Top Speed n/a Fuel Tank Capacity 14 L / 3.7 US gallons Weight (Wet/Kerb) 193 kg / 425.5 lbs Seat Height 810 mm / 32 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Yamaha XSR900 Year 2024
Engine Engine Type CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder Displacement 890 cc / 54.3 cubic inches Bore x Stroke 78 x 62.1 mm Compression Ratio 11.5 : 1 Number of Cylinders 3 Max Horsepower 87.5 kW / 119 PS / 117.3 hp @ 10,000 rpm Max Torque 93 Nm / 68.6 ft-lbs @ 7,000 rpm Valve Train DOHC Valves per Cylinder 4 Engine Management System Electronic Fuel Injection Lubrication System Wet sump Cooling System Liquid Cooled Ignition System TCI Emissions Compliance EU5+
Performance Fuel Consumption 20 kmpl / 47 mpg
*n/a – information not provided by manufacturer
Transmission Clutch Wet multiplate assist and slipper clutch Gearbox Constant Mesh, 6-speed Final Drive Chain Quick Shifter Yes, both upshift and downshift Traction Control System Lean Sensitive Traction Control Assist & Slipper Clutch Yes
Electrical & Electronics System Headlight Type LED Taillight Type LED Instrumentation 3.5 inch color TFT display Connectivity Yes. Traction Control System Lean Sensitive Traction Control Launch Control Front Wheel Lift Control ABS Lean Sensitive Yes Cruise Control Yes
Chassis & Suspension Frame Type Deltabox chassis Front Suspension KYB Fully adjustable USD forks Front Suspension Travel 130 mm / 5.1 inches Rear Suspension KYB Shock (Link type suspension), fully adjustable Rear Suspension Travel 137 mm / 5.4 inches Rake 25 ° Trail 108 mm / 4.25 inches Swingarm Aluminum Swingarm
Wheels & Brakes Wheels Sporty 10-spoke aluminum wheels Front Tire Size 120/70ZR17 Bridgestone® Battlax Hypersport S22 Rear Tire Size 180/55ZR17 Bridgestone® Battlax Hypersport S22 Front Brakes Hydraulic dual disc brake, Ø 298 mm, Brembo Radial Master Cylinder Rear Brakes Hydraulic single disc brake, Ø 245 mm ABS Yes.
Dimension & Weights Overall Length 2155 mm / 85 inches Overall Width 860 mm / 34 inches Overall Height 1155 mm / 45.4 inches Seat Height 810 mm / 32 inches Wheelbase 1495 mm / 59 inches Ground Clearance 140 mm / 5.5 inches Fuel Tank Capacity 14 L / 3.7 US gallons Wet (kerb/curb) Weight 193 kg / 425.5 lbs
Features New Five-Inch TFT Smartphone Connectivity New Customizable YRC Ride Modes New Back Slip Regulator New Yamaha Variable Speed Limiter New Third-Generation Quickshifter New KYB Rear Suspension New Switchgear & Turn Signal Functions Enhanced Ergonomic Touches Retro Influence, Modern Style Powerful 890cc Yamaha CP3 Engine Tuned Triple Soundtrack Sophisticated Six-Axis IMU with Rider Aids CF Die-Cast Aluminum Frame Yamaha Exclusive Lightweight SpinForged Wheels Powerful 890cc Crossplane Crankshaft Triple Fracture-Split Connecting Rods Offset & Direct-Plated Cylinders Ride-by-Wire Throttle with APSG Yamaha Chip Controlled Throttle (YCC-T) Accelerator Position Sensor Grip (APSG) Advanced Assist & Slipper Clutch Tuned Intake & Exhaust System Compact Six-Speed Transmission Lightweight Aluminum Frame & Swingarm High Performance Fully Adjustable KYB Suspension High-Spec Braking Components Yamaha Ride Control Lean sensitive Traction Control System Slide Control System Front Wheel Lift Control System Brake Control System Lean sensitive ABS Standard Cruise Control

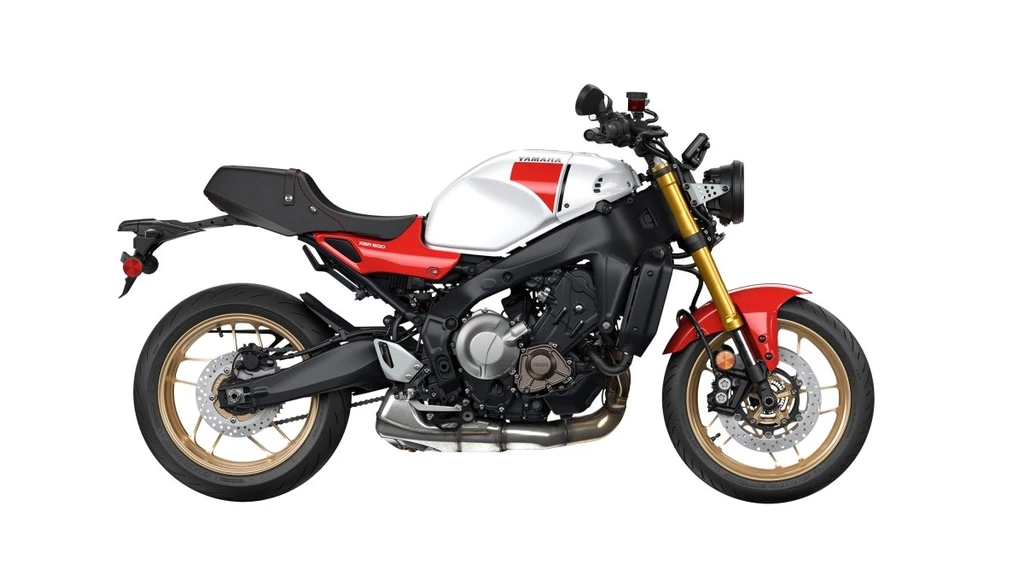

Yamaha XSR900 (2024) Color Options Legend Red (Europe) Midnight Black (Europe) Heritage White (US) *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
