Yamaha XSR700 Legacy (2023 – )

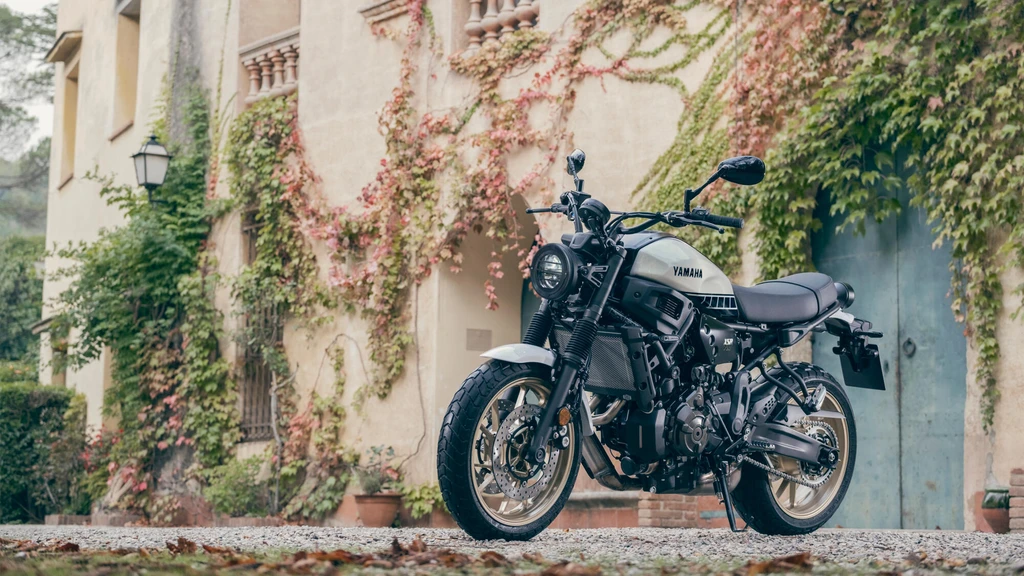

2023-yamaha-xsr700-legacy-throttlecraz.com-1_throttlecraze.com

Featuring timeless scrambler looks inspired by some of Yamaha’s most iconic machines from another era, the XSR700 Legacy is the kind of motorcycle that makes you feel very special on every ride. And behind its classic persona you’ll discover the very latest engine and chassis technology that’s ready to deliver truly thrilling performance.

Key Specifications

Engine Type	CP2 4-stroke, 2-cylinder, Liquid-cooled, DOHC, CP2, 4-valves
Engine Capacity	689 cc / 42 cubic inches
Max Power	54 kW / 73.4 PS / 72.3 hp @ 8750 rpm
Max Torque	67 Nm / 49.4 ft-lbs @6500 rpm
Top Speed	n/a
Fuel Tank Capacity	14 L / 3.7 US gallons
Weight (Wet/Kerb)	190 kg / 419 lbs
Seat Height	855 mm / 33.6 inches

*n/a – information not provided by manufacturer

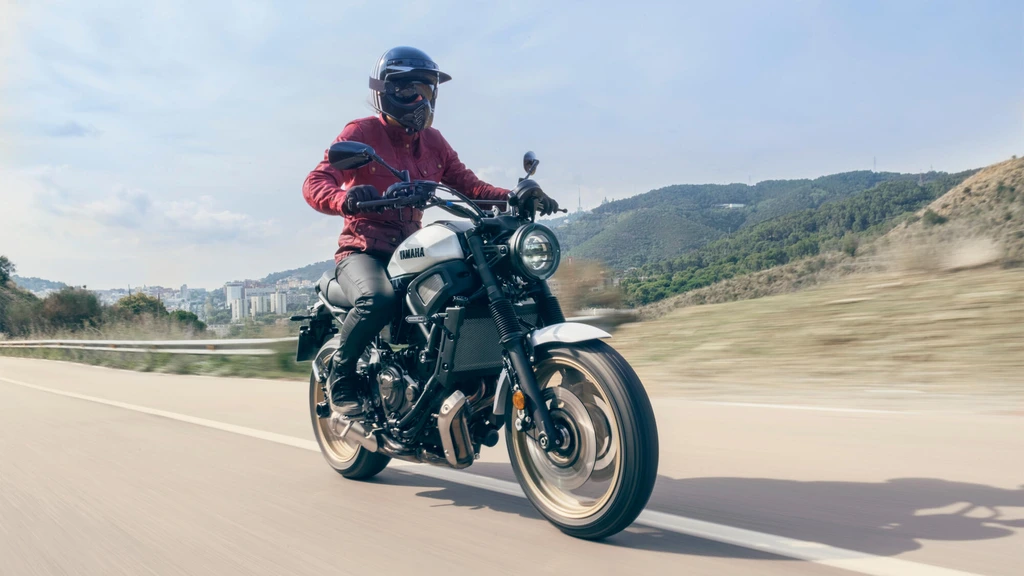

2023-yamaha-xsr700-legacy-throttlecraz.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Yamaha XSR700 Legacy
Year	2023 –

Engine

Engine Type	CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, 3-cylinder
Displacement	689 cc / 42 cubic inches
Bore x Stroke	80 x 68.6 mm
Compression Ratio	11.5 : 1
Number of Cylinders	2
Max Horsepower	54 kW / 73.4 PS / 72.3 hp @ 8750 rpm
Max Torque	67 Nm / 49.4 ft-lbs @6500 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Electronic Fuel Injection
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Ignition System	TCI
Exhaust System	2 into 1
Emissions Compliance	EU5+

Performance

Fuel Consumption

23.25 kmpl / 54.7 mpg

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate assist and slipper clutch
Gearbox	Constant Mesh, 6-speed
Final Drive	Chain

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	LCD instrument
ABS	Yes

Chassis & Suspension

Front Suspension	Telescopic fork
Front Suspension Travel	130 mm / 5.1 inches
Rear Suspension	(Link type suspension), Swingarm
Rear Suspension Travel	130 mm / 5.1 inches
Rake	24.3 °
Trail	90 mm / 3.5 inches
Swingarm	Steel Swingarm

Wheels & Brakes

Wheels	10-spoke cast wheels
Front Tire Size	120/70 ZR 17M/C(58W) Tubeless, Pirelli MT 60
Rear Tire Size	180/55 ZR 17M/C(73W) Tubeless, Pirelli MT 60
Front Brakes	4 piston dual caliper 298 mm disc
Rear Brakes	Single disc brake, Ø 245 mm

Dimension & Weights

Overall Length	2075 mm / 81.7 inches
Overall Width	865 mm / 34 inches
Overall Height	1120 mm / 44 inches
Seat Height	855 mm / 33.6 inches
Wheelbase	1405 mm / 55.3 inches
Ground Clearance	140 mm / 5.5 inches
Fuel Tank Capacity	14 L / 3.7 US gallons
Wet (kerb/curb) Weight	190 kg / 419 lbs

Yamaha XSR700 Legacy (2023 – ) Color Options

Speedlock Silver

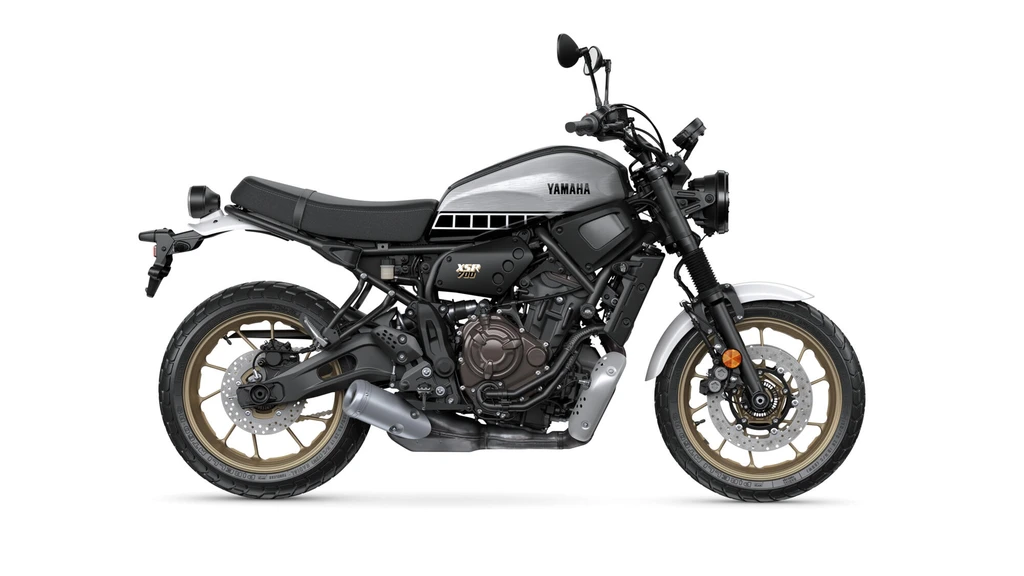

2023-yamaha-xsr700-legacy-throttlecraz.com-3_throttlecraze.com
