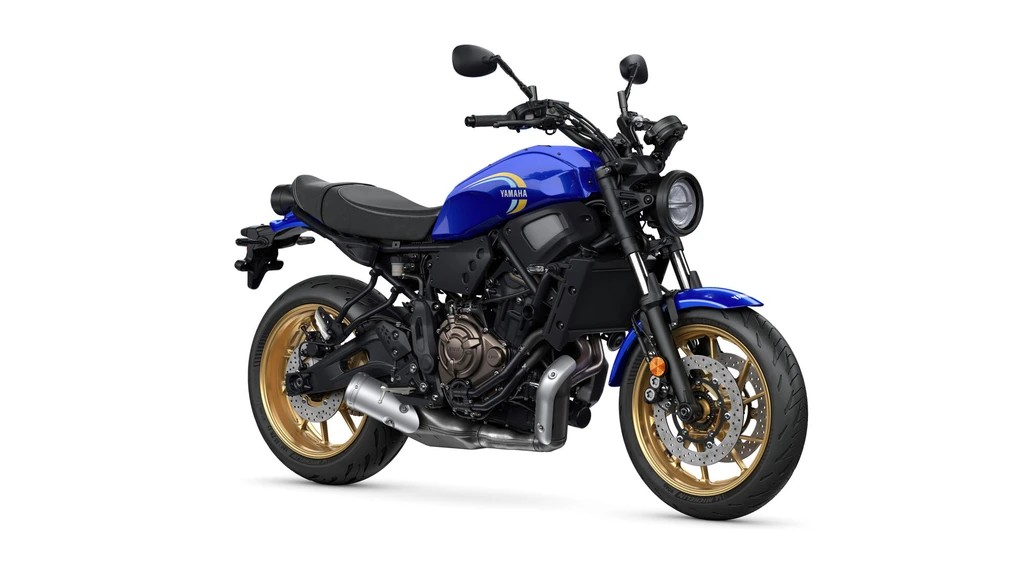

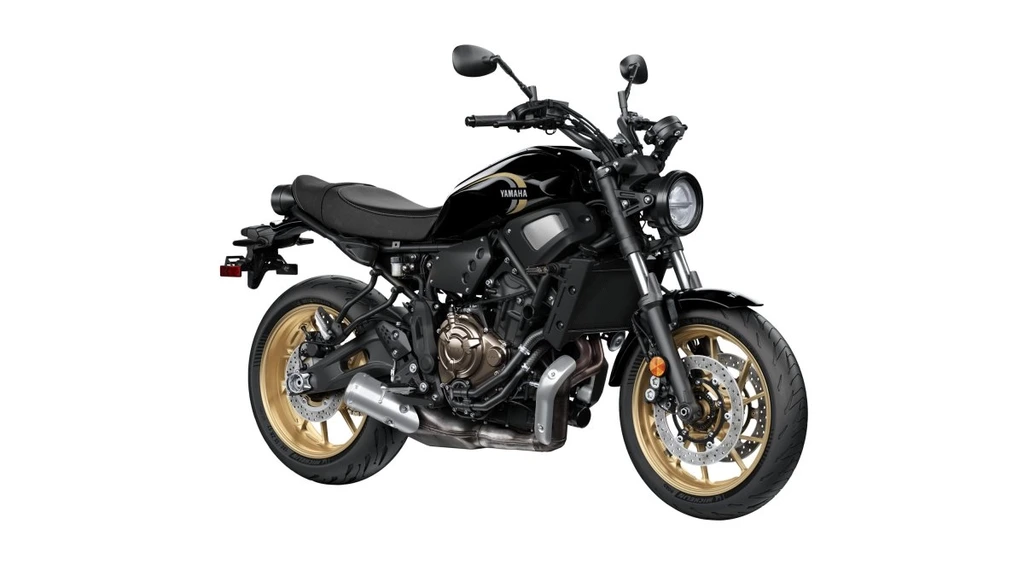

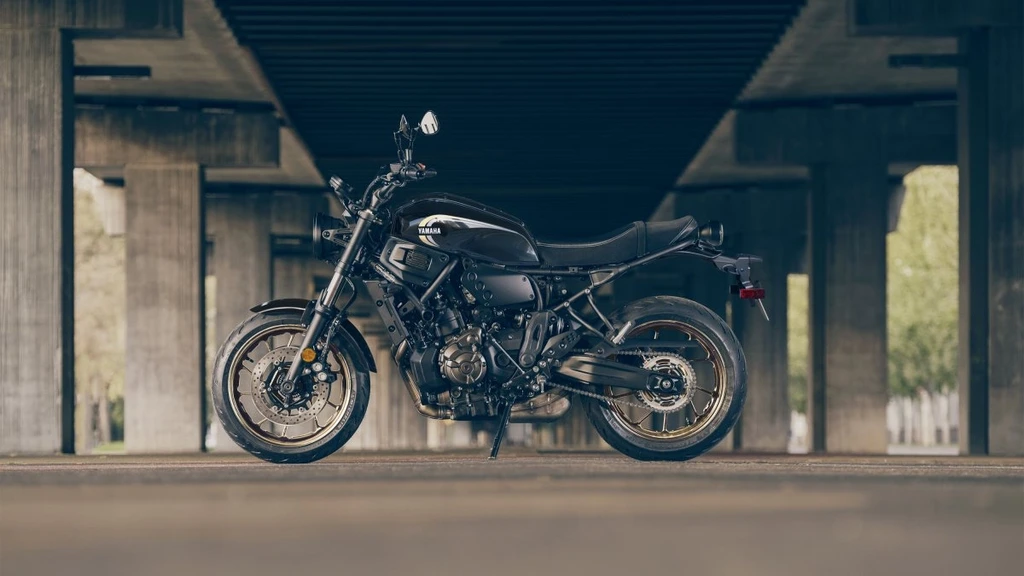

The XSR700 is a true legacy machine, earning it’s stripes on the road. The beating heart of the machine is the versatile character. The XSR700 is a bike to be ridden, anyway you like. From casual cruising to hitting the twisties, the bike can do it all.
Key Specifications Engine Type CP2 4-stroke, 2-cylinder, Liquid-cooled, DOHC, 4-valves Engine Capacity 689 cc / 42 cubic inches Max Power 54 kW / 73.4 PS / 72.3 hp @ 8750 rpm Max Torque 67 Nm / 49.4 ft-lbs @6500 rpm Top Speed n/a Fuel Tank Capacity 14 L / 3.7 US gallons Weight (Wet/Kerb) 186 kg / 410 lbs Seat Height 835 mm / 33 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Yamaha XSR700 Year 2025 –
Engine Engine Type CP2 4-stroke, 2-cylinder, Liquid-cooled, DOHC, 4-valves Displacement 689 cc / 42 cubic inches Bore x Stroke 80 x 68.6 mm Compression Ratio 11.5 : 1 Number of Cylinders 2 Max Horsepower 54 kW / 73.4 PS / 72.3 hp @ 8750 rpm Max Torque 67 Nm / 49.4 ft-lbs @6500 rpm Valve Train DOHC Valves per Cylinder 4 Engine Management System Electronic Fuel Injection Lubrication System Wet sump Cooling System Liquid Cooled Ignition System TCI Exhaust System 2 into 1 Emissions Compliance EU5+
Performance Fuel Consumption 23.25 kmpl / 54.7 mpg
*n/a – information not provided by manufacturer
Transmission Clutch Wet multiplate assist and slipper clutch Gearbox Constant Mesh, 6-speed Final Drive Chain
Electrical & Electronics System Headlight Type LED Taillight Type LED Instrumentation LCD instrument ABS Yes
Chassis & Suspension Front Suspension 41 mm Telescopic fork Front Suspension Travel 130 mm / 5.1 inches Rear Suspension Single shock, adjustable preload Rear Suspension Travel 130 mm / 5.1 inches Rake 25 ° Trail 90 mm / 3.5 inches Swingarm Steel Swingarm
Wheels & Brakes Wheels 10-spoke cast wheels Front Tire Size 120/70ZR17 Michelin® Road 5 Rear Tire Size 180/55ZR17 Michelin® Road 5 Front Brakes Dual hydraulic disc, 282mm; ABS Rear Brakes Hydraulic disc, 245mm; ABS
Dimension & Weights Overall Length 2075 mm / 81.7 inches Overall Width 820 mm / 32.3 inches Overall Height 1130 mm / 44.5 inches Seat Height 835 mm / 33 inches Wheelbase 1405 mm / 55.3 inches Ground Clearance 140 mm / 5.5 inches Fuel Tank Capacity 14 L / 3.7 US gallons Wet (kerb/curb) Weight 186 kg / 410 lbs
Features Standout Style Modern LED Headlight, Classic Style Advanced Crossplane Crankshaft Concept Engine Powerful Braking with ABS Compact, Sporty Chassis Advanced Twin Cylinder Engine Crossplane Crankshaft Concept Offset Cylinder Block Vibration-Reducing Counterbalancer Refined, Efficient Fuel Injection Compact Six-Speed Transmission Street-Focused Suspension Lightweight Wheels & Michelin Road 5 Tires Advanced Instrumentation Classically-styled Modern LED Lighting Stylish & Ergonomic Fuel Tank Casual but Sporty Ergonomics Unique XSR700 Detailing Yamaha XSR700 (2025 – ) Color Options *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
