Yamaha R7 (2025 – )

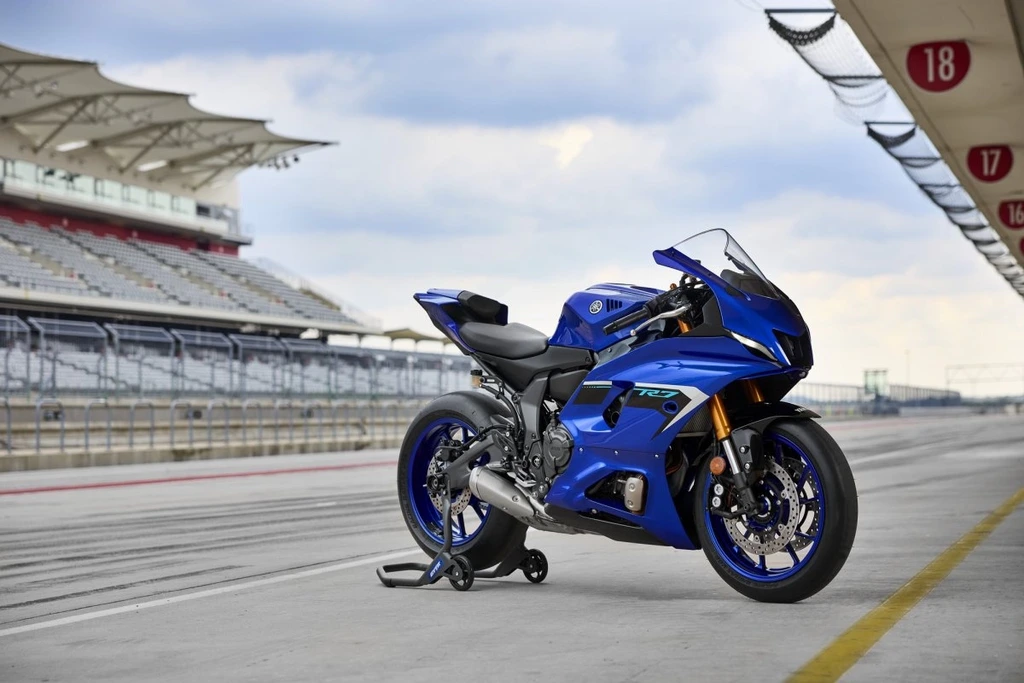

2025-yamaha-r7-throttlecraze.com-1_throttlecraze.com

Key Specifications

Engine TypeCP2 4-stroke, Liquid-cooled, DOHC, 4-valves, inline two-cylinder
Engine Capacity689 cc / 42 cubic inches
Max Power54.0 kW (73.4 PS) @ 8,750 rpm
Max Torque35.0 kW (47.6 PS) @ 7,750 rpm
Top Speed~ 138 mph / 222 kmph
Fuel Tank Capacity13 L / 3.43 US gallons
Weight (Wet/Kerb)188 kg / 414 lbs
Seat Height835.6 mm / 32.9 inches

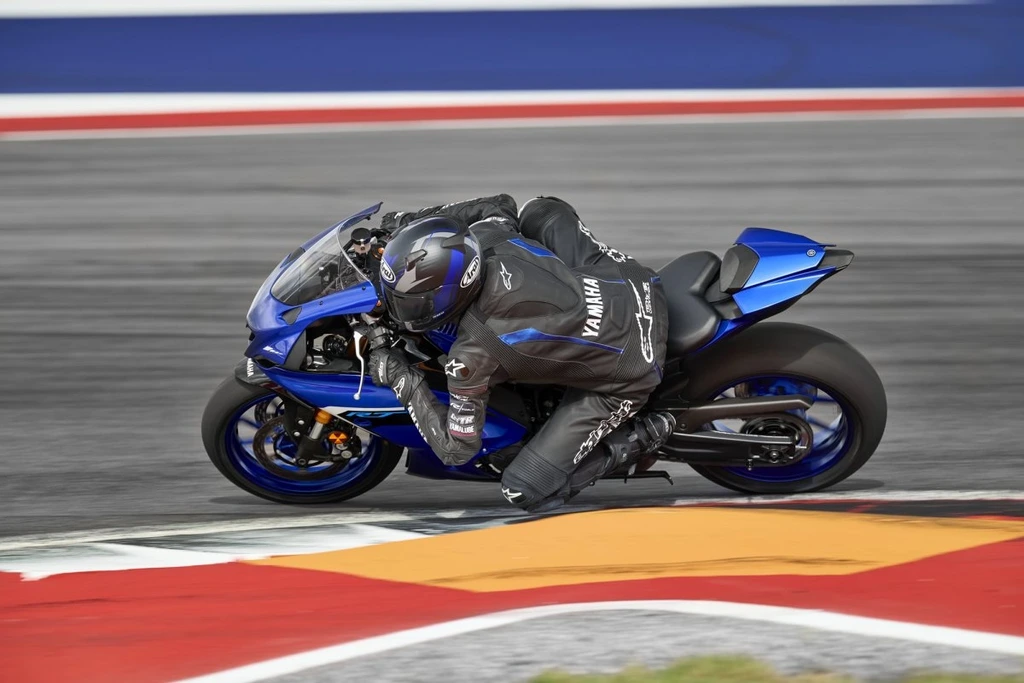

2025-yamaha-r7-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

ModelYamaha R5
Year2025 –

Engine

Engine TypeCP2 4-stroke, Liquid-cooled, DOHC, 4-valves, inline two-cylinder
Displacement689 cc / 42 cubic inches
Bore x Stroke80 x 68.6 mm
Compression Ratio11.5 : 1
Number of Cylinders2
Max Horsepower54.0 kW (73.4 PS) @ 8,750 rpm
Max Torque35.0 kW (47.6 PS) @ 7,750 rpm
Valve TrainDOHC
Valves per Cylinder4
Engine Management SystemElectronic Fuel Injection
Lubrication SystemWet sump
Cooling SystemLiquid Cooled
Ignition SystemTCI

Performance

Top Speed~ 138 mph / 222 kmph

Transmission

ClutchWet multiplate assist and slipper clutch
GearboxConstant Mesh, 6-speed
Gear Ratios1st gear: 37/13
2nd gear: 34/16
3rd gear: 31/19
4th gear: 26/20
5th gear: 24/22
6th gear: 27/28
Final DriveChain
Quick ShifterOptional (Upshifts only)
Assist & Slipper ClutchYes

Electrical & Electronics System

Headlight TypeLED
Taillight TypeLED
InstrumentationHigh contrast LCD instrument panel
ABSYes

Chassis & Suspension

Frame TypeHigh-strength steel frame with a rigid-mount aluminum center brace
Front Suspension41 mm KYB® Telescopic fork; adjustable for preload, rebound and compression
Front Suspension Travel130 mm / 5.1 inches
Rear SuspensionLinked-type Monocross shock, adjustable preload and rebound
Rear Suspension Travel130 mm / 5.1 inches
Rake23.4 °
Trail90 mm / 3.54 inches
SwingarmAluminum swingarm

Wheels & Brakes

Wheels10 spoke Cast alloy wheels
Front Tire Size120/70ZR17 Bridgestone® BATTLAX HYPERSPORT S22F
Rear Tire Size180/55ZR17 Bridgestone® BATTLAX HYPERSPORT S22R
Front BrakesHydraulic dual disc brake, Ø298 mm, Brembo master cylinder
Rear BrakesHydraulic single disc brake, Ø245 mm
ABSYes.

Dimension & Weights

Overall Length2070 mm / 81.5 inches
Overall Width705 mm / 27.75 inches
Overall Height1160 mm / 45.66 inches
Seat Height835.6 mm / 32.9 inches
Wheelbase1395 mm / 55 inches
Ground Clearance135 mm / 5.3 inches
Fuel Tank Capacity13 L / 3.43 US gallons
Wet (kerb/curb) Weight188 kg / 414 lbs

Features

  • Torquey 689cc twin-cylinder DOHC fuel-injected CP2 engine.
  • Lightweight titanium connecting rods, titanium intake valves and forged pistons.
  • A 270-degree crankshaft delivers linear torque for exciting acceleration and limited vibration.
  • Forged aluminum pistons make for lighter weight and excellent strength at extreme temperatures and higher rpms.
  • Assist & Slipper clutch provides smoother downshifts and lighter clutch pull.
  • Wired for an optional Quick Shift System to help provide speedy, smooth upshifts.
  • High-strength steel frame with a rigid-mount aluminum center brace provides an optimized balance of rigidity.
  • Fully adjustable inverted KYB 41mm front fork with optimized settings provides excellent front-end feel.
  • Linked-type Monocross rear shock offers spring preload and rebound damping adjustment.
  • Brembo master cylinder combines with radial-mounted front brake calipers and dual 298mm front rotors.
  • Commanding Supersport ergonomics with low-profile fuel tank, compact clip-ons and contoured seat.
  • High-contrast LCD instrument display provides rider with a range of vehicle data.
  • Adaptive LED headlight, tail lights and turn signals offer long life, minimal power draw and brilliant illumination.
  • Sleek R-Series styling including ultra-slim bodywork provides an aggressive look and optimal aerodynamics.

Yamaha R7 (2025 – ) Color Options

  • Matt Raven Black (US)
  • Team Yamaha Blue (US)

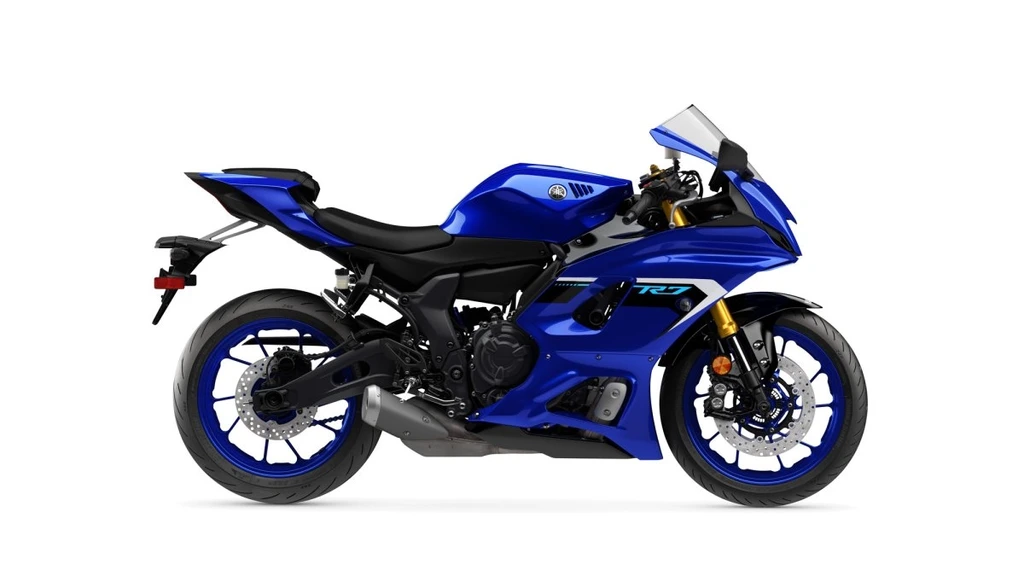

2025-yamaha-r7-throttlecraze.com-4_throttlecraze.com

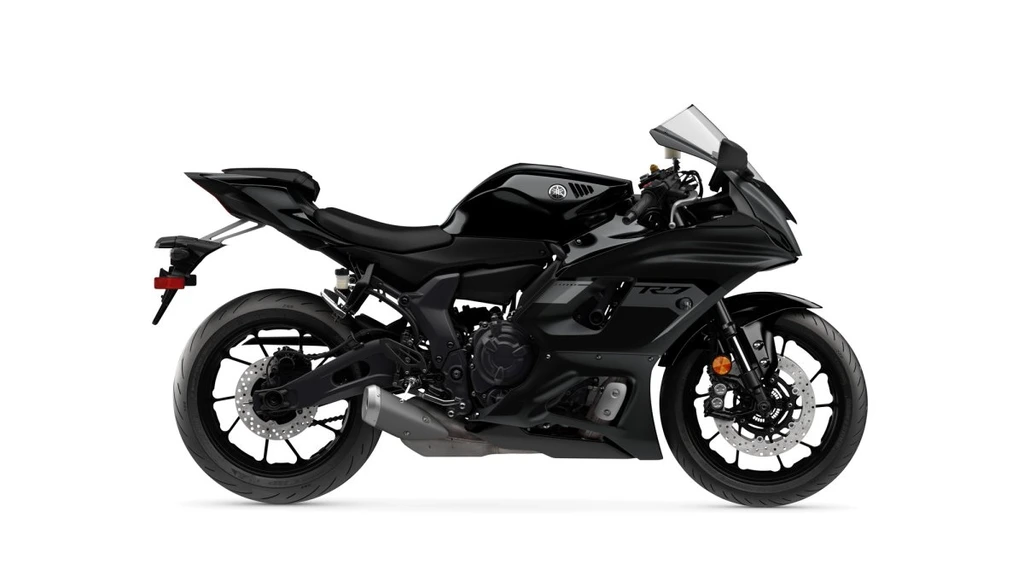

2025-yamaha-r7-throttlecraze.com-3_throttlecraze.com
