Yamaha R7 (2024)

Fast, agile and handsome, the R7 offers sports performance with everyday fun. Featuring ultra-slim aerodynamic bodywork finished in a next generation Icon Blue colour and graphics, the R7 is the most recent addition to the legendary R-Series family. With its high torque 689cc engine and compact chassis, R7 adds another dimension to the Supersport riding experience.

Key Specifications

Engine Type	CP2 4-stroke, Liquid-cooled, DOHC, 4-valves, inline two-cylinder
Engine Capacity	689 cc / 42 cubic inches
Max Power	54.0 kW (73.4 PS) @ 8,750 rpm
Max Torque	35.0 kW (47.6 PS) @ 7,750 rpm
Top Speed	~ 138 mph / 222 kmph
Fuel Tank Capacity	13 L / 3.43 US gallons
Weight (Wet/Kerb)	188 kg / 414 lbs
Seat Height	835 mm / 29 inches

*n/a – information not provided by manufacturer

2024-yamaha-r7-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Yamaha R5
Year	2024 –

Engine

Engine Type	CP2 4-stroke, Liquid-cooled, DOHC, 4-valves, inline two-cylinder
Displacement	689 cc / 42 cubic inches
Bore x Stroke	80 x 68.6 mm
Compression Ratio	11.5 : 1
Number of Cylinders	2
Max Horsepower	54.0 kW (73.4 PS) @ 8,750 rpm
Max Torque	35.0 kW (47.6 PS) @ 7,750 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Electronic Fuel Injection
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Ignition System	TCI

Performance

Top Speed

~ 138 mph / 222 kmph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate assist and slipper clutch
Gearbox	Constant Mesh, 6-speed
Gear Ratios	1st gear: 37/13 2nd gear: 34/16 3rd gear: 31/19 4th gear: 26/20 5th gear: 24/22 6th gear: 27/28
Final Drive	Chain
Quick Shifter	Optional (Upshifts only)
Assist & Slipper Clutch	Yes

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	Full-LCD instrument panel
ABS	Yes

Chassis & Suspension

Frame Type	High-strength steel frame with a rigid-mount aluminum center brace
Front Suspension	41 mm KYB® Telescopic fork; adjustable for preload, rebound and compression
Front Suspension Travel	130 mm / 5.1 inches
Rear Suspension	Linked-type Monocross shock, adjustable preload and rebound
Rear Suspension Travel	130 mm / 5.1 inches
Rake	23.4 °
Trail	90 mm / 3.54 inches
Swingarm	Aluminum swingarm

Wheels & Brakes

Wheels	10 spoke Cast alloy wheels
Front Tire Size	120/70ZR17M/C (58W) Tubeless
Rear Tire Size	180/55ZR17M/C (73W) Tubeless
Front Brakes	Hydraulic dual disc brake, Ø298 mm, Brembo master cylinder
Rear Brakes	Hydraulic single disc brake, Ø245 mm
ABS	Yes.

Dimension & Weights

Overall Length	2070 mm / 81.5 inches
Overall Width	705 mm / 27.75 inches
Overall Height	1160 mm / 45.66 inches
Seat Height	835 mm / 29 inches
Wheelbase	1395 mm / 55 inches
Ground Clearance	135 mm / 5.3 inches
Fuel Tank Capacity	13 L / 3.43 US gallons
Wet (kerb/curb) Weight	188 kg / 414 lbs

Features

Torquey CP2 Powerplant
Advanced A&S Clutch
Thin Proportions for Perfect Control
Sport Suspension
Adaptive Bi-Functional LED Headlight
Linear Torque with Smooth Acceleration
Advanced A&S Clutch
Quick Shift System for Smooth Upshifts
Strong, Lightweight Pistons
Supersport Riding Position
Inverted Front Fork
Lightweight Frame Tuned for Rigidity Balance
Monocross Rear Shock
Potent Braking
Thin Proportions for Perfect Control
Sport Suspension
Digital LCD Instrumentation
Adaptive Bi-Functional LED Headlight
LED Lighting
Refined Sportbike Ergonomics
Sleek R-Series Styling

Yamaha R7 (2024) Color Options

Icon Blue (Europe)
Midnight Black (Europe)
Matte Gray (US)
Raven (US)
Team Yamaha Blue (US)

2024-yamaha-r7-throttlecraze.com-3_throttlecraze.com

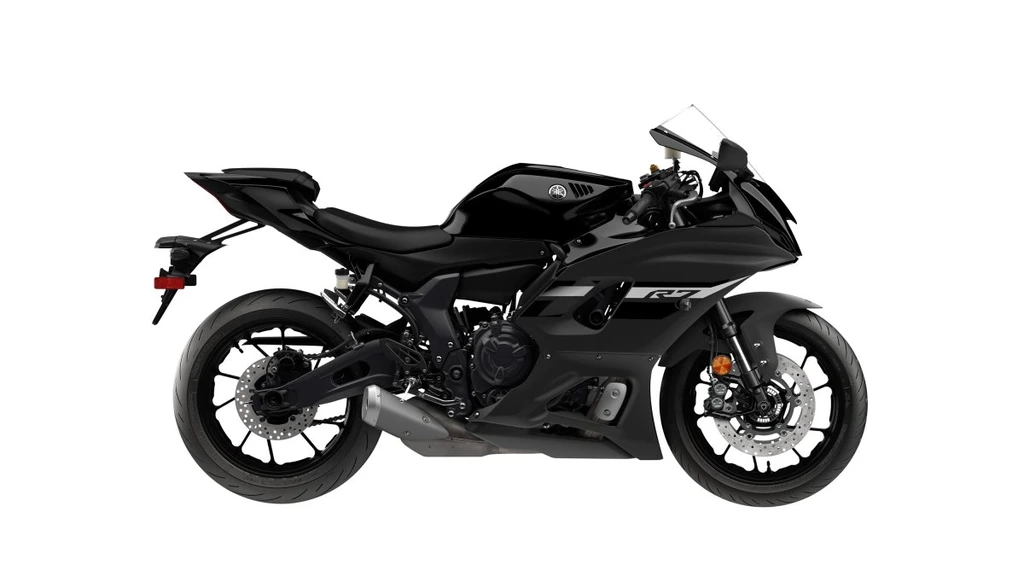

2024-yamaha-r7-throttlecraze.com-4_throttlecraze.com

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
