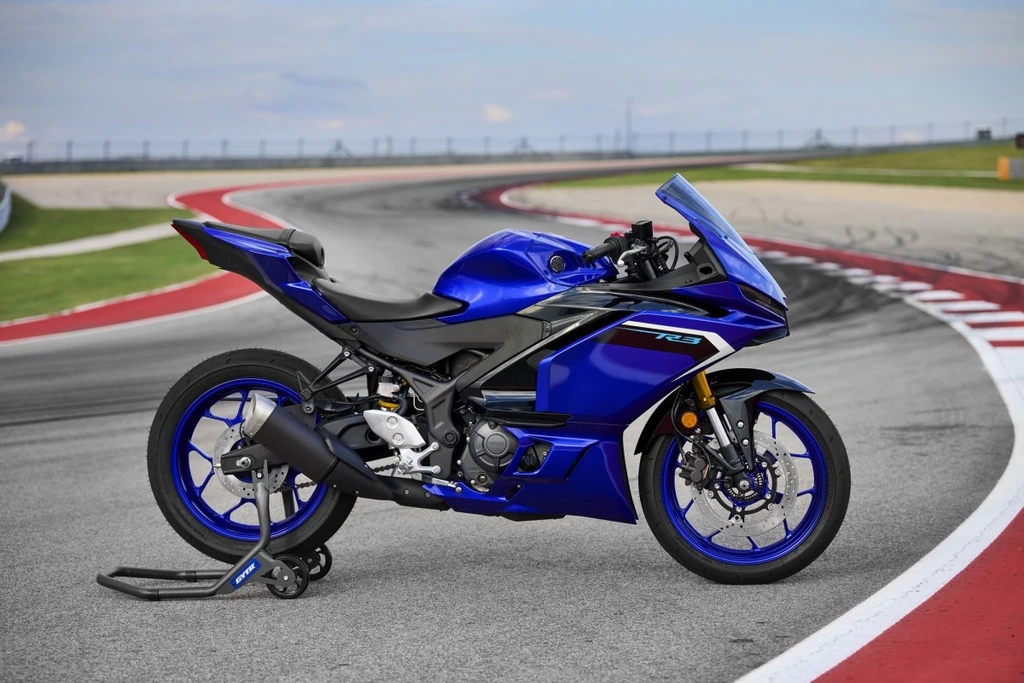

Yamaha R3 (2025 - ) - Specifications

R-World is calling. The R3 is the ultimate lightweight Yamaha supersport inspired by Yamaha’s MotoGP M1 race bike featuring a compact agile chassis, a high-revving 321cc engine that provides outstanding acceleration and an aerodynamic race-derived bodywork including winglets.

Key Specifications

Engine Type	4-stroke, 2-cylinder, Liquid-cooled, DOHC, 4-valves
Engine Capacity	321 cc / 19.58 cubic inches
Max Power	30.9 kW (42.0PS) @ 10,750 rpm
Max Torque	29.5N・m(3,0kg-m) @ 9,000 rpm
Top Speed	~ 118 mph / 190 kmph
Fuel Tank Capacity	14 L / 3.7 US gallons
Weight (Wet/Kerb)	169 kg / 372.5 lbs
Seat Height	780 mm / 30.7 inches

*n/a – information not provided by manufacturer

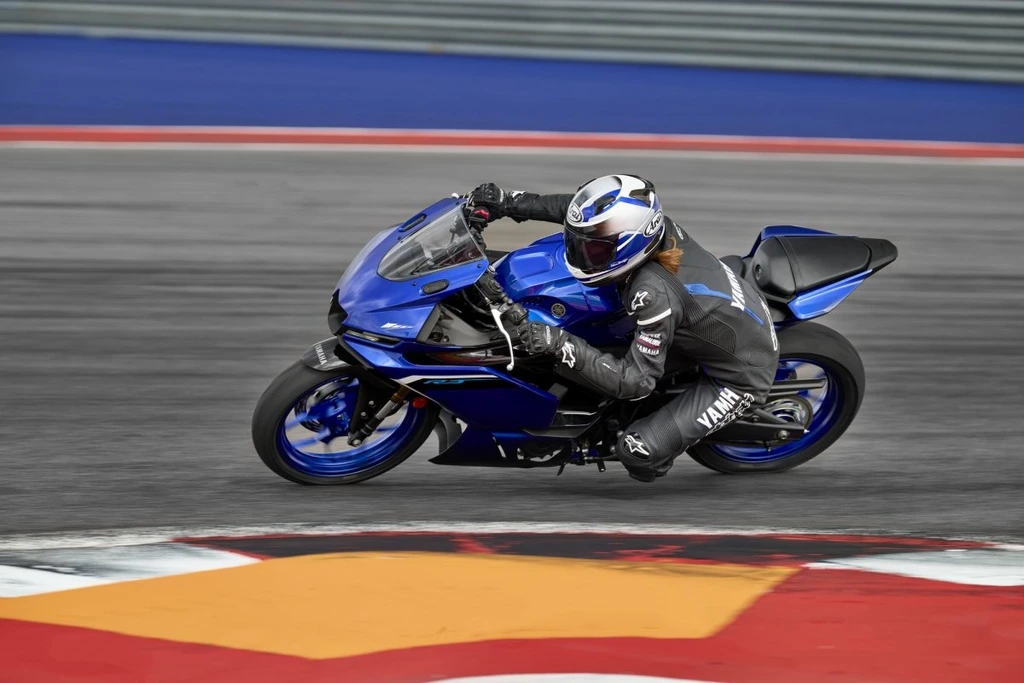

2025-yamaha-r3-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Yamaha R3
Year	2025 –

Engine

Engine Type	4-stroke, 2-cylinder, Liquid-cooled, DOHC, 4-valves
Displacement	321 cc / 19.58 cubic inches
Bore x Stroke	68 x 44.1 mm
Compression Ratio	11.2 : 1
Number of Cylinders	2
Max Horsepower	30.9 kW (42.0PS) @ 10,750 rpm
Max Torque	29.5N・m(3,0kg-m) @ 9,000 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Electronic Fuel Injection
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Ignition System	TCI

Performance

Top Speed

~ 118 mph / 190 kmph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate assist and slipper clutch
Gearbox	Constant Mesh, 6-speed
Final Drive	Chain
Assist & Slipper Clutch	Yes

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	LCD instrument cluster displays connected smartphone information along with vital vehicle data.
ABS	Yes

Chassis & Suspension

Frame Type	Diamond
Front Suspension	KYB Telescopic forks, Ø37 mm
Front Suspension Travel	130 mm / 5.11 inches
Rear Suspension	Swingarm
Rear Suspension Travel	125 mm / 4.92 inches
Swingarm	Aluminum swingarm

Wheels & Brakes

Front Tire Size	110/70R17M/C 54H Tubeless
Rear Tire Size	140/70R17M/C 66H Tubeless
Front Brakes	Hydraulic single disc brake, Ø298 mm
Rear Brakes	Hydraulic single disc brake, Ø220 mm
ABS	Yes.

Dimension & Weights

Overall Length	2090 mm / 82.28 inches
Overall Width	735 mm / 29 inches
Overall Height	1140 mm / 44.88 inches
Seat Height	780 mm / 30.7 inches
Wheelbase	1380 mm / 54.33 inches
Ground Clearance	160 mm / 6.3 inches
Fuel Tank Capacity	14 L / 3.7 US gallons
Wet (kerb/curb) Weight	169 kg / 372.5 lbs

Features

Improved ergonomics with narrower seat and slimmer side covers for an easy reach to the ground.
Modern LED lighting including a new single headlight, position lights, tail light and turn signals.
New Assist & Slipper clutch for smooth downshifts and light clutch pull.
New smartphone connectivity with Yamaha Y-Connect.
New LCD instrument cluster displays connected smartphone information along with vital vehicle data.
New USB-A socket providing convenient power for phone charging or heated gear.
Next generation R-Series styling with sleek new front fairing, side panels and tail section.
Modern fuel injection provides easy starting, excellent fuel economy and responsive performance.
Short muffler design centralizes mass for improved agility.
Smooth-shifting six-speed gearbox
Innovative offset cylinder design with unique DiASil high-silicon aluminum alloy engine block.
High-revving 321cc liquid-cooled, inline two-cylinder engine with 180-degree crank design.
YZR-M1-inspired top clamp for authentic Supersport style.
Inverted fork with optimized spring and damping settings provide excellent front-end feedback and control.
Single-shock design strikes perfect balance between ride comfort and sporty performance.
Excellent stopping power from 298mm floating-mount front disc and 220mm rear disc brakes with modern ABS.
Stylish 10-spoke cast aluminum wheels and grippy Dunlop® radial tires.
Near 50/50 weight distribution for enhanced agility.

Yamaha R3 (2025 – ) Color Options

Icon Blue (Europe)
Midnight Black (Europe)
Team Yamaha Blue (US)
Matte Stealth Black (US)
Lunar White / Nebula Blue (US)

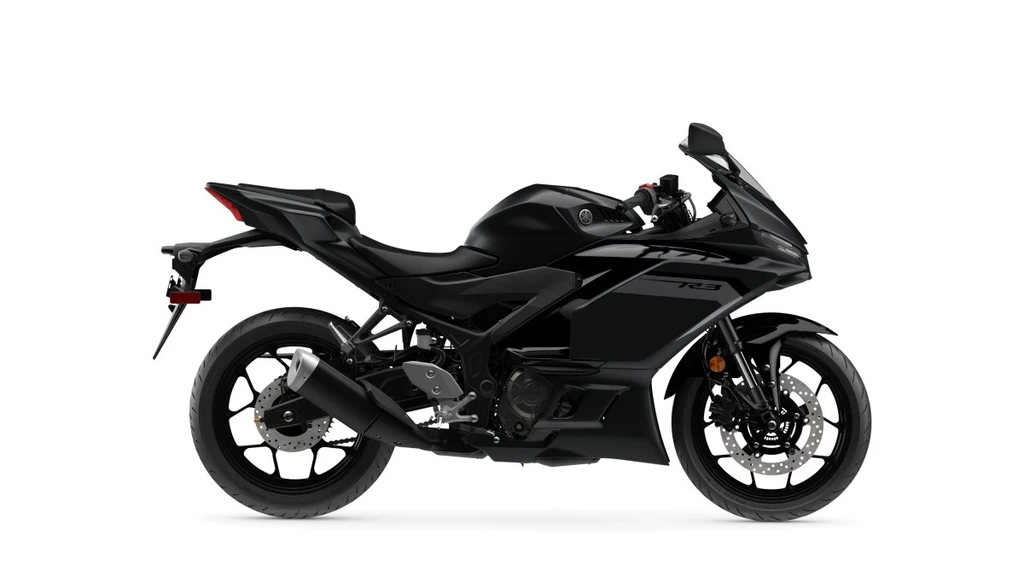

2025-yamaha-r3-throttlecraze.com-3_throttlecraze.com

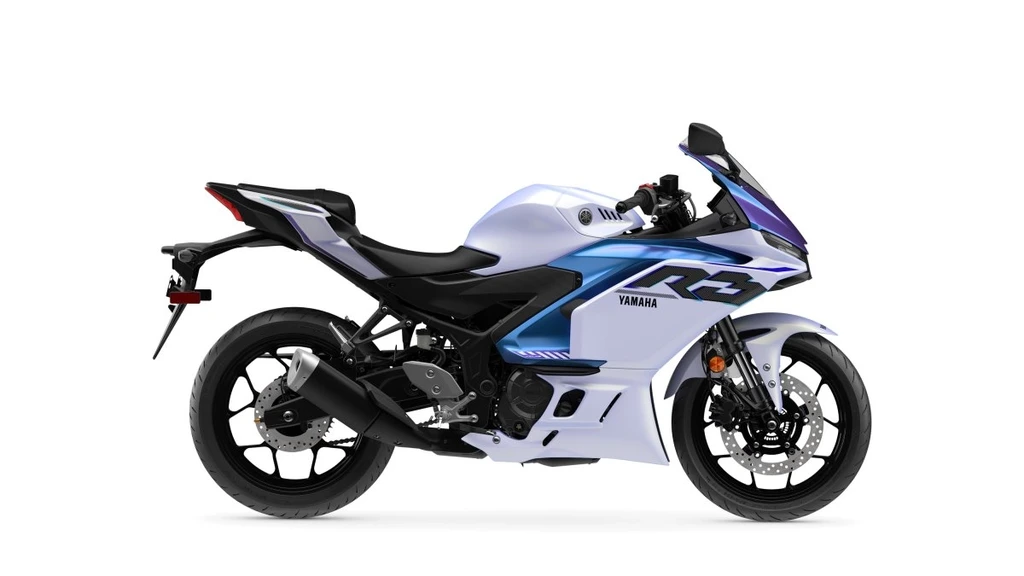

2025-yamaha-r3-throttlecraze.com-4_throttlecraze.com

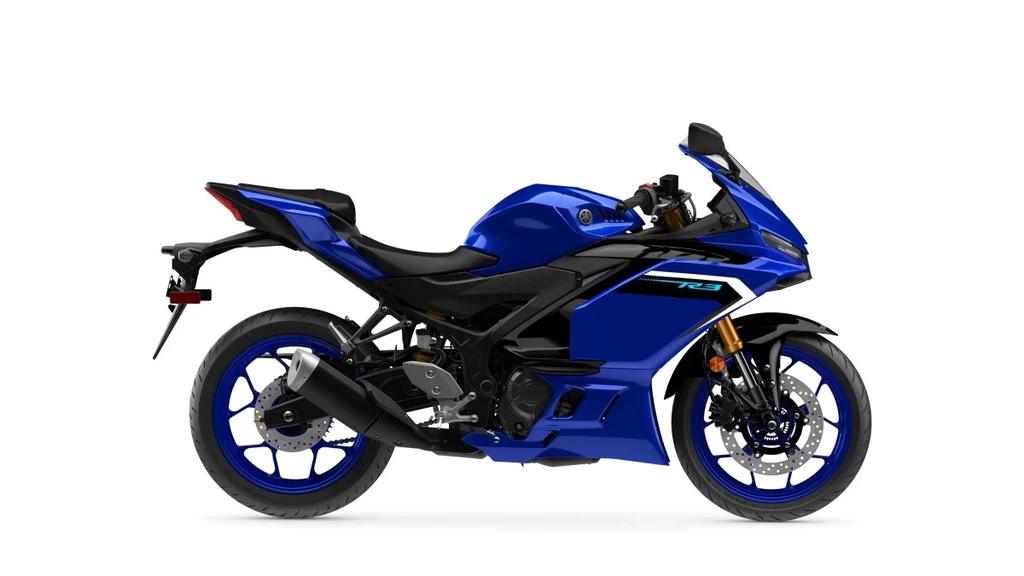

2025-yamaha-r3-throttlecraze.com-5_throttlecraze.com

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
