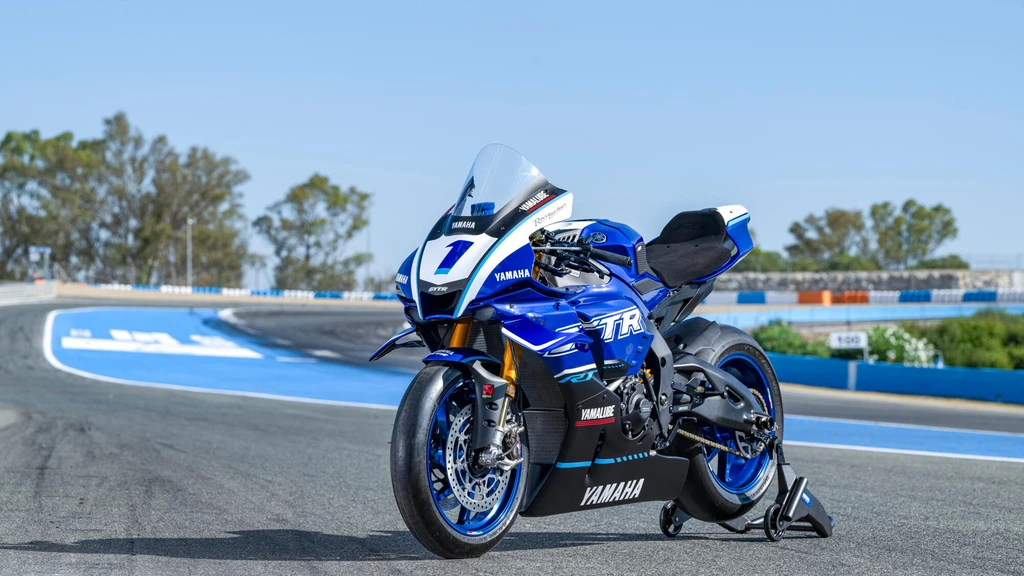

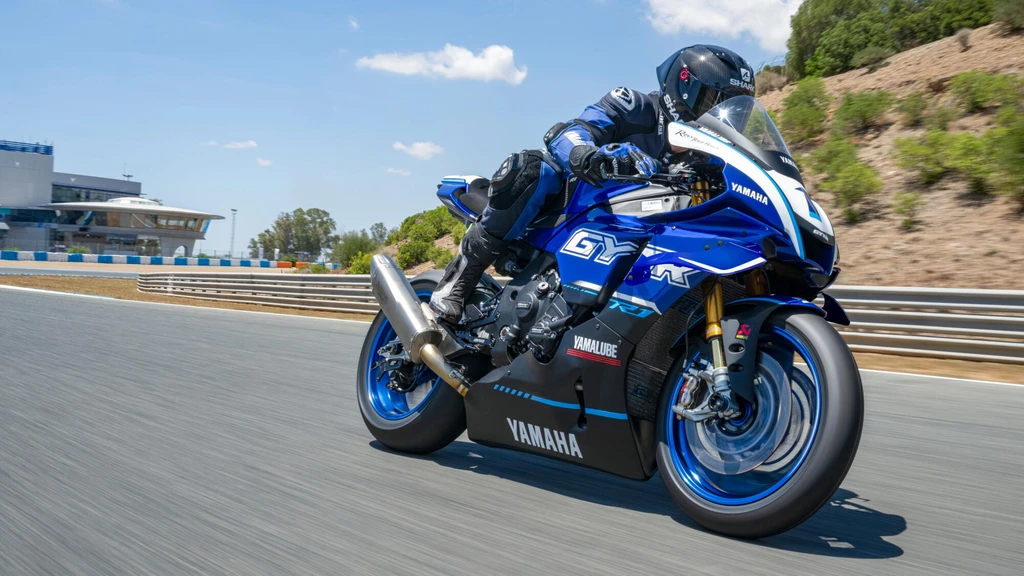

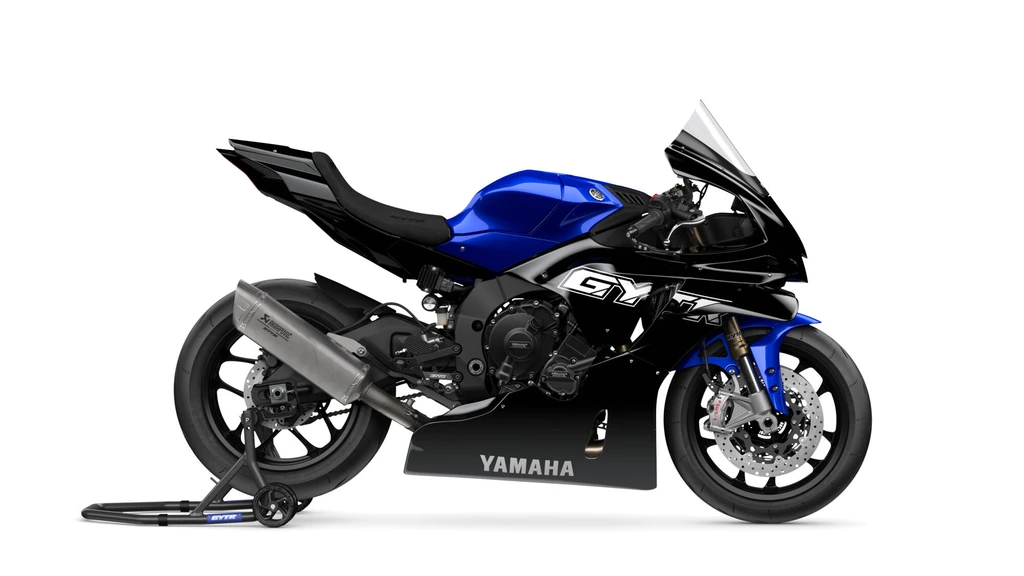

Fully equipped with a comprehensive range of engine, chassis and electronic race technology, the new R1 GYTR gives every track day rider and racer the ultimate canvas to create their own dream race machine and is available through the GYTR PRO Shops. Featuring the race-ready specification that has been tested and developed on Yamaha’s WorldSBK® winning race bikes, this machine is a real game changer.
Key Specifications
Engine Type
CP4 998cc, liquid-cooled inline 4 cylinder DOHC; 4-valves per cylinder
Engine Capacity
998 cc / 61 cubic inches
Max Power
147.1 kW (200.0 PS) @ 13,500 rpm
Max Torque
113.3 Nm (11.6 kg-m) @ 11,500 rpm
Fuel Tank Capacity
17 L / 4.5 US gallons
Weight (Wet/Kerb)
201 kg / 443 lbs
Seat Height
855 mm / 33.66 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Yamaha YZF-R1
Year
2024
Engine
Engine Type
CP4 998cc, liquid-cooled inline 4 cylinder DOHC; 4-valves per cylinder
Displacement
998 cc / 61 cubic inches
Bore x Stroke
79 x 50.9 mm
Compression Ratio
13 : 1
Number of Cylinders
4
Max Horsepower
147.1 kW (200.0 PS) @ 13,500 rpm
Max Torque
113.3 Nm (11.6 kg-m) @ 11,500 rpm
Valve Train
4 Valves per cylinder, DOHC
Valves per Cylinder
4
Engine Management System
Electronic Fuel Injection
Lubrication System
Wet sump
Cooling System
Liquid Cooled
Ignition System
TCI
Exhaust System
Akrapovic Race muffler with mid-damper system (titanium)
Quick Shift System (QSS) with three settings, Up and Down
Traction Control System
Lean angle-sensitive Traction Control (TCS) incorporates 6-axis IMU
Assist & Slipper Clutch
Yes
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Instrumentation
Advanced, full-color TFT display
Traction Control System
Lean angle-sensitive Traction Control (TCS) incorporates 6-axis IMU
Launch Control
Four-level Lift Control System (LIF)
ABS
Yes
Chassis & Suspension
Frame Type
Slim aluminum Deltabox frame
Front Suspension
43mm KYB® inverted fork, fully adjustable
Front Suspension Travel
120 mm / 4.7 inches
Rear Suspension
KYB® single shock, Linkage-Type, fully adjustable
Rear Suspension Travel
120 mm / 4.7 inches
Rake
24 °
Trail
102 mm / 4.0 inches
Rear Subframe
Magnesium subframe
Swingarm
Aluminum swingarm
Wheels & Brakes
Wheels
10-spoke cast magnesium wheels
Front Tire Size
120/70ZR17 Bridgestone® BATTLAX RACING STREET RS11F
Rear Tire Size
190/55ZR17 Bridgestone® BATTLAX RACING STREET RS11R
Front Brakes
Brembo Stylema Monobloc with Brembo Master cylinder, Dual 320mm hydraulic disc; Brake Control System and ABS
Rear Brakes
Brembo 220mm hydraulic disc; Brake Control System and ABS
ABS
Yes.
Dimension & Weights
Overall Length
2055 mm / 80.9 inches
Overall Width
690 mm / 27.2 inches
Overall Height
1165 mm / 45.9 inches
Seat Height
855 mm / 33.7 inches
Wheelbase
1405 mm / 55.3 inches
Fuel Tank Capacity
17 L / 4.5 US gallons
Wet (kerb/curb) Weight
201 kg / 443 lbs
Features
GYTR Bodywork
Moto-GP inspired downforce winglets
Brembo Stylema calipers with Brembo Z04 braking pads
Akrapovic titanium race muffler with mid-range damper
GYTR Electronics package
GYTR Chassis parts
Race handlebars
Racing rear set footpegs
Keyless fuel cap
On/Off switch
Paddock stand and hooks
Race spec 520 chain
15T/42T Front/Rear sprockets
Yamaha Chip Controlled Throttle (YCC-T)
Yamaha R1-GYTR (2025 – ) Color Options
Primer Black
