Yamaha MT-09 SP (2025 - ) - Specifications

Key Specifications

Engine Type	CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, In-Line Three-Cylinder
Engine Capacity	890 cc / 54.31 cubic inches
Max Power	87.5 kW / 119.0 PS / 117.3 hp @ 10,000 rpm
Max Torque	93.0 Nm / 68.6 lb-ft @ 7.000 rpm
Top Speed	~ 158 mph / 255 kmph
Fuel Tank Capacity	14 L / 3.7 US gallons
Weight (Wet/Kerb)	194 kg / 427.7 lbs
Seat Height	825 mm / 32.48 inches

*n/a – information not provided by manufacturer

2025-yamaha-mt09-sp-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Yamaha MT-09 SP
Year	2025 –

Engine

Engine Type	CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, In-Line Three-Cylinder
Displacement	890 cc / 54.31 cubic inches
Bore x Stroke	78 x 62.1 mm
Compression Ratio	11.5 : 1
Number of Cylinders	3
Max Horsepower	87.5 kW / 119.0 PS / 117.3 hp @ 10,000 rpm
Max Torque	93.0 Nm / 68.6 lb-ft @ 7.000 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Electronic Fuel Injection
Lubrication System	Wet sump
Cooling System	Liquid Cooled
Ignition System	TCI
Emissions Compliance	EU5+

Performance

Top Speed	~ 158 mph / 255 kmph
Fuel Consumption	20 kmpl / 47 mpg

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multiplate assist and slipper clutch
Gearbox	Constant Mesh, 6-speed
Final Drive	Chain
Quick Shifter	Yes. Quick Shift System (QSS), both upshift and downshift
Traction Control System	Four-mode Traction Control System (TCS)
Assist & Slipper Clutch	Yes

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	5 inch full color TFT screen
Traction Control System	Four-mode Traction Control System (TCS)
Launch Control	Front wheel Lift Control System (LIF)
ABS	Yes

Chassis & Suspension

Frame Type	CF (Controlled Filling) die-cast aluminum frame
Front Suspension	41mm KYB® inverted fork, adjustable preload, high/low speed compression and rebound
Front Suspension Travel	130 mm / 5.1 inches
Rear Suspension	Öhlins® single shock, adjustable preload, compression and rebound damping
Rear Suspension Travel	116.8 mm / 4.6 inches
Rake	24.7 °
Trail	108 mm / 4.25 inches
Swingarm	Aluminum swingarm

Wheels & Brakes

Wheels	Lightweight SpinForged Aluminum Wheels
Front Tire Size	120/70ZR17 Bridgestone® Battlax Hypersport S23
Rear Tire Size	180/55ZR17 Bridgestone® Battlax Hypersport S23
Front Brakes	Brembo Monobloc Stylema calipers, Hydraulic dual disc brake, Ø 298 mm, radial-mount, four-piston front calipers, Brembo master cylinder
Rear Brakes	Hydraulic single disc, Ø 245mm
ABS	Yes.

Dimension & Weights

Overall Length	2090 mm / 82.28 inches
Overall Width	820 mm / 32.28 inches
Overall Height	1145 mm / 45.07 inches
Seat Height	825 mm / 32.48 inches
Wheelbase	1430 mm / 56.3 inches
Ground Clearance	140 mm / 5.5 inches
Fuel Tank Capacity	14 L / 3.7 US gallons
Wet (kerb/curb) Weight	194 kg / 427.7 lbs

Features

Next-Generation Design
Powerful 890cc Three-Cylinder Engine
Lightweight CF Die-Cast Aluminum Frame
High-Spec SP Suspension
Brembo® Stylema Calipers & Radial Master Cylinder
Advanced Six-Axis IMU
Five-Inch Full-Color TFT Display with Integrated Switchgear
Smartphone Connectivity
Yamaha Ride Control (YRC) with Specific SP Settings
Efficient Fuel Delivery System
Lightweight Forged Pistons
Fracture-Split Connecting Rods
Offset & Direct-Plated Cylinders
Acoustic Amplifier Grilles for Enhanced Intake Sound
Symmetrical Muffler with Dual Outlets
Assist & Slipper Clutch
Third-Generation Quickshifter
Aluminum Die Cast Subframe
Lightweight, High-Rigidity Polished Swingarm
Lightweight SpinForged Aluminum Wheels
Adjustable Riding Position
Lean Angle-Sensitive Traction Control System
MotoGP®-Developed Slide Control System (SCS)
Lift Control System (LIF)
Brake Control System (BC) with ABS
Back Slip Regulator (BSR)
Engine Brake Management (EBM)
Ride-by-Wire YCC-T Throttle System with APSG

Yamaha MT-09 SP (2025 – ) Color Options

Liquid Metal / Raven (US)

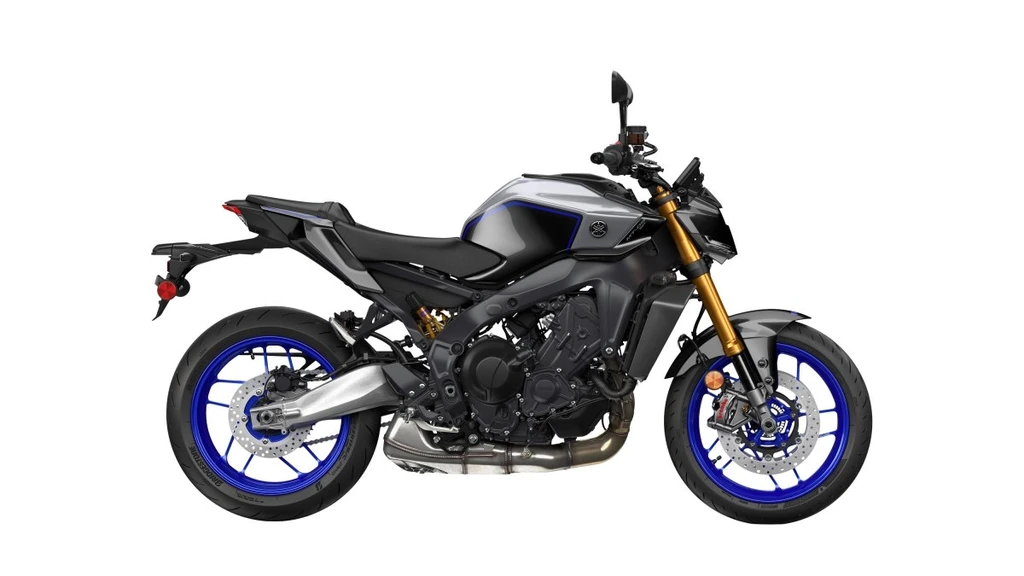

2025-yamaha-mt09-sp-throttlecraze.com-3_throttlecraze.com
