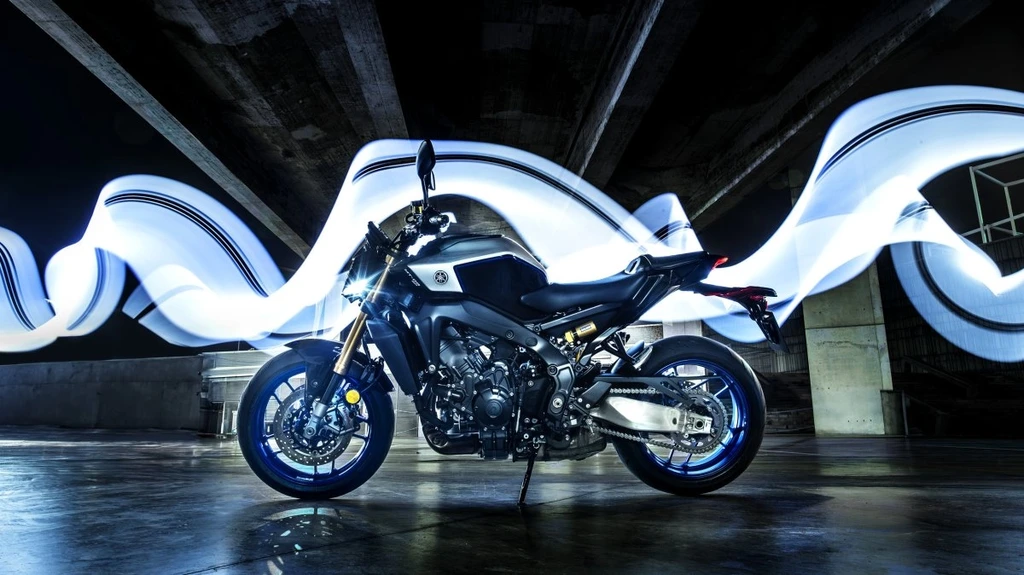

The ultimate CP3 Hyper Naked born out of the Dark Side of Japan, the MT-09 SP evokes pure excitement with a premium specification offering Supersport-level handling and precision, combined with next level track-focused technology. It takes the already exceptional MT-09 to a deeper level of Darkness.
Key Specifications Engine Type CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, In-Line Three-Cylinder Engine Capacity 890 cc / 54.31 cubic inches Max Power 87.5 kW / 119.0 PS / 117.3 hp @ 10,000 rpm Max Torque 93.0 Nm / 68.6 lb-ft @ 7.000 rpm Top Speed ~ 158 mph / 255 kmph Fuel Tank Capacity 14 L / 3.7 US gallons Weight (Wet/Kerb) 194 kg / 427.7 lbs Seat Height 825 mm / 32.48 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Yamaha MT-09 SP Year 2024
Engine Engine Type CP3 4-stroke, Liquid-cooled, DOHC, 4-valves, In-Line Three-Cylinder Displacement 890 cc / 54.31 cubic inches Bore x Stroke 78 x 62.1 mm Compression Ratio 11.5 : 1 Number of Cylinders 3 Max Horsepower 87.5 kW / 119.0 PS / 117.3 hp @ 10,000 rpm Max Torque 93.0 Nm / 68.6 lb-ft @ 7.000 rpm Valve Train DOHC Valves per Cylinder 4 Engine Management System Electronic Fuel Injection Lubrication System Wet sump Cooling System Liquid Cooled Ignition System TCI Emissions Compliance EU5+
Performance Top Speed ~ 158 mph / 255 kmph Fuel Consumption 20 kmpl / 47 mpg
*n/a – information not provided by manufacturer
Transmission Clutch Wet multiplate assist and slipper clutch Gearbox Constant Mesh, 6-speed Final Drive Chain Quick Shifter Yes. Quick Shift System (QSS), both upshift and downshift Traction Control System Four-mode Traction Control System (TCS) Assist & Slipper Clutch Yes
Electrical & Electronics System Headlight Type LED Taillight Type LED Instrumentation 5 inch full color TFT screen Traction Control System Four-mode Traction Control System (TCS) Launch Control Front wheel Lift Control System (LIF) ABS Yes
Chassis & Suspension Frame Type CF (Controlled Filling) die-cast aluminum frame Front Suspension 41mm KYB® inverted fork, adjustable preload, high/low speed compression and rebound Front Suspension Travel 130 mm / 5.1 inches Rear Suspension Öhlins® single shock, adjustable preload, compression and rebound damping Rear Suspension Travel 116.8 mm / 4.6 inches Rake 24.4 ° Trail 108 mm / 4.25 inches Swingarm Aluminum swingarm
Wheels & Brakes Wheels Lightweight SpinForged Aluminum Wheels Front Tire Size 120/70ZR17M/C (58W) Tubeless Rear Tire Size 180/55ZR17M/C (73W) Tubeless Front Brakes Brembo Monobloc Stylema calipers, Hydraulic dual disc brake, Ø 298 mm, radial-mount, four-piston front calipers, Brembo master cylinder Rear Brakes Hydraulic single disc, Ø 245mm ABS Yes.
Dimension & Weights Overall Length 2090 mm / 82.28 inches Overall Width 820 mm / 32.28 inches Overall Height 1145 mm / 45.07 inches Seat Height 825 mm / 32.48 inches Wheelbase 1430 mm / 56.3 inches Ground Clearance 140 mm / 5.5 inches Fuel Tank Capacity 14 L / 3.7 US gallons Wet (kerb/curb) Weight 194 kg / 427.7 lbs
Features Aggressive New Styling with Premium SP Specification More Engaged Ergonomics New Brembo Stylema Calipers & Radial Master Cylinder New Five-Inch Full-Color TFT Display with Updated Switchgear New Smartphone Connectivity New Back Slip Regulator Yamaha Ride Control (YRC) with Specific SP Settings Acoustic Amplifier Grilles for Enhanced Intake Sound New Third-Generation Quickshifter New Smart Key System New Turn Signal Functions Next-Generation Design Powerful 890cc Three-Cylinder Engine Lightweight CF Die-Cast Aluminum Frame High-Spec SP Suspension Advanced Six-Axis IMU Powerful 890cc Liquid-Cooled Three-Cylinder DOHC Fuel-Injected Engine Efficient Fuel Delivery System Lightweight Forged Pistons Fracture-Split Connecting Rods Offset & Direct-Plated Cylinders New Top-Mounted Acoustic Amplifier Grilles Symmetrical Muffler with Dual Outlets Assist & Slipper Clutch Redesigned Aluminum Die Cast Subframe Lightweight, High-Rigidity Polished Swingarm Lightweight SpinForged Aluminum Wheels Adjustable Riding Position Lean Angle-Sensitive Traction Control System MotoGP®-Developed Slide Control System (SCS) Lift Control System (LIF) Brake Control System (BC) with ABS Engine Brake Management (EBM) Ride-by-Wire YCC-T Throttle System with APSG Self Cancelling Indicators Emergency Stop Signalling (ESS) Yamaha MT-09 SP (2024) Color Options Icon Performance (Europe) Liquid Metal / Raven (US) *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
