Exhilarating performance and handling, unique retro-modern styling, best-in-class rider-focused technology, and Triumph’s renowned premium build quality and component specification.
Key Specifications Engine Type Liquid-cooling, 3 cylinders, 12 valves, inline DOHC Engine Capacity 660 cc Max Power 81 HP (59.6 kW) @ 10,250 rpm Max Torque 63.7 Nm / 47 lb-ft @ 6,250 rpm Top Speed ~ 212 kmph / 131.7 mph Fuel Tank Capacity 14 L / 3.7 US gallons Weight (Wet/Kerb) 190 kg / 419 lbs Seat Height 805 mm / 31.7 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Triumph Trident 660 Year 2025 –
Engine Engine Type Liquid-cooling, 3 cylinders, 12 valves, inline DOHC Displacement 660 cc Bore x Stroke 74 mm x 51.1 mm Compression Ratio 11.95 : 1 Number of Cylinders 3 Max Horsepower 81 HP (59.6 kW) @ 10,250 rpm Max Torque 63.7 Nm / 47 lb-ft @ 6,250 rpm Valve Train DOHC Valves per Cylinder 4 Engine Management System Multipoint sequential electronic fuel injection with electronic throttle control Lubrication System Pressure lubrication, wet sump Ignition System Fully electronic ignition Fuel Unleaded, 91 RON (U.S. 87 CLC/AKI) Exhaust System Stainless steel 3 into 1 header system with low single sided stainless steel silencer Emissions Compliance Euro 5
Performance Top Speed ~ 212 kmph / 131.7 mph Fuel Consumption 43.71 mpg (US gal) / 18.58 kmpl Range 260 kms / 161.5 miles
*n/a – information not provided by manufacturer
Transmission Clutch Wet mulit-plate, slip assist Gearbox 6 speed, constant mesh Primary Drive Ratio 76:41 Gear Ratios 1st gear – 43:15 Final Drive Chain DID520VM4 Quick Shifter Triumph Shift Assist Up-and-Down Quickshifter Traction Control System Traction Control Assist & Slipper Clutch Optimized Cornering ABS
Electrical & Electronics System Battery YTX9-BS Alternator/Generator 14 Volt, 29 Amp at 5,000 rpm Headlight Type LED Taillight Type LED Instrumentation LCD Multifunction Instruments with integrated color TFT screen Riding Modes 3 Modes – Rain, Road, New Sport Traction Control System Traction Control ABS Optimized Cornering ABS Cruise Control Cruise control
Chassis & Suspension Frame Type Tubular steel perimeter frame Front Suspension Showa 41mm (1.61in) upside down separate function big piston (SFF-BP) forks Front Suspension Travel 120 mm / 4.72 inches Rear Suspension Showa monoshock RSU, with preload adjustment Rear Suspension Travel 130 mm / 5.11 inches Rake 24.6 ° Trail 107 mm / 4.2 inches Swingarm Twin-sided, fabricated steel
Wheels & Brakes Wheels Cast aluminum alloy 5 spoke Front Wheel/Rim Size 3.5 x 17″ Front Tire Size 120/70 ZR17 Rear Wheel/Rim Size 5.5 x 17″ Rear Tire Size 180/55 ZR17 Front Brakes Twin 310mm (12.20in) discs, 2 piston sliding calipers, OCABS Rear Brakes Single 255mm (10.03in) fixed disc, single piston sliding caliper, OCABS ABS Optimized Cornering ABS
Dimension & Weights Overall Width 795 mm / 31.3 inches Overall Height 1089 mm / 42.9 inches Seat Height 805 mm / 31.7 inches Wheelbase 1401 mm / 55.1 inches Fuel Tank Capacity 14 L / 3.7 US gallons Wet (kerb/curb) Weight 190 kg / 419 lbs

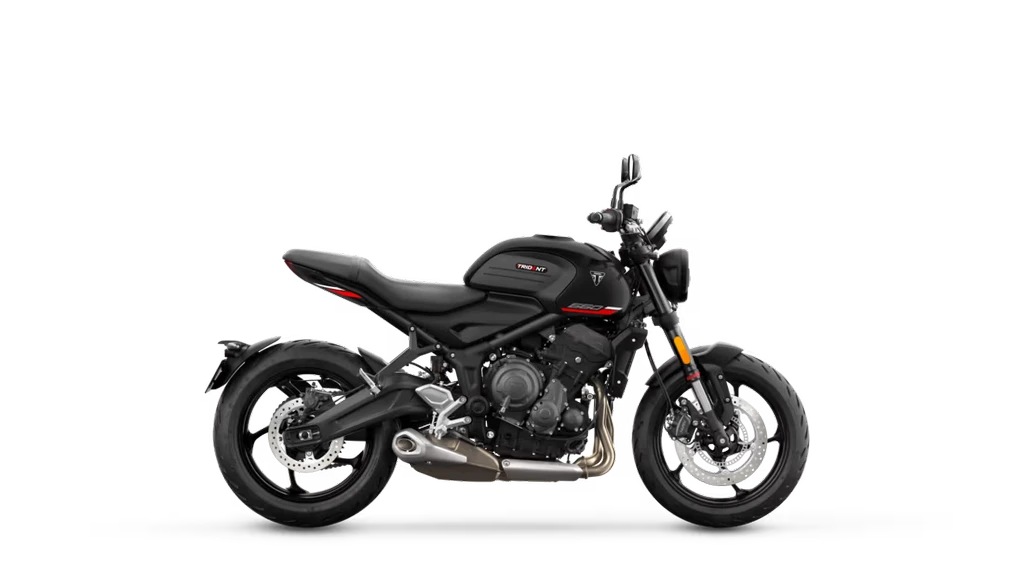

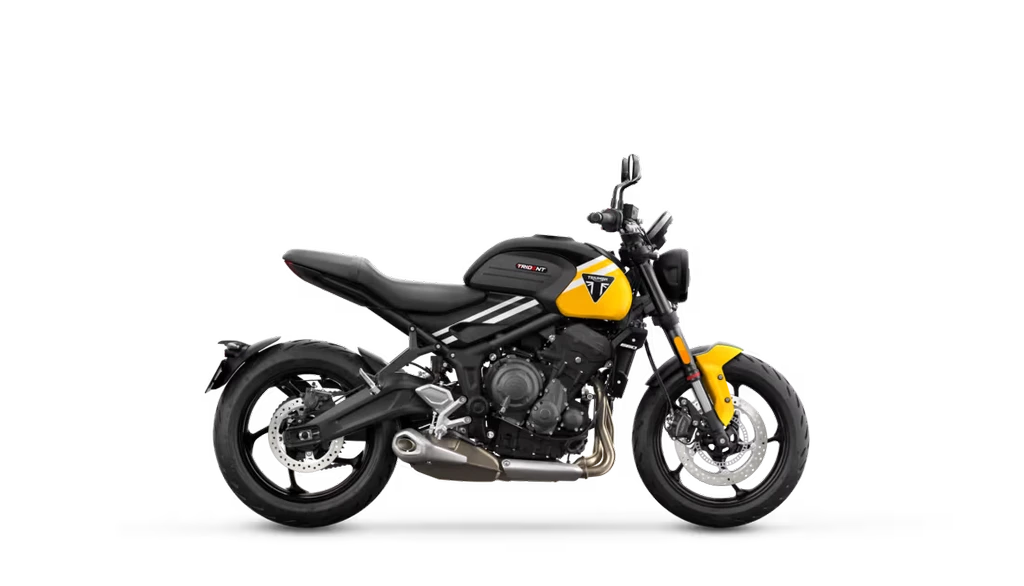

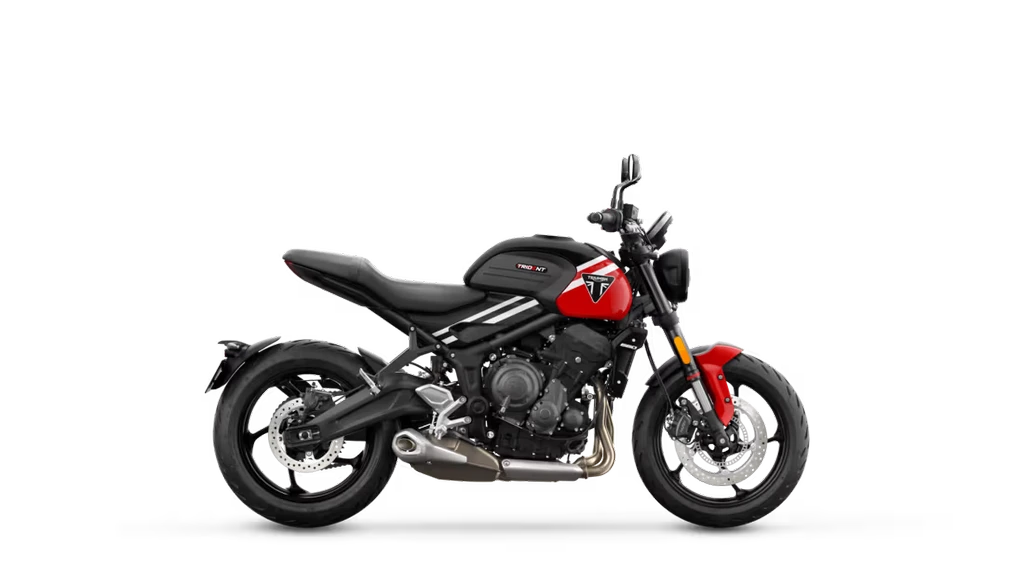

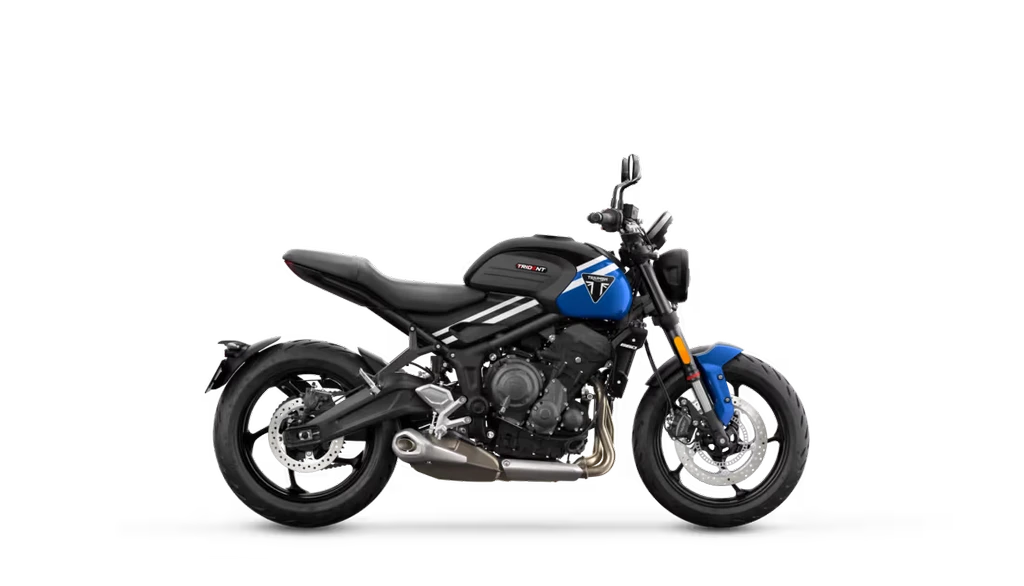

Triumph Trident 660 (2025 – ) Color Options Jet Black Diablo Red / Sapphire Black Cosmic Yellow / Sapphire Black Cobalt Blue / Sapphire Black *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
