The New Tiger 900 Rally Pro blends class-leading off-road capability and specification with long-range comfort, road handling and style.
Key Specifications
| Engine Type | Liquid-cooled, 12 valve, DOHC, inline 3-cylinder |
| Engine Capacity | 888 cc |
| Max Power | 108 PS / 106.5 bhp (79.5 kW) @ 9,500 rpm |
| Max Torque | 90 NM / 66.4 ft lb @ 6,850 rpm |
| Top Speed | ~ 200 kmph / 124.2 mph |
| Fuel Tank Capacity | 20 L / 5.28 US gallons |
| Weight (Wet/Kerb) | 228 kg / 503 lbs |
| Seat Height | 860 mm / 33.86 inches (low position) 880 mm / 34.65 inches (high position) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Triumph Tiger 900 Rally Pro |
| Year | 2024 – |
Engine
| Engine Type | Liquid-cooled, 12 valve, DOHC, inline 3-cylinder |
| Displacement | 888 cc |
| Bore x Stroke | 78 mm x 61.9 mm |
| Compression Ratio | 13 : 1 |
| Number of Cylinders | 3 |
| Max Horsepower | 108 PS / 106.5 bhp (79.5 kW) @ 9,500 rpm |
| Max Torque | 90 NM / 66.4 ft lb @ 6,850 rpm |
| Valve Train | DOHC |
| Valves per Cylinder | 4 |
| Engine Management System | Multipoint sequential electronic fuel injection with electronic throttle control |
| Lubrication System | Pressure Lubrication (wet sump) |
| Ignition System | Fully electronic ignition |
| Fuel | 91 RON |
| Exhaust System | Stainless steel 3 into 1 header system, side mounted stainless steel silencer |
Performance
| Top Speed | ~ 200 kmph / 124.2 mph |
| Fuel Consumption | 45 mpg (US gal) / 19 kmpl 1.2 gallon / 62.1 miles, 4.7 litres / 100 km |
| Range | 236 miles / 380 kms |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Wet, multi-plate, slip and assist |
| Gearbox | 6-speed gearbox, Constant Mesh |
| Primary Drive Ratio | 76:46 |
| Gear Ratios | 1st gear – 34:13 2nd gear – 39:21 3rd gear – 36:24 4th gear – 27:21 5th gear – 31:28 6th gear – 29:30 |
| Final Drive | DID O-ring Chain |
| Quick Shifter | Yes |
| Traction Control System | Yes |
| Assist & Slipper Clutch | Yes |
Electrical & Electronics System
| Battery | YT12A-BS |
| Alternator/Generator | 14 Volt, 34 Amp at 5,000 rpm |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | Full-colour 7” TFT instrument pack with My Triumph Connectivity System |
| Riding Modes | 6 riding modes (Road, Rain, Sport, Rider Configurable, Off-Road and Off-Road Pro) |
| Traction Control System | Yes |
| ABS | ABS Cornering system |
| Cruise Control | Yes |
Chassis & Suspension
| Frame Type | Tubular steel trellis main frame |
| Front Suspension | Showa 45mm upside down forks, manual preload, rebound and compression damping adjustment |
| Front Suspension Travel | 240 mm / 9.44 inches |
| Rear Suspension | Showa rear suspension unit,manually adjustable preload and rebound damping |
| Rear Suspension Travel | 230 mm / 9.05 inches |
| Rake | 24.4 ° |
| Trail | 116.8 mm / 4.59 inches |
| Rear Subframe | Fabricated, bolt-on aluminium rear subframe |
| Swingarm | Twin-sided, cast aluminium alloy |
Wheels & Brakes
| Wheels | Side Laced Spoked tubeless |
| Front Wheel/Rim Size | 2.15 x 21″ |
| Front Tire Size | 90/90-21 Bridgestone Battlax Adventure |
| Rear Wheel/Rim Size | 4.25 x 17″ |
| Rear Tire Size | 150/70 R17 Bridgestone Battlax Adventure |
| Front Brakes | Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS |
| Rear Brakes | Single 255mm disc. Single piston sliding caliper. Optimised cornering ABS |
| ABS | ABS with Cornering ABS |
Dimension & Weights
| Overall Width | 935 mm / 36.81 inches |
| Overall Height | Low screen position – 1452 mm / 57.16 inches High screen position – 1502 mm / 59.13 inches |
| Seat Height | 860 mm / 33.86 inches (low position) 880 mm / 34.65 inches (high position) |
| Wheelbase | 1551 mm / 61.06 inches |
| Ground Clearance | 260 mm / 10.23 inches |
| Fuel Tank Capacity | 20 L / 5.28 US gallons |
| Wet (kerb/curb) Weight | 228 kg / 503 lbs |
Riding Aids
- Riding Modes
- Cornering ABS
- Traction Control
- Quick Shift
Features
- Connectivity (Nav. / Music / Calls & Msgs)
- Illuminated Switches
- USB Charge and Mobile Phone Storage
- Power Sockets
- Adjustable Screen
- Handguards
- Heated Grips
- Heated Rider and Passenger Seats
- Cruise Control
- Triumph Shift Assist
- Emergency Declaration Warning
- Marker Lights
- Tyre Pressure Monitoring System
- Centre Stand
- Engine Protection Bars

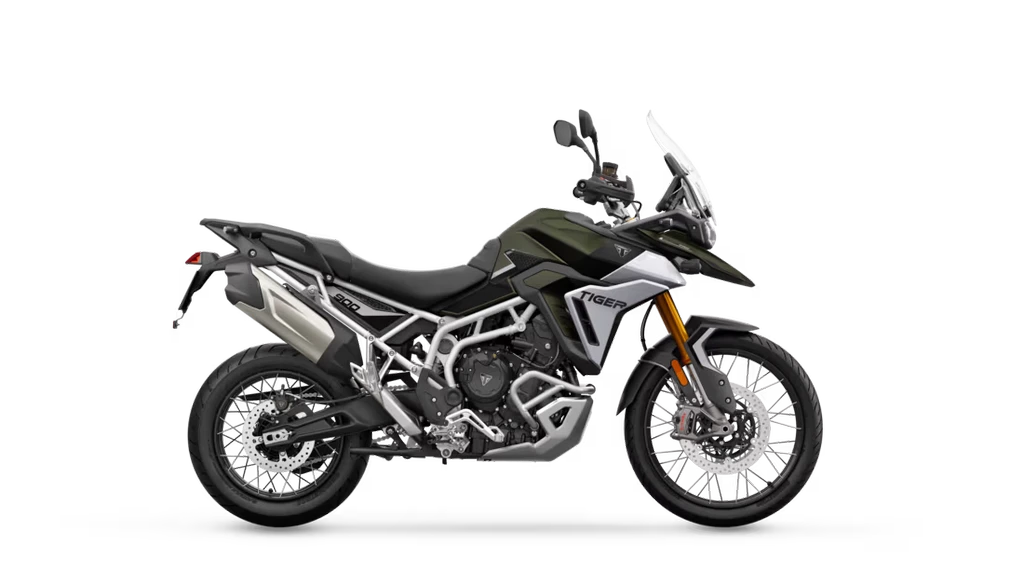

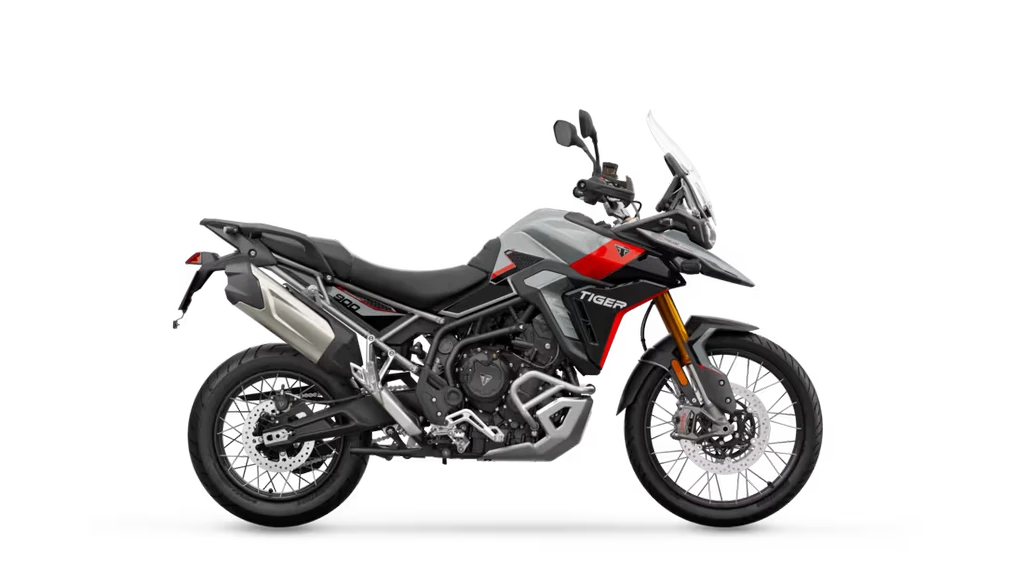

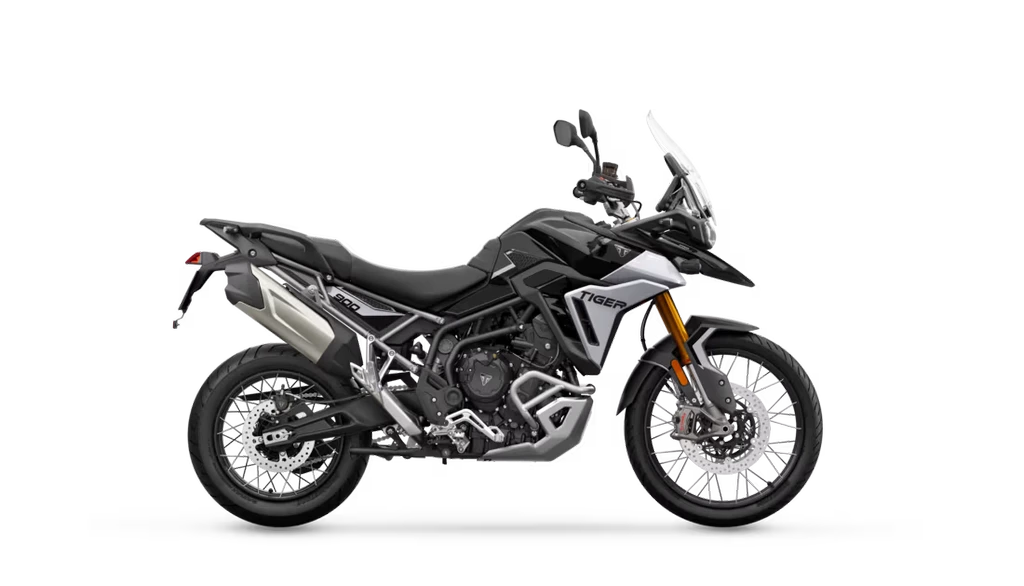

Triumph Tiger 900 Rally Pro (2024 – ) Color Options
- Carbon Black / Sapphire Black
- Ash Grey / Intense Orange
- Matt Khaki Green / Matt Phantom Black
