Triumph TF 250-E (2026 - )

Lightweight Agility. The tougher the ride, the better it gets.

Key Specifications

Engine Type	1-cylinder, 4-stroke DOHC
Engine Capacity	249.9 cc
Max Power	41.72 hp (42.3 PS)
Max Torque	27.8 Nm / 20.5 ft lb
Top Speed	n/a
Fuel Tank Capacity	8.3 L / 2.19 US gallons
Weight (Wet/Kerb)	114.2 kg / 251.7 lbs
Seat Height	955 mm / 37.6 inches

*n/a – information not provided by manufacturer

2026-tirumph-tf-250-e-throttlecraze.com-2_throttlecraze.com

All Specifications

Make & Model

Model	Triumph TF 250-E
Year	2026 –

Engine

Engine Type	1-cylinder, 4-stroke DOHC
Displacement	249.9 cc
Bore x Stroke	78 mm x 52.3 mm
Compression Ratio	14.4 : 1
Number of Cylinders	1
Max Horsepower	41.72 hp (42.3 PS)
Max Torque	27.8 Nm / 20.5 ft lb
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Dellorto 44mm Cable Throttle, EFI
Lubrication System	Pressure lubrication, with two trochoidal pumps
Ignition System	Fully electronic ignition
Exhaust System	Single Silencer

Performance

Top Speed

n/a

*n/a – information not provided by manufacturer

Transmission

Clutch	Aluminium separate basket Wet; Multiple Disc Hydraulic
Gearbox	6 Speed, Constant Mesh
Primary Drive Ratio	73:24
Gear Ratios	1st gear – 32/13 2nd gear – 28/15 3rd gear – 27/18 4th gear – 28/23 5th gear – 23/23 6th gear – 20/26
Final Drive	Chain DID 520VT2, 118 link O-ring
Quick Shifter	Yes
Traction Control System	Yes

Electrical & Electronics System

Battery	HJTZ5S-FP
Alternator/Generator	10 Amp at 2,000 rpm. 15 Amp at 5,000 rpm
Headlight Type	LED
Taillight Type	LED
Instrumentation	Speedo, Multi-Function Switch Cubes
Riding Modes	2 Engine Maps
Traction Control System	Traction Control
Launch Control	Yes

Chassis & Suspension

Frame Type	Aluminium, Spine
Front Suspension	KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment
Front Suspension Travel	300 mm / 11.8 inches
Rear Suspension	KYB Coil, Compression Adjustment (High and Low Speed), Rebound Adjustment
Rear Suspension Travel	313 mm / 12.32 inches
Rake	26.8 °
Trail	113 mm / 4.44 inches
Swingarm	Aluminium Fabrication

Wheels & Brakes

Wheels	D.I.D. DirtStar aluminium spoked wheels
Front Wheel/Rim Size	1.6 x 21″
Front Tire Size	90/90 – 21
Rear Wheel/Rim Size	2.15 x 18″
Rear Tire Size	140/80 – 18
Front Brakes	Single, Ø260 Galfer Disc, Brembo, 2xØ24 pistons, floating caliper
Rear Brakes	Single, Ø220 Galfer Disc, Brembo, 1xØ26 pistons, floating caliper

Dimension & Weights

Overall Width	836 mm / 33 inches
Overall Height	1264 mm / 50 inches
Seat Height	955 mm / 37.6 inches
Wheelbase	1488 mm / 58.58 inches
Fuel Tank Capacity	8.3 L / 2.19 US gallons
Wet (kerb/curb) Weight	114.2 kg / 251.7 lbs

Triumph TF 250-E (2026 – ) Color Options

Triumph Racing Yellow / Black / White

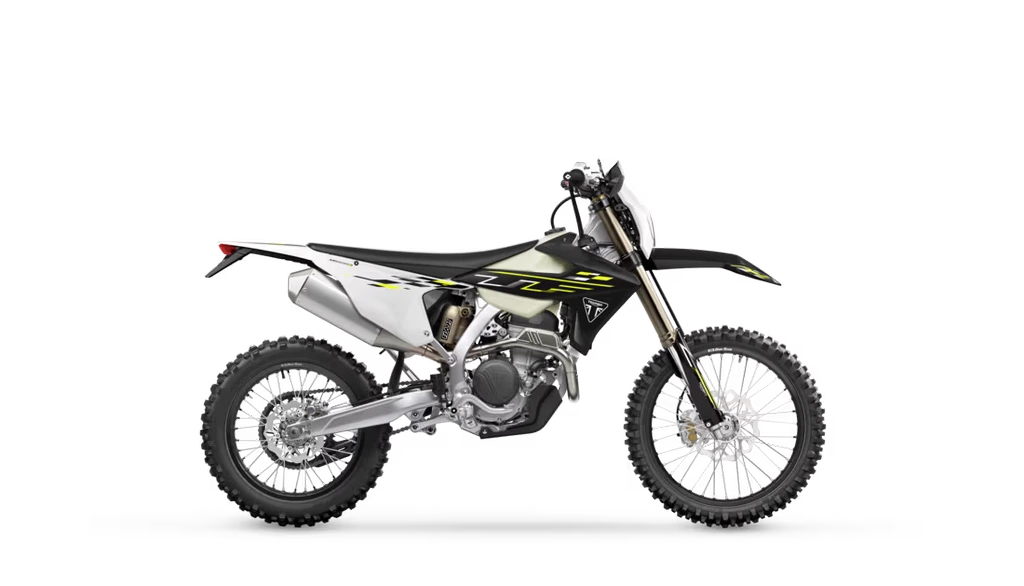

2026-tirumph-tf-250-e-throttlecraze.com-1_throttlecraze.com
