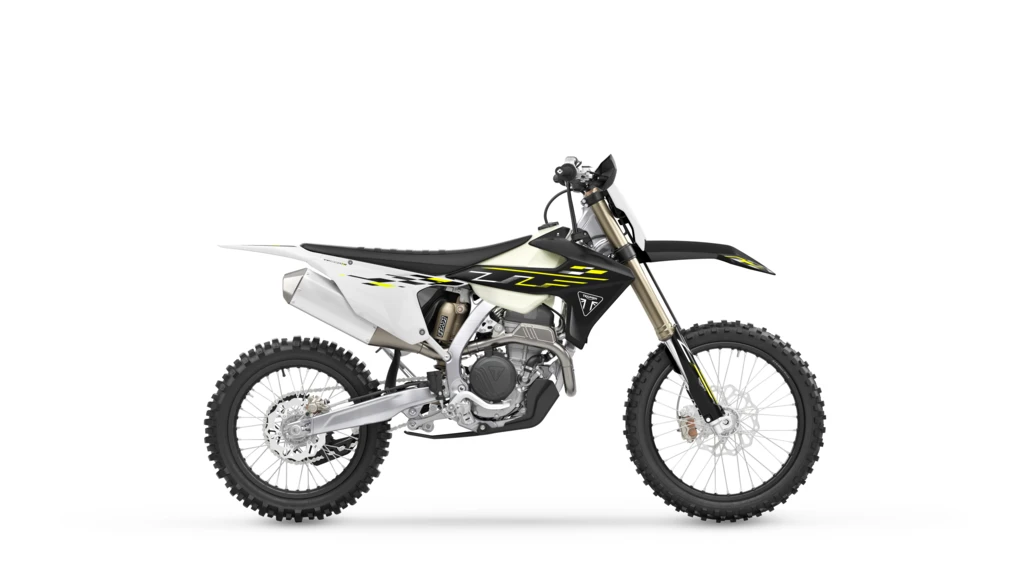

Triumph TF 250-C (2025 – ) Key Specifications Engine Type 1-cylinder, 4-stroke DOHC Engine Capacity 249.95 cc Max Power 47.3 PS / 46.67 HP (34.8 kW) @ 13,250rpm Max Torque 28.3 Nm (20.9 lb-ft) @ 9,000rpm Top Speed n/a Fuel Tank Capacity 8.3 L / 2.2 US gallons Weight (Wet/Kerb) 109.9 kg / 242.2 lbs Seat Height 960 mm / 37.8 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Triumph TF 250-C Year 2025 –
Engine Engine Type 1-cylinder, 4-stroke DOHC Displacement 249.95 cc Bore x Stroke 78 mm x 52.3 mm Compression Ratio 14.4 : 1 Number of Cylinders 1 Max Horsepower 47.3 PS / 46.67 HP (34.8 kW) @ 13,250rpm Max Torque 28.3 Nm (20.9 lb-ft) @ 9,000rpm Valve Train DOHC Engine Management System Triumph ECU co-developed with Athena EMS Fuel-mixture System Dellorto Throttle Body Ignition System Fully electronic ignition Exhaust System Single Silencer
Performance *n/a – information not provided by manufacturer
Transmission Clutch Wet Multi-Plate Belleville Spring (Exedy Racing Clutch) Gearbox 5 Speed Final Drive Chain Quick Shifter Yes. Only upshift from 2nd to 5th gear Traction Control System Yes
Electrical & Electronics System Battery HJTZ5S-FP Alternator/Generator 5 Amp at 2,000 rpm. 6 Amp at 8,000 rpm Headlight Type LED Taillight Type LED Instrumentation Hour Meter, Multifunction Switch Cubes Riding Modes 2 Engine Maps Traction Control System Traction Control Launch Control Yes
Chassis & Suspension Frame Type Aluminium, Spine & Double Cradle Front Suspension KYB 48mm Coil Spring Fork, Compression/Rebound Adjustment (AOS Coil system) Front Suspension Travel 310 mm / 12.2 inches Rear Suspension KYB Coil, Compression Adjustment (H and L Speed), Rebound Adjustment Rear Suspension Travel 305 mm / 12 inches Rake 27.4 ° Trail 116 mm / 4.57 inches Swingarm Aluminium Fabrication Handlebar ProTaper EVO MX Alloy handlebar
Wheels & Brakes Wheels D.I.D DirtStar 7000-series aluminium rims (black anodised) Front Wheel/Rim Size 1.6 x 21″ Front Tire Size 80/100 – 21 Rear Wheel/Rim Size 1.85 x 18″ Rear Tire Size 110/100 – 18 Front Brakes Brembo Twin 24mm Piston, 260mm Galfer Disc Rear Brakes Brembo Single 26mm Piston, 220mm Galfer Disc
Dimension & Weights Overall Width 836 mm / 33 inches Overall Height 1270 mm / 50 inches Seat Height 960 mm / 37.8 inches Wheelbase 1492 mm / 58.74 inches Fuel Tank Capacity 8.3 L / 2.2 US gallons Wet (kerb/curb) Weight 109.9 kg / 242.2 lbs
Standard Equipment ODI Lock-On grips ProTaper EVO MX Alloy handlebar Exedy Racing Clutch TwinAir washable Air filter 8.3L transclucent fuel tank Enduro Hand Guards Heavy Duty bashguards Side Stand D.I.D DirtStar 7000-series aluminium rims (black anodised) Triumph TF 250-C (2025 – ) Color Options *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
