Triumph Street Triple 765 R (2021 – ) Key Specifications Engine Type Liquid-cooled, 12 valve, DOHC, inline 3-cylinder Engine Capacity 765 cc Max Power 120 PS / 118.4 HP (88.3 kW) @ 11,500 rpm Max Torque 80 Nm / 59 ft lb @ 9,500 rpm Top Speed ~ 220 kmph / 136.7 mph Fuel Tank Capacity 15 L / 3.96 US gallons Weight (Wet/Kerb) 189 kg / 417 lbs Seat Height 826 mm / 32.52 inches
*n/a – information not provided by manufacturer
All Specifications Make & Model Model Triumph Street Triple 765 R Year 2021 –
Engine Engine Type Liquid-cooled, 12 valve, DOHC, inline 3-cylinder Displacement 765 cc Bore x Stroke 78 mm x 53.4 mm Compression Ratio 13.25 : 1 Number of Cylinders 3 Max Horsepower 120 PS / 118.4 HP (88.3 kW) @ 11,500 rpm Max Torque 80 Nm / 59 ft lb @ 9,500 rpm Valve Train DOHC Valves per Cylinder 4 Engine Management System Multipoint sequential electronic fuel injection with electronic throttle control Lubrication System Pressure lubrication, wet sump Ignition System Fully electronic ignition Exhaust System Stainless steel 3 into 1 header system with low single sided stainless steel silencer Emissions Compliance Euro 5
Performance Top Speed ~ 220 kmph / 136.7 mph
*n/a – information not provided by manufacturer
Transmission Clutch Wet mulit-plate, slip assist Gearbox 6 speed, constant mesh Final Drive Chain X-ring Quick Shifter Triumph Shift Assist Up-and-Down Quickshifter Traction Control System Switchable Optimized Traction Control Assist & Slipper Clutch Optimized Cornering ABS
Electrical & Electronics System Headlight Type LED Taillight Type LED Instrumentation Multi-function instruments with colour TFT screen Riding Modes 4 Modes – Rain, Road, Sport, Rider Traction Control System Switchable Optimized Traction Control Launch Control Front Wheel Lift Control ABS Optimized Cornering ABS
Chassis & Suspension Frame Type Aluminum beam twin spar frame Front Suspension Showa 41 mm upside down Separate Function Forks – Big Piston (SFF-BP), adjustable compression and rebound damping, and preload adjustment Front Suspension Travel 115 mm / 4.52 inches Rear Suspension Showa piggyback reservoir monoshock, adjustable compression, rebound and preload adjustment Rear Suspension Travel 133.5 mm / 5.25 inches Rake 23.7 ° Trail 97.8 mm / 3.85 inches Rear Subframe 2 piece high pressure die cast rear subframe Swingarm Twin-sided, cast aluminum alloy
Wheels & Brakes Wheels Cast aluminum alloy 5 spoke Front Wheel/Rim Size 3.5 x 17″ Front Tire Size 120/70 ZR17 Rear Wheel/Rim Size 5.5 x 17″ Rear Tire Size 180/55 ZR17 Front Brakes Twin 310 mm floating discs, Brembo M4.32 4-piston radial monobloc calipers, OC-ABS Rear Brakes Single 220 mm disc, Brembo single piston caliper, OC-ABS ABS Optimized Cornering ABS
Dimension & Weights Overall Width 792 mm / 31.18 inches Overall Height 1047 mm / 41.22 inches Seat Height 826 mm / 32.52 inches Wheelbase 1402 mm / 55.20 inches Fuel Tank Capacity 15 L / 3.96 US gallons Wet (kerb/curb) Weight 189 kg / 417 lbs

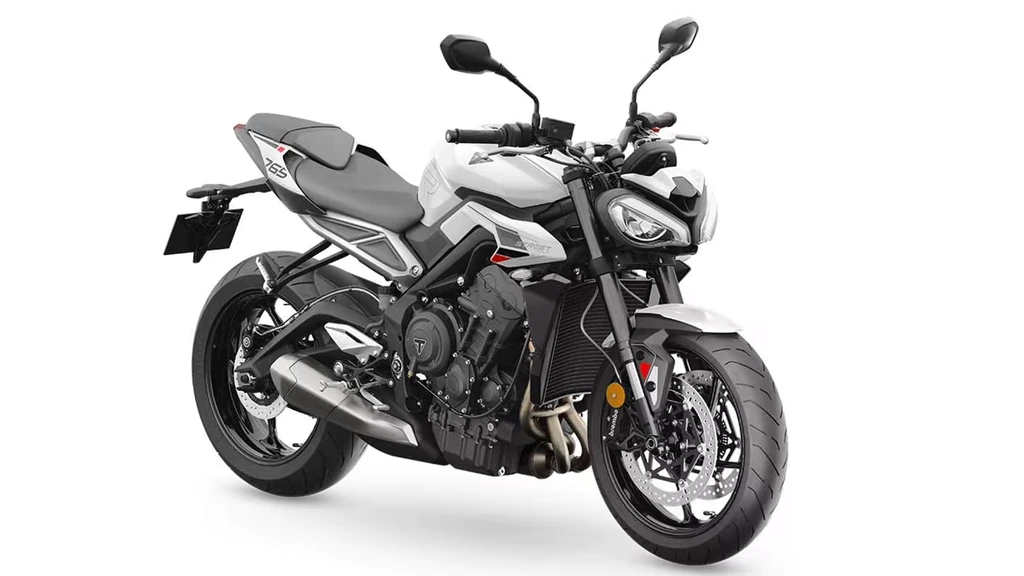

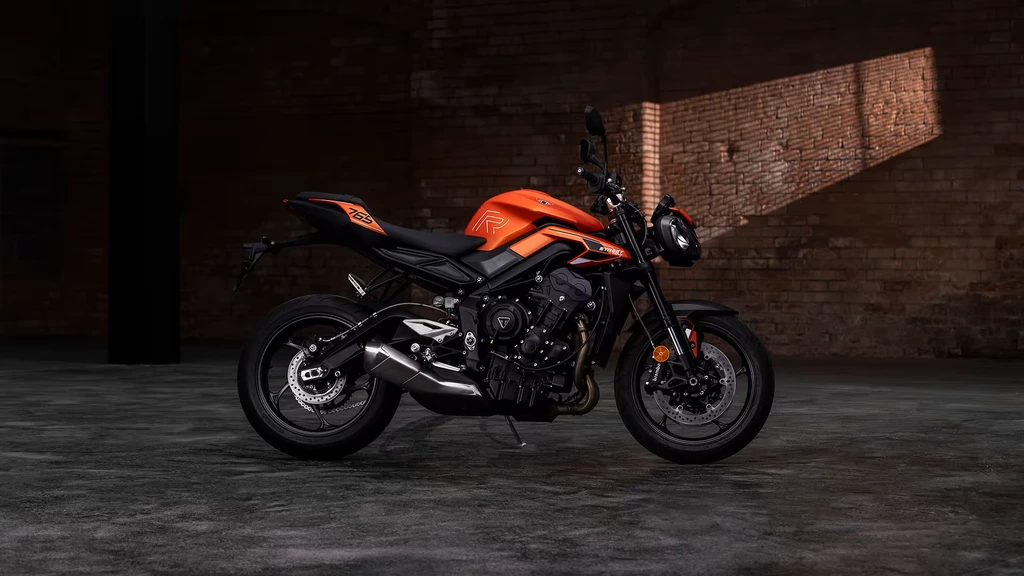

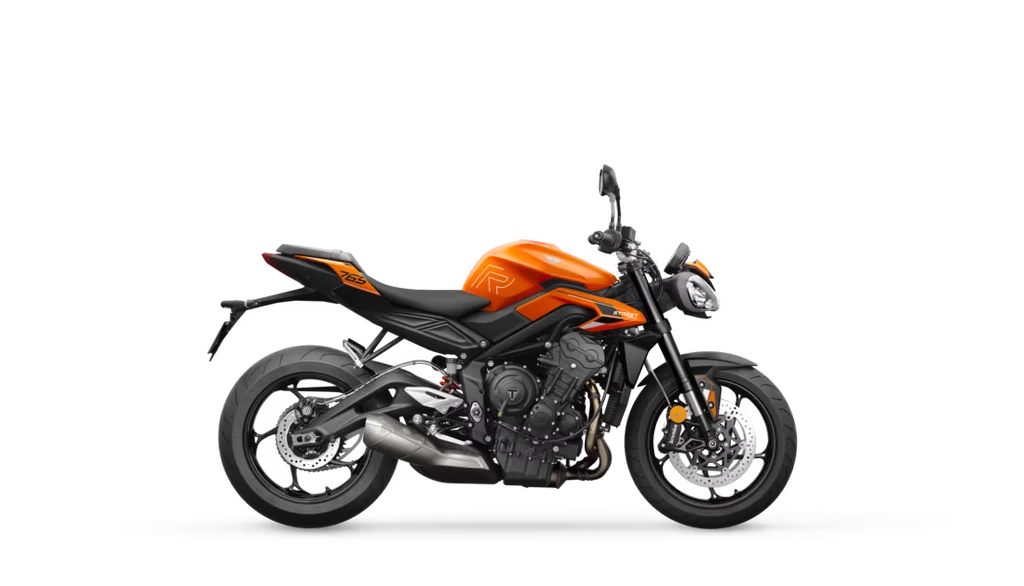

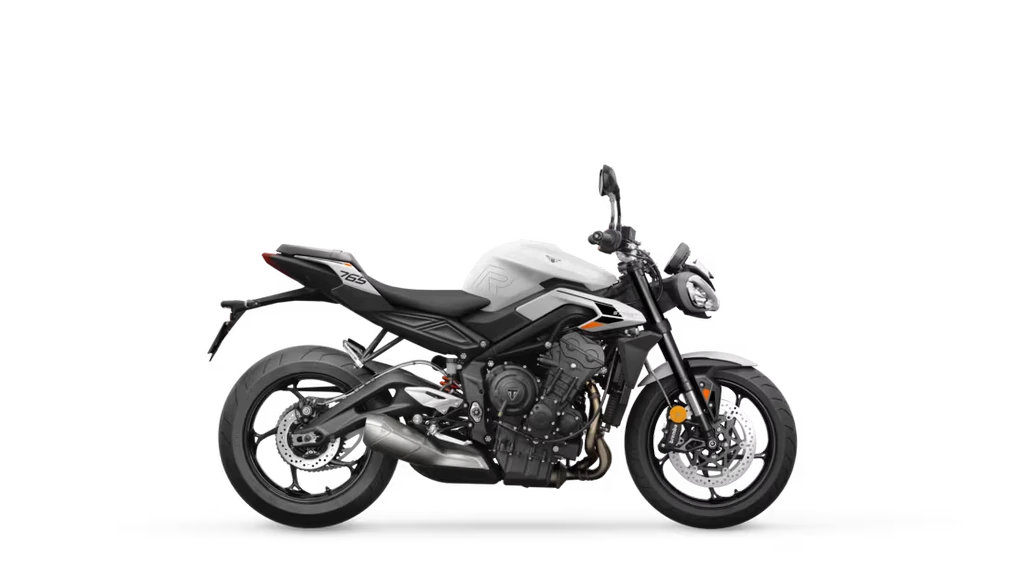

Triumph Street Triple 765 R (2021 – ) Color Options Matte Baja Orange Pure White *We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
