Triumph Speed Triple 1200 RR (2021 - 2024)

All of the triple powered performance revolution of the highly acclaimed RS with stunning sophistication, a more focused riding position and the pinnacle in premium specification.

Key Specifications

Engine Type	Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Engine Capacity	1160 cc
Max Power	180 PS / 177 HP (132.4 kW) @ 10,750 rpm
Max Torque	124.7 Nm / 92 lbft @ 9,000 rpm
Top Speed	~ 230 kmph / 143 mph
Fuel Tank Capacity	15.5 L / 4.1 US gallons
Weight (Wet/Kerb)	199 kg / 438 lbs
Seat Height	830 mm / 32.7 inches

*n/a – information not provided by manufacturer

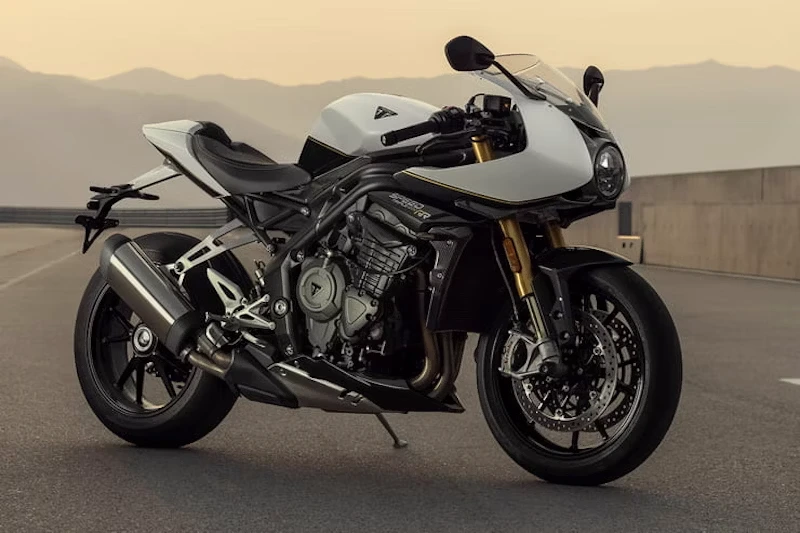

2021-2024-triumph-speed-triple-1200-rr-throttlecraze.com-3_throttlecraze.com

All Specifications

Make & Model

Model	Triumph Speed Triple 1200 RR
Year	2021 – 2024

Engine

Engine Type	Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Displacement	1160 cc
Bore x Stroke	90 mm x 60.8 mm
Compression Ratio	13.2 : 1
Number of Cylinders	3
Max Horsepower	180 PS / 177 HP (132.4 kW) @ 10,750 rpm
Max Torque	124.7 Nm / 92 lbft @ 9,000 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	Multipoint sequential electronic fuel injection with electronic throttle control
Lubrication System	Wet sump
Ignition System	Fully electronic ignition
Fuel	Unleaded, 95 RON (U.S. 89 CLC/AKI)
Exhaust System	Stainless steel 3-into-1 header system with underslung primary silencer and side-mounted secondary silencer
Emissions Compliance	Euro 5

Performance

Top Speed	~ 230 kmph / 143 mph
Fuel Consumption	37.3 mpg (6.3 L / 100km)
Range	246 kms / 153 m

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet mulit-plate, slip assist
Gearbox	6 speed, constant mesh
Primary Drive Ratio	76:41
Gear Ratios	1st gear – 41:17 2nd gear – 43:22 3rd gear – 36:22 4th gear – 34:24 5th gear – 32:25 6th gear – 31:26
Final Drive	Chain RK 525
Quick Shifter	Triumph Shift Assist Up-and-Down Quickshifter
Traction Control System	Switchable Optimized Cornering Traction Control
Assist & Slipper Clutch	Optimized Cornering ABS

Electrical & Electronics System

Battery	HJTZ14S-FPZ
Alternator/Generator	34A
Headlight Type	LED
Taillight Type	LED
Instrumentation	Full-color 5″ TFT instruments
Riding Modes	5 Modes – Rain, Road, Sport, Track, Rider
Traction Control System	Switchable Optimized Cornering Traction Control
Launch Control	Front Wheel Lift Control
ABS	Optimized Cornering ABS
Cruise Control	Cruise control

Chassis & Suspension

Frame Type	Aluminum twin spar frame
Front Suspension	Öhlins 43mm fully adjustable USD forks. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping
Front Suspension Travel	120 mm / 4.72 inches
Rear Suspension	Öhlins monoshock RSU with linkage. Öhlins S-EC 2.0 OBTi system electronic compression / rebound damping
Rear Suspension Travel	120 mm / 4.72 inches
Rake	23.9 °
Trail	104.7 mm / 4.1 inches
Rear Subframe	Bolt-on aluminum rear subframe
Swingarm	Aluminum, single-sided

Wheels & Brakes

Wheels	Cast aluminum
Front Wheel/Rim Size	3.5 x 17″
Front Tire Size	120/70 ZR 17 (58W)
Rear Wheel/Rim Size	6.0 x 17″
Rear Tire Size	190/55 ZR 17 (75W)
Front Brakes	Twin 320mm floating discs. Brembo Stylema monobloc calipers, OC-ABS, radial master cylinder with separate reservoir
Rear Brakes	Single 220mm disc. Brembo twin piston caliper, OC-ABS. Rear master cylinder with separate reservoir
ABS	Optimized Cornering ABS

Dimension & Weights

Overall Width	758 mm / 29.84 inches
Overall Height	1120 mm / 44.1 inches
Seat Height	830 mm / 32.7 inches
Wheelbase	1439 mm / 56.65 inches
Fuel Tank Capacity	15.5 L / 4.1 US gallons
Wet (kerb/curb) Weight	199 kg / 438 lbs

Standard Equipment

Öhlins Smart EC 2.0 electronically adjustable semi-active suspension
Brembo Stylema monobloc front brake calipers, with twin 320mm discs
Optimized Cornering ABS and switchable Optimized Cornering Traction Control (with IMU), Front Wheel Lift Control, Cruise Control
5 inch TFT instruments with My Triumph Connectivity System
5 riding modes (Rain, Road, Sport, Track and Rider)
Triumph Shift Assist up and down quickshifter
Lithium-ion battery
All LED lighting, with single round headlight and self-cancelling indicators
Full keyless system

Triumph Speed Triple 1200 RR (2021 – 2024) Color Options

Crystal White / Storm Grey
Red Hopper / Storm Grey

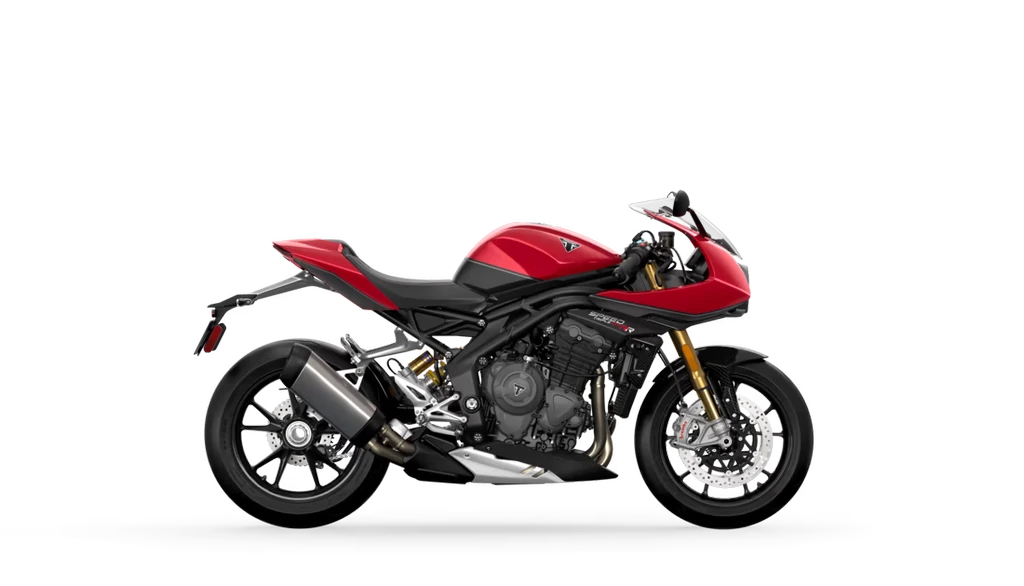

2021-2024-triumph-speed-triple-1200-rr-throttlecraze.com-2_throttlecraze.com

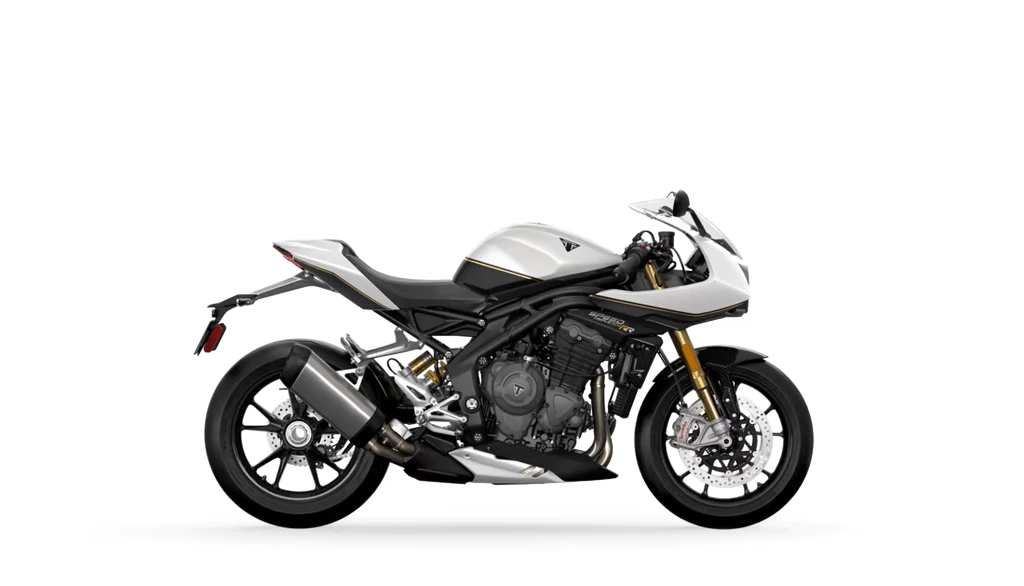

2021-2024-triumph-speed-triple-1200-rr-throttlecraze.com-1_throttlecraze.com
