Triumph Scrambler 1200 X (2024 - )

All the incredible performance, capability, and style of the Scrambler 1200 made more accessible. With its low seat height and effortless ergonomics, the Scrambler 1200 X inspires confidence on the road and off it.

Key Specifications

Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Engine Capacity	1200 cc
Max Power	66.2kW/89bhp/90PS @ 7000 rpm
Max Torque	110 Nm / 81.1 ft-lbs @ 4250 rpm
Top Speed	~ 210 kmph / 130 mph
Fuel Tank Capacity	15 L / 3.96 US gallons
Weight (Wet/Kerb)	228 kg / 502.65 lbs
Seat Height	820 mm / 32.28 inches

*n/a – information not provided by manufacturer

2024-triumph-scrambler-1200-x-throttlecraze.com-6_throttlecraze.com

All Specifications

Make & Model

Model	Triumph Scrambler 1200 X
Year	2024 –

Engine

Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin
Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	11 : 1
Number of Cylinders	2
Max Horsepower	66.2kW/89bhp/90PS @ 7000 rpm
Max Torque	110 Nm / 81.1 ft-lbs @ 4250 rpm
Valve Train	SOHC
Valves per Cylinder	4
Engine Management System	Multipoint sequential electronic fuel injection
Lubrication System	Wet sump
Ignition System	Fully electronic ignition
Fuel	91 RON unleaded
Exhaust System	Brushed 2 into 2 exhaust system with brushed high level silencers
Emissions Compliance	Euro 5

Performance

Top Speed

~ 210 kmph / 130 mph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multi-plate assist clutch
Gearbox	6-speed
Primary Drive Ratio	93:74
Gear Ratios	1st gear – 49:14 2nd gear – 45:18 3rd gear – 37:20 4th gear – 37:25 5th gear – 35:27 6th gear – 34:29
Final Drive	Chain DID 525V11
Traction Control System	Switchable traction control

Electrical & Electronics System

Battery	YTZ10S
Alternator/Generator	33 Amps at 6,000 rpm
Headlight Type	LED
Taillight Type	LED
Instrumentation	Multi-function instruments with colour TFT screen
Traction Control System	Switchable traction control
ABS	Optimised Cornering ABS (OCABS)

Chassis & Suspension

Frame Type	Tubular steel
Front Suspension	Marzocchi Non-adjustable USD forks
Front Suspension Travel	170 mm / 6.7 inches
Rear Suspension	Marzocchi twin RSU’s with piggyback reservoir, preload adjustable
Rear Suspension Travel	170 mm / 6.7 inches
Rake	26.2 °
Trail	125 mm / 4.9 inches
Swingarm	Twin-sided, aluminum fabrication

Wheels & Brakes

Wheels	Tubeless 36-spoke aluminum rims
Front Wheel/Rim Size	2.15 x 21″
Front Tire Size	90/90-21
Rear Wheel/Rim Size	4.25 x 17″
Rear Tire Size	150/70 R17
Front Brakes	Twin 310mm discs, 2 piston Nissin axial caliper, ABS
Rear Brakes	Single 255mm disc, single piston floating Nissin caliper, ABS
ABS	Switchable ABS

Dimension & Weights

Overall Width	834 mm / 32.8 inches
Overall Height	1185 mm / 46.65 inches
Seat Height	820 mm / 32.28 inches
Wheelbase	1525 mm / 60.03 inches
Fuel Tank Capacity	15 L / 3.96 US gallons
Wet (kerb/curb) Weight	228 kg / 502.65 lbs

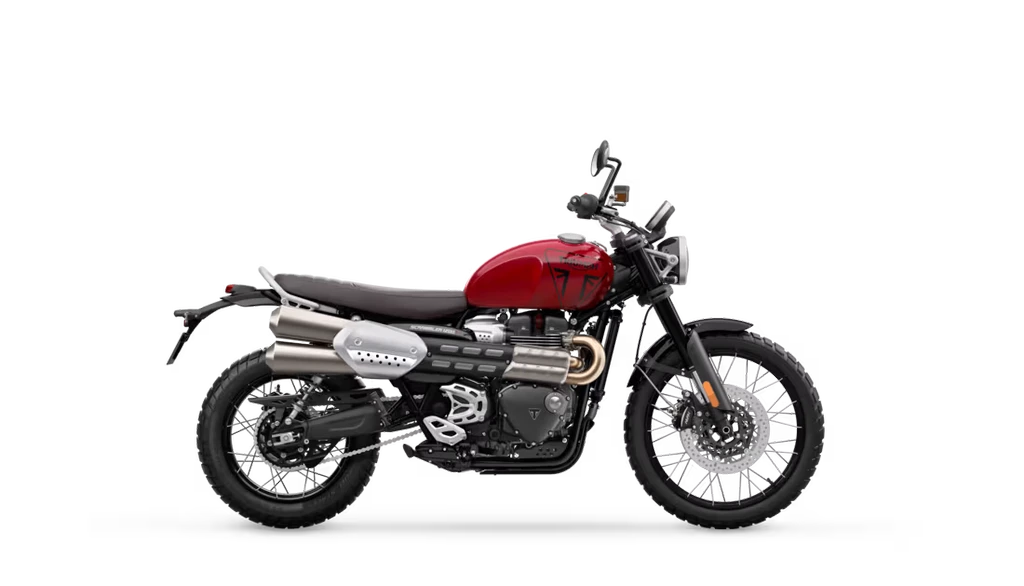

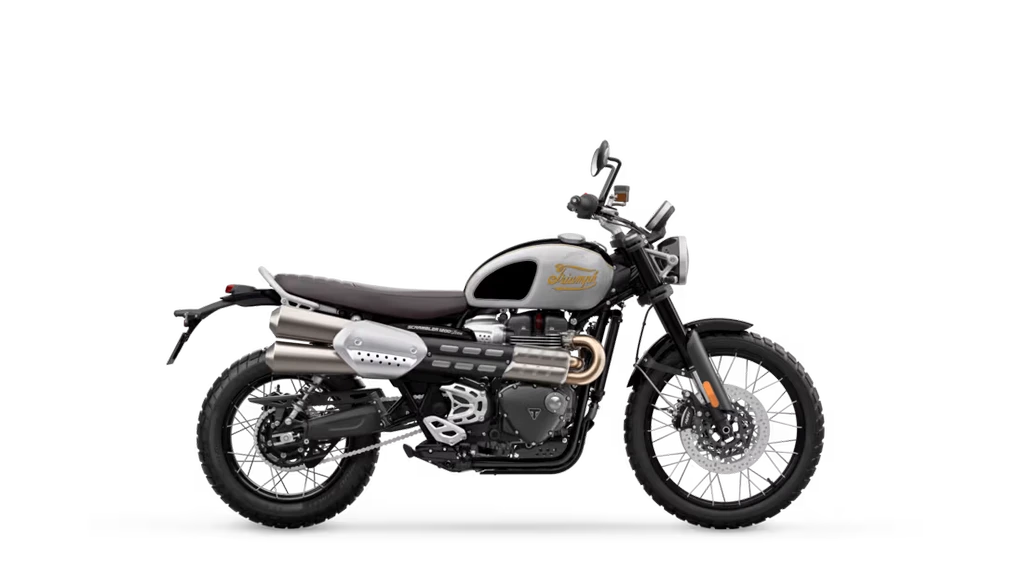

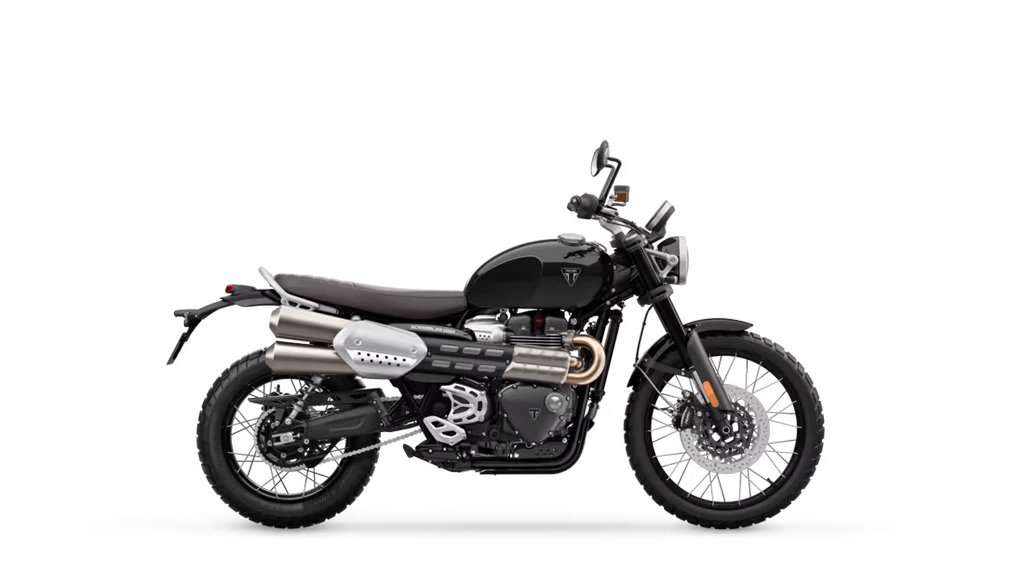

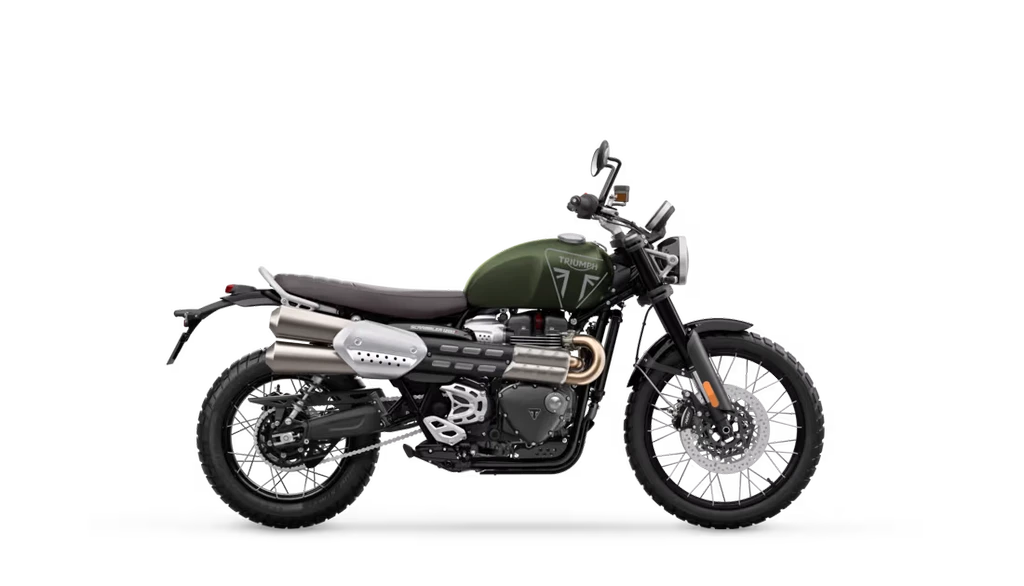

Triumph Scrambler 1200 X (2024 – ) Color Options

Sapphire Black
Matte Khaki Green
Carnival Red
Icon Edition – Aluminium Silver Sapphire Black

2024-triumph-scrambler-1200-x-throttlecraze.com-4_throttlecraze.com

2024-triumph-scrambler-1200-x-throttlecraze.com-3_throttlecraze.com

2024-triumph-scrambler-1200-x-throttlecraze.com-2_throttlecraze.com

2024-triumph-scrambler-1200-x-throttlecraze.com-1_throttlecraze.com

*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
