The legend evolves, with the Rocket 3 Storm GT. Muscular power and record-breaking levels of torque matched to laid-back style and a sublime ride, with flawless finish.
Key Specifications
| Engine Type | Liquid-cooled, 12 valve, DOHC, inline 3-cylinder |
| Engine Capacity | 2458 cc |
| Max Power | 182 PS / 180 bhp (134 kW) @ 7,000 rpm |
| Max Torque | 225 Nm / 166 ft lb @ 4000 rpm |
| Top Speed | ~ 235 kmph / 146 mph |
| Fuel Tank Capacity | 18 L / 4.76 US gallons |
| Weight (Wet/Kerb) | 320 kg / 705.4 lbs |
| Seat Height | 750 mm / 29.5 inches |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Triumph Rocket 3 Storm GT |
| Year | 2024 – |
Engine
| Engine Type | Liquid-cooled, 12 valve, DOHC, inline 3-cylinder |
| Displacement | 2458 cc |
| Bore x Stroke | 110.2 mm x 85.9 mm |
| Compression Ratio | 10.8 : 1 |
| Number of Cylinders | 3 |
| Max Horsepower | 182 PS / 180 bhp (134 kW) @ 7,000 rpm |
| Max Torque | 225 Nm / 166 ft lb @ 4000 rpm |
| Valve Train | DOHC |
| Valves per Cylinder | 4 |
| Engine Management System | Multipoint sequential electronic fuel injection with electronic throttle control |
| Lubrication System | Dry sump |
| Ignition System | Fully electronic ignition |
| Exhaust System | Stainless steel 3 into 1 header system with 3 exit silencer |
| Emissions Compliance | Euro 5 |
Performance
| Top Speed | ~ 235 kmph / 146 mph |
| Fuel Consumption | 6.6 litres / 100km 42.8 mpg |
| Range | 272 kms / 170 miles |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Wet, multi-plate hydraulically operated, torque assist |
| Gearbox | 6 speed, constant mesh (helical 2nd, 3rd, 4th, 5th, 6th) |
| Primary Drive Ratio | 71/57 |
| Gear Ratios | 1st gear – 43/18 2nd gear – 46/25 3rd gear – 41/29 4th gear – 37/33 5th gear – 35/36 6th gear – 31/37 |
| Final Drive | Shaft Drive |
| Traction Control System | Cornering Traction Control |
| Assist & Slipper Clutch | Optimised Cornering-ABS |
Electrical & Electronics System
| Battery | YTX20CH-BS |
| Alternator/Generator | 14 Volt, 46.5 Amps (maximum) at 3,000 rpm |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | Multi-function instruments with colour TFT screen |
| Riding Modes | 4 Modes – Rain, Road, Sport, Rider-Configurable mode |
| Traction Control System | Cornering Traction Control |
| ABS | Optimised Cornering-ABS |
| Cruise Control | Yes |
Chassis & Suspension
| Frame Type | Full aluminium frame |
| Front Suspension | Showa 47mm USD 1 1 cartridge front forks, compression and rebound damping adjustment |
| Front Suspension Travel | 120 mm / 4.72 inches |
| Rear Suspension | Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster |
| Rear Suspension Travel | 107 mm / 4.21 inches |
| Rake | 27.9 ° |
| Trail | 134.9 mm / 5.3 inches |
| Swingarm | Single-sided, cast aluminium |
Wheels & Brakes
| Wheels | Cast aluminum 10 Spoke |
| Front Wheel/Rim Size | 3.5 x 17″ |
| Front Tire Size | 150/80 R17 V |
| Rear Wheel/Rim Size | 7.5 x 16″ |
| Rear Tire Size | 240/50 R16 V |
| Front Brakes | Twin 320mm discs, Brembo M4.32 Stylema® 4-piston monobloc caliper, Optimised Cornering-ABS |
| Rear Brakes | Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Optimised Cornering-ABS |
| ABS | Optimized Cornering ABS |
Dimension & Weights
| Overall Width | 920 mm / 36 inches |
| Overall Height | 1183 mm / 46.6 inches |
| Seat Height | 750 mm / 29.5 inches |
| Wheelbase | 1677 mm / 66 inches |
| Fuel Tank Capacity | 18 L / 4.76 US gallons |
| Wet (kerb/curb) Weight | 320 kg / 705.4 lbs |

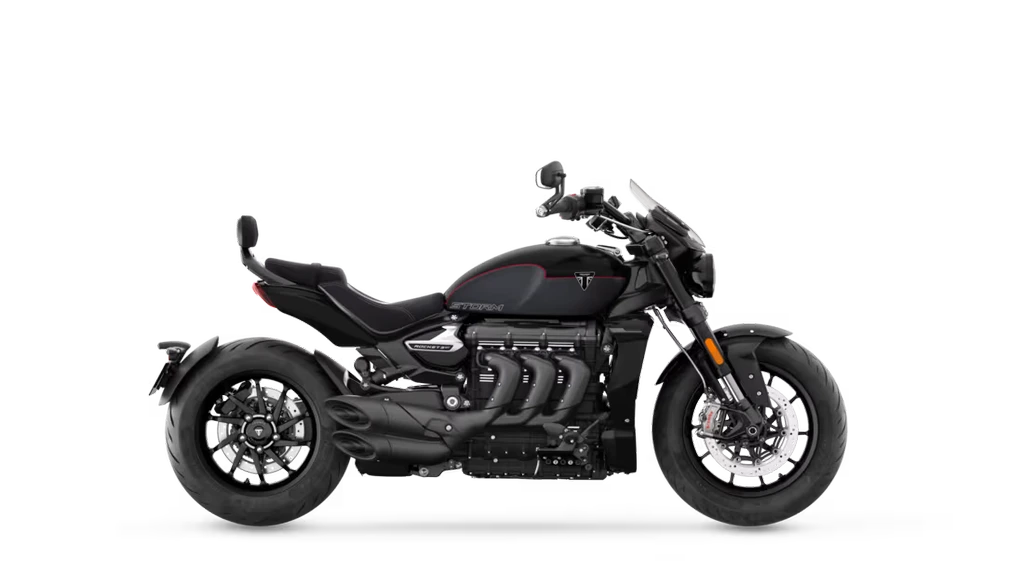

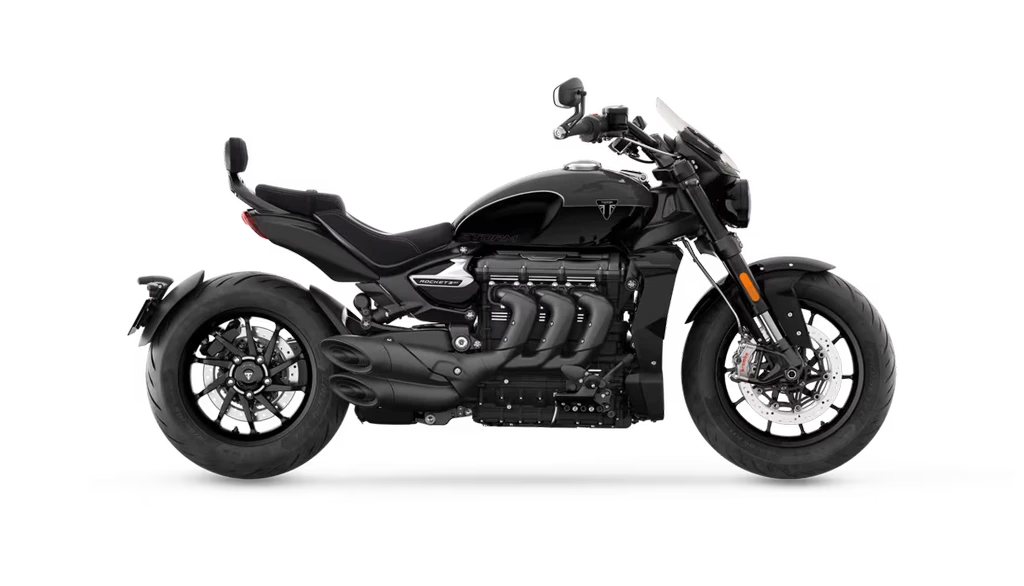

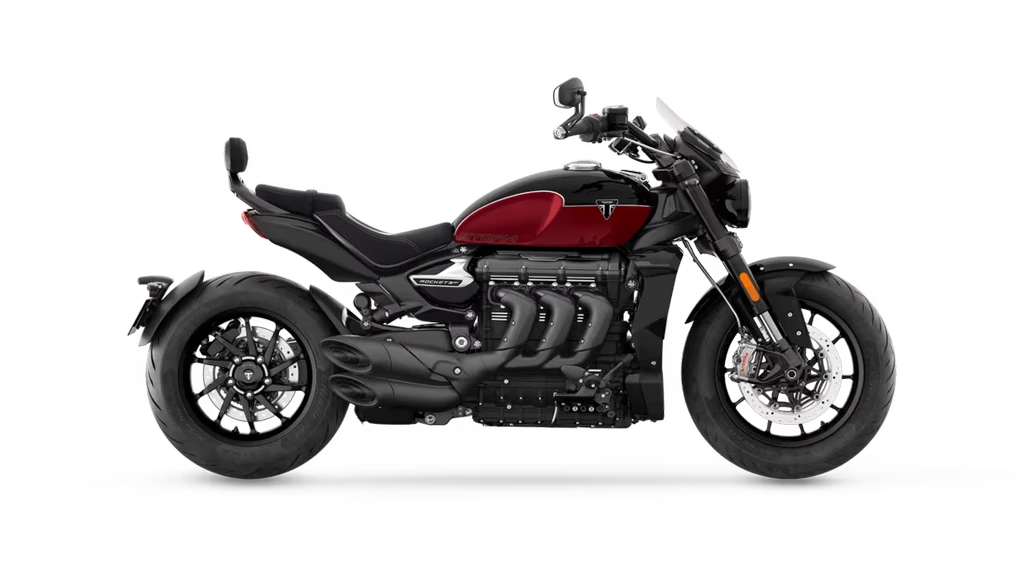

Triumph Rocket 3 Storm GT (2024 – ) Color Options
- Sapphire Black / Carnival Red
- Granite / Sapphire Black
- Matt Sapphire Black / Satin Granite
