Triumph Bonneville T120 (2023 - )

Capability with character, the T120 is lighter, better handling, and more responsive than ever. A genuine motorcycle icon, beautifully evolved.

Key Specifications

Engine Type	Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Engine Capacity	1200 cc
Max Power	79 HP @ 6550 RPM
Max Torque	105 Nm / 77.4 lb-ft @ 3500 rpm
Fuel Tank Capacity	14.5 L / 3.8 US gallons
Weight (Wet/Kerb)	236 kg / 520 lbs
Seat Height	790 mm / 31.1 inches

*n/a – information not provided by manufacturer

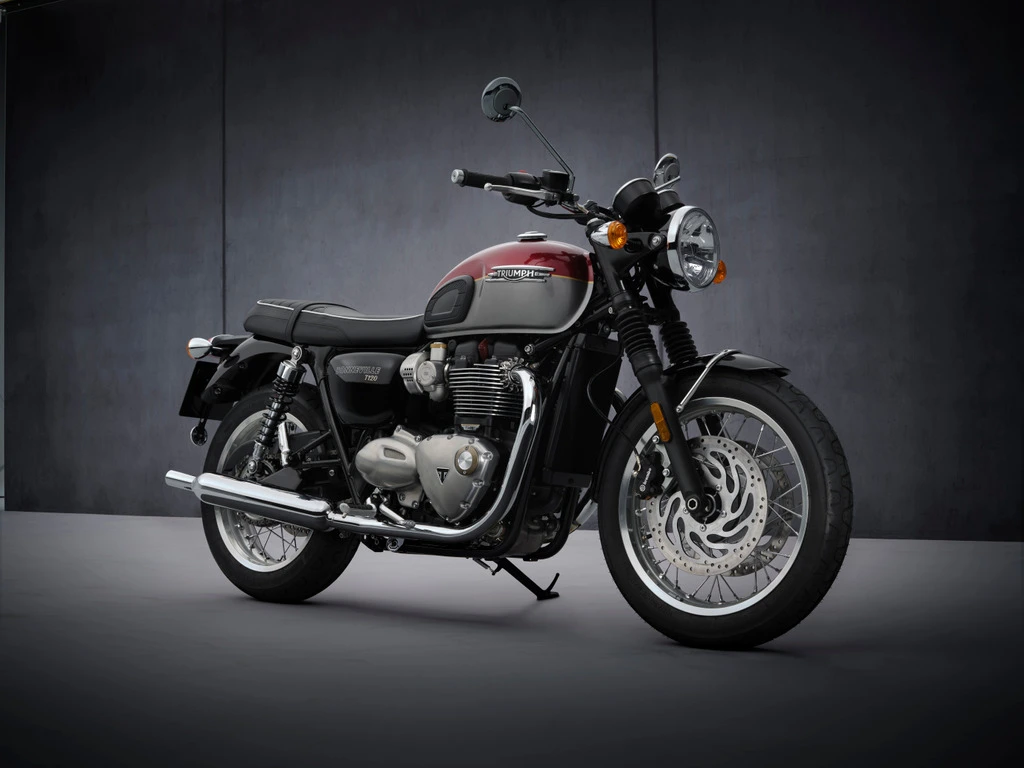

2023-triumph-bonneville-t120-throttlecraze.com-6_throttlecraze.com

All Specifications

Make & Model

Model	Triumph Bonneville T120
Year	2023 –

Engine

Engine Type	Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin
Displacement	1200 cc
Bore x Stroke	97.6 mm x 80 mm
Compression Ratio	10.0 : 1
Number of Cylinders	2
Max Horsepower	79 HP @ 6550 RPM
Max Torque	105 Nm / 77.4 lb-ft @ 3500 rpm
Valve Train	SOHC
Valves per Cylinder	4
Engine Management System	Multipoint sequential electronic fuel injection
Lubrication System	Wet sump
Ignition System	Fully electronic ignition
Fuel	AKI octane rating (R+M)/2 of 87 unleaded
Exhaust System	Chromed 2 into 2 exhaust system with twin chrome silencers (pea shooter)
Emissions Compliance	Euro 5

Performance

Fuel Consumption	60.1 mpg (4.7 L / 100km)
Range	308.5 kms / 191.7 miles

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet, multi-plate torque assist clutch
Gearbox	6-speed
Primary Drive Ratio	93:74
Gear Ratios	1st gear – 49:14 2nd gear – 45:18 3rd gear – 37:20 4th gear – 37:25 5th gear – 35:27 6th gear – 34/29
Final Drive	Chain RK 525 KRW2

Electrical & Electronics System

Battery	YTX12-BS
Alternator/Generator	14 Volt, 31 Amp at 6,000 rpm
Headlight Type	H4 Halogen
Taillight Type	LED
Instrumentation	Twin dial analogue speedometer and tachometer with LCD multi-functional displays
Riding Modes	2 Modes (Rain, Road)
Traction Control System	Switchable
ABS	ABS
Cruise Control	Standard

Chassis & Suspension

Frame Type	Tubular steel, with twin cradles
Front Suspension	Ø41mm cartridge forks
Front Suspension Travel	120 mm / 4.72 inches
Rear Suspension	Twin RSU’s, with pre-load adjustment
Rear Suspension Travel	120 mm / 4.72 inches
Rake	25.5 °
Trail	105.2 mm / 4.1 inches
Swingarm	Twin sided fabrication

Wheels & Brakes

Wheels	Aluminium rimmed 32 spoke
Front Wheel/Rim Size	2.75 x 18″
Front Tire Size	100/90-18
Rear Wheel/Rim Size	4.25 x 17″
Rear Tire Size	150/70 R17
Front Brakes	Twin 310mm discs, Brembo 2 piston floating caliper, ABS
Rear Brakes	Single 255mm disc, Nissin 2 piston floating caliper, ABS
ABS	ABS

Dimension & Weights

Overall Width	780 mm / 30.7 inches
Overall Height	1100 mm / 43.3 inches
Seat Height	790 mm / 31.1 inches
Wheelbase	1450 mm / 57.1 inches
Fuel Tank Capacity	14.5 L / 3.8 US gallons
Wet (kerb/curb) Weight	236 kg / 520 lbs

Features

Cruise control: Standard (handlebar button operated)
Torque-assist clutch: Reduces fatigue
Immobilizer: Built into ignition key
USB charging: Under-seat socket
Heated grips (optional): 3 modes, integrated button on left grip
Instruments: Twin clocks with new premium 3D dial faces, multifunction display controlled by handlebar scroll button

Triumph Bonneville T120 (2023 – ) Color Options

Jet Black / Fusion White
Icon Edition – Sapphire Black Aluminium Silver
Jet Black
Crystal White / Cranberry Red

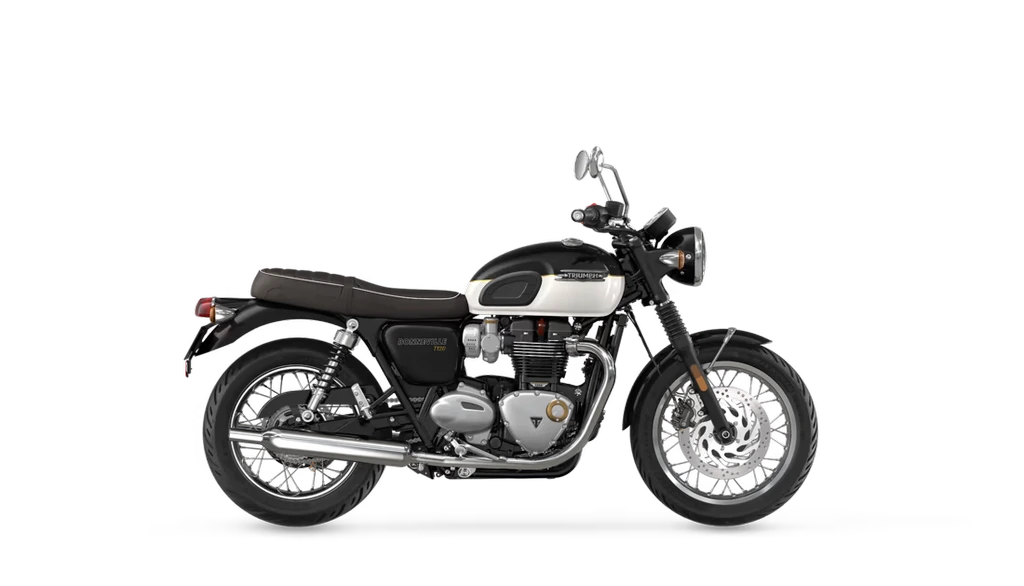

2023-triumph-bonneville-t120-throttlecraze.com-2_throttlecraze.com

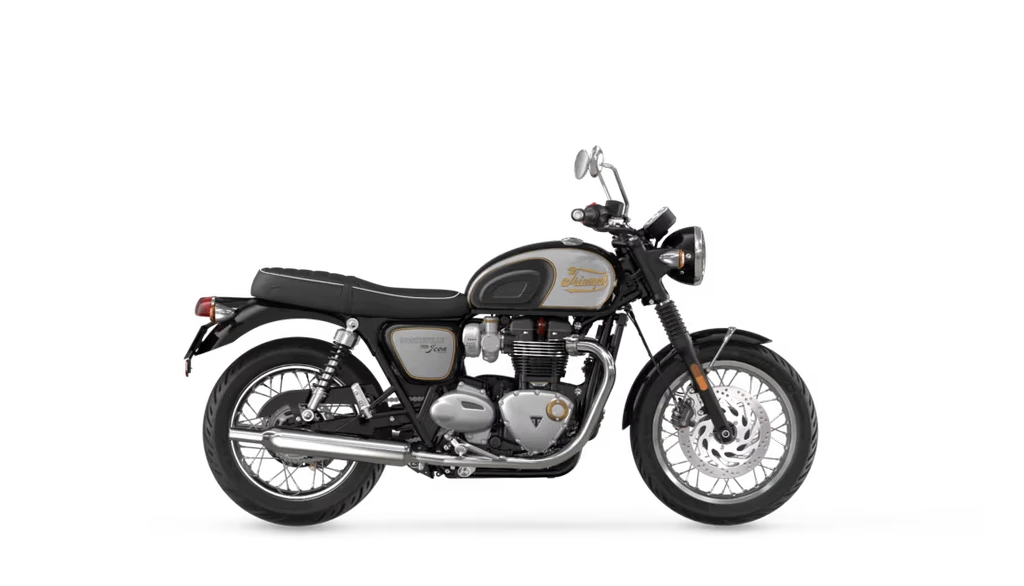

2023-triumph-bonneville-t120-throttlecraze.com-3_throttlecraze.com

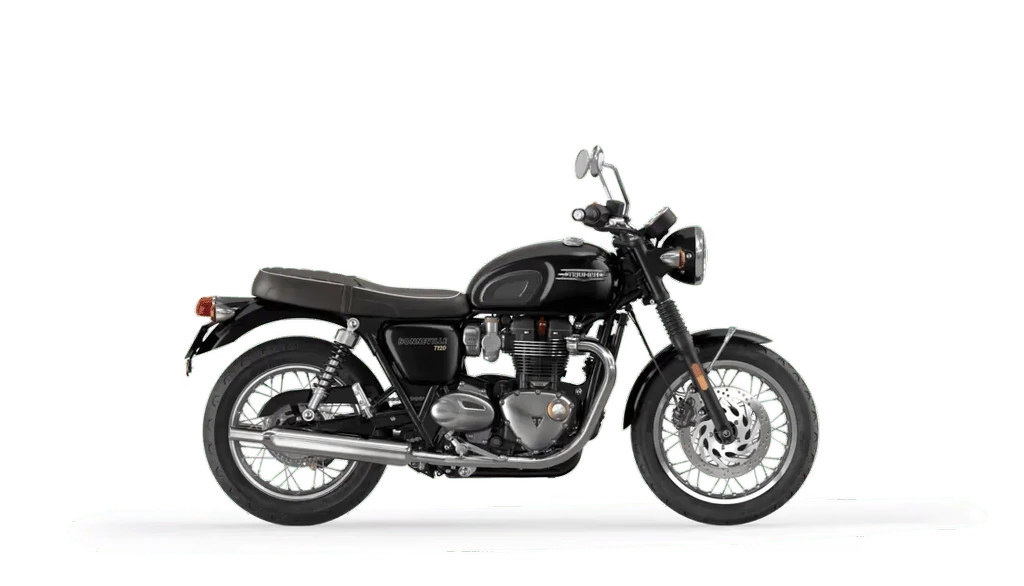

2023-triumph-bonneville-t120-throttlecraze.com-4_throttlecraze.com

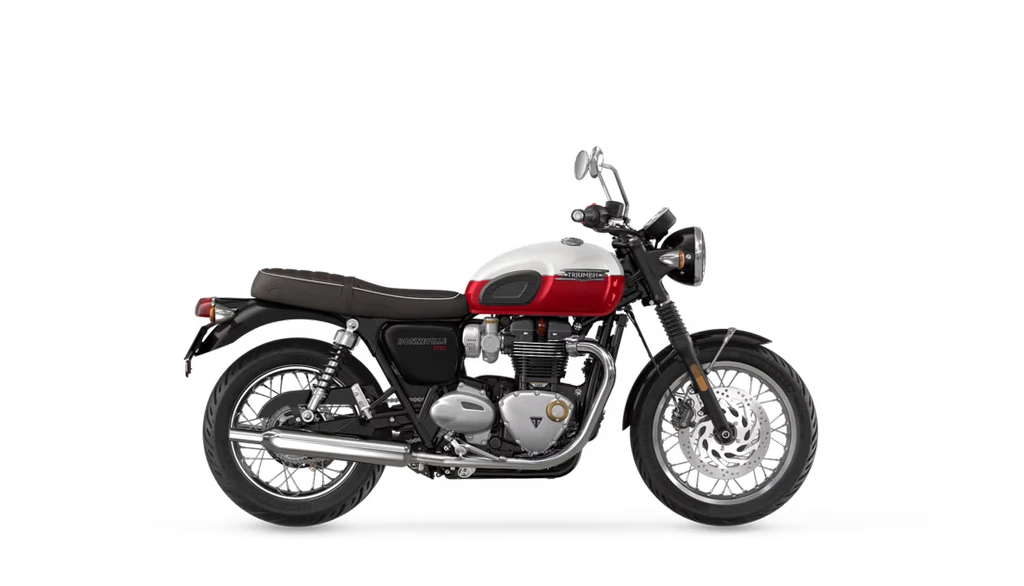

2023-triumph-bonneville-t120-throttlecraze.com-5_throttlecraze.com
