This is a stunning new generation Bobber, with all the award winning custom style, now beautifully evolved with enhanced performance, higher specification and blacked-out finish.
Key Specifications
| Engine Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Engine Capacity | 1200 cc |
| Max Power | 76.9 HP @ 6100 RPM |
| Max Torque | 106 Nm / 78.2 lb-ft @ 4000 rpm |
| Fuel Tank Capacity | 12 L / 3.2 US gallons |
| Weight (Wet/Kerb) | 251 kg / 553 lbs |
| Seat Height | Low Position – 690 mm / 27.2 inches High Position – 700 mm / 27.6 inches |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | Triumph Bonneville Bobber |
| Year | 2023 – |
Engine
| Engine Type | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin |
| Displacement | 1200 cc |
| Bore x Stroke | 97.6 mm x 80 mm |
| Compression Ratio | 10.0 : 1 |
| Number of Cylinders | 2 |
| Max Horsepower | 79 HP @ 6550 RPM |
| Max Torque | 106 Nm / 78.2 lb-ft @ 4000 rpm |
| Valve Train | SOHC |
| Valves per Cylinder | 4 |
| Engine Management System | Multipoint sequential electronic fuel injection |
| Lubrication System | Wet sump |
| Ignition System | Fully electronic ignition |
| Fuel | AKI octane rating (R+M)/2 of 87 unleaded |
| Exhaust System | Brushed stainless steel 2 into 2 twin-skin exhaust system with brushed stainless silencers |
| Emissions Compliance | Euro 5 |
Performance
| Fuel Consumption | 60.9 mpg (4.6 L / 100km) |
| Range | 315 kms / 195.7 miles |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Wet, multi-plate torque assist clutch |
| Gearbox | 6-speed |
| Primary Drive Ratio | 93:74 |
| Gear Ratios | 1st gear – 49:14 2nd gear – 45:18 3rd gear – 37:20 4th gear – 37:25 5th gear – 35:27 6th gear – 34/29 |
| Final Drive | Chain EK 525 MVXZ2 |
Electrical & Electronics System
| Battery | YTX9-BS |
| Alternator/Generator | 25 Amps at 1,000 rpm 46.5 Amps at 3,000 rpm |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | Single dial analog speedometer with multi-function LCD display |
| Riding Modes | 2 Modes (Rain, Road) |
| Traction Control System | Ride-by-wire throttle with switchable traction control |
| ABS | ABS |
| Cruise Control | Cruise control with single button operation |
Chassis & Suspension
| Frame Type | Tubular steel, with twin cradles |
| Front Suspension | Showa Ø 47 mm cartridge forks |
| Front Suspension Travel | 90 mm / 3.5 inches |
| Rear Suspension | Mono-shock RSU with linkage |
| Rake | 24.5 ° |
| Trail | 92 mm / 3.6 inches |
| Swingarm | Twin sided fabrication |
Wheels & Brakes
| Wheels | Wire 32-spoke |
| Front Wheel/Rim Size | 2.5 x 16″ |
| Front Tire Size | MT90B16 |
| Rear Wheel/Rim Size | 3.5 x 16″ |
| Rear Tire Size | 150/80 R16 |
| Front Brakes | Twin Ø310mm disc, Brembo 2-piston sliding axial calipers |
| Rear Brakes | Single Ø255mm disc, Nissin single piston sliding axial caliper |
| ABS | ABS |
Dimension & Weights
| Overall Width | 800 mm / 31.5 inches |
| Overall Height | Low Position – 1024 mm / 40.3 inches High Position – 1055 mm / 41.5 inches |
| Seat Height | Low Position – 690 mm / 27.2 inches High Position – 700 mm / 27.6 inches |
| Wheelbase | 1500 mm / 59.1 inches |
| Fuel Tank Capacity | 12 L / 3.2 US gallons |
| Wet (kerb/curb) Weight | 251 kg / 553 lbs |
Features
- Cruise control: Standard (handlebar button operated)
- Torque-assist clutch: Reduces fatigue
- Immobilizer: Built into ignition key
- Single dial analog speedometer with multi-function LCD display

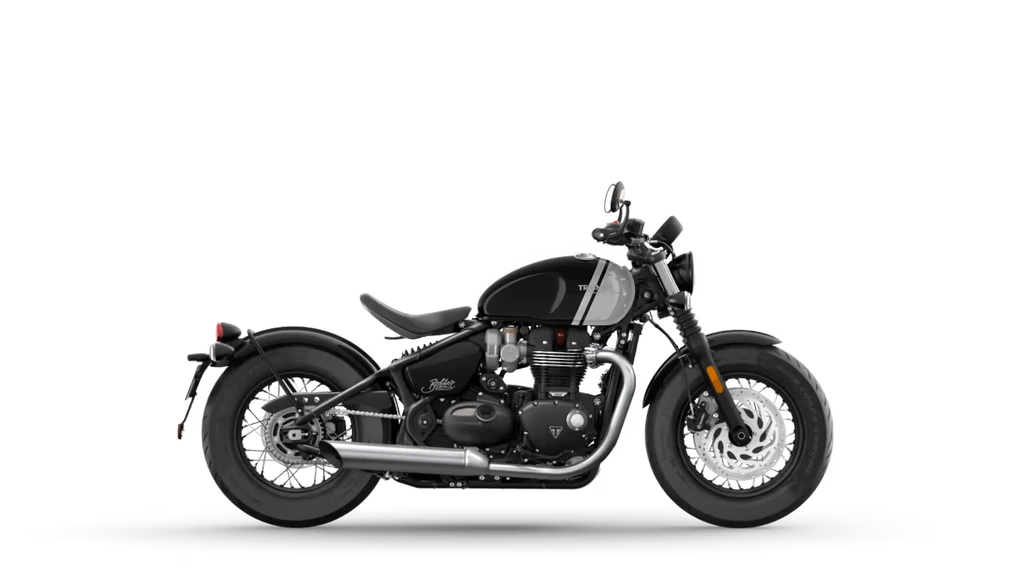

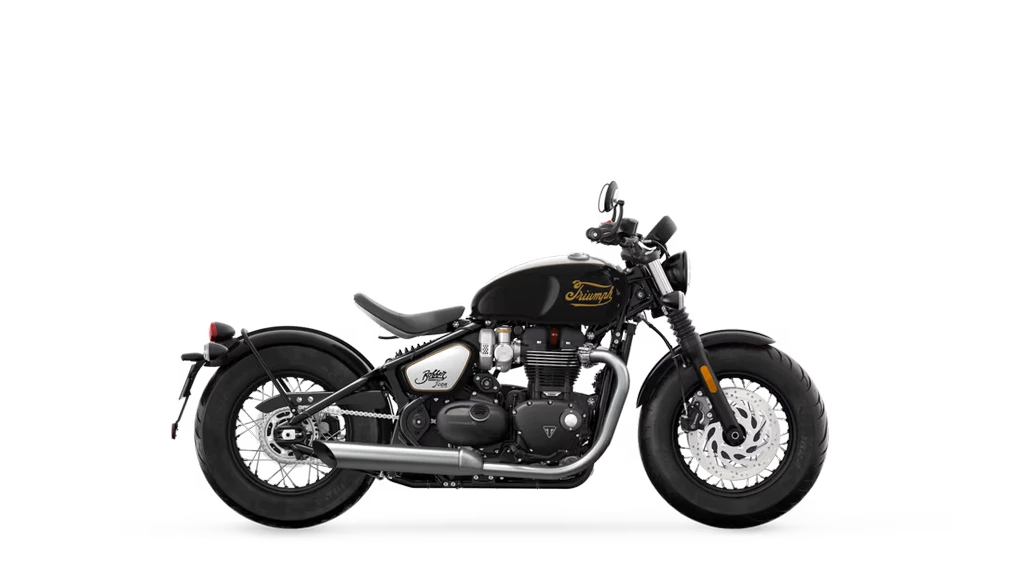

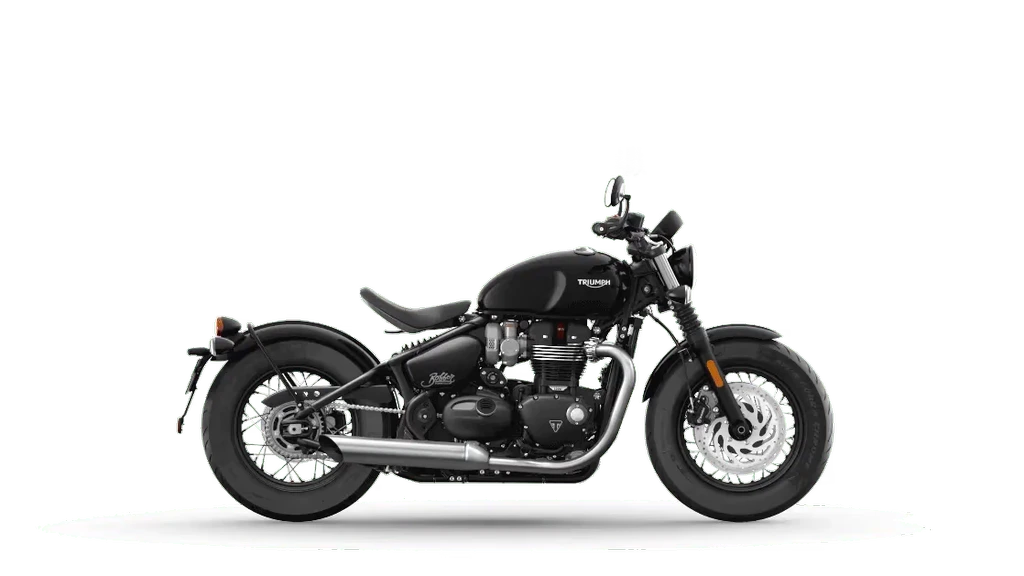

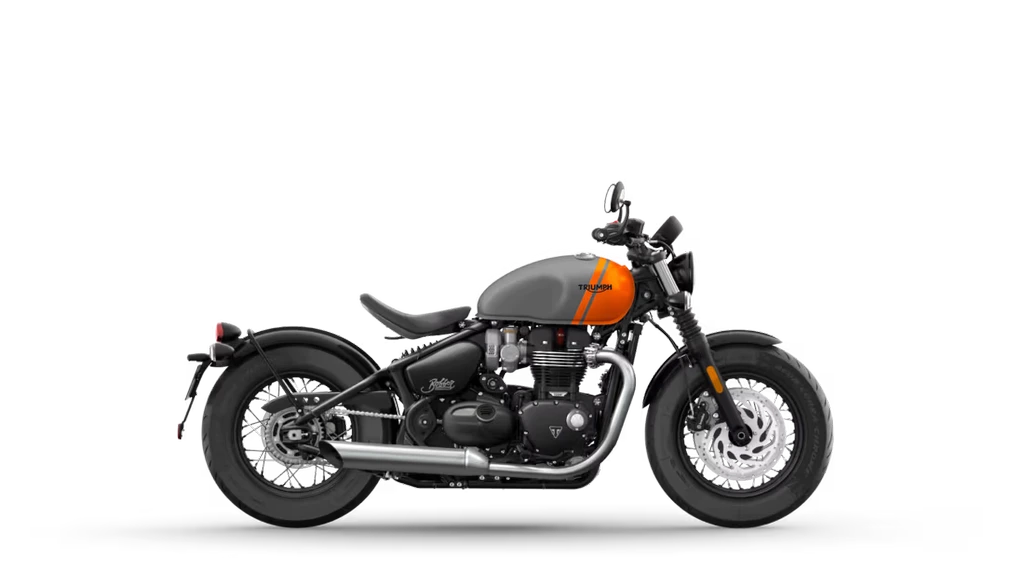

Triumph Bonneville Bobber (2023 – ) Color Options
- Matte Graphite / Matte Baja Orange
- Icon Edition – Sapphire Black Aluminium Silver
- Jet Black
- Jet Black / Ash Gray
