Building on Suzuki’s industry leading SuperMoto, the all-new 2026 DR-Z4SM is here. This motorcycle redefines SuperMoto performance, built for riders who crave agility and excitement on the street and track.
An all-new twin-spar steel frame and aluminum subframe provide a lightweight, high-performance chassis. The redesigned 398cc engine, featuring electronic fuel injection and 42mm Ride-by-Wire throttle body delivers smooth, responsive power.
Suzuki’s Intelligent Ride System (S.I.R.S.) puts advanced features at your fingertips. With three-level Suzuki Drive Mode Selector (SDMS) and a four-mode Traction Control System, you can tailor the bike’s performance to match your riding style and conditions. Switchable ABS provides added functionality, whether you’re navigating city streets or carving up a racetrack.
The DR-Z4SM’s 17-inch wide-spoke wheels are designed to allow an aggressive SuperMoto feel that this motorcycle can achieve. Fully adjustable KYB suspension and new Dunlop SPORTMAX Q5A tires ensure optimal handling and grip. Sleek LED lighting, vibrant bodywork, and ergonomic touches complete the motorcycle, making the DR-Z4SM the ultimate package.
Key Specifications
Engine Type
4-stroke, liquid-cooled, single cylinder, DOHC
Engine Capacity
24.3 cubic inches / 398 cc
Max Power
27.9 kw / 37.5 hp
Max Torque
27.3 ft-lb / 37 nm
Fuel Tank Capacity
2.3 US gallons / 8.7 L
Weight (Wet/Kerb)
340 lbs / 154 kg
Seat Height
35.0 inches / 890 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Suzuki DR-Z4SM
Year
2025 – 2026
Engine
Engine Type
4-stroke, liquid-cooled, single cylinder, DOHC
Displacement
24.3 cubic inches / 398 cc
Bore x Stroke
90.0 x 62.6 mm
Compression Ratio
11.1 : 1
Number of Cylinders
1
Max Horsepower
27.9 kw / 37.5 hp
Max Torque
27.3 ft-lb / 37 nm
Valve Train
DOHC
Engine Management System
Fuel injection, 42 mm throttle body with 10-hole injector
Lubrication System
Semi-dry sump
Cooling System
Liquid Cooled
Ignition System
Electronic ignition
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-plate, SCAS-equipped
Gearbox
5-speed constant mesh
Final Drive
Sealed O-ring type chain
Traction Control System
Suzuki Traction Control System (STCS) – four modes (1, 2, G, and OFF)
Electrical & Electronics System
Starter
Electric
Headlight Type
Bifunction LED
Taillight Type
LED
Traction Control System
Suzuki Traction Control System (STCS) – four modes (1, 2, G, and OFF)
ABS
Bosch-supplied ABS (Rear ABS Off, Rear wheel ABS)
Chassis & Suspension
Frame Type
Twin-spar steel frame
Front Suspension
KYB-supplied, inverted, telescopic fork with coil spring, oil damped, and adjustable compression/rebound damping force.
Front Suspension Travel
10.2 inches / 260 mm
Rear Suspension
KYB-supplied, link type, coil spring, oil damped shock absorber, with adjustable spring preload and compression/rebound damping force.
Rear Suspension Travel
10.9 inches / 277 mm
Rear Subframe
Aluminum sub-frame
Handlebar
Tapered aluminum handlebars
Wheels & Brakes
Wheels
Wire spoked wheels
Front Tire Size
120/70R17 M/C (58H), tube type
Rear Tire Size
140/70R17 M/C (66H), tube type
Front Brakes
Disc brake, single 310 mm diameter stainless steel rotor
Rear Brakes
Disc brake, single 240 mm diameter stainless steel rotor
ABS
Bosch-supplied ABS (Rear ABS Off, Rear wheel ABS)
Dimension & Weights
Overall Length
86.4 inches / 2195 mm
Overall Width
34.8 inches / 885 mm
Overall Height
46.9 inches / 1190 mm
Seat Height
35.0 inches / 890 mm
Wheelbase
57.7 inches / 1465 mm
Ground Clearance
10.2 inches / 260 mm
Fuel Tank Capacity
2.3 US gallons / 8.7 L
Wet (kerb/curb) Weight
340 lbs / 154 kg
Features
Suzuki’s Dual Spark Technology, utilizing two iridium spark plugs
Suzuki Drive Mode Selector (SDMS) provides the DR-Z4S rider with a choice of three different engine power output characteristics (modes)
Bosch-supplied ABS control (Front & Rear ABS OFF mode, Rear ABS OFF mode)
Suzuki Intelligent Ride System (SIRS)
Suzuki Traction Control System (STCS) with four modes (1, 2, G, and OFF)
Suzuki DR-Z4SM (2025 – 2026) Color Options

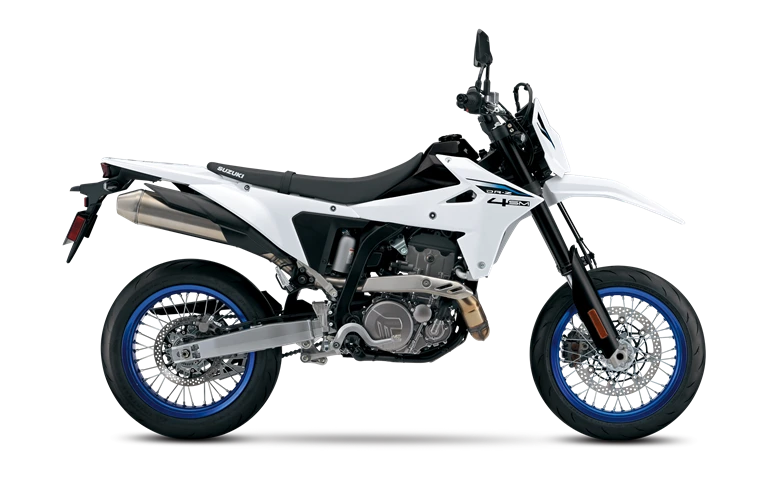

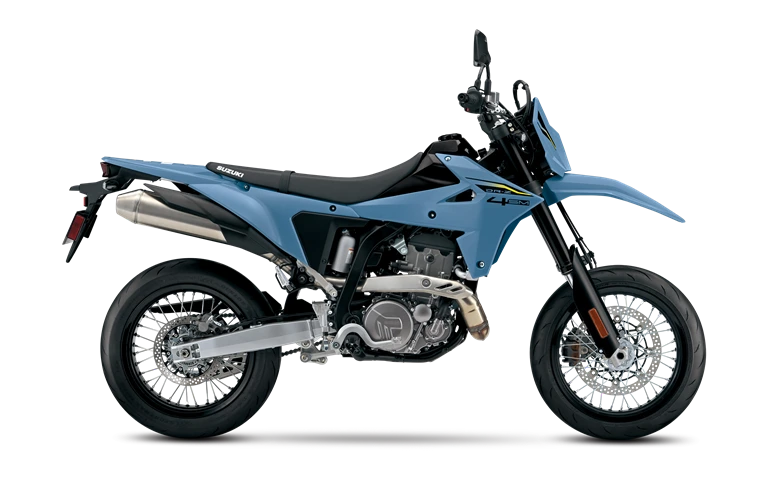

Sky Gray
Solid Special White No. 2
