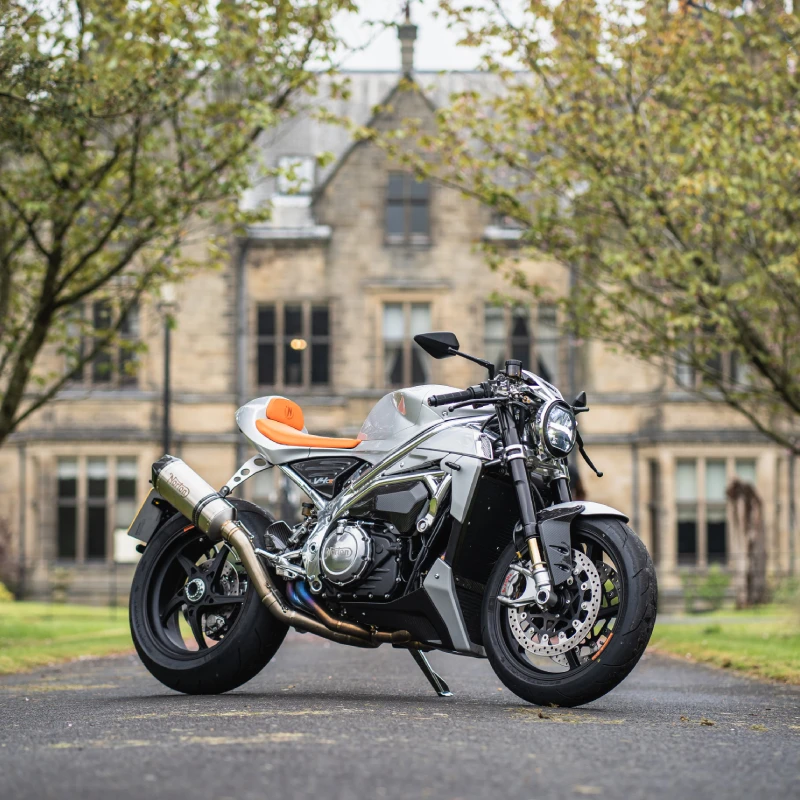

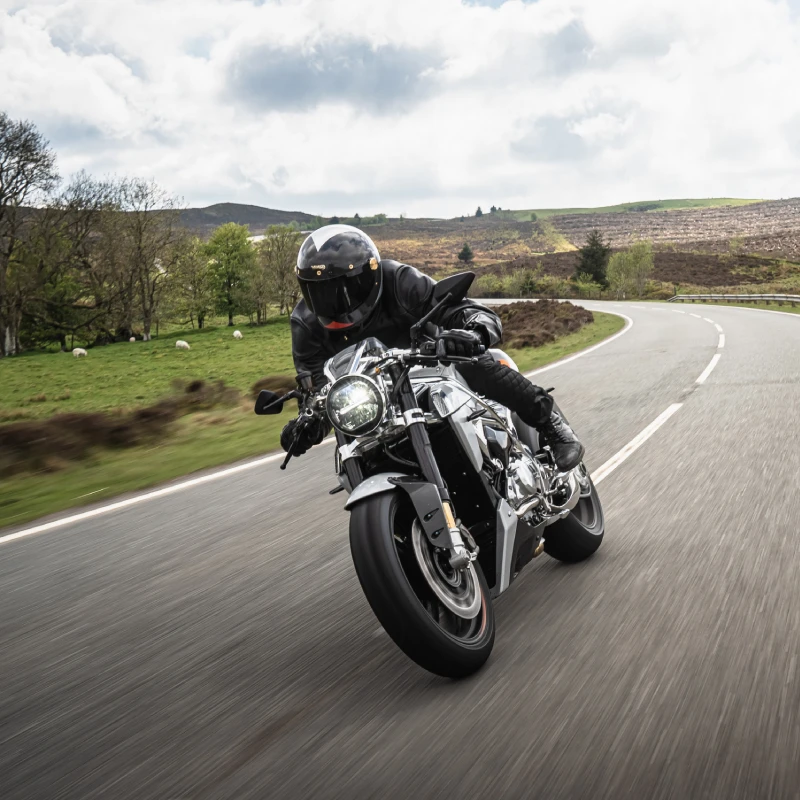

The new V4CR represents the culmination of years of engineering refinement, distilling the essence of a proven platform into its purest form. By harnessing everything perfected in the V4SV—the surefooted handling, the pinpoint power delivery, and the unparalleled attention to detail—the V4CR delivers an identical, world-class performance pedigree.
Key Specifications
Engine Type
Norton 72-degree liquid-cooled V4
Engine Capacity
1200 cc
Max Power
185 bhp @ 12,000rpm
Max Torque
92 ft-lbs / 125 Nm @ 9000rpm
Top Speed
n/a
Fuel Tank Capacity
15 L / 4 US gallons
Weight (Wet/Kerb)
204 kg / 450 lbs
Seat Height
836 mm / 33 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Norton V4CR
Year
2023 –
Engine
Engine Type
Norton 72-degree liquid-cooled V4
Displacement
1200 cc
Bore x Stroke
82 mm x 56.8 mm
Compression Ratio
13.6 : 1
Number of Cylinders
4
Max Horsepower
185 bhp @ 12,000rpm
Max Torque
92 ft-lbs / 125 Nm @ 9000rpm
Valve Train
Chain-driven cams with idler gear for reduced engine height. Titanium inlet valves.
Valves per Cylinder
4
Engine Management System
Electronic fuel-injection system. 8-fuel injectors. Full drive-by-wire system independent on front and rear banks of cylinders for ultimate control and feel
Lubrication System
Dry Sump
Ignition System
Direct coil, ECU controlled, Electric starter, Keyless ignition system with electronic steering lock (manual fuel filler cap)
Fuel
Unleaded, 95 RON minimum, E10 maximum
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Hydraulic, wet, multi plate slipper clutch
Gearbox
6-speed constant mesh transmission with quick-shifter
Final Drive
525 O-Ring 112 Link
Quick Shifter
Full quick shift system and auto blipper
Traction Control System
Lean-angle sensitive traction-control
Assist & Slipper Clutch
Yes
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Instrumentation
Full-colour 6-inch display with auto brightness adjustment. Engine Mode adjustment
Riding Modes
3 Modes – Wet, Road and Sport.
Traction Control System
Lean-angle sensitive traction-control
ABS
Front and rear ABS
Wheelie Control
Yes
Chassis & Suspension
Frame Type
Aluminium tubular chassis. Aerospace 5-axis CNC machined outriggers and headstock. Hand TIG welded
Adjustable rake angle, steering offset and swingarm pivot
Steering Damper
Öhlins damper
Wheels & Brakes
Wheels
Carbon model: Carbon fibre BSTs. Manx model: OZ Racing forged aluminium
Front Tire Size
120/70 ZR17 (58W) Dunlop Sport Smart
Rear Tire Size
200/55 ZR17 (78W) Dunlop Sport Smart
Front Brakes
2 x 330mm floating discs. Radially mounted Brembo monobloc calipers. Brembo discs, and Brembo master cylinder
Rear Brakes
Brembo 245mm rear disc. Brembo caliper and master-cylinder
Dimension & Weights
Overall Length
2063 mm / 81.22 inches
Overall Width
735 mm / 29 inches
Overall Height
1091 mm / 43 inches
Seat Height
836 mm / 33 inches
Wheelbase
1434 mm / 56.45 inches
Fuel Tank Capacity
15 L / 4 US gallons
Wet (kerb/curb) Weight
204 kg / 450 lbs
Dry Weight
193 kg / 425.5 lbs
Max Load Capacity (including rider)
150 kg / 330.7 lbs
Norton V4CR (2023 – ) Color Options

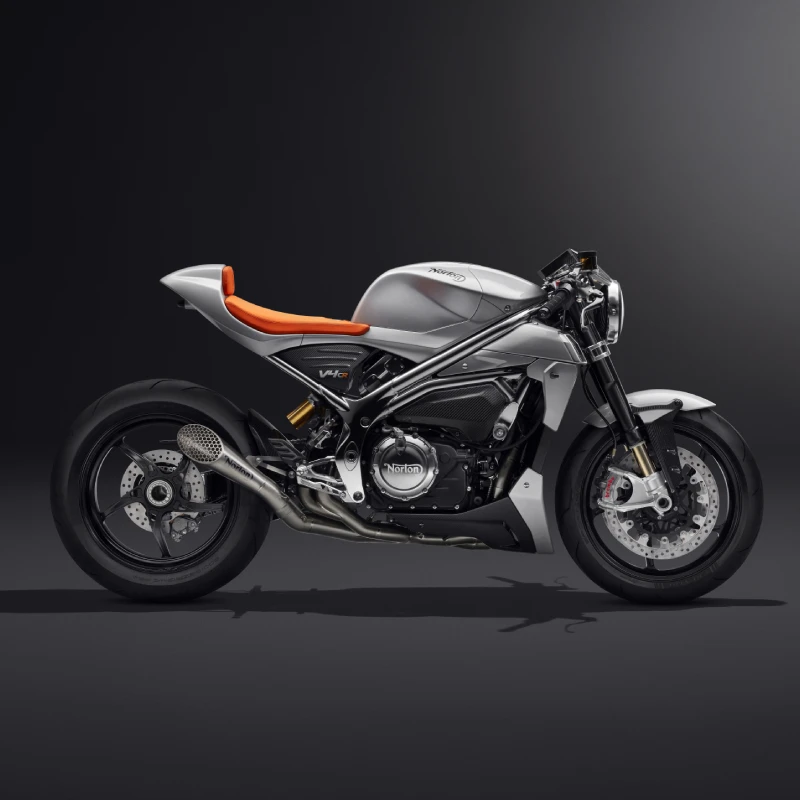

Manx Platinum

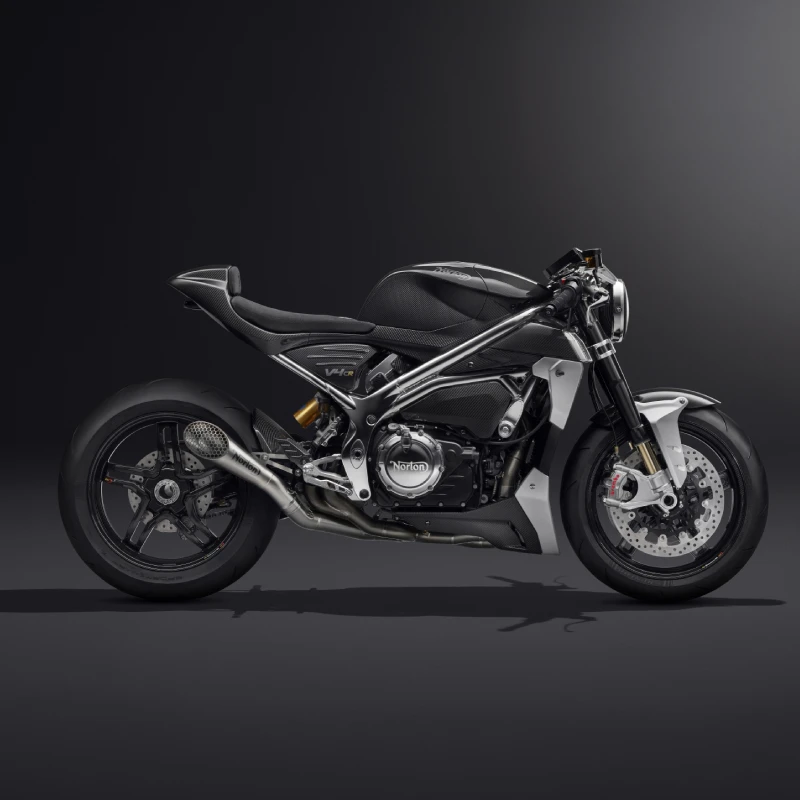

Carbon
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
