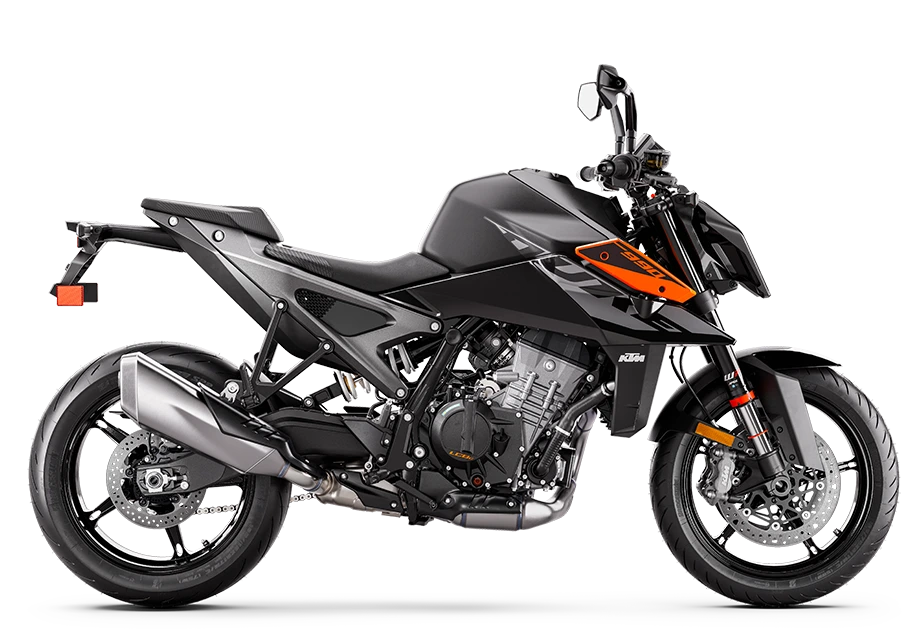

Hitting every target with devastating accuracy, the all-new KTM 990 DUKE brings unmatched levels of precision to the street. Packing a reworked engine into an all-new frame, with adjustable WP APEX suspension and highly tuned electronics to boot, this – put simply – is the lightest, sharpest, most performance focused mid-class NAKED motorcycle to ever wear the DUKE nameplate.
Key Specifications
| Engine Type | 2-cylinder, 4-stroke, parallel twin |
| Engine Capacity | 947 cc |
| Max Torque | 103 NM |
| Top Speed | ~ 220 kmph / 136.7 mph |
| Fuel Tank Capacity | 14.8 L / 4 US gallons |
| Weight (Wet/Kerb) | ~ 190 kg / 418.8 lbs |
| Seat Height | 825 mm / 32.4 inches |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | KTM 990 DUKE |
| Year | 2024 |
Engine
| Engine Type | 2-cylinder, 4-stroke, parallel twin |
| Displacement | 947 cc |
| Bore x Stroke | 92.5 mm x 70.4 mm |
| Compression Ratio | 13.5 : 1 |
| Number of Cylinders | 2 |
| Max Torque | 103 NM |
| Valve Train | DOHC |
| Valves per Cylinder | 4 |
| Engine Management System | Bosch EMS with RBW |
| Lubrication System | Pressure circulation lubrication with 2 trochoidal pumps |
| Cooling System | Water cooling, permanent circulation of coolant by water pump |
| Ignition System | Fully electronic ignition |
| Fuel | Super Unleaded (ROZ 95) |
Performance
| Top Speed | ~ 220 kmph / 136.7 mph |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Multi disc clutch in oil bath / mechanically operated |
| Gearbox | 6 speed transmission, claw shifted |
| Primary Drive Ratio | 42:76 |
| Gear Ratios | 1st gear – 13:37 2nd gear – 17:34 3rd gear – 20:31 4th gear – 22:28 5th gear – 24:26 6th gear – 23:22 |
| Final Drive | Chain (520 X-RIng) |
| Traction Control System | MTC |
Electrical & Electronics System
| Battery | 12 V HTZ12A-BS |
| Alternator/Generator | 12V 400W |
| Starter | Electric starter |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | 5 inch TFT |
| Riding Modes | Street, Sport, Rain Optional – Performance, Track |
| Traction Control System | MTC |
| Launch Control | Yes |
| ABS | ABS |
Chassis & Suspension
| Frame Type | Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated |
| Front Suspension | WP APEX 43 |
| Front Suspension Travel | 140 mm / 5.51 inches |
| Rear Suspension | WP APEX – Monoshock |
| Rear Suspension Travel | 150 mm / 6 inches |
| Rake | 65.8 ° |
| Trail | 100 mm / 4 inches |
| Rear Subframe | Aluminium, powder-coated |
Wheels & Brakes
| Wheels | Cast aluminium wheels |
| Front Wheel/Rim Size | 3.5 x 17″ |
| Front Tire Size | 120/70 ZR 17 M/C (58W) TL |
| Rear Wheel/Rim Size | 5.5 x 17″ |
| Rear Tire Size | 180/55 ZR 17 M/C (73W) TL |
| Front Brakes | 300 mm disc, 2x radially mounted 4 piston caliper |
| Rear Brakes | 240 mm disc, Single-piston floating calliper, brake disc |
Dimension & Weights
| Seat Height | 825 mm / 32.4 inches |
| Wheelbase | 1476 mm / 58.11 inches |
| Ground Clearance | 195 mm / 7.67 inches |
| Fuel Tank Capacity | 14.8 L / 4 US gallons |
| Wet (kerb/curb) Weight | ~ 190 kg / 418.8 lbs |
| Dry Weight | 179 kg / 394.6 lbs |
| Max Load Capacity | 389.6 kg / 859 lbs |
Riding Aids
- Launch Control
- Unleashing maximum acceleration from a standing start, the KTM 990 DUKE is fitted with LAUNCH CONTROL for rapid starts off the line. Simply select launch control, wind on the throttle, drop the clutch, and blast off the line.
KTM 990 Duke (2024) Color Options
- Orange
- Black
