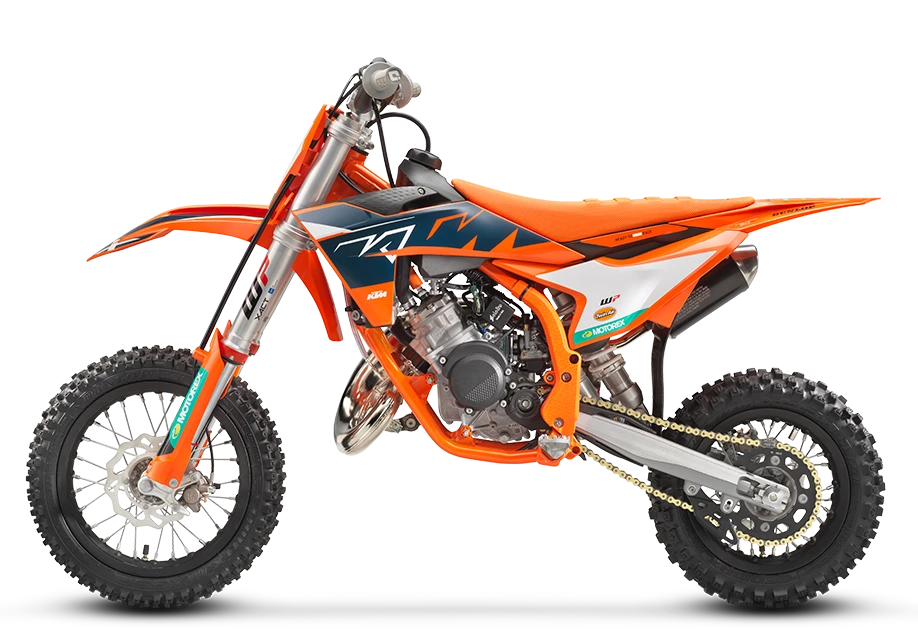

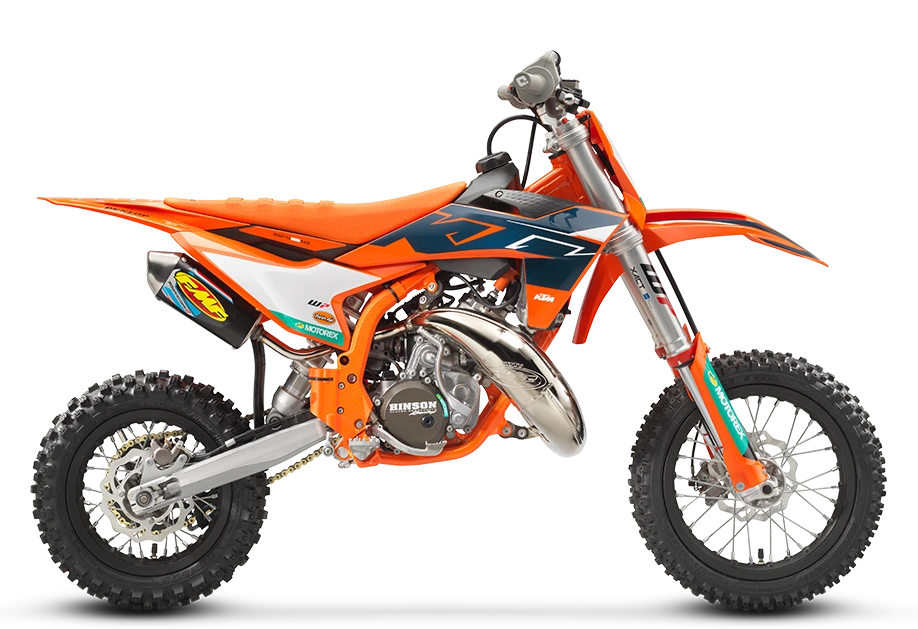

The 2025 KTM 50 SX FACTORY EDITION is ready to blast into the highly competitive 50cc class with proper KTM FACTORY RACING credentials. It’s undeniably READY TO RACE, built around an advanced steel frame, housing a powerful engine, and boasting leading components such as DUNLOP Geomax MX53 tires, a FMF exhaust system, a 35 mm WP XACT AER fork, a WP XACT monoshock, and a hydraulic Formula brake system. All this, along with key similarities with the full-sized motocross range, superior levels of quality, and revolutionary height adjustability, make it the most serious 50cc motocross bike available on the market.
Key Specifications
Engine Type
1-cylinder, 2-stroke engine
Engine Capacity
49.9 cc
Max Power
n/a
Max Torque
n/a
Top Speed
n/a
Fuel Tank Capacity
2.3 L / 0.6 US gallons
Weight (Wet/Kerb)
~ 45.7 kg / 100.7 lbs
Seat Height
634 mm / 24.96 inches to 683 mm / 26.88 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 50 SX FACTORY EDITION
Year
2025
Engine
Engine Type
1-cylinder, 2-stroke engine
Displacement
49.9 cc
Bore x Stroke
39.5 x 40.7 mm
Number of Cylinders
1
Max Horsepower
n/a
Max Torque
n/a
Fuel-mixture System
Dell’Orto PHBG 19 BS
Ignition System
Kick Starter
Fuel
Super Unleaded (ROZ 95)
Performance
Top Speed
n/a
Acceleration (0-100 km/h, 0-60 mph)
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Multi-disc centrifugal force clutch
Gearbox
Single-speed automatic
Transmission Ratio
14:31
Final Drive
Chain (415, Non-sealed)
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Chassis & Suspension
Frame Type
Chrome-molybdenum steel central-tube frame
Front Suspension
XACT 35 WP Upside-Down fork, Ø 35 mm
Front Suspension Travel
200.6 mm / 7.89 inches
Rear Suspension
XACT WP mono shock
Rear Suspension Travel
190.5 mm / 7.5 inches
Rear Subframe
Steel
Wheels & Brakes
Wheels
Alloy rims, spokes
Front Tire Size
60/100 -12 36J TT
Rear Tire Size
70/100 – 10 41J TT
Front Brakes
Disc brake (4 piston caliper) 160 mm
Rear Brakes
Disc brake (2 piston caliper) 160 mm
Dimension & Weights
Seat Height
634 mm / 24.96 inches to 683 mm / 26.88 inches
Wheelbase
1023.5 mm / 40.29 inches to 1035.6 mm / 40.77 inches
Ground Clearance
214.6 mm / 8.44 inches to 222.8 mm / 8.77 inches
Fuel Tank Capacity
2.3 L / 0.6 US gallons
Wet (kerb/curb) Weight
~ 45.7 kg / 100.7 lbs
Dry Weight
~ 42.5 kg / 93.7 lbs
