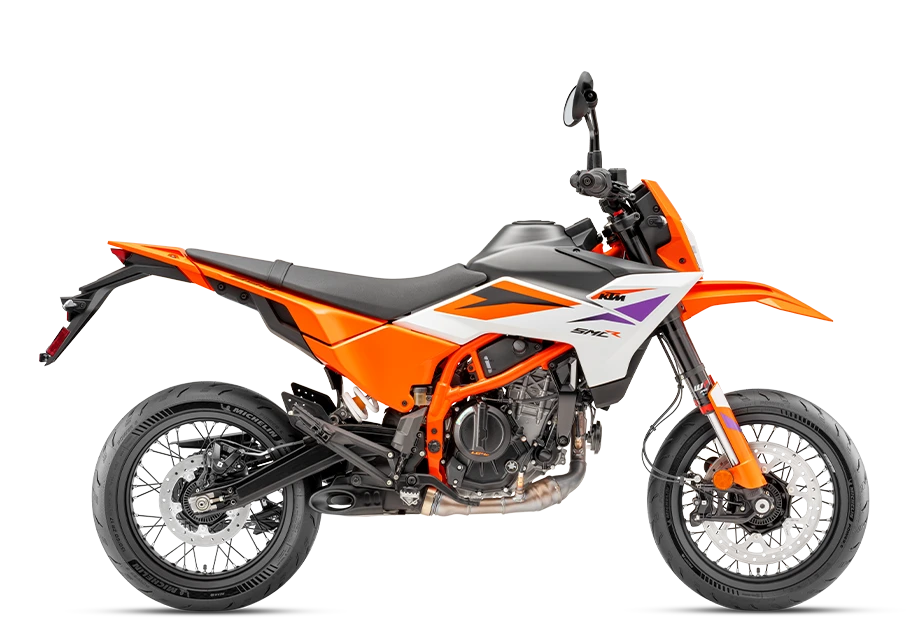

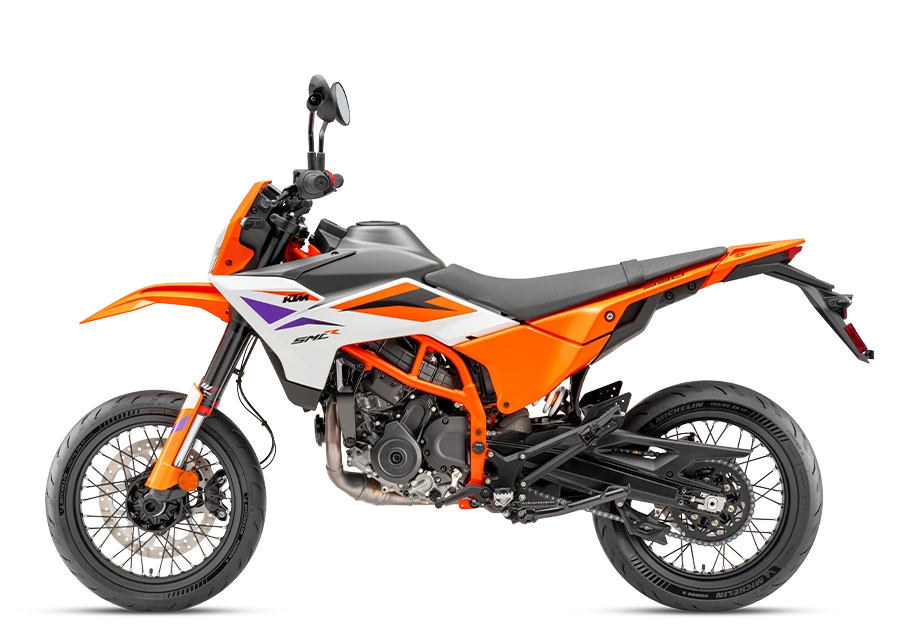

Sliding at the apex to join the KTM SuperMotard army in the middle-weight battalion, the KTM 390 SMC R brings unlimited fun to the masses. Just like its KTM 690 SMC R brethren, it is engineered to dominate the asphalt – as well as the odd dirt track – with ease.
Key Specifications
Engine Type
1-cylinder, 4-stroke engine
Engine Capacity
398.7 cc
Max Power
45 PS
Max Torque
39 NM
Top Speed
over 150 kmph / 93.2 mph
Fuel Tank Capacity
9 L / 2.37 US gallons
Weight (Wet/Kerb)
161 kg / 355 lbs
Seat Height
860 mm / 33.85 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
KTM 390 SMC R
Year
2025
Engine
Engine Type
1-cylinder, 4-stroke engine
Displacement
398.7 cc
Bore x Stroke
89 mm x 64 mm
Compression Ratio
12.59 : 1
Number of Cylinders
1
Max Horsepower
45 PS
Max Torque
35 NM
Valve Train
DOHC
Valves per Cylinder
4
Ø intake / exhaust valve dia
36 mm / 29 mm
Engine Management System
Bosch EMS with RBW
Lubrication System
Pressure circulation lubrication system
Cooling System
Liquid cooling, permanent circulation of coolant by water pump
320 mm disc, Floating disk, Bybre radial calipers with 2 pistons
Rear Brakes
240 mm disc, ByBre, single-piston, floating caliper, brake disc
Dimension & Weights
Seat Height
860 mm / 33.85 inches
Wheelbase
1453 mm / 57.2 inches
Ground Clearance
270 mm / 10.62 inches
Fuel Tank Capacity
9 L / 2.37 US gallons
Wet (kerb/curb) Weight
161 kg / 355 lbs
Dry Weight
154 kg / 339.5 lbs
Max Load Capacity
355 kg / 782.6 lbs
Riding Aids
MTC (Motorcycle Traction Control)
The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately if the rotational speed of the rear wheel is disproportionate to the riding situation. In a matter of milliseconds, MTC reduces the engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until the system has reduced slippage to optimum proportions for the selected ride mode and current angle of lean.
Supermoto ABS
SUPERMOTO ABS allows the rider to lock the rear wheel as and when required – a prerequisite for committed Supermoto riding. The ABS function remains active on the front wheel while activated, too.
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
