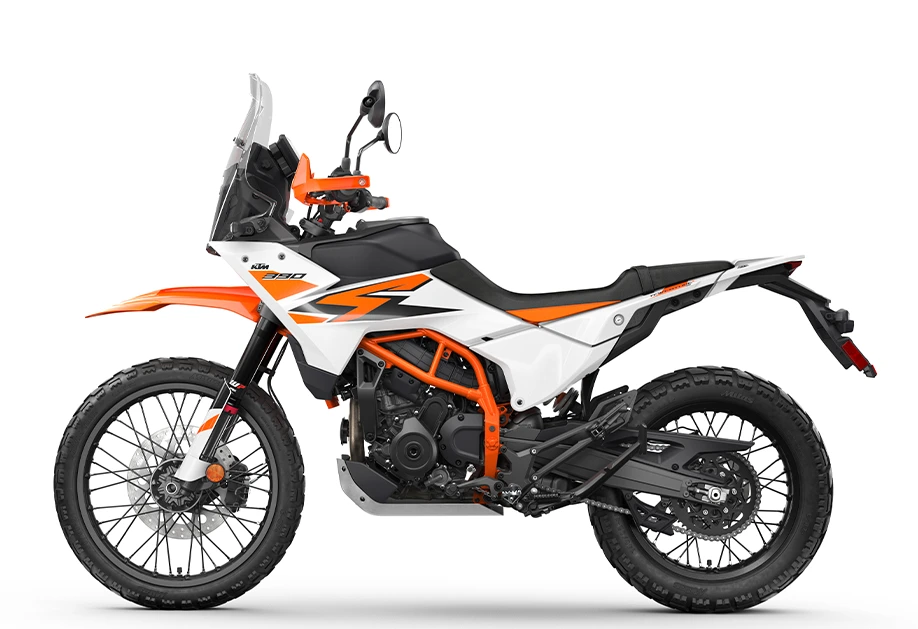

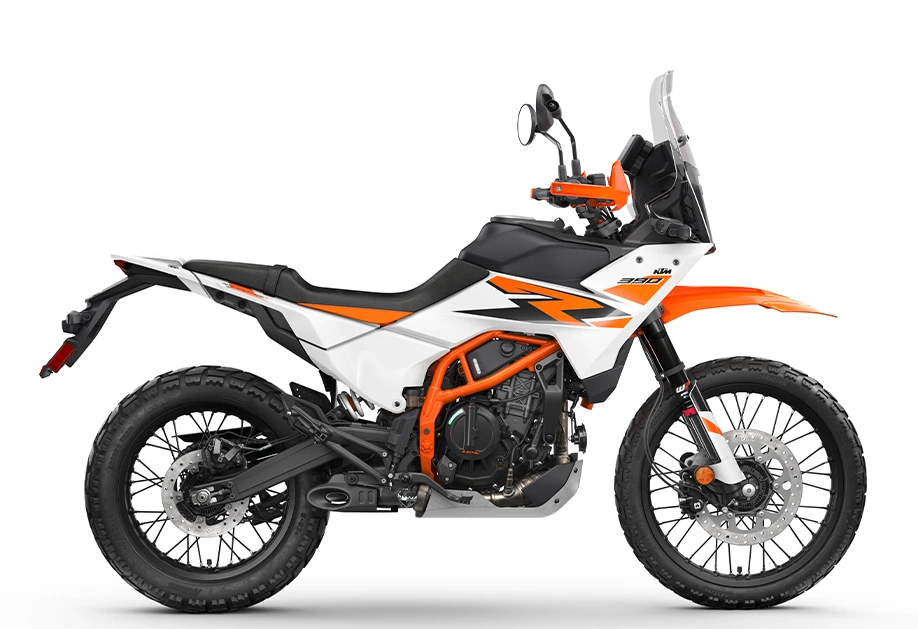

We have to say it – the KTM 390 ADVENTURE R is the most off-road capable middleweight adventure bike in its segment. Yes, it’s a bold claim, but with a 399cc powerplant, true rally-inspired design, 230 mm adjustable suspension, and a 21/18″” wheel split, this new addition to the KTM R stable simply rewrites the rulebook.
The 2025 KTM 390 ADVENTURE R is available in 2 variants – International and Indian. The Indian version comes with lower suspension travel and ground clearance and sold in India and potentially other Asian countries.
Key Specifications
| Engine Type | 1-cylinder, 4-stroke engine, DOHC |
| Engine Capacity | 398.7 cc |
| Max Power | 45 PS / 33 Kw |
| Max Torque | 39 Nm |
| Top Speed | ~ 160 kmph / 99.41 mph |
| Fuel Tank Capacity | 14 L / 3.69 US gallons |
| Weight (Wet/Kerb) | 176 kg / 388 lbs |
| Seat Height | 870 mm / 34.25 inches (International version) 830 mm / 32.67 inches (India and Asia variant) |
*n/a – information not provided by manufacturer
All Specifications
Make & Model
| Model | KTM 390 Adventure R |
| Year | 2025 |
Engine
| Engine Type | 1-cylinder, 4-stroke engine, DOHC |
| Displacement | 398.7 cc |
| Bore x Stroke | 89 mm x 64 mm |
| Compression Ratio | 12.59 : 1 |
| Number of Cylinders | 1 |
| Max Horsepower | 45 PS / 33 Kw |
| Max Torque | 39 Nm |
| Valve Train | DOHC |
| Valves per Cylinder | 4 |
| Engine Management System | Bosch EMS with RBW |
| Cooling System | Liquid cooling, permanent circulation of coolant by water pump |
| Ignition System | Electronic ignition |
| Fuel | Super Unleaded (ROZ 95) |
Performance
| Top Speed | ~ 160 kmph / 99.41 mph |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Multi disk clutch in oil bath |
| Gearbox | 6 speed transmission, claw shift |
| Primary Drive Ratio | 33:86 |
| Gear Ratios | 1st gear -12:32 2nd gear – 14:26 3rd gear – 19:27 4th gear – 21:24 5th gear – 23:22 6th gear – 25:21 |
| Final Drive | Chain (520 X-Ring) |
| Quick Shifter | Yes |
| Traction Control System | Yes |
Electrical & Electronics System
| Battery | 12 V, HJTZ5S-FP-C, Lithium Ion |
| Alternator/Generator | 12 V / 230 W |
| Starter | Electric starter |
| Headlight Type | LED |
| Taillight Type | LED |
| Instrumentation | 5 inches TFT display |
| Riding Modes | 2 Maps (Street & Off-Road) |
| Traction Control System | Yes |
| ABS | Yes. Standard and Off-Road |
Chassis & Suspension
| Frame Type | Steel trellis frame, powder coated |
| Front Suspension | WP APEX Ø 43 mm (Compression and rebound adjustable) |
| Front Suspension Travel | 230 mm / 9 inches (International version) 200 mm / 7.87 inches (Indian version) |
| Rear Suspension | WP APEX Split Piston (Preload with top ring) |
| Rear Suspension Travel | 229 mm / 9 inches (International version) 200 mm / 7.87 inches (Indian version) |
| Rake | 62.9 ° |
| Trail | 107 mm |
| Rear Subframe | Steel trellis frame, powder coated |
Wheels & Brakes
| Wheels | Wired Spoke RIms |
| Front Wheel/Rim Size | 1.85 x 21″ |
| Front Tire Size | 90/90 R21 M/C 54T M+S TL |
| Rear Wheel/Rim Size | 2.5 x 18″ (International Version) |
| Rear Tire Size | 140/80 R 18 M/C 70S M+S TL (International Version) 130/80 – 17 (Indian Version) |
| Front Brakes | 320 mm Floating disk, Bybre radial calipers with 2 pistons |
| Rear Brakes | 240 mm ByBre, single-piston, floating caliper, brake disc |
Dimension & Weights
| Seat Height | 870 mm / 34.25 inches (International version) 830 mm / 32.67 inches (India and Asia variant) |
| Wheelbase | 1475 mm / 58.07 inches |
| Ground Clearance | 272 mm / 10.7 inches (International version) 237 mm / 9.33 inches (India and Asia variant) |
| Fuel Tank Capacity | 14 L / 3.69 US gallons |
| Wet (kerb/curb) Weight | 176 kg / 388 lbs |
| Dry Weight | 163 kg / 359.35 lbs |
| Max Load Capacity | 375 kg / 826.7 lbs |
