KTM 300 XC (2025)

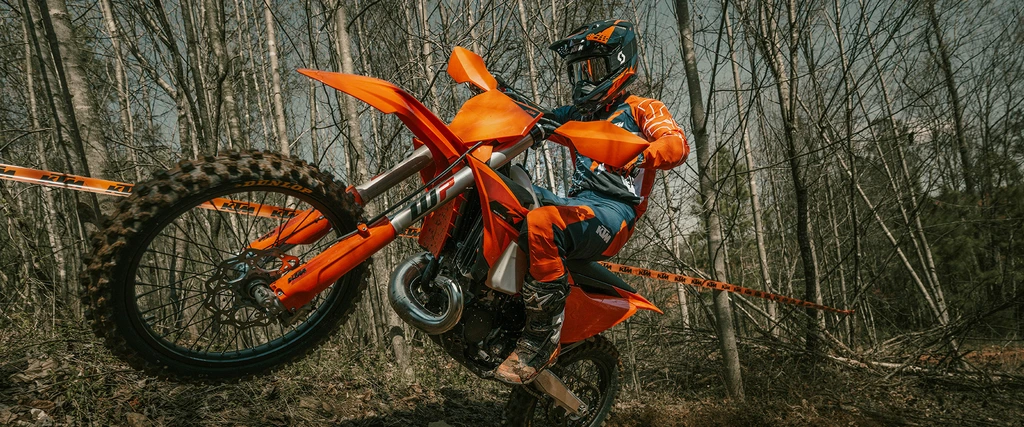

ktm-2025-300-XC-throttlecraze.com-1_throttlecraze.com

The 2025 KTM 300 XC casts a pretty imposing shadow. Not only does it feature a legendary 2-stroke depth charger at its core, but it now also boasts refined suspension settings, a reworked frame, and one of the leading power-to-weight ratios in the open class. When hare scrambles and offroad racing were conceived, the KTM 300 XC was the poster child.

Key Specifications

Engine Type1-cylinder, 2-stroke engine
Engine Capacity293.2 cc
Max Powern/a
Max Torquen/a
Top Speedn/a
Fuel Tank Capacity9 L / 2.37 US gallons
Weight (Wet/Kerb)~ 112.35 kg / 247.68 lbs
Seat Height954 mm / 37.55 inches

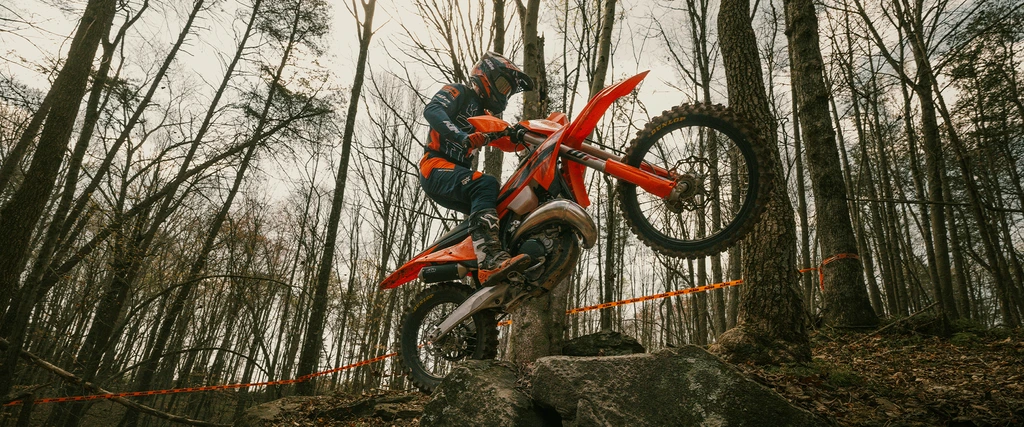

ktm-2025-300-XC-throttlecraze.com-4_throttlecraze.com

All Specifications

Make & Model

ModelKTM 300 XC (2025)
Year2025

Engine

Engine Type1-cylinder, 2-stroke engine
Displacement293.2 cc
Bore x Stroke72 x 72 mm
Number of Cylinders1
Max Horsepowern/a
Max Torquen/a
Valves per Cylinder2
Engine Management SystemVitesco Technologies EMS
Fuel-mixture SystemKeihin EFI, throttle body 39 mm
Ignition SystemElectronic ignition
FuelSuper Unleaded (ROZ 95)

Performance

Top Speedn/a
Acceleration (0-100 km/h, 0-60 mph)n/a

Transmission

ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Gearbox6 speed transmission, claw shift
Primary Drive Ratio26:72
Gear Ratios1st gear -13:33
2nd gear – 16:30
3rd gear – 18:26
4th gear – 22:26
5th gear – 23:23
6th gear – 26:22
Final DriveChain (520 X-Ring)

Electrical & Electronics System

Battery12 V, HJTZ5S-FP-C, Lithium Ion
StarterElectric starter
Headlight TypeLED
Taillight TypeLED
Riding Modes2 Maps (Map 1 & 2)

Chassis & Suspension

Frame TypeCentral double-cradle-type 25CrMo4 steel
Front SuspensionWP XACT cartridge Ø 48 mm
Front Suspension Travel300 mm / 11.8 inches
Rear SuspensionWP XACT Monoshock with linkage
Rear Suspension Travel300 mm / 11.8 inches
Rear SubframeAluminum-reinforced polyamide

Wheels & Brakes

WheelsWired Spoke RIms
Front Tire Size80/100 -21 51M TT
Rear Tire Size110/100 – 18 64 M S TT
Front BrakesDisc brake 260 mm
Rear BrakesDisc brake 220 mm

Dimension & Weights

Seat Height954 mm / 37.55 inches
Wheelbase1493 mm / 58.77 inches
Ground Clearance354 mm / 13.93 inches
Fuel Tank Capacity9 L / 2.37 US gallons
Wet (kerb/curb) Weight~ 112.35 kg / 247.68 lbs
Dry Weight~ 102.1 kg / 225.09 lbs
Max Load Capacity335 kg / 738.5 lbs

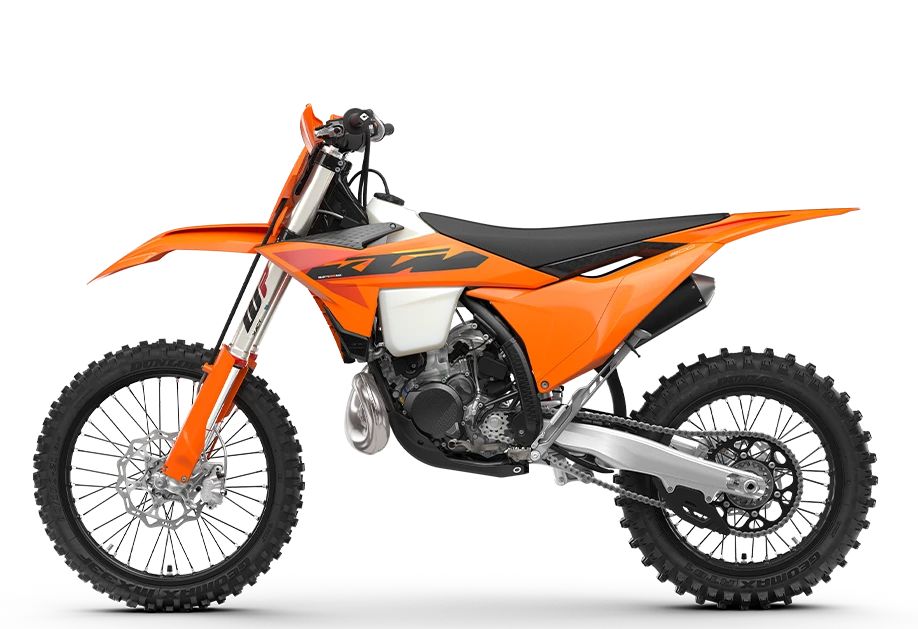

ktm-2025-300-XC-throttlecraze.com-3_throttlecraze.com

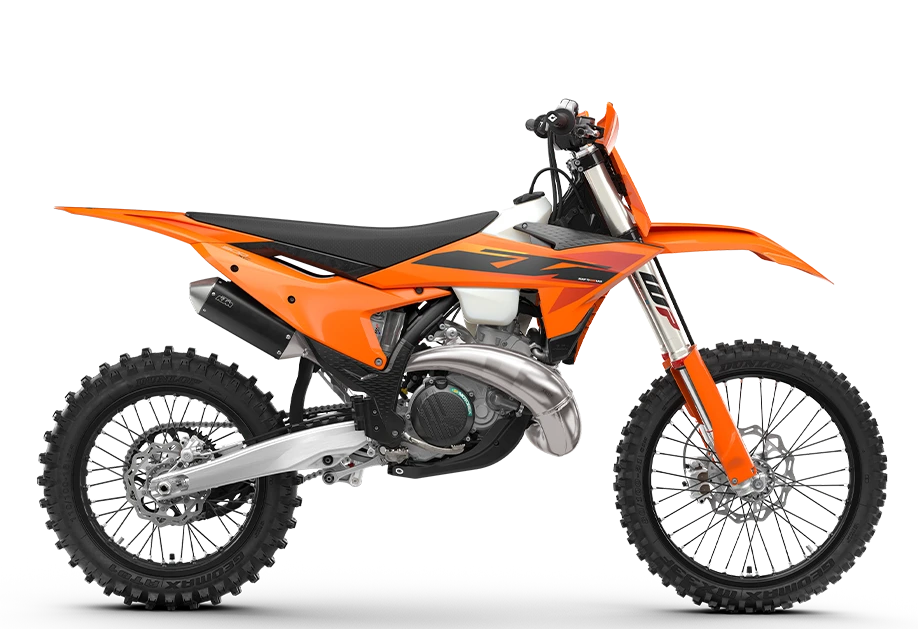

ktm-2025-300-XC-throttlecraze.com-2_throttlecraze.com
