DFI® with 34mm throttle bodies (2), with sub-throttle valves
Lubrication System
Forced lubrication, semi‑dry sump
Cooling System
Liquid Cooled
Ignition System
TCBI with Electronic Advance
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multi disc
Gearbox
5-speed with positive neutral finder
Final Drive
Kevlar-reinforced belt
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Chassis & Suspension
Frame Type
Semi-double cradle, high-tensile steel
Front Suspension
41mm Showa telescopic fork
Front Suspension Travel
150 mm / 5.9 inches
Rear Suspension
Uni-Trak® swingarm, 7-way adjustable spring preload
Rear Suspension Travel
105 mm / 4.1 inches
Rake
33 °
Trail
183 mm / 7.2 inches
Wheels & Brakes
Wheels
Cast alloy wheels
Front Tire Size
80/90-21
Rear Tire Size
180/70-15
Front Brakes
Single 300mm hydraulic disc
Rear Brakes
Single 270mm hydraulic disc
Dimension & Weights
Overall Length
2406 mm / 94.7 inches
Overall Width
894 mm / 35.2 inches
Overall Height
1120 mm / 44.1 inches
Seat Height
686 mm / 27 inches
Wheelbase
1646 mm / 64.8 inches
Ground Clearance
140 mm / 5.5 inches
Fuel Tank Capacity
20 L / 5.3 US gallons
Wet (kerb/curb) Weight
610.8 lbs / 277 kg
Features
Dual Throttle Valves
Wide drag bars and forward-mounted footpegs
Low center of gravity for easy handling
Custom styling with teardrop tank
Parallel slash-cut pipes
Pinstripe wheels

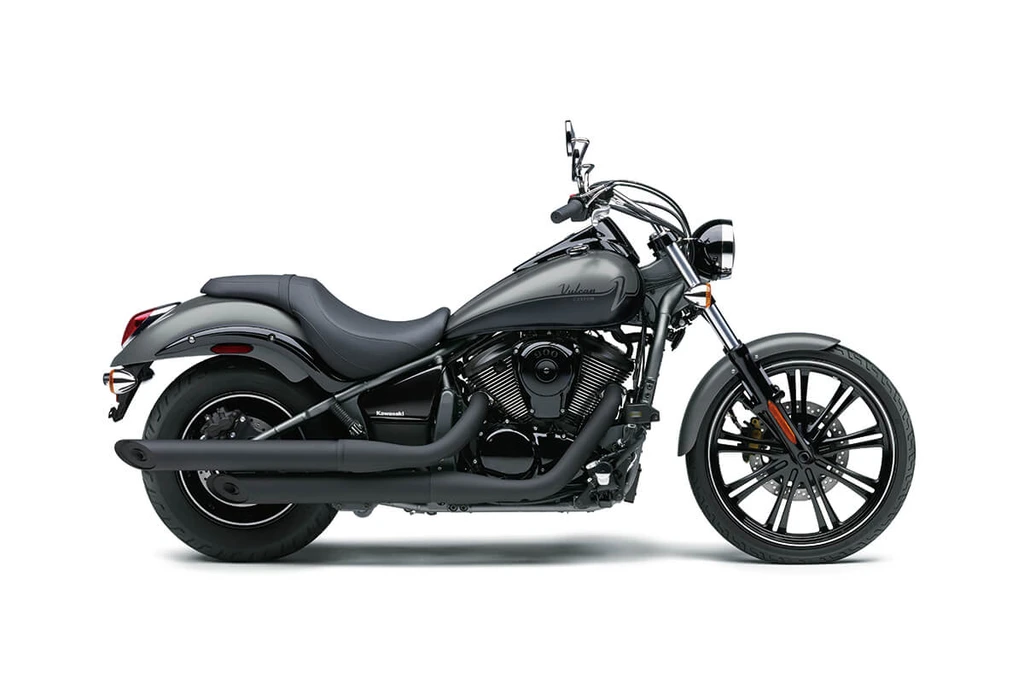

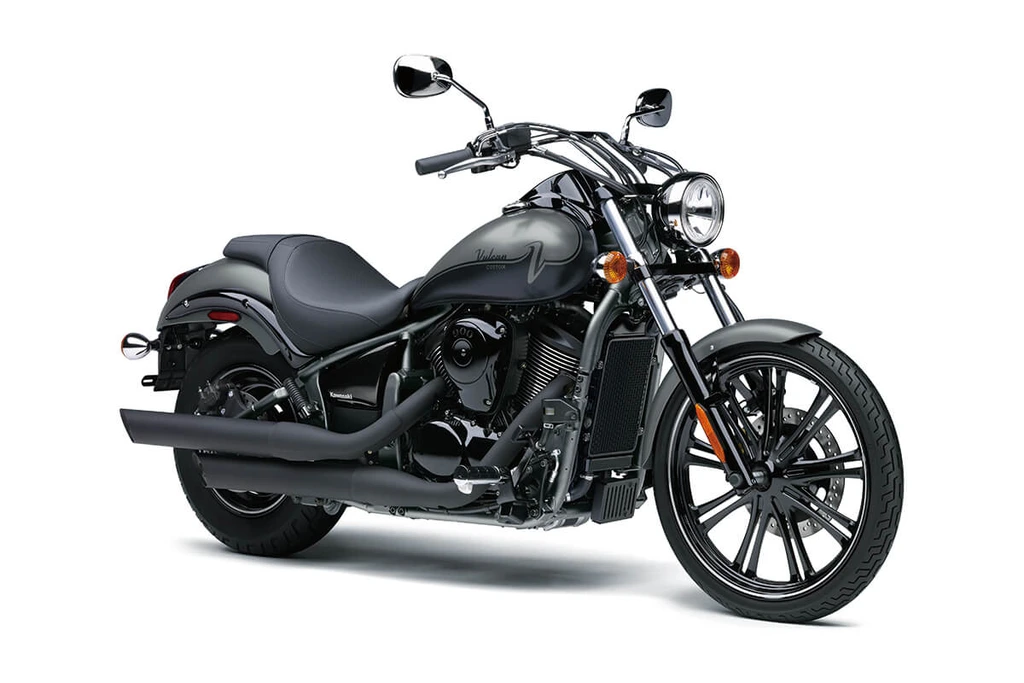

Kawasaki Vulcan 900 Custom (2024) Color Options
Metallic Matte Dark Gray/Metallic Flat Spark Black
