Air-cooled, interior permanent magnet synchronous motor
Rated Power
5.0 kW @ 2,800 rpm
Max Power
9.0 kW @ 2,600-4,000 rpm
Max Torque
29.7 lb-ft / 40.26 nm @ 500 rpm
Top Speed
~ 54.6 mph / 88 kmph
Battery
Lithium-ion battery pack (x2), 50.4 V 30 Ah (x2)
Weight (Curb / Kerb)
308.7 lbs / 140 kg
Seat Height
30.9 inches / 785 mm
All Specifications
Make & Model
Model

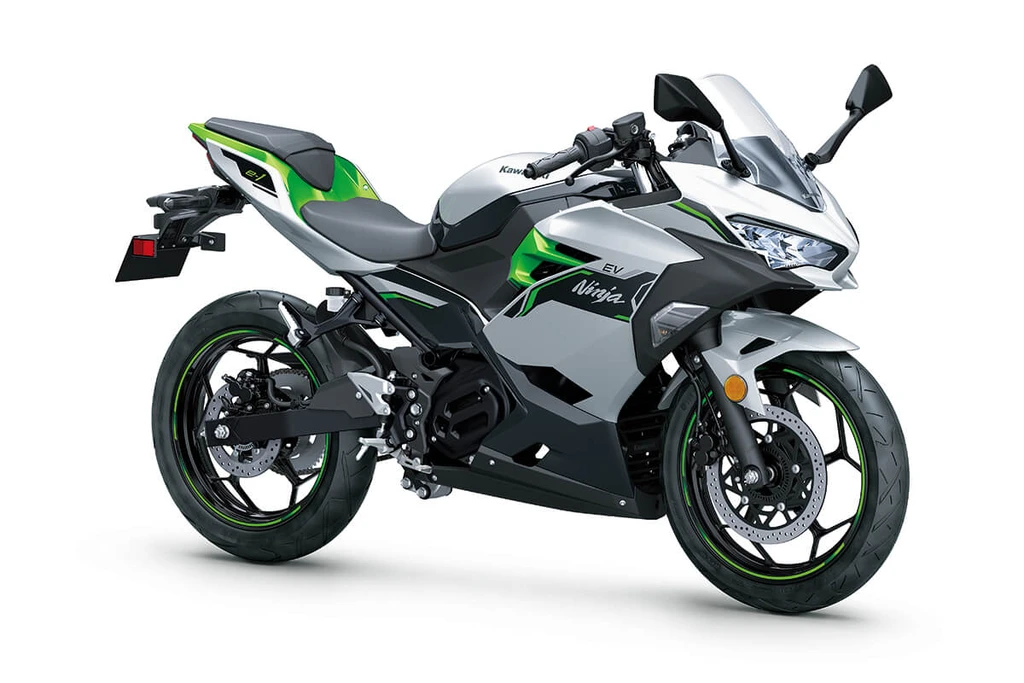

Kawasaki NINJA e-1 ABS
Year
2024 –
Motor
Motor Type
Air-cooled, interior permanent magnet synchronous motor
Rated Power
5.0 kW @ 2,800 rpm
Max Horsepower
9.0 kW @ 2,600-4,000 rpm
Max Torque
29.7 lb-ft / 40.26 nm @ 500 rpm
Performance
Top Speed
~ 54.6 mph / 88 kmph
Range
41 miles / 66 kms (approximate in ROAD Mode w/o e-boost)
Transmission
Transmission
Single reduction gear
Final Drive
Chain
Electrical & Electronics System
Battery
Lithium-ion battery pack (x2)
Battery voltage
50.4 V 30 Ah (x2)
Charging time
3.7 hours (x2)
Riding Modes
2 Modes – Road, Eco plus e-boost
Instrumentation
TFT Instrumentation
Connectivity
Smartphone Connectivity via RIDEOLOGY The app
ABS
Yes
Chassis & Suspension
Frame Type
Trellis, high-tensile steel
Front Suspension
41mm telescopic front fork
Front Suspension Travel
4.7 inches / 120 mm
Rear Suspension
Bottom-Link Uni-Trak® with single gas-charged shock, adjustable spring preload
Rear Suspension Travel
5.2 inches / 132 mm
Rake
24.4°
Trail
3.7 inches / 94 mm
Wheels & Brakes
Wheels
Cast alloys
Front Tire Size
100/80-17M/C 52S
Rear Tire Size
130/70-17M/C 62S
Front Brakes
Single 290mm disc with dual-piston caliper
Rear Brakes
Single 220mm disc with dual-piston caliper
Dimension & Weights
Overall Length
1981 mm / 78 inches
Overall Width
686 mm / 27 inches
Overall Height
1105 mm / 43.5 inches
Seat Height
30.9 inches / 785 mm
Wheelbase
1370 mm / 53.9 inches
Ground Clearance
170 mm / 6.7 inches
Weight
308.7 lbs / 140 kg
Equipment
E Boost
Electric Power
Power Modes
Smartphone Connectivity
Walk Mode (with reverse)
Zero Emissions
ABS
Ergo-Fit motorcycle
Battery Temperature-Charge-Remaining Range Indicators
Kawasaki NINJA e-1 ABS (2024 – ) Colours
Metallic Bright Silver Matte Lime Green Ebony
