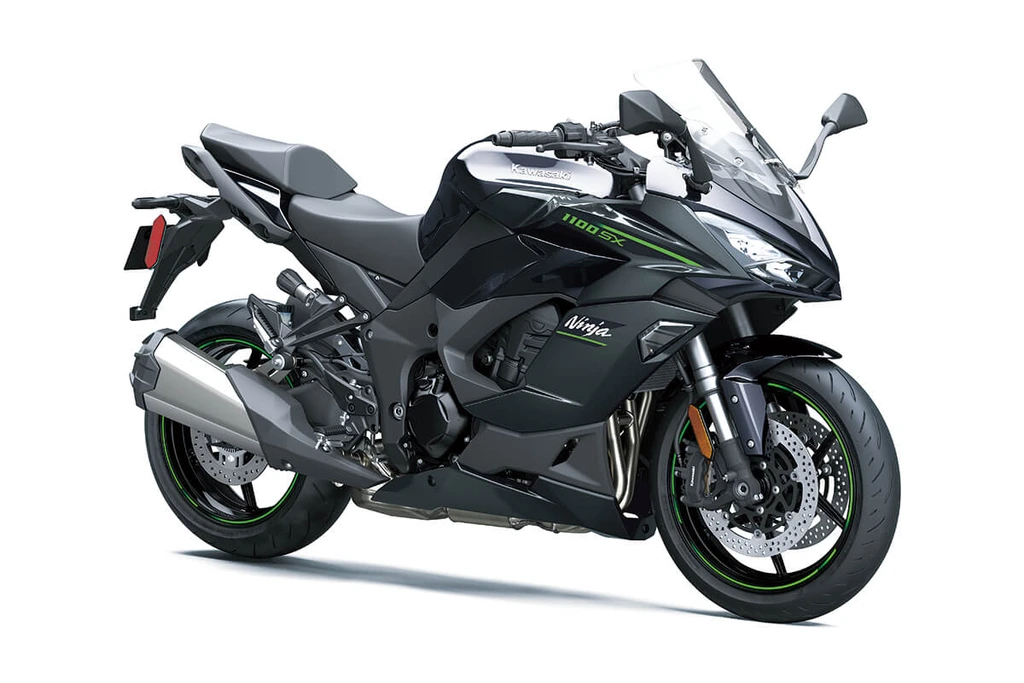

Kawasaki Ninja 1100SX ABS (2025)

The Ninja® 1100SX offers the ultimate in sport touring ability. Created to deliver high performance, advanced technology, and superb comfort for sports riding and all-day touring, the Ninja 1100SX sets a new standard for sport touring performance.

Key Specifications

Engine Type	4-stroke, In-Line Four, DOHC, 16-valve, liquid-cooled
Engine Capacity	1099 cc / 67 cubic inches
Max Power	134.0 hp @ 9,000 rpm
Max Torque	83.2 lb-ft @ 7,600 rpm
Top Speed	~ 157 mph / 253 kmph
Fuel Tank Capacity	19 L / 5 US gallons
Weight (Wet/Kerb)	518.2 lbs / 235 kgs
Seat Height	820 mm / 32.3 inches

*n/a – information not provided by manufacturer

2025-kawasaki-ninja-1100-sx-abs-throttlecraze.com-3_throttlecraze.com

All Specifications

Make & Model

Model	Kawasaki Ninja 1100SX ABS
Year	2025

Engine

Engine Type	4-stroke, In-Line Four, DOHC, 16-valve, liquid-cooled
Displacement	1099 cc / 67 cubic inches
Bore x Stroke	77 x 59 mm
Compression Ratio	11.8 : 1
Number of Cylinders	4
Max Horsepower	134.0 hp @ 9,000 rpm
Max Torque	83.2 lb-ft @ 7,600 rpm
Valve Train	DOHC
Valves per Cylinder	4
Engine Management System	DFI® with 38mm Electronic Throttle Valves
Cooling System	Liquid Cooled
Ignition System	TCBI with Digital Advance

Performance

Top Speed

~ 157 mph / 253 kmph

*n/a – information not provided by manufacturer

Transmission

Clutch	Wet multi-disc manual Assist & Slipper Clutch
Gearbox	6-speed, return shift
Final Drive	Sealed chain
Quick Shifter	Kawasaki Quick Shifter (KQS)
Traction Control System	Kawasaki Traction Control (KTRC)
Assist & Slipper Clutch	Yes

Electrical & Electronics System

Headlight Type	LED
Taillight Type	LED
Instrumentation	TFT color instrument
Connectivity	Smartphone Connectivity via RIDEOLOGY THE APP
Riding Modes	4 Modes – Sport, Road, Ride, Rider (custom)
Traction Control System	Kawasaki Traction Control (KTRC)
ABS	Yes
Cruise Control	Yes

Chassis & Suspension

Frame Type	Twin-spar aluminum
Front Suspension	41mm inverted telescopic Showa fork with compression and rebound damping, adjustable spring preload
Front Suspension Travel	119.3 mm / 4.7 inches
Rear Suspension	Horizontal back-link, gas-charged rear shock with rebound damping, remotely adjustable spring preload
Rear Suspension Travel	142.2 mm / 5.6 inches
Rake	24 °
Trail	99 mm / 3.9 inches

Wheels & Brakes

Wheels	Cast alloys
Front Tire Size	120/70 17
Rear Tire Size	190/50 17
Front Brakes	Dual 300mm discs with radial-mount 4-piston monobloc calipers, Kawasaki Intelligent anti-lock Brake System (KIBS)
Rear Brakes	Single 260mm disc with single-piston caliper, Kawasaki Intelligent anti-lock Brake System (KIBS)

Dimension & Weights

Overall Length	2100.5 mm / 82.7 inches
Overall Width	805 mm / 31.7 inches
Overall Height	1191.2 mm / 46.9 inches 1224 mm / 48.2 (windshield in high position)
Seat Height	820 mm / 32.3 inches
Wheelbase	1440 mm / 56.7 inches
Ground Clearance	134.6 mm / 5.3 inches
Fuel Tank Capacity	19 L / 5 US gallons
Wet (kerb/curb) Weight	518.2 lbs / 235 kgs

Features

4.3″ All-digital TFT Instrumentation
All-LED lighting
USB Type-C outlet
Smartphone Connectivity with Voice Command via RIDEOLOGY THE APP MOTORCYCLE
Assist & Slipper Clutch
Economical Riding Indicator
Electronic Cruise Control
Electronic Throttle Valves
Kawasaki Traction Control (KTRC)
Kawasaki Intelligent anti-lock Brake System (KIBS)
Anti-lock Brake System (ABS)
Power Modes
Kawasaki Cornering Management Function (KCMF)
Kawasaki Quick Shifter (KQS)
IMU-Enhanced Chassis Orientation Awareness
Horizontal Back-Link Rear Suspension

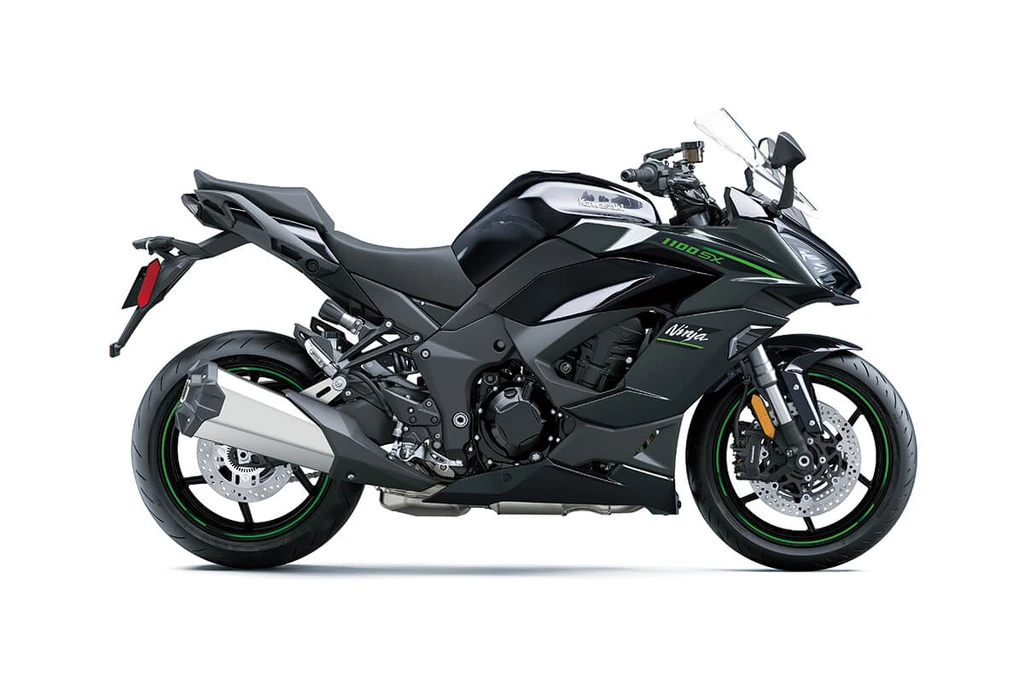

Kawasaki Ninja 1100SX ABS (2025) Color Options

Metallic Carbon Gray/Metallic Diablo Black

2025-kawasaki-ninja-1100-sx-abs-throttlecraze.com-2_throttlecraze.com
