The class-leading KLX®300SM lightweight motorcycle takes the fun to the streets in full supermoto style. A quick-accelerating engine, paired with light, agile handling helps riders of all skill levels maneuver through city traffic, navigate country backroads, or experience the exhilaration of supermoto racing at a track. Suspension, wheels, and brakes have been tuned for supermoto-style performance.
Key Specifications
Engine Type
4-stroke, single-cylinder, DOHC, liquid-cooled
Engine Capacity
292 cc / 18 cubic inches
Max Power
n/a
Max Torque
25.0 hp @ 8,000 rpm
Top Speed
17.7 lb-ft / 24 nm @ 7,000 rpm
Fuel Tank Capacity
8 L / 2 US gallons
Weight (Wet/Kerb)
138 kg / 304.3 lbs
Seat Height
861 mm / 33.9 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Kawasaki KLX 300SM
Year
2026
Engine
Engine Type
4-stroke, single-cylinder, DOHC, liquid-cooled
Displacement
292 cc / 18 cubic inches
Bore x Stroke
78 x 61.2 mm
Compression Ratio
11.1 : 1
Number of Cylinders
1
Max Horsepower
25.0 hp @ 8,000 rpm
Max Torque
17.7 lb-ft / 24 nm @ 7,000 rpm
Engine Management System
DFI® with 34 mm Keihin throttle body
Cooling System
Liquid Cooled
Ignition System
TCBI with electronic advance
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc manual clutch
Gearbox
6-speed, return shift
Final Drive
Chain
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Chassis & Suspension
Frame Type
Tubular, semi-double cradle
Front Suspension
43mm inverted telescopic fork with adjustable compression damping
Front Suspension Travel
232 mm / 9.1 inches
Rear Suspension
Uni-Trak® gas charged shock with piggyback reservoir with adjustable rebound damping and spring preload
Rear Suspension Travel
206 mm / 8.1 inches
Rake
25 °
Trail
72 mm / 2.8 inches
Wheels & Brakes
Wheels
Wire Spoke wheels
Front Tire Size
110/70-17
Rear Tire Size
130/70-17
Front Brakes
Single 300mm petal disc with a dual-piston caliper
Rear Brakes
Single 240mm petal disc with single-piston caliper
Dimension & Weights
Overall Length
2116 mm / 83.3 inches
Overall Width
790 mm / 31.1 inches
Overall Height
1136 mm / 44.7 inches
Seat Height
861 mm / 33.9 inches
Wheelbase
1435 mm / 56.5 inches
Ground Clearance
237 mm / 9.3 inches
Fuel Tank Capacity
8 L / 2 US gallons
Wet (kerb/curb) Weight
138 kg / 304.3 lbs
Features
All-digital multi-function instrumentation
Lightweight perimeter frame
Powerful large 300mm diameter petal disc front brake
Heat management for rider comfort
Comfortable ergonomics

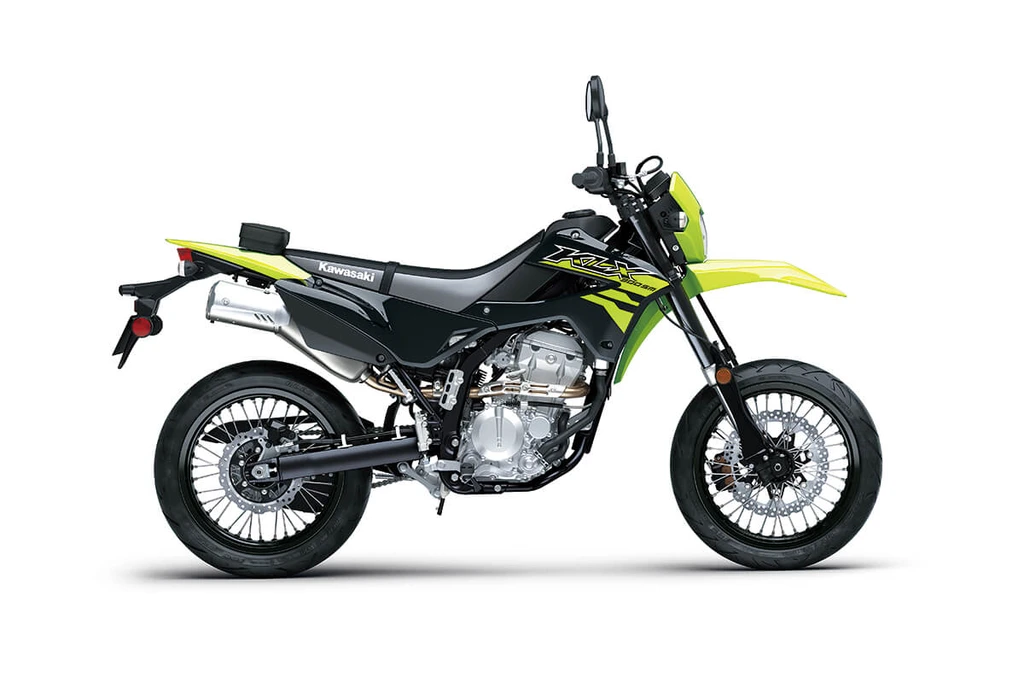

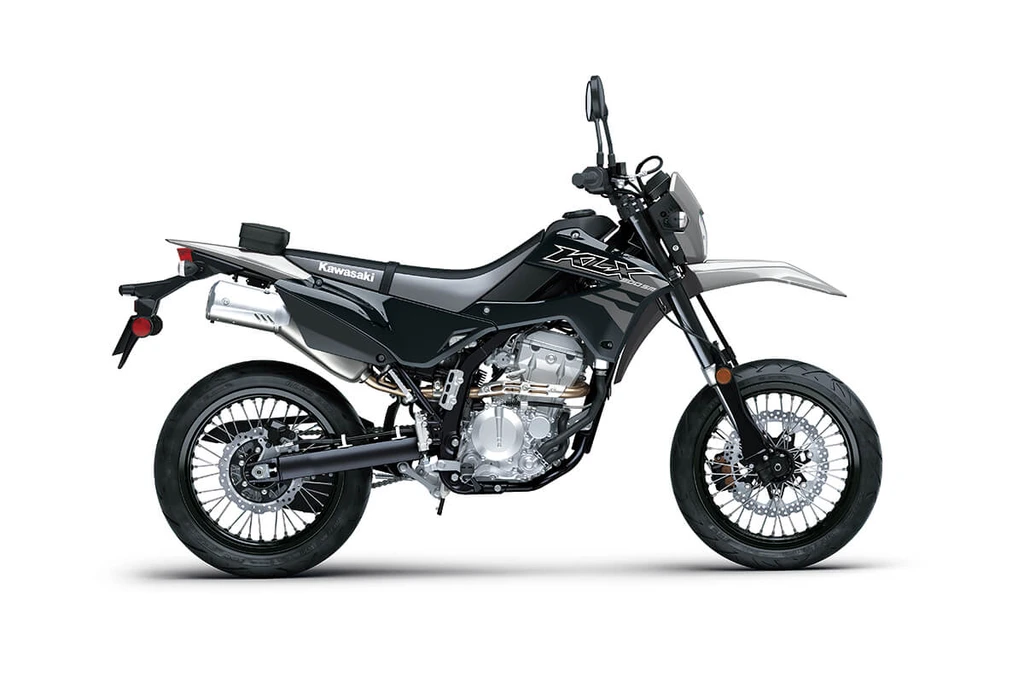

Kawasaki KLX 300SM (2026) Color Options
Neon Green/Ebony
Battle Gray/Ebony
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
