The KLX®300 is a highly-versatile lightweight dual-sport motorcycle that keeps going when the road ends. Delivering quick-revving power and versatile performance, this highly capable bike is ready to take the adventure to paved streets, backroads, trails, and beyond. Wherever you ride, the fun is endless on the KLX300.
Key Specifications
Engine Type
4-stroke, single-cylinder, DOHC, liquid-cooled
Engine Capacity
292 cc / 18 cubic inches
Max Power
n/a
Max Torque
25.0 hp @ 8,000 rpm
Top Speed
17.7 lb-ft / 24 nm @ 7,000 rpm
Fuel Tank Capacity
8 L / 2 US gallons
Weight (Wet/Kerb)
137 kg / 302.1 lbs
Seat Height
894 mm / 35.2 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Kawasaki KLX 300
Year
2026
Engine
Engine Type
4-stroke, single-cylinder, DOHC, liquid-cooled
Displacement
292 cc / 18 cubic inches
Bore x Stroke
78 x 61.2 mm
Compression Ratio
11 : 1
Number of Cylinders
1
Max Horsepower
25.0 hp @ 8,000 rpm
Max Torque
17.7 lb-ft / 24 nm @ 7,000 rpm
Engine Management System
DFI® with 34 mm Keihin throttle body
Cooling System
Liquid Cooled
Ignition System
TCBI with electronic advance
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc manual clutch
Gearbox
6-speed, return shift
Final Drive
Chain
Electrical & Electronics System
Headlight Type
n/a
Chassis & Suspension
Frame Type
Tubular, semi-double cradle
Front Suspension
43mm inverted telescopic fork with adjustable compression damping
Front Suspension Travel
254 mm / 10 inches
Rear Suspension
Uni-Trak® gas charged shock with piggyback reservoir with adjustable compression, rebound damping and spring preload
Rear Suspension Travel
231 mm / 9.1 inches
Rake
26.7 °
Trail
107 mm / 4.2 inches
Wheels & Brakes
Wheels
Wire Spoke wheels
Front Tire Size
3.0 x 21
Rear Tire Size
4.6 x 18
Front Brakes
Single 250mm petal disc with a dual-piston caliper
Rear Brakes
Single 240mm petal disc with single-piston caliper
Dimension & Weights
Overall Length
2175 mm / 85.6 inches
Overall Width
821 mm / 32.3 inches
Overall Height
1186 mm / 46.7 inches
Seat Height
894 mm / 35.2 inches
Wheelbase
1440 mm / 56.7 inches
Ground Clearance
275 mm / 10.8 inches
Fuel Tank Capacity
8 L / 2 US gallons
Wet (kerb/curb) Weight
137 kg / 302.1 lbs
Features
Lightweight perimeter frame
Full-size 21-in front / 18-in rear wheels
Powerful petal disc brakes
LED headlight
Heat management for rider comfort
Comfortable ergonomics

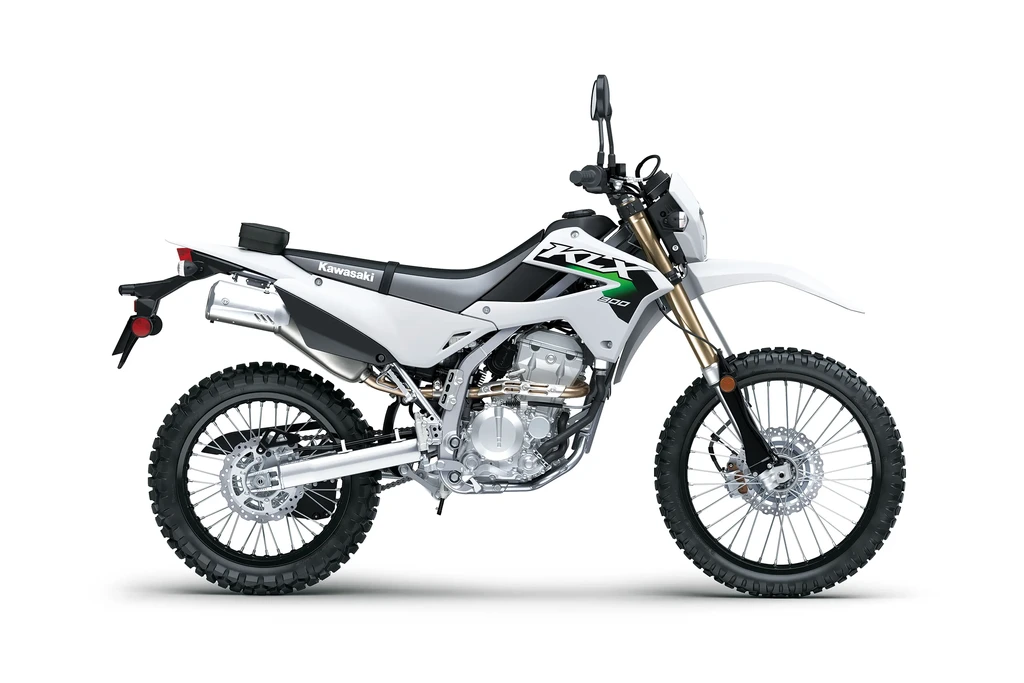

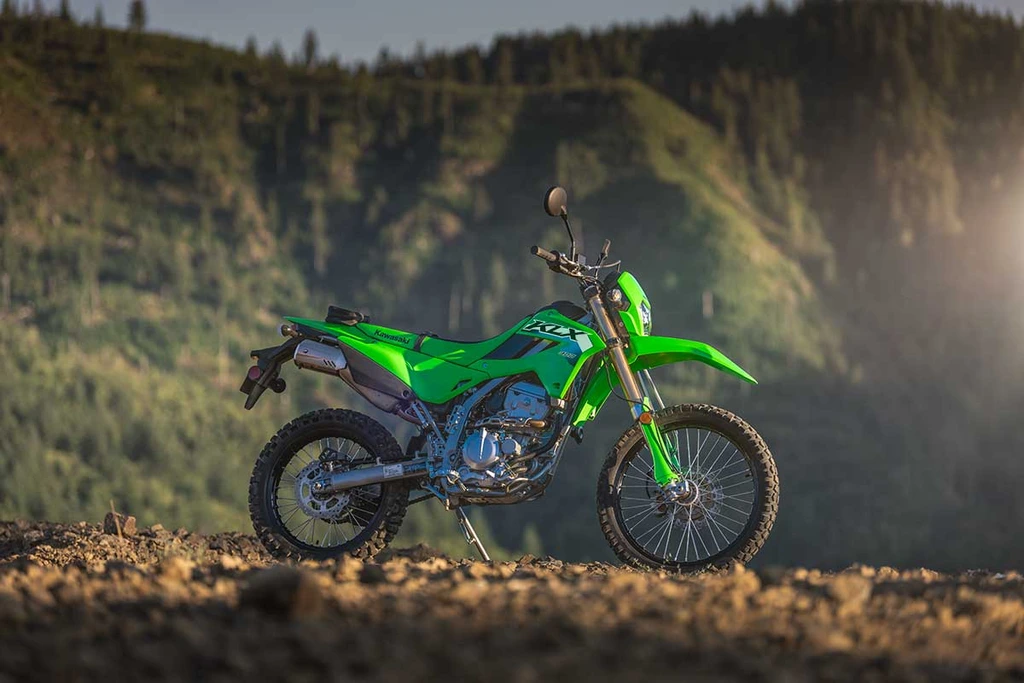

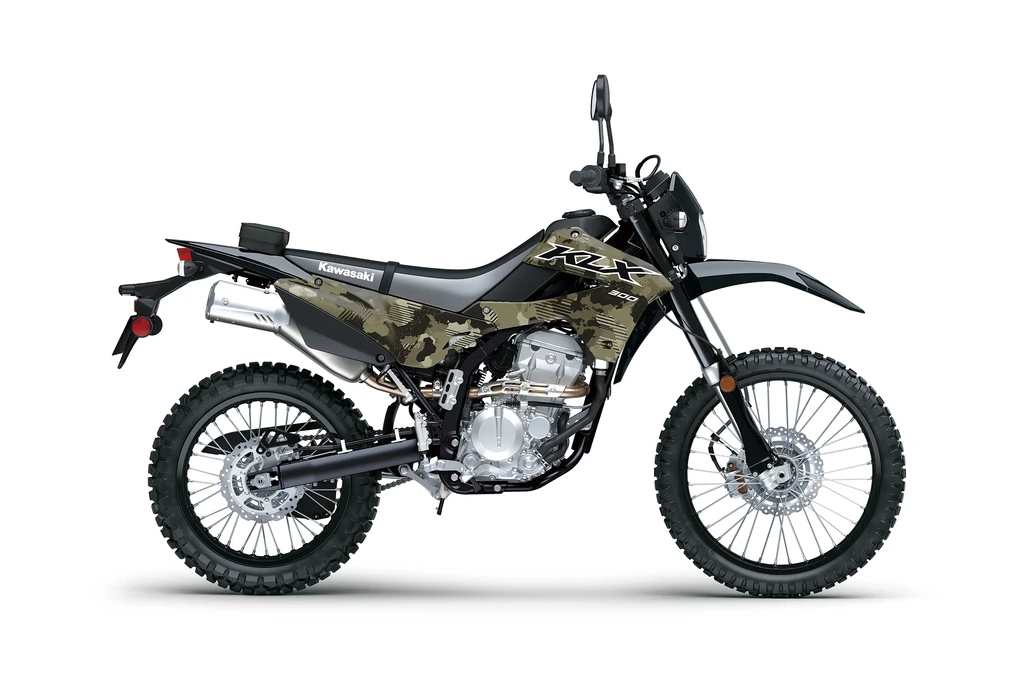

Kawasaki KLX 300 (2026) Color Options
Lime Green
Bright White
Cypher Camo Beige/Ebony
