The KLX®230 S motorcycle extends the playing field with the thrill of dual-sport performance that’s ready to conquer both on- and off-road. This agile bike features a quick-revving 233cc engine, lightweight chassis, long-travel suspension, and ample ground clearance for enhanced capability on the roads or trails. The KLX®230 S offers a low seat height which allows riders to comfortably reach the ground at stops for increased confidence. Turn wherever you go into the ultimate playground with the bike that delivers a thrilling ride on paved streets, dirt trails, and beyond.
Key Specifications
| Engine Type | 4-stroke, single-cylinder, SOHC, air-cooled |
| Engine Capacity | 233 cc / 14.2 cubic inches |
| Max Power | n/a |
| Max Torque | 13.0 lb-ft / 18 nm @ 6,400 rpm |
| Top Speed | n/a |
| Fuel Tank Capacity | 8 L / 2 US gallons |
| Weight (Wet/Kerb) | 132 kg / 291.1 lbs (ABS) 131 kg / 288.9 lbs (non ABS) 50 State Model 133 kg / 293.3 lbs (ABS) 132 kg / 291.1 lbs (non ABS) |
| Seat Height | 846 mm / 33.3 inches |
*n/a – information not provided by manufacturer
All Specifications
Make & Model

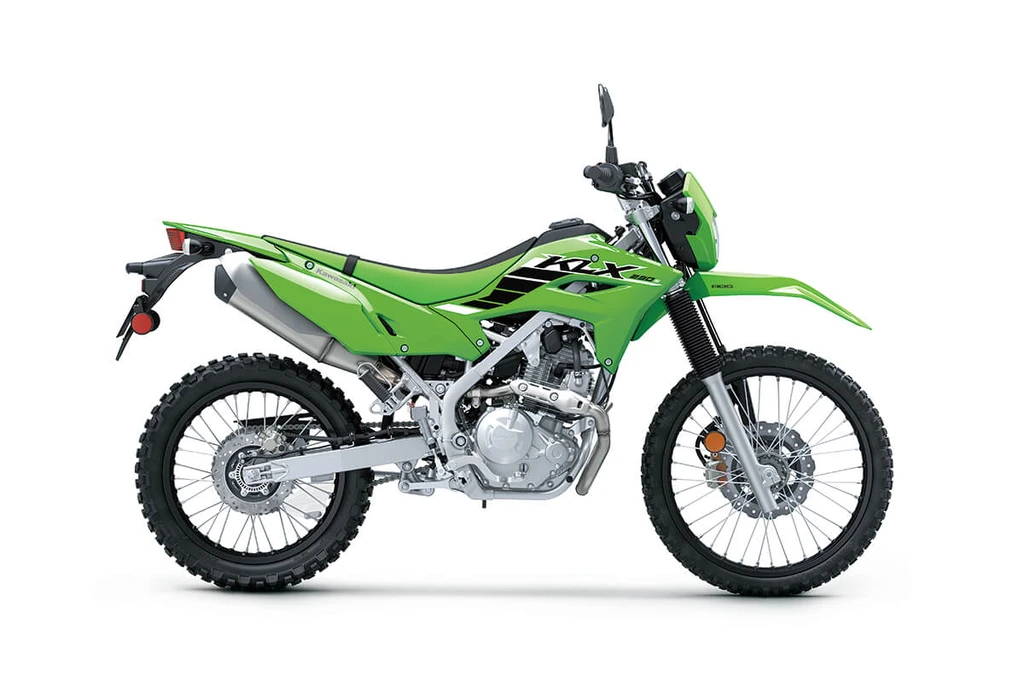

| Model | Kawasaki KLX 230 S |
| Year | 2025 |
Engine
| Engine Type | 4-stroke, single-cylinder, SOHC, air-cooled |
| Displacement | 233 cc / 14.2 cubic inches |
| Bore x Stroke | 67 x 66 mm |
| Compression Ratio | 9.4 : 1 |
| Number of Cylinders | 1 |
| Max Horsepower | n/a |
| Max Torque | 13.0 lb-ft / 18 nm @ 6,400 rpm |
| Engine Management System | DFI® with 32 mm Keihin throttle body |
| Cooling System | Air Cooled |
| Ignition System | TCBI with electronic advance |
Performance
| Top Speed | n/a |
*n/a – information not provided by manufacturer
Transmission
| Clutch | Wet multi-disc manual clutch |
| Gearbox | 6-speed |
| Final Drive | Chain |
Electrical & Electronics System
| Headlight Type | n/a |
| ABS | Yes |
Chassis & Suspension
| Frame Type | Perimeter, high-tensile steel |
| Front Suspension | 37 mm telescopic fork |
| Front Suspension Travel | 201 mm / 7.9 inches |
| Rear Suspension | Uni-Trak® linkage system and single shock with adjustable spring preload |
| Rear Suspension Travel | 224 mm / 8.8 inches |
| Rake | 24.6 ° |
| Trail | 97 mm / 3.8 inches |
Wheels & Brakes
| Wheels | Wire Spoke wheels |
| Front Tire Size | 2.75 x 21 |
| Rear Tire Size | 4.10 x 18 |
| Front Brakes | Single 240mm (265mm ABS Model) petal disc with a dual-piston caliper (and ABS) |
| Rear Brakes | Single 220mm petal disc with single-piston caliper (and ABS) |
Dimension & Weights
| Overall Length | 2080 mm / 81.9 inches |
| Overall Width | 846 mm / 33.3 inches |
| Overall Height | 1141 mm / 44.9 inches |
| Seat Height | 846 mm / 33.3 inches |
| Wheelbase | 1364 mm / 53.7 inches |
| Ground Clearance | 239 mm / 9.4 inches |
| Fuel Tank Capacity | 8 L / 2 US gallons |
| Wet (kerb/curb) Weight | 132 kg / 291.1 lbs (ABS) 131 kg / 288.9 lbs (non ABS) 50 State Model 133 kg / 293.3 lbs (ABS) 132 kg / 291.1 lbs (non ABS) |
Features
- ABS system with on/off function
- Long-travel suspension and ample ground clearance
- Smartphone connectivity via RIDEOLOGY THE APP
- KX™ inspired styling – shrouds, side covers, front fender, compact headlight cover, fuel tank, & gas cap
- Comfortable seat with 2-tone color
- Full-sized wheels
- LED headlight
Kawasaki KLX 230 S (2025) Color Options
- Lime Green
