Featuring confident handling, KLX®140R motorcycles are the ideal entry into off-road riding. The easy-to-ride KLX140R lineup offers a 144cc engine, plush suspension, and push button electric start, making for great trailblazers.
Key Specifications
Engine Type
4-stroke, single-cylinder, SOHC, air-cooled
Engine Capacity
144 cc / 9 cubic inches
Max Power
n/a
Max Torque
n/a
Top Speed
n/a
Fuel Tank Capacity
5.7 L / 1.5 US gallons
Weight (Wet/Kerb)
99 kg / 218.2 lbs
Seat Height
861 mm / 33.9 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Kawasaki KLX 140R F
Year
2025
Engine
Engine Type
4-stroke, single-cylinder, SOHC, air-cooled
Displacement
144 cc / 9 cubic inches
Bore x Stroke
58 x 54.4 mm
Compression Ratio
9.5 : 1
Number of Cylinders
1
Max Horsepower
n/a
Max Torque
n/a
Engine Management System
Keihin PB20 carburettor
Cooling System
Air Cooled
Ignition System
Digital DC-CDI
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc manual clutch
Gearbox
5-speed, return shift
Final Drive
Chain
Electrical & Electronics System
Headlight Type
n/a
Chassis & Suspension
Frame Type
High-tensile steel, box-section perimeter
Front Suspension
33 mm telescopic fork
Front Suspension Travel
191 mm / 7.5 inches
Rear Suspension
Uni-Trak® linkage system and single shock with piggyback reservoir, 20-way rebound damping and threaded preload adjustability
Rear Suspension Travel
201 mm / 7.9 inches
Rake
27 °
Trail
117 mm / 4.6 inches
Wheels & Brakes
Wheels
Wire Spoke wheels
Front Tire Size
2.75 x 21
Rear Tire Size
4.10 x 18
Front Brakes
Single 220mm petal disc with a dual-piston caliper
Rear Brakes
Single 186mm petal disc with single-piston caliper
Dimension & Weights
Overall Length
2004 mm / 78.9 inches
Overall Width
790 mm / 31.1 inches
Overall Height
1136 mm / 44.7 inches
Seat Height
861 mm / 33.9 inches
Wheelbase
1331 mm / 52.4 inches
Ground Clearance
315 mm / 12.4 inches
Fuel Tank Capacity
5.7 L / 1.5 US gallons
Wet (kerb/curb) Weight
99 kg / 218.2 lbs
Features
Full-size wheels (21-in front, 18-in rear) and 12.4-in ground clearance
Adjustable long-travel suspension

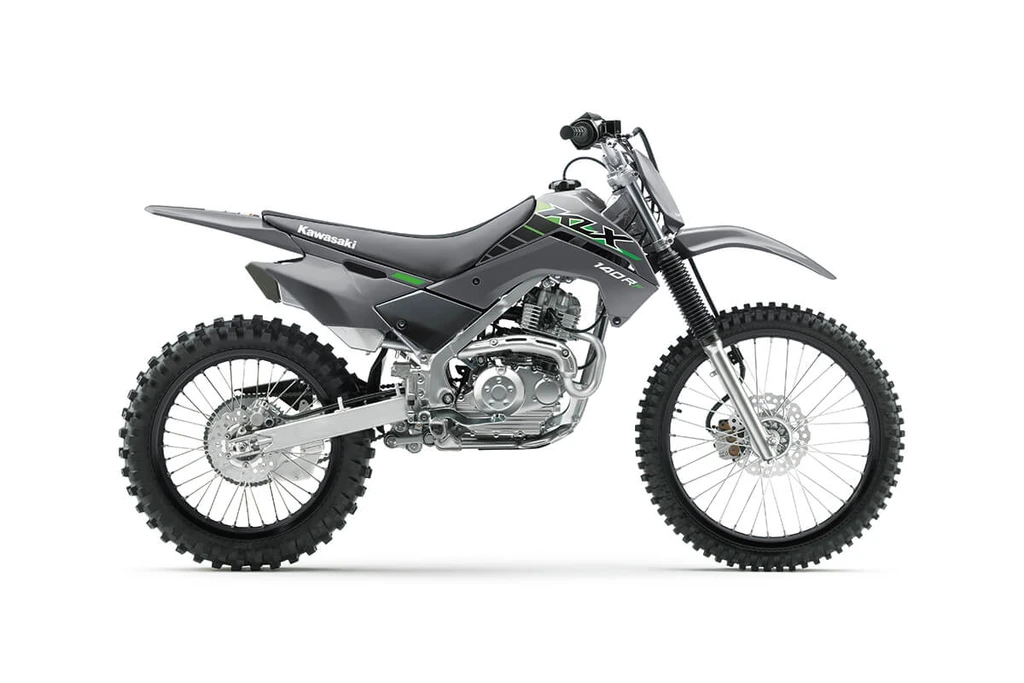

Kawasaki KLX 140R F (2025) Color Options
Lime Green
Battle Gray
