Whether it’s a friendly bike for beginners or the ultimate pitbike for more experienced riders, the KLX®110R and the slightly larger KLX®110R L off-road motorcycles are up for the task. The playful 112cc engine and compact chassis are versatile enough to handle fun for any young rider.
Key Specifications
Engine Type
4-stroke, single-cylinder, SOHC, air-cooled
Engine Capacity
112 cc / 6.8 cubic inches
Max Power
n/a
Max Torque
n/a
Top Speed
n/a
Fuel Tank Capacity
3.78 L / 1 US gallons
Weight (Wet/Kerb)
167.5 lbs / 76 kg
Seat Height
681 mm / 28.7 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Kawasaki KLX 110R L
Year
2026
Engine
Engine Type
4-stroke, single-cylinder, SOHC, air-cooled
Displacement
112 cc / 6.8 cubic inches
Bore x Stroke
53 x 50.6 mm
Compression Ratio
9.5 : 1
Number of Cylinders
1
Max Horsepower
n/a
Max Torque
n/a
Engine Management System
Keihin PB18 carburetor and screw type throttle limiter on grip housing
Cooling System
Air Cooled
Ignition System
DC-CDI
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet multi-disc manual clutch
Gearbox
4-speed, return shift
Final Drive
Chain
Electrical & Electronics System
Headlight Type
n/a
Chassis & Suspension
Frame Type
Backbone frame, high-tensile steel
Front Suspension
30mm hydraulic telescopic fork
Front Suspension Travel
140 mm / 5.5 inches
Rear Suspension
Swingarm with single hydraulic shock
Rear Suspension Travel
132 mm / 5.2 inches
Rake
24.2 °
Trail
48.2 mm / 1.9 inches
Wheels & Brakes
Wheels
Wire Spoke wheels
Front Tire Size
2.50 x 14
Rear Tire Size
3.00 x 12
Front Brakes
90mm mechanical drum, cable actuated
Rear Brakes
110mm mechanical drum, rod actuated
Dimension & Weights
Overall Length
1560 mm / 61.4 inches
Overall Width
650 mm / 25.6 inches
Overall Height
991 mm / 39 inches
Seat Height
681 mm / 28.7 inches
Wheelbase
1075 mm / 42.3 inches
Ground Clearance
264 mm / 10.4 inches
Fuel Tank Capacity
3.78 L / 1 US gallons
Wet (kerb/curb) Weight
167.5 lbs / 76 kg
Features
Tall seat height (28.7-in) and high ground clearance (10.4-in)
4-speed transmission with manual clutch
Kawasaki KLX 110R L (2026) Color Options

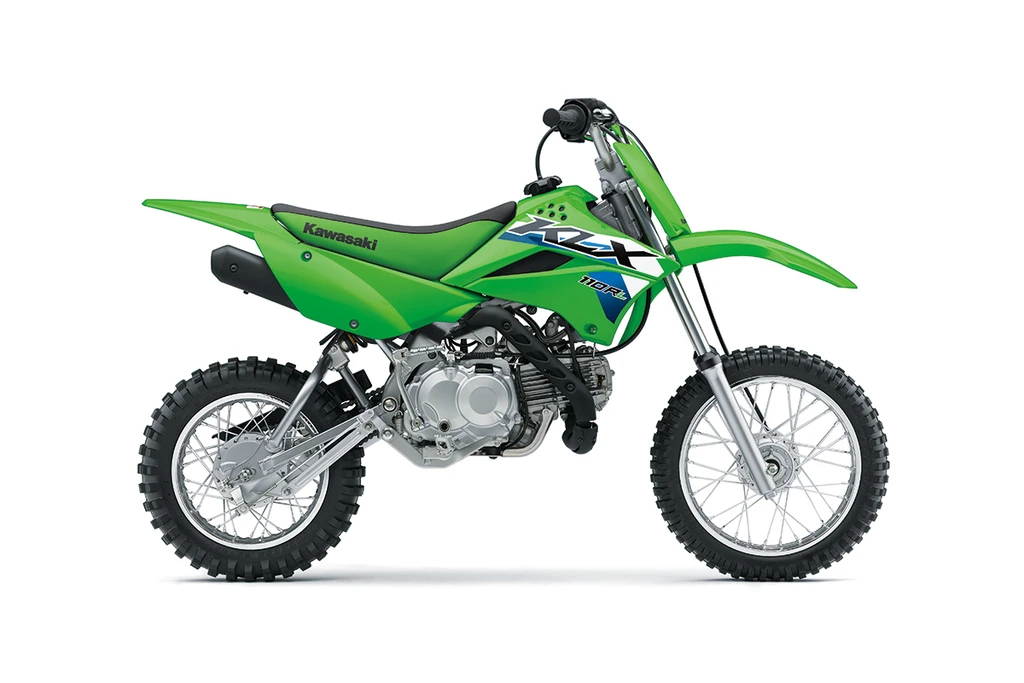

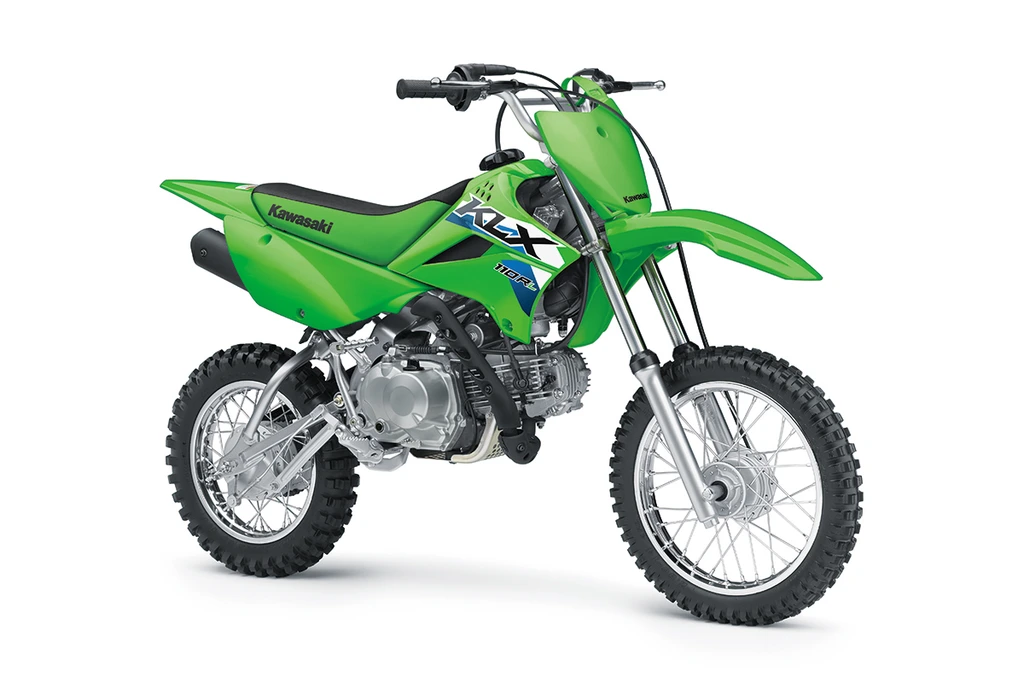

Lime Green

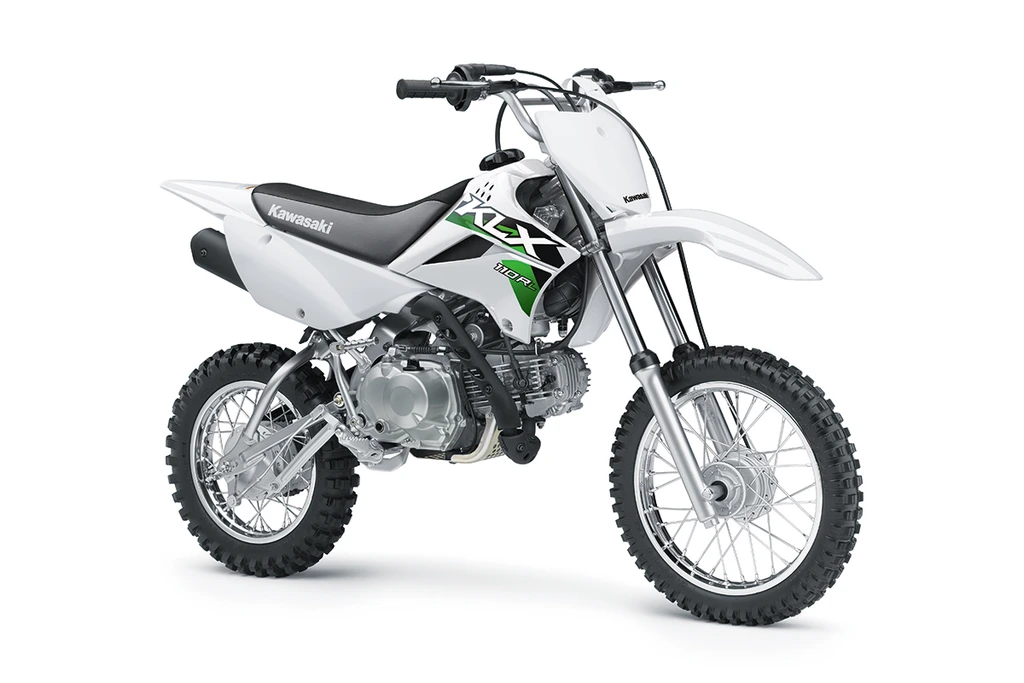

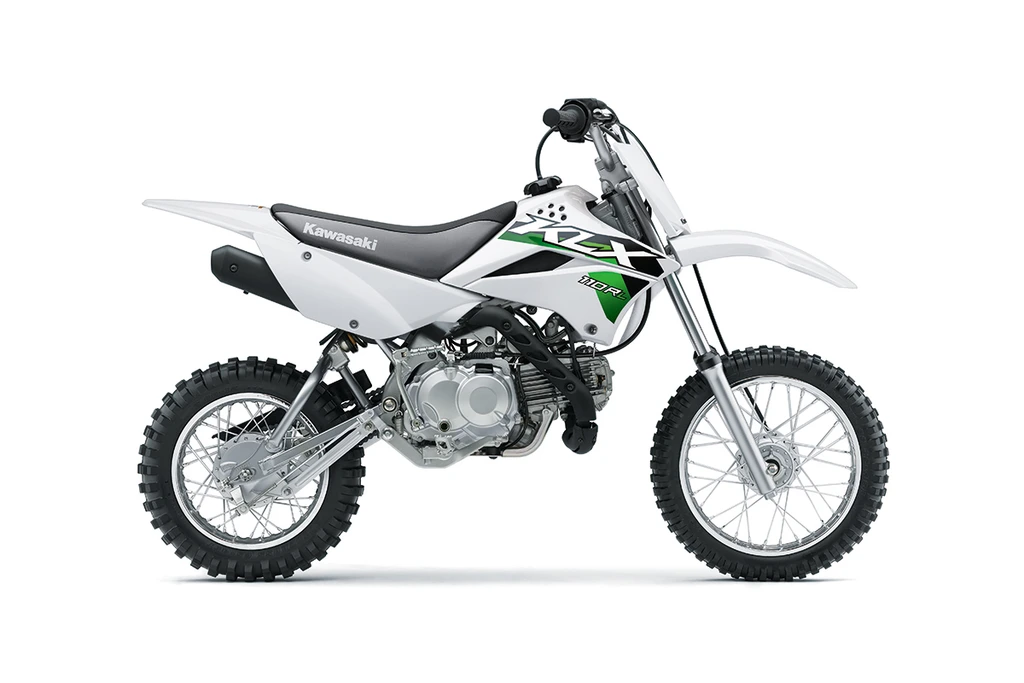

Bright White
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
