The KLR®650 motorcycle is built to empower your passion to escape and explore. Dual-purpose capability allows the journey to go on- and off-road, and a reputation for enduring reliability helps you focus on the adventure at hand. For decades, this legendary motorcycle has inspired countless stories from all over the world, and the spirit to make new memories continues to beckon today.
Key Specifications
Engine Type
4-stroke, single cylinder, DOHC
Engine Capacity
652 cc / 40 cubic inches
Max Power
n/a
Max Torque
39.1 lb-ft / 53 nm @ 4,500 rpm
Top Speed
n/a
Fuel Tank Capacity
23 L / 6.1 US gallons
Weight (Wet/Kerb)
487.1 lbs / 221 kg
Seat Height
871.2 mm / 34.3 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Kawasaki KLR 650 Adventure ABS
Year
2025
Engine
Engine Type
4-stroke, single cylinder, DOHC
Displacement
652 cc / 40 cubic inches
Bore x Stroke
100 x 83 mm
Compression Ratio
9.8 : 1
Number of Cylinders
1
Max Horsepower
n/a
Max Torque
39.1 lb-ft / 53 nm @ 4,500 rpm
Engine Management System
DFI® with 40mm throttle body
Lubrication System
Forced lubrication, semi‑dry sump
Cooling System
Liquid Cooled
Ignition System
CDI
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multi disc
Gearbox
5-speed, return shift with wet multi-disc manual clutch
Final Drive
Sealed chain
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Instrumentation
LCD instrument
ABS
Yes
Chassis & Suspension
Frame Type
Tubular, semi-double cradle
Front Suspension
41mm telescopic fork
Front Suspension Travel
201 mm / 7.9 inches
Rear Suspension
Uni-Trak® single shock with adjustable rebound damping and adjustable spring preload
Rear Suspension Travel
203.2 mm / 8 inches
Rake
30 °
Trail
122 mm / 4.8 inches
Wheels & Brakes
Wheels
Wire Spoke wheels
Front Tire Size
90/90-21
Rear Tire Size
130/80-17
Front Brakes
Single 300mm disc with 2-piston calipers (and ABS)
Rear Brakes
Single 240mm disc with single-piston caliper (and ABS)
Dimension & Weights
Overall Length
2281 mm / 89.8 inches
Overall Width
971 mm / 38.2 inches
Overall Height
1456 mm / 57.3 inches (windscreen High position) 1420 mm / 55.9 inches (windscreen Low position)
Seat Height
871.2 mm / 34.3 inches
Wheelbase
1540 mm / 60.6 inches
Ground Clearance
211 mm / 8.3 inches
Fuel Tank Capacity
23 L / 6.1 US gallons
Wet (kerb/curb) Weight
487.1 lbs / 221 kg
Features
ABS
Bright LED headlight
Side Cases (optional 1-key System)
Fog Lamps
Frame Sliders
Tank Pad
DC socket and optional USB socket
Kawasaki KLR 650 Adventure ABS (2025) Color Options

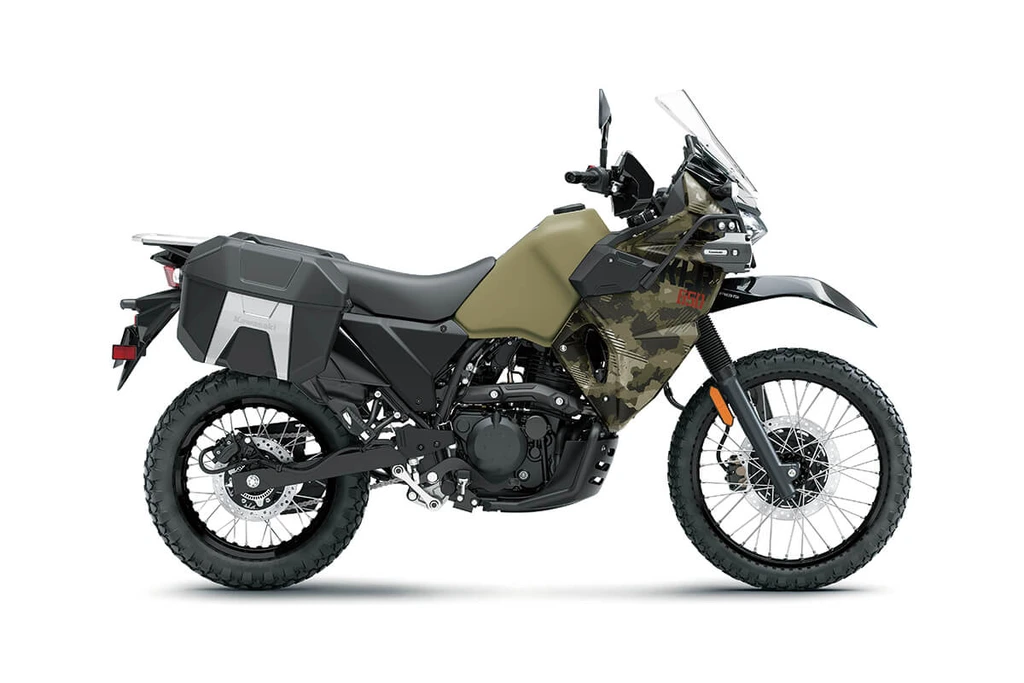

Cypher Camo Beige/Metallic Matte Carbon Gray

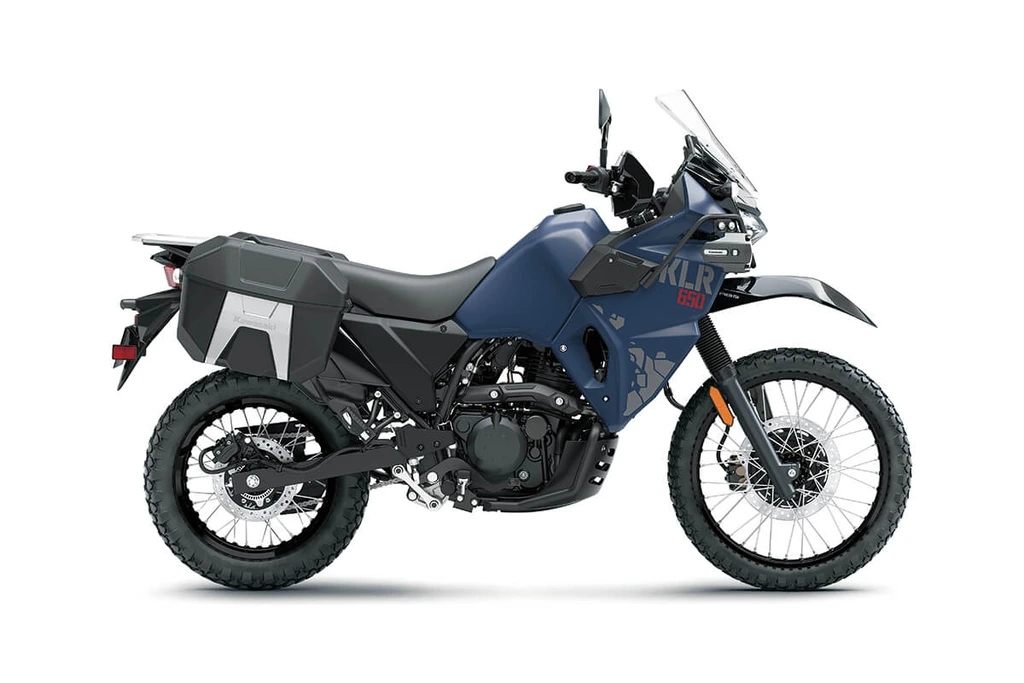

Metallic Matte Twilight Blue
