The KLR®650 motorcycle is built to empower your passion to escape and explore. Dual-purpose capability allows the journey to go on- and off-road, and a reputation for enduring reliability helps you focus on the adventure at hand. For decades, this legendary motorcycle has inspired countless stories from all over the world, and the spirit to make new memories continues to beckon today.
Key Specifications
Engine Type
4-stroke, single cylinder, DOHC
Engine Capacity
652 cc / 40 cubic inches
Max Power
n/a
Max Torque
39.1 lb-ft / 53 nm @ 4,500 rpm
Top Speed
n/a
Fuel Tank Capacity
23 L / 6.1 US gallons
Weight (Wet/Kerb)
460.6 lbs / 209 kg (ABS) 456.2 lbs / 207 kg (non ABS)
Seat Height
871 mm / 34.3 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Kawasaki KLR 650
Year
2025
Engine
Engine Type
4-stroke, single cylinder, DOHC
Displacement
652 cc / 40 cubic inches
Bore x Stroke
100 x 83 mm
Compression Ratio
9.8 : 1
Number of Cylinders
1
Max Horsepower
n/a
Max Torque
39.1 lb-ft / 53 nm @ 4,500 rpm
Engine Management System
DFI® with 40mm throttle body
Lubrication System
Forced lubrication, semi‑dry sump
Cooling System
Liquid Cooled
Ignition System
CDI
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multi disc
Gearbox
5-speed, return shift with wet multi-disc manual clutch
Final Drive
Sealed chain
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Instrumentation
LCD instrument
ABS
Yes
Chassis & Suspension
Frame Type
Tubular, semi-double cradle
Front Suspension
41mm telescopic fork
Front Suspension Travel
201 mm / 7.9 inches
Rear Suspension
Uni-Trak® single shock with adjustable rebound damping and adjustable spring preload
Rear Suspension Travel
203.2 mm / 8 inches
Rake
30 °
Trail
122 mm / 4.8 inches
Wheels & Brakes
Wheels
Wire Spoke wheels
Front Tire Size
90/90-21
Rear Tire Size
130/80-17
Front Brakes
Single 300mm disc with 2-piston calipers (and ABS)
Rear Brakes
Single 240mm disc with single-piston caliper (and ABS)
Dimension & Weights
Overall Length
2281 mm / 89.8 inches
Overall Width
971 mm / 38.2 inches
Overall Height
1466 mm / 57.7 inches (windscreen High position) 1430 mm / 56.3 inches (windscreen Low position)
Seat Height
871 mm / 34.3 inches
Wheelbase
1540 mm / 60.6 inches
Ground Clearance
211 mm / 8.3 inches
Fuel Tank Capacity
23 L / 6.1 US gallons
Wet (kerb/curb) Weight
460.6 lbs / 209 kg (ABS) 456.2 lbs / 207 kg (non ABS)
Features
ABS
Tall 2-position adjustable windshield
Large aluminum rear carrier
Generous generator capacity
Bright LED headlight

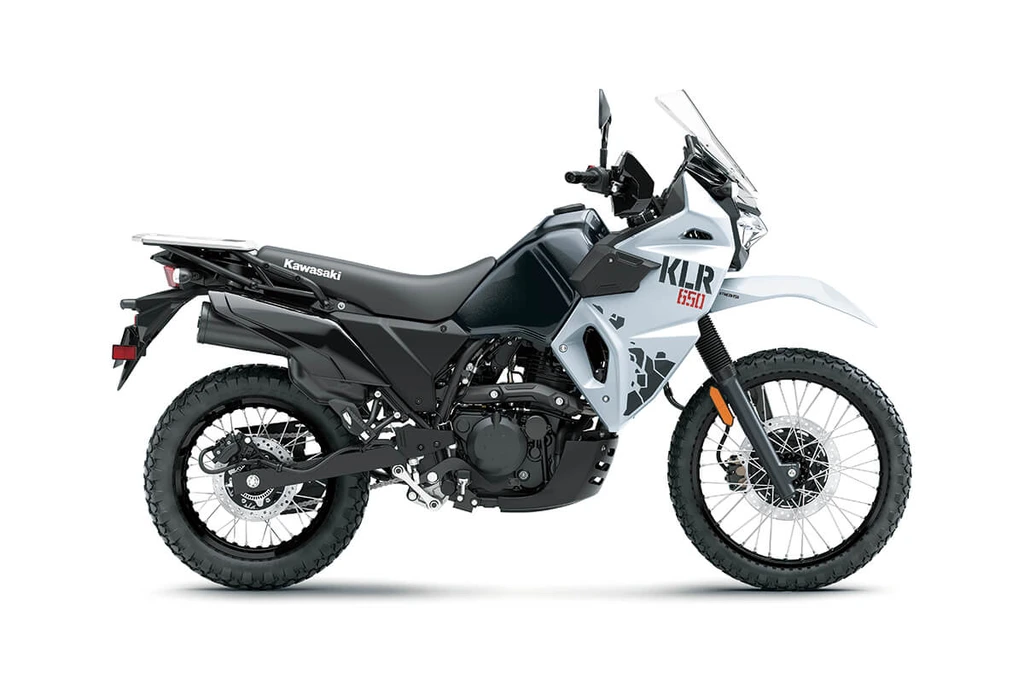

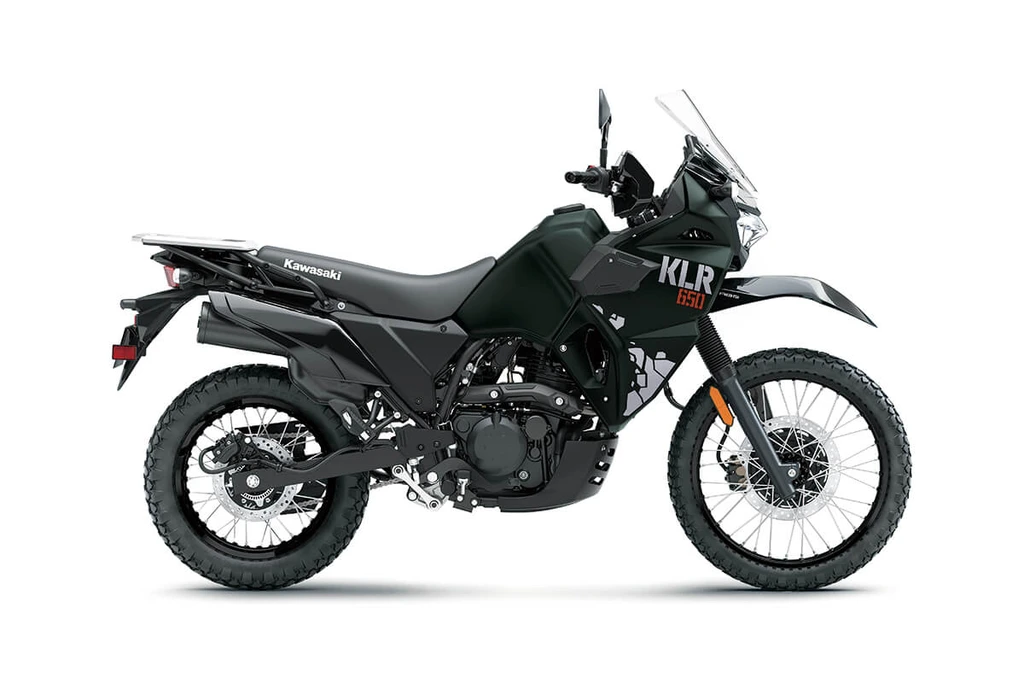

Kawasaki KLR 650 (2025) Color Options
Metallic Matte Old School Green
Pearl Crystal White/Metallic Carbon Gray
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
