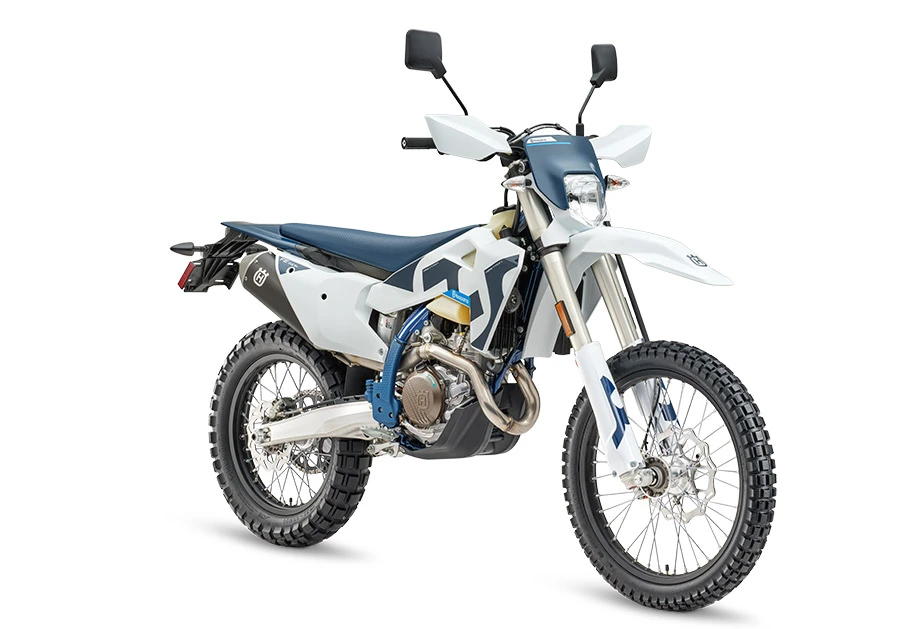

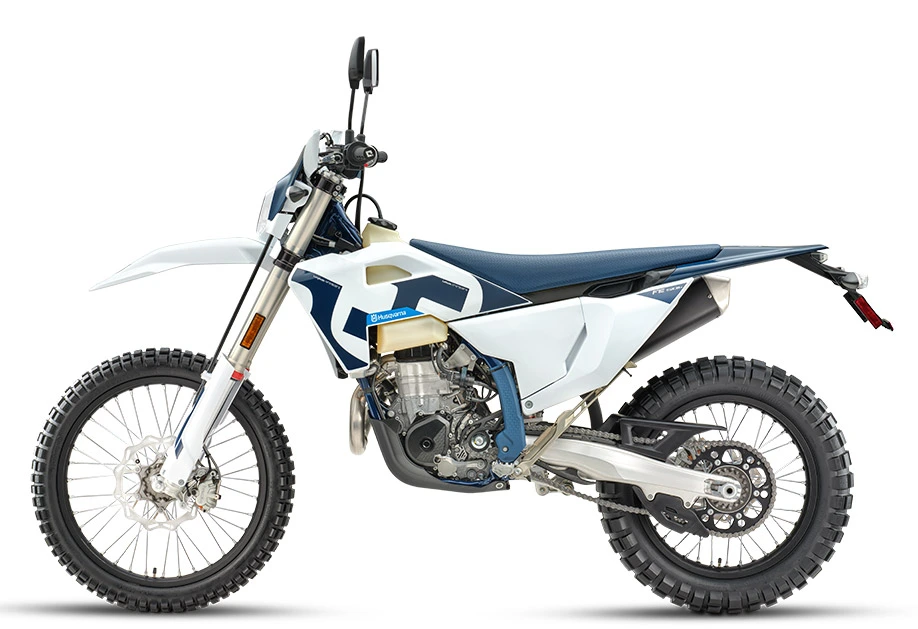

The latest technology and premium components ensure the FE 501s offers a riding experience like nothing else. Advanced electronics tame the most powerful machine in the dual-sport line-up with the FE 501s delivering a broad spread of controllable power. Inside the engine, the shaft arrangements are positioned at the ideal centre of gravity to vastly benefit manoeuvrability, which is complemented further by the perfectly balanced chassis and WP XACT suspension. Expertly assembled with high-quality components throughout, the FE 501s is finished with functional bodywork adorned with new graphics inspired by the Swedish heritage of the brand.
Key Specifications
Engine Type
1-cylinder, 4-stroke engine
Engine Capacity
31.2 cubic inches / 511 cc
Fuel Tank Capacity
2.0 US gallons / 8 L
Weight (Wet/Kerb)
268.1 lbs / 121.6 kg
Seat Height
Standard position – 37.5 inches / 952 mm
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Husqvarna FE 501s
Year
2026
Engine
Engine Type
1-cylinder, 4-stroke engine
Displacement
31.2 cubic inches / 511 cc
Bore x Stroke
95 x 72 mm
Compression Ratio
12.75 : 1
Number of Cylinders
1
Engine Management System
Keihin EMS
Fuel-mixture System
Keihin EFI, throttle body 42 mm
Cooling System
Liquid cooled
Exhaust System
Aluminium
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Gearbox
6-speed
Primary Drive Ratio
29:72
Secondary Drive Ratio
14:48
Final Drive
520 X-Ring
Electrical & Electronics System
Battery
12V 2 Ah
Starter
Electric starter
Headlight Type
LED
Taillight Type
LED
Chassis & Suspension
Frame Type
Central double-cradle-type 25CrMo4 steel
Front Suspension
WP XACT cartridge Ø 48 mm
Front Suspension Travel
11.81 inches / 300 mm
Rear Suspension
WP XACT Monoshock with linkage
Rear Suspension Travel
11.81 inches / 300 mm
Rake
63.9 °
Handlebar
Pro Taper, Aluminium Ø 28/22 mm
Wheels & Brakes
Wheels
Spoked wheels with aluminium rims
Front Wheel/Rim Size
1.60 x 21 inch
Front Tire Size
90/90
Rear Wheel/Rim Size
2.15 x 18 inch
Rear Tire Size
140/90
Dimension & Weights
Seat Height
Standard position – 37.5 inches / 952 mm
Wheelbase
58.62 inches / 1489 mm
Ground Clearance
13.50 inches / 343 mm
Fuel Tank Capacity
2.0 US gallons / 8 L
Wet (kerb/curb) Weight
268.1 lbs / 121.6 kg
