Ride free. Ride effortless. The Rebel 500 is back with more comfort, more control, and the same rebellious spirit. A new seat, bars, and rear suspension elevate every ride while fresh colors—Matte Black Metallic, Pearl Blue, and Pearl Beige—make it yours. Twist the throttle and chase the freedom you’ve always dreamed of.
Key Specifications
Engine Type
Liquid-cooled parallel-twin four-stroke
Engine Capacity
471 cc / 29 cubic inches
Max Power
34 kw / 45.6 hp @ 8,500 rpm
Max Torque
32 lb-ft / 43.3 nm @ 6,000 rpm
Top Speed
n/a
Fuel Tank Capacity
11.3 L / 3 US gallons
Weight (Wet/Kerb)
419 lbs / 190 kg
Seat Height
691 mm / 27.2 inches
*n/a – information not provided by manufacturer
All Specifications
Make & Model
Model
Honda Rebel 500 ABS SE (CMX500A2)
Year
2025
Engine
Engine Type
Liquid-cooled parallel-twin four-stroke
Displacement
471 cc / 29 cubic inches
Bore x Stroke
67 x 66.8 mm
Compression Ratio
10.7 : 1
Number of Cylinders
2
Max Horsepower
34 kw / 45.6 hp @ 8,500 rpm
Max Torque
32 lb-ft / 43.3 nm @ 6,000 rpm
Valve Train
DOHC; four valves per cylinder
Valves per Cylinder
4
Engine Management System
Programmed Fuel Injection system (PGM-FI); 34.0mm throttle body
Cooling System
Liquid Cooled
Emissions Compliance
Euro 5
Performance
Top Speed
n/a
*n/a – information not provided by manufacturer
Transmission
Clutch
Wet, multiplate Assisted SLipper clutch
Gearbox
Six-speed manual with slipper clutch
Final Drive
O-ring-sealed chain; 15T/40T
Electrical & Electronics System
Headlight Type
LED
Taillight Type
LED
Instrumentation
Digital
ABS
ABS
Chassis & Suspension
Frame Type
Semi Double Cradle, Steel
Front Suspension
41.0 mm telescopic fork with adjustable spring preload
Front Suspension Travel
140 mm / 5.5 inches
Rear Suspension
Show with Pro-Link suspension
Rear Suspension Travel
94 mm / 3.7 inches
Rake
28 °
Trail
110 mm / 4.3 inches
Wheels & Brakes
Wheels
Cast Aluminum wheels
Front Tire Size
130/90-16
Rear Tire Size
150/80-16
Front Brakes
Single 296.0mm disc, ABS
Rear Brakes
Single 240.0mm disc, ABS
ABS
ABS
Dimension & Weights
Overall Length
2205 mm / 86.7 inches
Overall Width
820 mm / 32.3 inches
Overall Height
1090 mm / 43 inches
Seat Height
691 mm / 27.2 inches
Wheelbase
1490 mm / 58.6 inches
Ground Clearance
125 mm / 5 inches
Fuel Tank Capacity
11.3 L / 3 US gallons
Wet (kerb/curb) Weight
419 lbs / 190 kg
Features
Sporty engine
Front and rear disc brakes with ABS
Standard on 500 ABS and Special Edition trims
Wide fork
Revised rear suspension
Custom spring rates
Redesigned internals for increased bottoming resistance
Big tires
Cast aluminum wheels
Exceptional handling
Slipper clutch
30% reduced clutch effort
Die-cast aluminum subframe
Fuel tank
Teardrop shape
Blacked-out style
Limited-edition 500 ABS SE
Brown diamond-stitch seat
Black fork boots
Color-matched headlight cowl
All-black exhaust
Classic round headlight
Restyled fenders
Color-matched
Designed for greater strength
Low seat height (27.2 inches)
Roomy rider triangle
Narrow width
Passenger seat and footpeg kit
Removable seat rails
Optional passenger seat and rear footpegs
More comfortable seat
New handlebars
Accessories (22 different genuine Honda accessories available)
All-LED lighting package
Redesigned instrument cluster
Honda Rebel 500 ABS SE (2025) Color Options

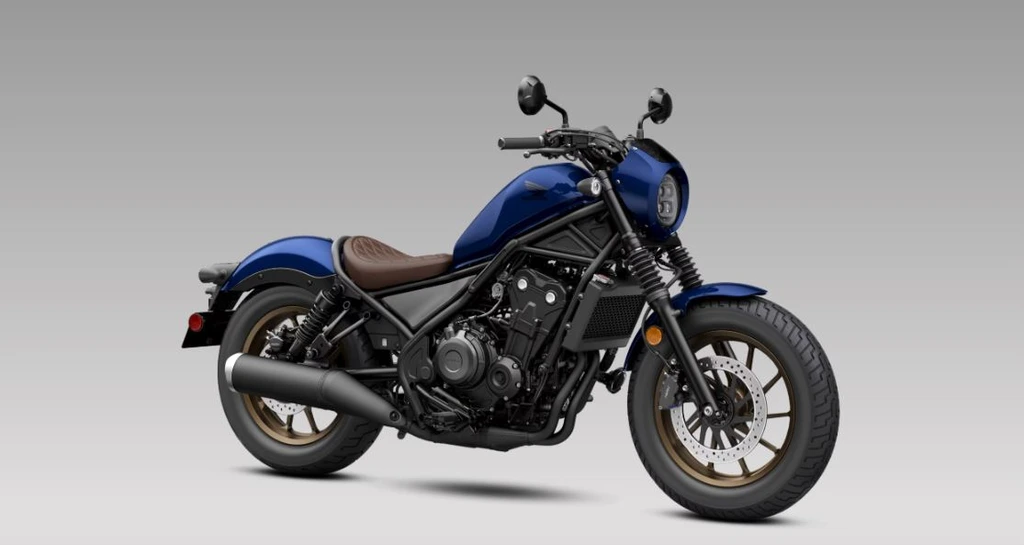

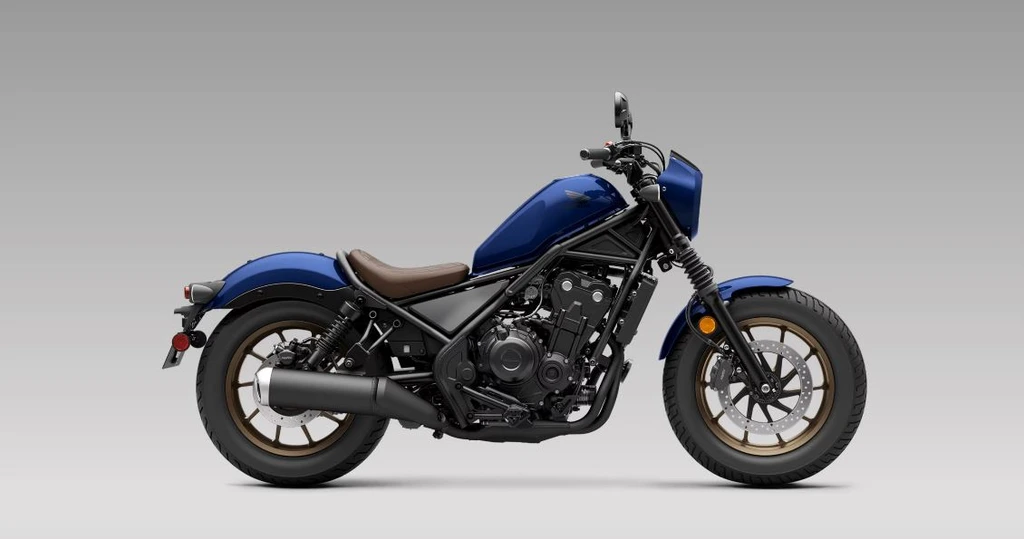

Pearl Blue (US)

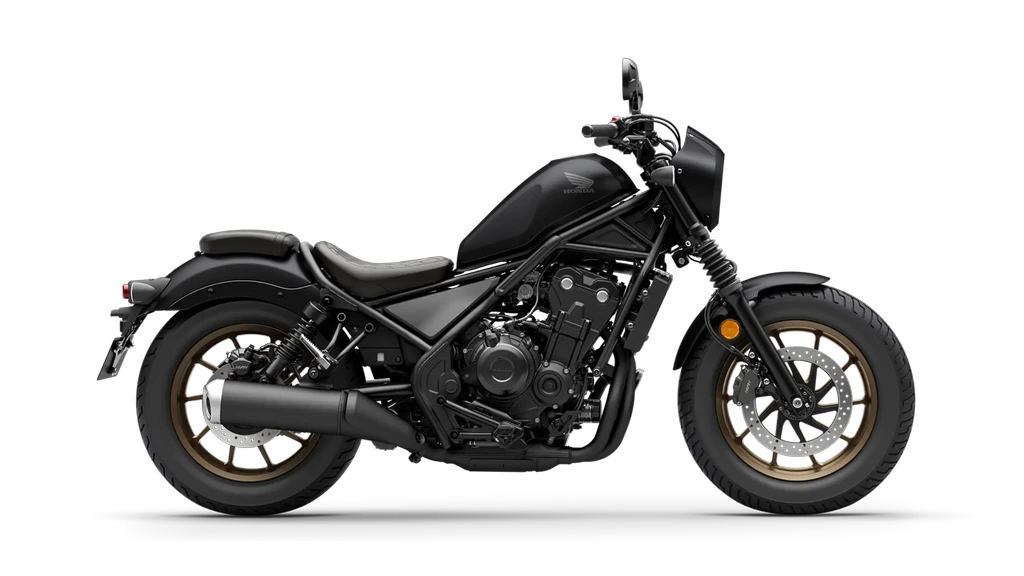

Matte Gunpowder Black Metallic (Europe)

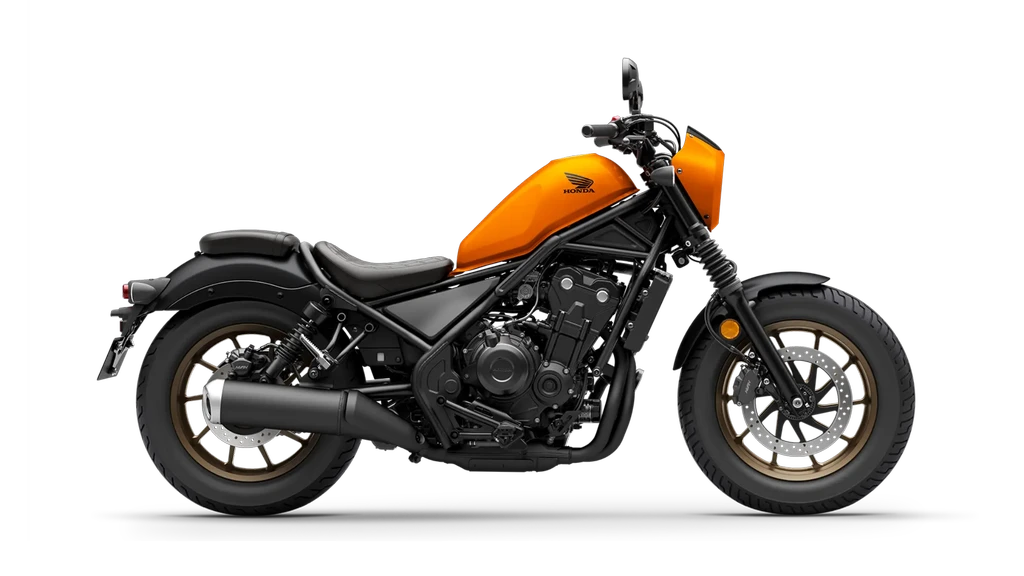

Candy Energy Orange (Europe)
*We strive to provide the most comprehensive and accurate specifications possible. However, certain details may not be available if the manufacturer did not disclose them or if the information is no longer publicly accessible. If you find any discrepancy with any data on this site, please feel free to let us know at contact@throttlecraze.com
